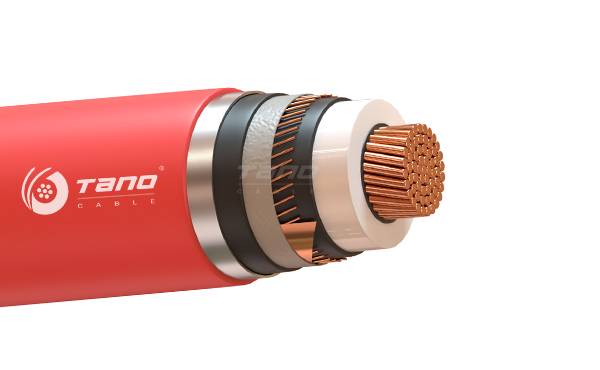

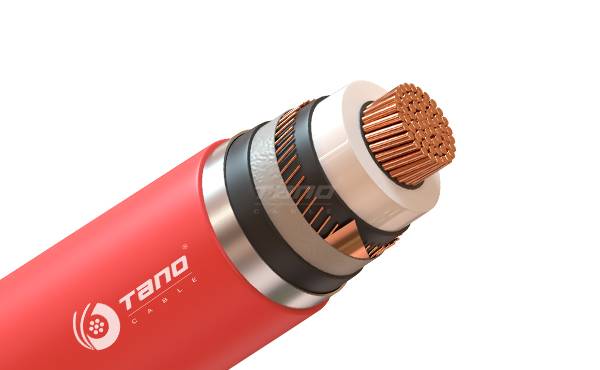

19/33(36kV)XLPE INSULATED POWER CABLE

Inquire Now
Overview
APPLICATION

For installation in ground, outdoors, indoors and in cable ducts for power station, industry and distribution networks.

STANDARD

AS/NZS 1429.1

VOLTAGE

19/33kV
DOWNLOAD
CABLE DATASHEET
19/33(36kV)
AS/NZS 1429.1
POWER STATION
DISTRIBUTION NETWORKS
INDUSTRIAL USE
BY COLOR STRIPE
BY NUMBER
Specifications
ELECTRICAL PERFORMANCE
19/33(36kV)
STANDARD
AS/NZS 1429.1
APPLICATION
POWER STATION
DISTRIBUTION NETWORKS
INDUSTRIAL USE
CORE IDENTIFICATION
BY COLOR STRIPE
BY NUMBER
CHEMICAL PERFORMANCE
Chemical & Oil resistance:Good
MECHANICAL PERFORMANCE
Minimum bending radius:x10 cable diameter(unarmoured)
Minimum bending radius:x20 cable diameter(armoured)
FIRE PERFORMANCE
Flame non-propagation base on IEC 60332-1
Reduced emission of halogens chlorine<15%
THERMINAL PERFORMANCE
Maximum service temperature:90℃
Maximum short-circuit temperature:160℃(max. 5s)
Minimum service temperature:-40℃
Other Properties
APPROVALS
N/A
INSTALLATION CONDITIONS
OPEN AIR
BURIED
IN CONDUIT
CABLE MARKING
OIL INK PRINTING
EMBOSSING PRINTING
PACKAGING
BY WOODEN OR STEEL-WOODEN OR FULL STEEL REEL/DRUM

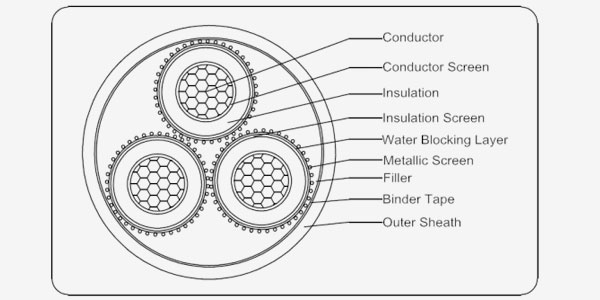

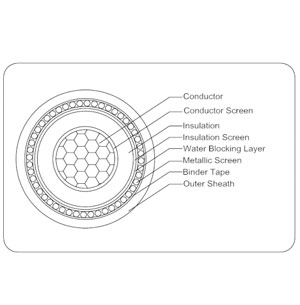

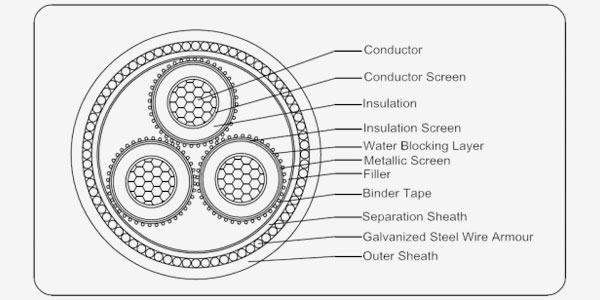

CONSTRUCTION
1. Conductor

Circular stranded, compacted copper conductor or aluminum conductor, class 2

2. Conductor Screen

Semi-conductive Compound

3. Insulation

XLPE (Cross-linked polyethylene)

4. Insulation Screen

Semi-conductive Compound

5. Water Blocking Layer

Semi-conductive Water-blocking Tape

6. Metallic Screen

Copper Wire

7. Filler (only for multi core cable)

Non-hygroscopic

8. Binder Tape

Non-woven fabric

9. Separation Sheath(for armoured cables)

PVC (Polyvinyl chloride)

10. Armour

Three cores: Galvanized Steel Wire(SWA)

11. Outer Sheath

PVC (Polyvinyl chloride), PE( Polyethylene), LSZH(Low Smoke Zero Halogen)


PARAMETER

Table 1
Table 2
Table 3
Table 4
Table 5
Table 6
19/33kV Single Core XLPE Insulated, Screened & PVC Sheathed (Copper Conductor)
Copper Conductors, up to 10kA Fault Level
Nominal Conductor
Area
Nominal Conductor
Dia.
Nominal Insulation
Thickness
Nominal Dia.
over Insulation
Nominal Screen
Area on Each
Core
No.and Nominal
Dia.of Screen
Wires
Nominal Dia.
Over Wire
Screen
Nominal Overall
Dia.
Approx.
Weight
mm2 mm mm mm mm2 no/mm mm mm kg/km
50 8.0  8.0  25.5  48.7 34/1.35 29.8 34.3 1700
70 9.6  8.0  27.1  68.7 48/1.35 31.4 36.1 2150
95 11.5  8.0  29.0  68.7 48/1.35 33.3 38.0  2450
120 13.1  8.0  30.6  68.7 48/1.35 34.9 39.8 2800
150 14.5  8.0  32.0  68.7 48/1.35 36.5 41.4 3100
185 16.1  8.0  33.6  68.7 48/1.35 38.1 43.2 3450
240 18.5  8.0  36.0  68.7 48/1.35 40.5 45.9 4100
300 20.7  8.0  38.4  68.7 48/1.35 42.9 48.4 4750
400 23.6  8.0  41.3  68.7 48/1.35 45.8 51.5 5750
500 26.5  8.0  44.2  68.7 48/1.35 48.7 54.9 6850
630 29.9  8.0  47.9  68.7 48/1.35 52.4 58.8 8150
800 35.9  8.0  54.0  68.7 48/1.35 58.5 65.3 10200
1000 40.2  8.0  59.5  68.7 48/1.35 64.0  71.0  12200
1200 43.8  8.0  63.5  68.7 48/1.35 68.0  75.2 14200
Expand More
19/33kV Single Core XLPE Insulated, Screened & PVC Sheathed (Aluminum Conductor)
Aluminium Conductors, up to 10kA Fault Level
Nominal Conductor
Area
Nominal Conductor
Dia.
Nominal Insulation
Thickness
Nominal Dia.
over Insulation
Nominal Screen
Area on Each
Core
No.and Nominal
Dia.of Screen
Wires
Nominal Dia. over
Wire Screen
Nominal Overall
Dia.
Approx.
Weight
mm2 mm mm mm mm2 no/mm mm mm kg/km
50 8.1  8.0  25.6  32.9 23/1.35 29.9 34.4 1250
70 9.6  8.0  27.2  45.8 32/1.35 31.5 36.2 1500
95 11.4  8.0  28.9  61.5 43/1.35 33.2 37.9 1800
120 12.8  8.0  30.3  68.7 48/1.35 34.6 39.5 2000
150 14.2  8.0  31.7  68.7 48/1.35 36.2 41.1 2150
185 15.7  8.0  33.2  68.7 48/1.35 37.7 42.8 2300
240 18.0  8.0  35.5  68.7 48/1.35 40.0  45.1 2550
300 20.1  8.0  37.8  68.7 48/1.35 42.3 47.8 2850
400 23.0  8.0  40.7  68.7 48/1.35 45.2 50.9 3200
500 26.5  8.0  44.2  68.7 48/1.35 48.7 54.6 3700
630 29.9  8.0  48.0  68.7 48/1.35 52.5 58.6 4300
800 34.2  8.0  52.3  68.7 48/1.35 56.8 63.4 5000
1000 40.2  8.0  59.5  68.7 48/1.35 64.0  70.8 6000
1200 43.8  8.0  63.5  68.7 48/1.35 68.0  75.0  6800
Expand More
19/33kV Three Core XLPE  Insulated, Screened & PVC Sheathed (Copper Conductor)
Copper Conductors, up to 10kA Fault Level
Nominal Conductor
Area
Nominal Conductor
Dia.
Nominal Insulation
Thickness
Nominal Dia.
over Insulation
Nominal Screen
Area on Each
Core
No.and Nominal
Dia.of Screen
Wires
Nominal Dia.
over Wire
Screen
Nominal Overall
Dia.
Approx.
Weight
mm mm mm mm mm no/mm mm mm kg/km
50 8.0  8.0  25.5  49.4 29/0.85 28.8 69.4 4600
70 9.6  8.0  27.1  68.1 40/0.85 30.4 73.0  5600
95 11.5  8.0  29.0  68.1 40/0.85 32.3 77.3 6650
120 13.1  8.0  30.6  68.1 40/0.85 33.9 81.1 7650
150 14.5  8.0  32.0  68.1 40/0.85 35.5 84.8 8750
185 16.1  8.0  33.6  68.1 40/0.85 37.1 88.4 9900
240 18.5  8.0  36.0  68.1 40/0.85 39.5 94.1 11900
300 20.7  8.0  38.4  68.1 40/0.85 41.9 99.4 14100
400 23.6  8.0  41.3  68.1 40/0.85 44.8 106.2 17300
500 26.5  8.0  44.2  68.1 40/0.85 47.7 112.9 20700
Expand More
19/33kV Three Core XLPE  Insulated, Screened & PVC Sheathed (Aluminum Conductor)
Aluminium Conductors, up to 10kA Fault Level
Nominal Conductor
Area
Nominal Conductor
Dia.
Nominal Insulation
Thickness
Nominal Dia.
over Insulation
Nominal Screen
Area on Each
Core
No.and Nominal
Dia.of Screen
Wires
Nominal Dia.
over Wire
Screen
Nominal Overall
Dia.
Approx.
Weight
mm2 mm mm mm mm2 no/mm mm mm kg/km
50 8.1  8.0  25.6  32.3  19/0.85 28.9 69.5 3550
70 9.6  8.0  27.2  46.0  27/0.85 30.5 73.1 4150
95 11.4  8.0  28.9  61.3  36/0.85 32.2 77.0  4800
120 12.8  8.0  30.3  68.1  40/0.85 33.6 80.2 5250
150 14.2  8.0  31.7  68.1  40/0.85 35.2 83.9 5800
185 15.7  8.0  33.2  68.1  40/0.85 36.7 87.3 6350
240 18.0  8.0  35.5  68.1  40/0.85 39.0  92.9 7300
300 20.1  8.0  37.8  68.1  40/0.85 41.3 98.1 8200
400 23.0  8.0  40.7  68.1  40/0.85 44.2 104.8 9550
500 26.5  8.0  44.2  68.1  40/0.85 47.7 112.9 11200
Expand More
19/33kV Three Core XLPE Insulted, Screened PVC/SWA/PVC Sheathed(Copper Conductor)
Copper Conductors, up to 10kA Fault Level
Nominal
Conductor
Area
Nominal
Conductor
Dia.
Nominal
Insulation
Thickness
Nominal Dia.
over Insulation
Nominal Screen
Area on Each
Core
No.and Nominal
Dia.of Screen
Wires
Nominal Wire
Dia.over
Screen
Nominal
Dia.
Armour
Bedding
Nominal Armour
Wire Dia.
Nominal Dia.
over Armour
Nominal
Overall
Dia.
Approx.
mass
mm2 mm mm mm mm2 no/mm mm mm mm mm mm kg/km
50 8.0  8.0  25.5  49.4 29/0.85 28.8 66.5 3.15 72.8  80.1  9500
70 9.6  8.0  27.1  68.1 40/0.85 30.4 70.2 3.15 76.5  83.9  10800
95 11.5  8.0  29.0  68.1 40/0.85 32.3 74.2 3.15 80.5  88.2  12200
120 13.1  8.0  30.6  68.1 40/0.85 33.9 78.0  3.15 84.3  92.1  13400
150 14.5  8.0  32.0  68.1 40/0.85 35.5 81.7 3.15 88.0  96.0  14900
185 16.1  8.0  33.6  68.1 40/0.85 37.1 85.2 3.15 91.5  99.9  16300
240 18.5  8.0  36.0  68.1 40/0.85 39.5 90.6 3.15 96.9  105.6  18800
300 20.7  8.0  38.4  68.1 40/0.85 41.9 95.9 3.15 102.2  111.3  21400
400 23.6  8.0  41.3  68.1 40/0.85 44.8 102.4 3.15 108.7  118.1  25100
500 26.5  8.0  44.2  68.1 40/0.85 47.7 109 3.15 115.3  125.2  29000
Expand More
19/33kV Three Core XLPE Insulted, Screened PVC/SWA/PVC Sheathed(Aluminum Conductor)
Aluminum Conductors, up to 10kA Fault Level
Nominal
Conductor
Area
Nominal
Conductor
Dia.
Nominal
Insulation
Thickness
Nominal Dia.
over Insulation
Nominal Screen
Area on Each
Core
No.and Nominal
Dia.of Screen
Wires
Nominal Wire
Dia. over
Screen
Nominal
Dia.
Armour
Bedding
Nominal Armour
Wire Dia.
Nominal Dia.
over Armour
Nominal
Overall
Dia.
Approx.
mass
mm2 mm mm mm mm2 no/mm mm mm mm mm mm kg/km
50 8.1  8.0  25.6  32.3  19/0.85 28.9  66.6  3.15 72.9  80.2  8500
70 9.6  8.0  27.2  46.0  27/0.85 30.5  70.3  3.15 76.6  84.0  9350
95 11.4  8.0  28.9  61.3  36/0.85 32.2  74.0  3.15 80.3  87.9  10300
120 12.8  8.0  30.3  68.1  40/0.85 33.6  77.2  3.15 83.5  91.3  11000
150 14.2  8.0  31.7  68.1  40/0.85 35.2  80.9  3.15 87.2  95.2  11900
185 15.7  8.0  33.2  68.1  40/0.85 36.7  84.1  3.15 90.4  98.8  12700
240 18.0  8.0  35.5  68.1  40/0.85 39.0  89.4  3.15 95.7  104.4  14000
300 20.1  8.0  37.8  68.1  40/0.85 41.3  94.6  3.15 100.9  110.0  15400
400 23.0  8.0  40.7  68.1  40/0.85 44.2  101.0  3.15 107.3  116.7  17200
500 26.5  8.0  44.2  68.1  40/0.85 47.7  109.0  3.15 115.3  125.2  19600
Expand More
