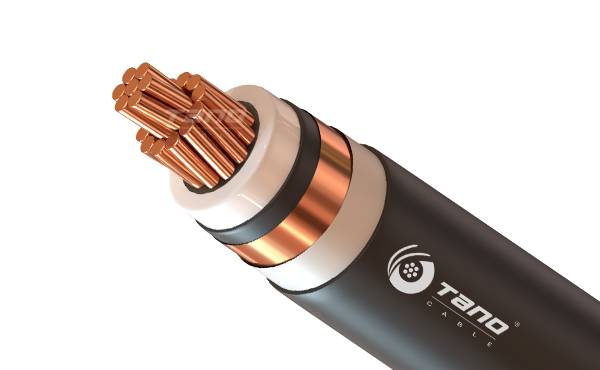

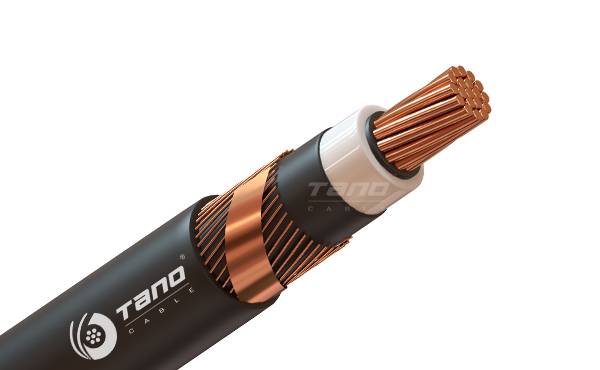

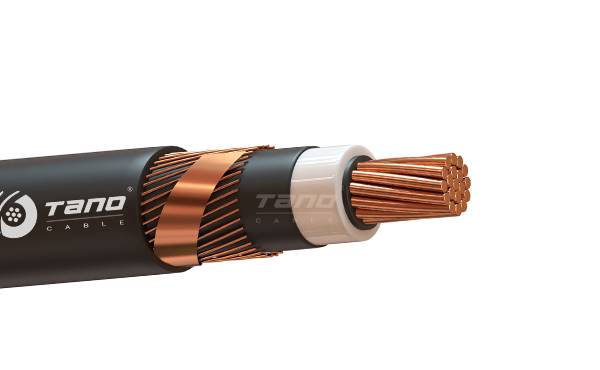

6/10(12)kV XLPE Insulated Power Cable

Overview Specifications

CONSTRUCTION PARAMETER

Overview

APPLICATION

For installation in ground, outdoors, indoors and in cable ducts for power station, industry and distribution networks.

STANDARD

IEC 60502-2, GB/T 12706.2

VOLTAGE

6/10kV

DOWNLOAD
CABLE DATASHEET

6/10(12)kV

IEC 60502-2, GB/T 12706.2

POWER STATION
DISTRIBUTION NETWORKS
INDUSTRIAL USE

BY COLOR STRIPE
BY NUMBER

Specifications

ELECTRICAL PERFORMANCE

6/10(12)kV

STANDARD

IEC 60502-2, GB/T 12706.2

APPLICATION

POWER STATION
DISTRIBUTION NETWORKS
INDUSTRIAL USE

CORE IDENTIFICATION

BY COLOR STRIPE
BY NUMBER

CHEMICAL PERFORMANCE

Chemical & Oil resistance:Good

MECHANICAL PERFORMANCE

Minimum bending radius:x10 cable diameter(unarmoured)
Minimum bending radius:x20 cable diameter(armoured)

FIRE PERFORMANCE

Flame non-propagation base on IEC 60332-1
Reduced emission of halogens chlorine＜15%

THERMINAL PERFORMANCE

Maximum service temperature:90℃
Maximum short-circuit temperature:160℃(max. 5s)
Minimum service temperature:-40℃

Other Properties

APPROVALS

N/A

INSTALLATION CONDITIONS

OPEN AIR
BURIED
IN CONDUIT

CABLE MARKING

OIL INK PRINTING
EMBOSSING PRINTING

PACKAGING

BY WOODEN OR STEEL-WOODEN OR FULL STEEL REEL/DRUM

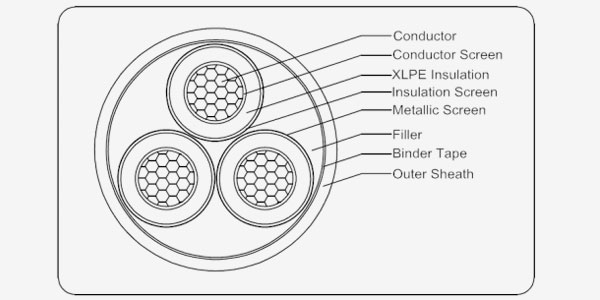

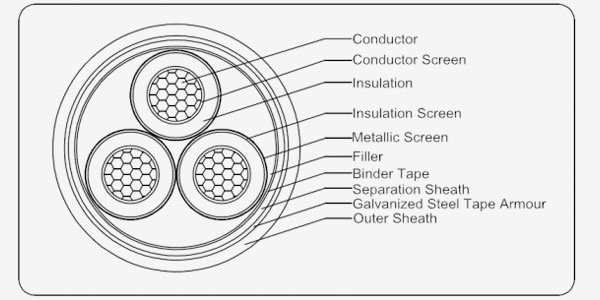

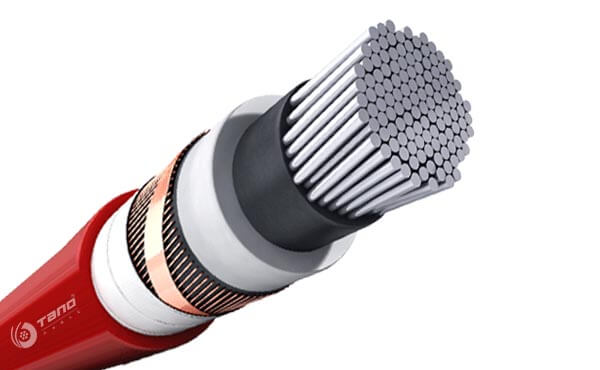

CONSTRUCTION

1. Conductor

Circular stranded, compacted copper conductor or aluminum conductor, class 2

2. Conductor Screen

Semi-conducting Compound

3. Insulation

XLPE (Cross-linked polyethylene)

4. Insulation Screen

Semi-conducting Compound

5. Metallic Screen

Copper Tape

6. Filler (only for multi core cable)

Non-hygroscopic

7. Binder Tape

Non-woven fabric

8. Separation Sheath(for armoured cables)

PVC (Polyvinyl chloride)

9. Armour

Single core: Aluminum Wire Armour(AWA)

Three cores: Galvanized Steel Tape(STA) or Galvanized Steel Wire(SWA)

10. Outer Sheath

PVC (Polyvinyl chloride), PE( Polyethylene), LSZH(Low Smoke Zero Halogen)

PARAMETER

Table 1

Table 2

Table 3

Table 4

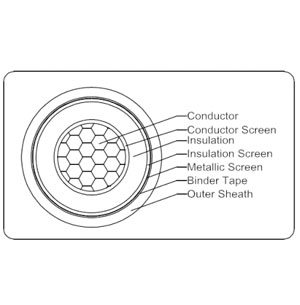

6/10kV XLPE Insulated Unarmoured Cable Single Core
Conductor		Thickness of Insulation	Thickness of Outer Sheath	Approx. Overall Dia.	Approx. Weight of Cable
Cross Sectional Area	Nominal Dia.	Thickness of Insulation	Thickness of Outer Sheath	Approx. Overall Dia.	Copper	Aluminum
mm2	mm	mm	mm	mm	kg/km	kg/km
25	5.9	3.4	1.8	19.6	582	431
35	6.9	3.4	1.8	20.6	695	484
50	8.1	3.4	1.8	21.8	834	549
70	9.7	3.4	1.8	23.4	1064	650
95	11.4	3.4	1.8	25.0	1334	761
120	12.9	3.4	1.8	26.6	1598	874
150	14.2	3.4	1.9	28.0	1875	988
185	15.9	3.4	1.9	29.8	2252	1140
240	18.3	3.4	2.0	32.4	2829	1369
300	20.4	3.4	2.1	34.6	3424	1599
400	23.2	3.4	2.2	37.6	4300	1933
500	26.3	3.4	2.3	41.6	5386	2370
630	30.0	3.4	2.4	45.6	6779	2887
800	34.0	3.4	2.5	49.8	8482	3510

Expand More

6/10kV XLPE Insulated Unarmoured Cable Three Core
Conductor		Thickness of Insulation	Thickness of Outer Sheath	Approx. Overall Dia.	Approx. Weight of Cable
Cross Sectional Area	Nominal Dia.	Thickness of Insulation	Thickness of Outer Sheath	Approx. Overall Dia.	Copper	Aluminum
mm2	mm	mm	mm	mm	kg/km	kg/km
25	5.9	3.4	2.2	39.4	1741	1285
35	6.9	3.4	2.3	41.9	2108	1472
50	8.1	3.4	2.4	44.7	2557	1697
70	9.7	3.4	2.5	48.4	3289	2037
95	11.4	3.4	2.6	52.4	4158	2429
120	12.9	3.4	2.7	55.9	4985	2798
150	14.2	3.4	2.8	58.9	5848	3166
185	15.9	3.4	2.9	62.9	7023	3662
240	18.3	3.4	3.1	68.6	8839	4428
300	20.4	3.4	3.3	73.6	10711	5197
400	23.2	3.4	3.5	80.2	13440	6291

Expand More

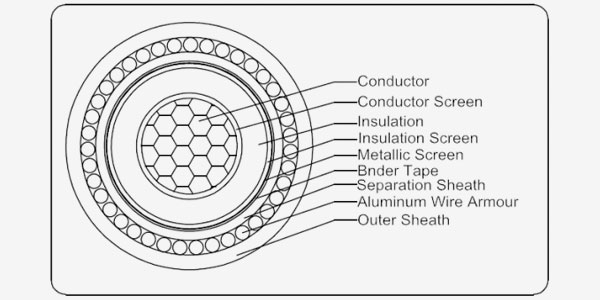

6/10kV XLPE Insulated Aluminum Wire Armoured(AWA) Cable Single Core
Conductor		Thickness of Insulation	Dia. of Armored Wire	Thickness of Outer Sheath	Approx. Overall Dia.	Approx. Weight of Cable
Cross Sectional Area	Nominal Dia.					Copper	Aluminum
Cross Sectional Area	Nominal Dia.					Copper	Aluminum
mm2	mm	mm	mm	mm	mm	kg/km	kg/km
25	5.9	3.4	1.6	1.8	25.2	924	773
35	6.9	3.4	1.6	1.8	26.2	1052	842
50	8.1	3.4	1.6	1.9	27.6	1222	938
70	9.7	3.4	1.6	1.9	29.2	1478	1064
95	11.4	3.4	1.6	2.0	31.1	1792	1220
120	12.9	3.4	2.0	2.0	33.4	2156	1432
150	14.2	3.4	2.0	2.1	34.9	2468	1580
185	15.9	3.4	2.0	2.1	36.6	2869	1757
240	18.3	3.4	2.0	2.2	39.1	3492	2032
300	20.4	3.4	2.0	2.3	41.5	4143	2317
400	23.2	3.4	2.5	2.4	45.6	5224	2858
500	26.3	3.4	2.5	2.5	49.7	6414	3398
630	30.0	3.4	2.5	2.6	53.8	7910	4019
800	34.0	3.4	2.5	2.8	58.3	9744	4776

Expand More

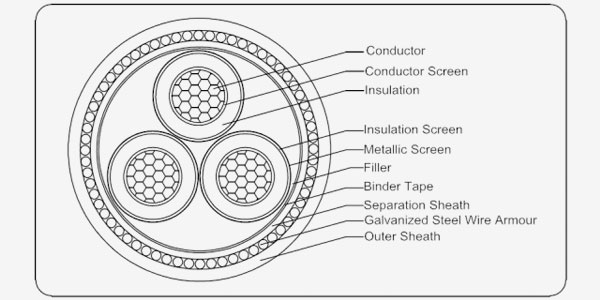

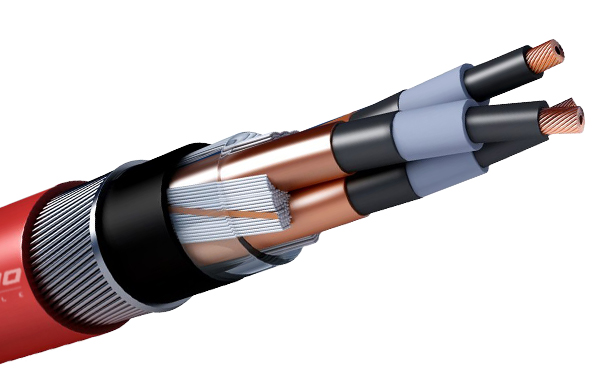

6/10kV XLPE Insulated Armoured Cable Three Core
Conductor		Thickness of Insulation	Dia. (thickness) of Armour		Thickness of Outer Sheath		Approx. Overall Dia.		Approx. Weight of Cable
Cross Sectional Area	Nominal Dia.		SWA	STA	SWA	STA	SWA	STA	Copper		Aluminum
Cross Sectional Area	Nominal Dia.		SWA	STA	SWA	STA	SWA	STA	SWA	STA	SWA	STA
mm2	mm	mm	mm	mm	mm	mm	mm	mm	kg/km	kg/km	kg/km	kg/km
25	5.9	3.4	2.5	0.5	2.5	2.4	47.6	44.2	3915	2622	3459	2166
35	6.9	3.4	2.5	0.5	2.6	2.4	50.0	46.5	4402	3020	3766	2385
50	8.1	3.4	2.5	0.5	2.7	2.5	53.0	49.5	5023	3552	4164	2692
70	9.7	3.4	2.5	0.5	2.8	2.7	57.0	53.6	5982	4414	4730	3161
95	11.4	3.4	2.5	0.5	2.9	2.8	61.0	57.6	7064	5372	5335	3643
120	12.9	3.4	2.5	0.5	3.0	2.9	64.7	61.3	8110	6307	5924	4120
150	14.2	3.4	2.5	0.5	3.1	3.0	67.7	64.3	9133	7238	6450	4556
185	15.9	3.4	2.5	0.5	3.2	3.1	72.0	68.5	10564	8537	7203	5176
240	18.3	3.4	3.15	0.5	3.5	3.3	79.2	74.4	13594	10520	9183	6109
300	20.4	3.4	3.15	0.5	3.6	3.5	84.3	79.6	15816	12547	10302	7033
400	23.2	3.4	3.15	0.8	3.8	3.7	91.2	87.6	16352	16254	11072	9105

Expand More
