3.6/6(7.2)kV XLPE INSULATED POWER CABLE

Inquire Now
Overview
APPLICATION

For installation in ground, outdoors, indoors and in cable ducts for power station, industry and distribution networks.

STANDARD

IEC 60502-2, GB/T 12706.2

VOLTAGE

3.6/6kV
DOWNLOAD
CABLE DATASHEET
3.6/6(7.2)kV
IEC 60502-2, GB/T 12706.2
POWER STATION
DISTRIBUTION NETWORKS
INDUSTRIAL USE
BY COLOR STRIPE
BY NUMBER
Specifications
ELECTRICAL PERFORMANCE
3.6/6(7.2)kV
STANDARD
IEC 60502-2, GB/T 12706.2
APPLICATION
POWER STATION
DISTRIBUTION NETWORKS
INDUSTRIAL USE
CORE IDENTIFICATION
BY COLOR STRIPE
BY NUMBER
CHEMICAL PERFORMANCE
Chemical & Oil resistance:Good
MECHANICAL PERFORMANCE
Minimum bending radius:x10 cable diameter(unarmoured)
Minimum bending radius:x20 cable diameter(armoured)
FIRE PERFORMANCE
Flame non-propagation base on IEC 60332-1
Reduced emission of halogens chlorine<15%
THERMINAL PERFORMANCE
Maximum service temperature:90℃
Maximum short-circuit temperature:160℃(max. 5s)
Minimum service temperature:-40℃
Other Properties
APPROVALS
N/A
INSTALLATION CONDITIONS
OPEN AIR
BURIED
IN CONDUIT
CABLE MARKING
OIL INK PRINTING
EMBOSSING PRINTING
PACKAGING
BY WOODEN OR STEEL-WOODEN OR FULL STEEL REEL/DRUM

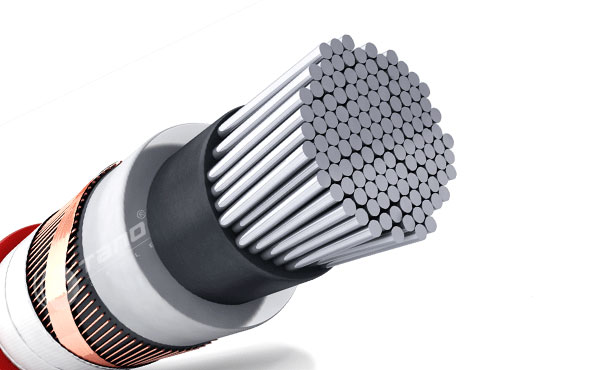

CONSTRUCTION
1. Conductor

Circular stranded, compacted copper conductor or aluminum conductor, class 2

2. Conductor Screen

Semi-conducting Compound

3. Insulation

XLPE (Cross-linked polyethylene)

4. Insulation Screen

Semi-conducting Compound

5. Metallic Screen

Copper Tape

6. Filler (only for multi core cable)

Non-hygroscopic

7. Binder Tape

Non-woven fabric

8. Separation Sheath(for armoured cables)

PVC (Polyvinyl chloride)

9. Armour

Single core: Aluminum Wire Armour(AWA)
Three cores: Galvanized Steel Tape(STA) or Galvanized Steel Wire(SWA)

10. Outer Sheath

PVC (Polyvinyl chloride), PE( Polyethylene), LSZH(Low Smoke Zero Halogen)




PARAMETER

Table 1
Table 2
Table 3
Table 4

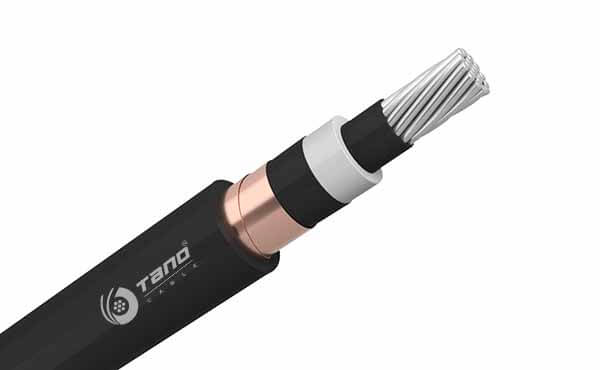

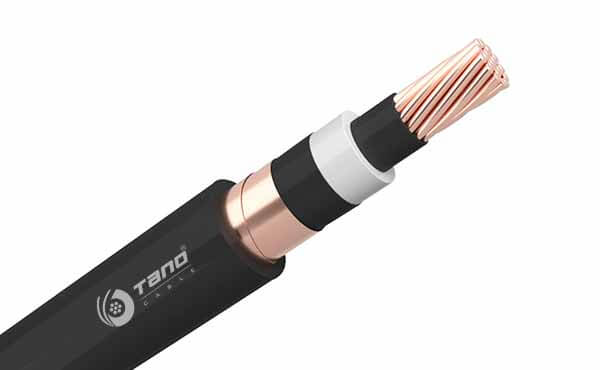

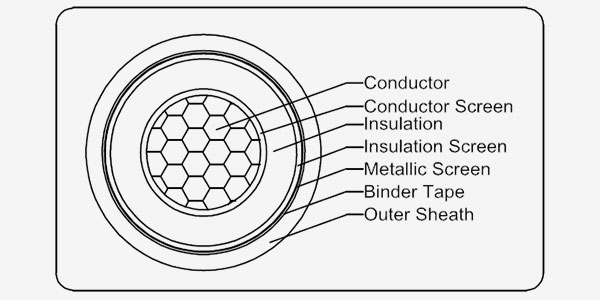

3.6/6kV XLPE Insulated Unarmoured Cable   Single Core
Conductor Thickness of
Insulation
Thickness of
Outer Sheath
Approx. Overall
Dia.
Approx. Weight
of Cable
Cross
Sectional Area
Nominal Dia. Copper Aluminum
mm2 mm mm mm mm kg/km kg/km
25 5.9  2.5  1.8  17.8  521  370
35 6.9  2.5  1.8  18.8  631  420
50 8.1  2.5  1.8  20.0  767  482
70 9.7  2.5  1.8  21.6  992  578
95 11.4  2.5  1.8  23.3  1261  688
120 12.9  2.5  1.8  24.8  1515  791
150 14.2  2.5  1.8  26.1  1783  895
185 15.9  2.5  1.9  28.0  2160  1047
240 18.3  2.6  1.9  30.6  2729  1269
300 20.4  2.8  2.0  33.3  3344  1519
400 23.2  3.0  2.1  36.7  4237  1870
500 26.3  3.2  2.3  41.3  5365  2348
630 30.0  3.2  2.4  45.2  6753  2862
800 34.0  3.2  2.5  49.4  8449  3477
Expand More

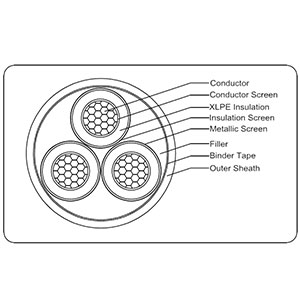

3.6/6kV XLPE Insulated Unarmoured Cable   Three Cores
Conductor Thickness of
Insulation
Thickness of
Outer Sheath
Approx.
Overall
Dia.
Approx. Weight
of Cable
Cross
Sectional Area
Nominal Dia. Copper Aluminum
mm2 mm mm mm mm kg/km kg/km
25 5.9  2.5  2.1  35.2  1527  1070
35 6.9  2.5  2.2  37.6  1875  1240
50 8.1  2.5  2.3  40.4  2310  1450
70 9.7  2.5  2.4  44.2  3025  1773
95 11.4  2.5  2.5  48.1  3877  2148
120 12.9  2.5  2.6  51.6  4687  2500
150 14.2  2.5  2.7  54.7  5539  2857
185 15.9  2.5  2.8  58.7  6696  3335
240 18.3  2.6  3.0  64.8  8512  4101
300 20.4  2.8  3.2  70.7  10433  4919
400 23.2  3.0  3.4  78.2  13241  6092
Expand More

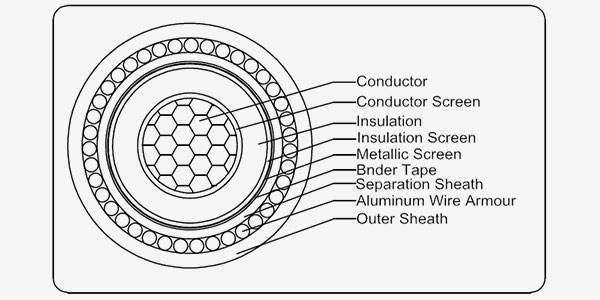

3.6/6kV XLPE Insulated Aluminum Wire Armoured(AWA) Cable   Single Core
Conductor Thickness of
Insulation
Dia. of
Armored
Wire
Thickness
of Outer Sheath
Approx.
Overall
Dia.
Approx.
Weight of Cable
Cross
Sectional Area
Nominal Dia. Copper Aluminum
mm2 mm mm mm mm mm kg/km kg/km
25 5.9  2.5  1.6  1.8  23.4  834  683
35 6.9  2.5  1.6  1.8  24.3  954  744
50 8.1  2.5  1.6  1.8  25.6  1114  829
70 9.7  2.5  1.6  1.8  27.3  1371  956
95 11.4  2.5  1.6  1.9  29.1  1673  1101
120 12.9  2.5  1.6  2.0  30.7  1958  1234
150 14.2  2.5  1.6  2.0  32.1  2254  1366
185 15.9  2.5  2.0  2.1  34.7  2743  1630
240 18.3  2.6  2.0  2.2  37.5  3376  1916
300 20.4  2.8  2.0  2.3  40.2  4037  2212
400 23.2  3.0  2.0  2.4  43.7  5013  2646
500 26.3  3.2  2.5  2.5  49.3  6380  3363
630 30.0  3.2  2.5  2.6  53.4  7875  3983
800 34.0  3.2  2.5  2.8  57.8  9689  4721
Expand More

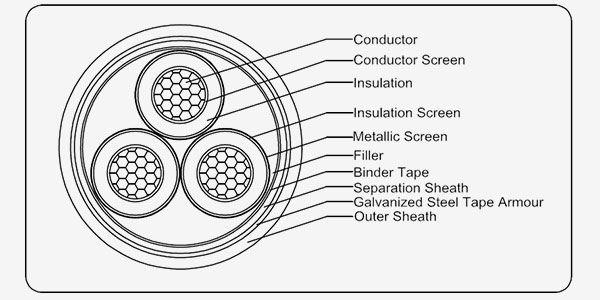

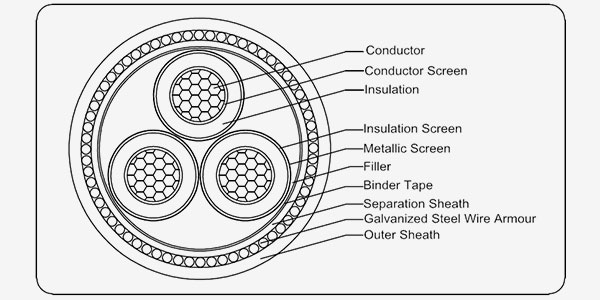

3.6/6kV XLPE Insulated Armoured Cable   Three Cores
Conductor Thickness of
 Insulation
Dia.(Thickness)
of Armour
Thickness of
Outer Sheath
Approx.
Overall Dia.
Approx. Weight of Cable
Cross
Sectional Area
Nominal Dia. SWA STA SWA STA SWA STA Copper Aluminum
SWA STA SWA STA
mm2 mm mm mm mm mm mm mm mm kg/km kg/km kg/km kg/km
25 5.9  2.5  2.0  0.5  2.3  3.2  42.1  41.8  3101  2480  2645  2024
35 6.9  2.5  2.0  0.5  2.4  3.4  44.6  44.4  3559  2914  2923  2279
50 8.1  2.5  2.5  0.5  2.5  3.6  48.5  47.5  4534  3455  3674  2596
70 9.7  2.5  2.5  0.5  2.6  3.8  52.6  51.7  5469  4320  4217  3067
95 11.4  2.5  2.5  0.5  2.8  4.1  56.6  56.0  6541  5326  4812  3597
120 12.9  2.5  2.5  0.5  2.9  4.3  60.2  59.8  7551  6281  5364  4094
150 14.2  2.5  2.5  0.5  3.0  4.5  63.5  63.3  8586  7276  5904  4594
185 15.9  2.5  2.5  0.5  3.1  4.7  67.6  67.7  9976  8610  6616  5249
240 18.3  2.6  2.5  0.5  3.3  5.1  73.9  74.3  12151  10708  7739  6297
300 20.4  2.8  3.15  0.5  3.5  5.5  81.4  80.8  15346  12935  9832  7421
400 23.2  3.0  3.15  0.8  3.8  6.0  89.3  90.5  18714  16954  11564  9805
Expand More
