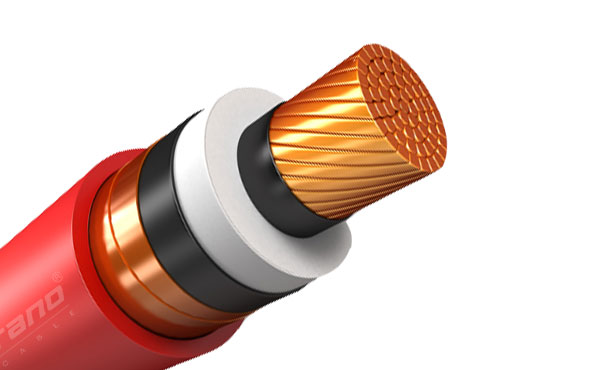

18/30(36)kV XLPE INSULATED POWER CABLE

Inquire Now
Overview
APPLICATION

For installation in ground, outdoors, indoors and in cable ducts for power station, industry and distribution networks.

STANDARD

IEC 60502-2, GB/T 12706.2

VOLTAGE

18/30kV
DOWNLOAD
CABLE DATASHEET
18/30(36)kV
IEC 60502-2, GB/T 12706.2
POWER STATION
DISTRIBUTION NETWORKS
INDUSTRIAL USE
BY COLOR STRIPE
BY NUMBER
Specifications
ELECTRICAL PERFORMANCE
18/30(36)kV
STANDARD
IEC 60502-2, GB/T 12706.2
APPLICATION
POWER STATION
DISTRIBUTION NETWORKS
INDUSTRIAL USE
CORE IDENTIFICATION
BY COLOR STRIPE
BY NUMBER
CHEMICAL PERFORMANCE
Chemical & Oil resistance:Good
MECHANICAL PERFORMANCE
Minimum bending radius:x10 cable diameter(unarmoured)
Minimum bending radius:x20 cable diameter(armoured)
FIRE PERFORMANCE
Flame non-propagation base on IEC 60332-1
Reduced emission of halogens chlorine<15%
THERMINAL PERFORMANCE
Maximum service temperature:90℃
Maximum short-circuit temperature:160℃(max. 5s)
Minimum service temperature:-40℃
Other Properties
APPROVALS
N/A
INSTALLATION CONDITIONS
OPEN AIR/BURIED
IN CONDUIT
CABLE MARKING
OIL INK PRINTING
EMBOSSING PRINTING
PACKAGING
BY WOODEN OR STEEL-WOODEN OR FULL STEEL REEL/DRUM
CONSTRUCTION
1. Conductor

Circular stranded, compacted copper conductor or aluminum conductor, class 2

2. Conductor Screen

Semi-conducting Compound

3. Insulation

XLPE (Cross-linked polyethylene)

4. Insulation Screen

Semi-conducting Compound

5. Metallic Screen

Copper Tape

6. Filler (only for multi core cable)

Non-hygroscopic

7. Binder Tape

Non-woven fabric

8. Separation Sheath(for armoured cables)

PVC (Polyvinyl chloride)

9. Armour

Single core: Aluminum Wire Armour(AWA)
Three cores: Galvanized Steel Tape(STA) or Galvanized Steel Wire(SWA)

10. Outer Sheath

PVC (Polyvinyl chloride), PE( Polyethylene), LSZH(Low Smoke Zero Halogen)




PARAMETER

Table 1
Table 2
Table 3
Table 4

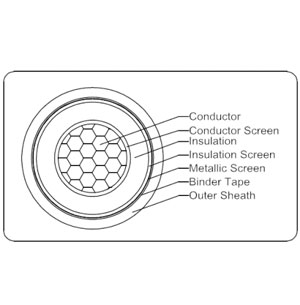

18/30kV XLPE Insulated Unarmoured Cable   Single Core
Conductor Thickness of Insulation Thickness of Outer Sheath Approx. Overall
Dia.
Approx. Weight
of Cable
Cross Sectional Area Nominal Dia. Copper Aluminum
mm2 mm mm mm mm kg/km kg/km
50 8.1  8.0  2.0  31.4  1283  999
70 9.7  8.0  2.0  33.0  1537  1122
95 11.4  8.0  2.1  34.9  1851  1279
120 12.9  8.0  2.1  36.4  2132  1408
150 14.2  8.0  2.2  37.9  2440  1552
185 15.9  8.0  2.2  39.6  2836  1723
240 18.3  8.0  2.3  42.2  3457  1997
300 20.4  8.0  2.4  44.5  4093  2268
400 23.2  8.0  2.5  47.5  5015  2648
500 26.3  8.0  2.6  51.5  6166  3149
630 30.0  8.0  2.7  55.4  7618  3726
800 34.0  8.0  2.8  59.6  9381  4409
Expand More

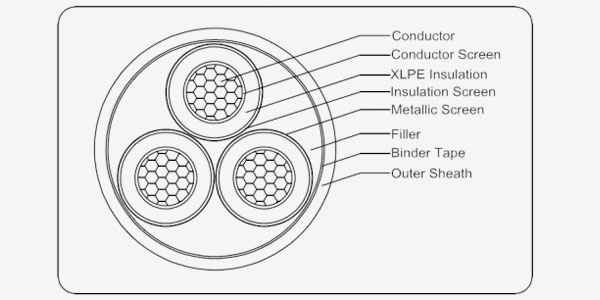

18/30kV XLPE Insulated Unarmoured Cable   Three Cores
Conductor Thickness of Insulation Thickness of Outer
Sheath
Approx. Overall
Dia.
Approx. Weight
of Cable
Cross Sectional Area Nominal Dia. Copper Aluminum
mm2 mm mm mm mm kg/km kg/km
50 8.1  8.0  3.1  66.4  4148  3288
70 9.7  8.0  3.2  70.1  4977  3725
95 11.4  8.0  3.3  74.0  5946  4217
120 12.9  8.0  3.4  77.5  6865  4678
150 14.2  8.0  3.5  80.6  7813  5131
185 15.9  8.0  3.6  84.6  9091  5730
240 18.3  8.0  3.8  90.2  11054  6643
300 20.4  8.0  4.0  95.3  13065  7551
400 23.2  8.0  4.2  101.8  15962  8812
Expand More

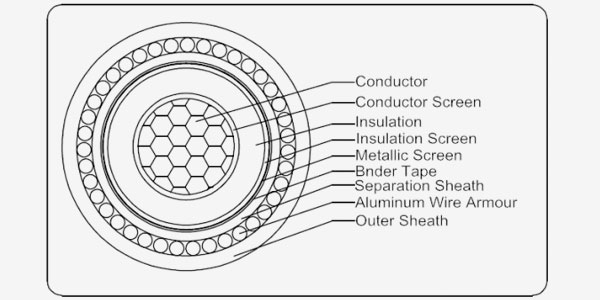

18/30kV XLPE Insulated Aluminum Wire Armoured(AWA) Cable   Single Core
Conductor Thickness of
Insulation
Dia. of Armored
Wire
Thickness of Outer
Sheath
Approx.Overall
Dia.
Approx.Weight of
Cable
Cross Sectional Area Nominal Dia. Copper Aluminum
mm2 mm mm mm mm mm kg/km kg/km
50 8.1  8.0  2.0  2.2  38.2  1930  1645
70 9.7  8.0  2.0  2.3  40.0  2230  1815
95 11.4  8.0  2.0  2.3  41.7  2566  1994
120 12.9  8.0  2.0  2.4  43.6  2912  2188
150 14.2  8.0  2.5  2.5  46.1  3392  2504
185 15.9  8.0  2.5  2.5  47.8  3828  2715
240 18.3  8.0  2.5  2.6  50.6  4533  3073
300 20.4  8.0  2.5  2.7  52.9  5216  3391
400 23.2  8.0  2.5  2.8  56.1  6242  3876
500 26.3  8.0  2.5  2.9  60.1  7483  4467
630 30.0  8.0  2.5  3.0  64.2  9051  5160
800 34.0  8.0  2.5  3.1  68.4  10917  5949
Expand More

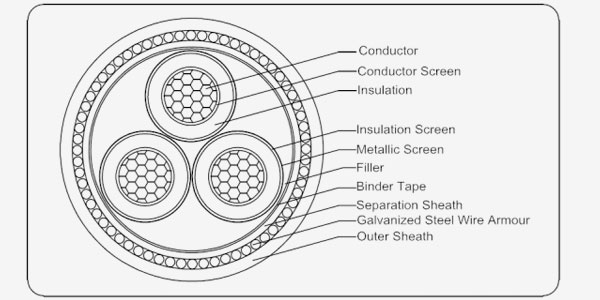

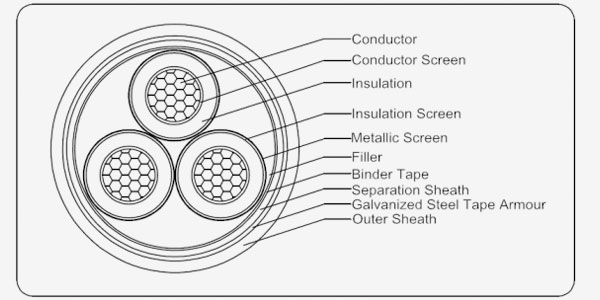

18/30kV XLPE Insulated Armoured Cable   Three Cores
Conductor Thickness of
Insulation
Dia.(thickness)
of Armour
Thickness of
Outer Sheath
Approx. Overall
Dia.
Approx. Weight of Cable
Cross Sectional
Area
Nominal Dia. SWA STA SWA STA SWA STA Copper Aluminum
SWA STA SWA STA
mm2 mm mm mm mm mm mm mm mm kg/km kg/km kg/km kg/km
50 8.1  8.0  3.15  0.5  3.4  3.3  76.9  72.2  8757  5776  7897  4916
70 9.7  8.0  3.15  0.5  3.5  3.4  80.8  76.1  9871  6729  8619  5477
95 11.4  8.0  3.15  0.5  3.7  3.5  84.9  80.0  11134  7792  9405  6063
120 12.9  8.0  3.15  0.8  3.8  3.7  88.6  85.1  12331  9628  10144  7441
150 14.2  8.0  3.15  0.8  3.9  3.8  91.7  88.2  13483  10681  10801  7999
185 15.9  8.0  3.15  0.8  4.0  3.9  95.9  92.4  15078  12142  11718  8781
240 18.3  8.0  3.15  0.8  4.2  4.1  101.7  98.2  17466  14345  13054  9934
300 20.4  8.0  3.15  0.8  4.3  4.2  106.8  103.3  19822  16536  14308  11022
400 23.2  8.0  3.15  0.8  4.6  4.5  113.7  110.2  23265  19764  16116  12615
Expand More
