3.8/6.6(7.2)kV XLPE INSULATED POWER CABLE

Inquire Now
Overview
APPLICATION

For installation in ground, outdoors, indoors and in cable ducts for power station, industry and distribution networks.

STANDARD

AS/NZS 1429.1

VOLTAGE

3.8/6.6kV
DOWNLOAD
CABLE DATASHEET
3.8/6.6(7.2)kV
AS/NZS 1429.1
POWER STATION
DISTRIBUTION NETWORKS
INDUSTRIAL USE
BY COLOR STRIPE
BY NUMBER
Specifications
ELECTRICAL PERFORMANCE
3.8/6.6(7.2)kV
STANDARD
AS/NZS 1429.1
APPLICATION
POWER STATION
DISTRIBUTION NETWORKS
INDUSTRIAL USE
CORE IDENTIFICATION
BY COLOR STRIPE
BY NUMBER
CHEMICAL PERFORMANCE
Chemical & Oil resistance:Good
MECHANICAL PERFORMANCE
Minimum bending radius:x10 cable diameter(unarmoured)
Minimum bending radius:x20 cable diameter(armoured)
FIRE PERFORMANCE
Flame non-propagation base on IEC 60332-1
Reduced emission of halogens chlorine<15%
THERMINAL PERFORMANCE
Maximum service temperature:90℃
Maximum short-circuit temperature:160℃(max. 5s)
Minimum service temperature:-40℃
Other Properties
APPROVALS
N/A
INSTALLATION CONDITIONS
OPEN AIR
BURIED
IN CONDUIT
CABLE MARKING
OIL INK PRINTING
EMBOSSING PRINTING
PACKAGING
BY WOODEN OR STEEL-WOODEN OR FULL STEEL REEL/DRUM

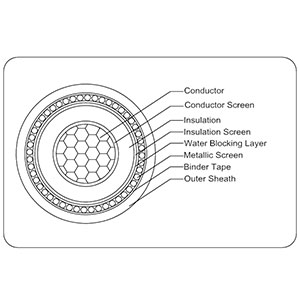

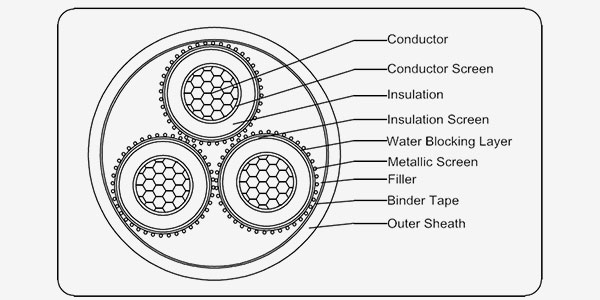

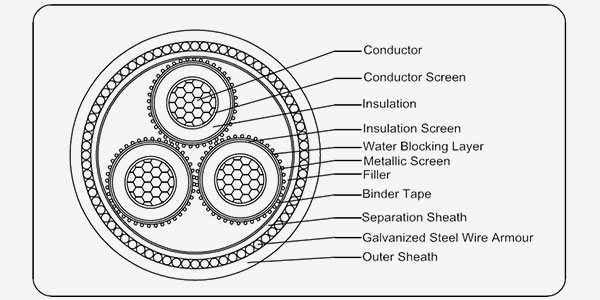

CONSTRUCTION
1. Conductor

Circular stranded, compacted copper conductor or aluminum conductor, class 2

2. Conductor Screen

Semi-conductive Compound

3. Insulation

XLPE (Cross-linked polyethylene)

4. Insulation Screen

Semi-conductive Compound

5. Water Blocking Layer

Semi-conductive Water-blocking Tape

6. Metallic Screen

Copper Wire

7. Filler (only for multi core cable)

Non-hygroscopic

8. Binder Tape

Non-woven fabric

9. Separation Sheath(for armoured cables)

PVC (Polyvinyl chloride)

10. Armour

Three cores: Galvanized Steel Wire(SWA)

11. Outer Sheath

PVC (Polyvinyl chloride), PE( Polyethylene), LSZH(Low Smoke Zero Halogen)


PARAMETER

Table 1
Table 2
Table 3
Table 4
Table 5
Table 6
3.8/6.6kV Single Core XLPE Insulated, Screened & PVC Sheathed (Copper Conductor)
Copper Conductors, up to 10kA Fault Level
Nominal
Conductor Area
Nominal
Conductor Dia.
Nominal
Insulation
Thickness
Nominal
Dia. Over
Insulation
Nominal Screen
Area on each
core
No. and
Nominal Dia.
of Screen Wires
Nominal Dia.
Over Wire
Screen
Nominal
Overall Dia.
Approx.
Weight
mm2 mm mm mm mm2 no/mm mm mm kg/km
16 4.8  2.5  11.0  15.9 28/0.85 14.3 18.4 540
25 5.8  2.5  12.0  24.4 43/0.85 15.3 19.4 720
35 6.8  2.5  13.0  34.4 24/1.35 17.3 21.4 930
50 8.0  2.5  14.1 48.7 34/1.35 18.4 22.5 1200
70 9.6  2.5  15.7 68.1 30/1.70 20.7 25.0  1600
95 11.5  2.5  17.6 68.1 30/1.70 22.6 26.9  1900
120 13.1  2.5  19.2 68.7 48/1.35 23.5 27.6  2150
150 14.5  2.5  20.6 68.7 48/1.35 24.9 29.0  2450
185 16.1  2.5  22.2 68.7 48/1.35 26.5 30.8 2750
240 18.5  2.6  24.9 68.7 48/1.35 29.2 33.7 3350
300 20.7  2.8  27.6 68.7 48/1.35 31.9 36.6 4000
400 23.6  3.0  30.9 68.7 48/1.35 35.2 40.2 5000
Expand More
3.8/6.6kV Single Core XLPE Insulated, Screened & PVC Sheathed (Aluminum Conductor)
Aluminium Conductors, up to 10kA Fault Level
Nominal
Conductor Area
Nominal
Conductor Dia.
Nominal
Insulation
Thickness
Nominal Dia.
Over Insulation
Nominal Screen
Area on
Each Core
No. and Nominal
Dia.of Screen
 Wires
Nominal Dia.
 Over Wire
screen
Nominal Overall Dia. Approx.
Weight
mm2 mm mm mm mm2 no/mm mm mm kg/km
35 6.9  2.5  13.0  22.7 40/0.85 16.3 20.4 600
50 8.1  2.5  14.2  32.9 23/1.35 18.5 22.6 760
70 9.6  2.5  15.8  45.8 32/1.35 20.1 24.2 970
95 11.4  2.5  17.5  61.5 43/1.35 21.8 25.9 1200
120 12.8  2.5  18.9  68.7 48/1.35 23.2 27.3 1400
150 14.2  2.5  20.3  68.7 48/1.35 24.6 28.7 1500
185 15.7  2.5  21.8  68.7 48/1.35 26.1 30.4 1600
240 18.0  2.6  24.3  68.7 48/1.35 28.6 33.1 1850
300 20.1  2.8  27.0  68.7 48/1.35 31.3 36.0  2100
400 23.0  3.0  30.3  68.7 48/1.35 34.6 39.5 2450
Expand More
3.8/6.6kV Three Core XLPE  Insulated, Screened & PVC Sheathed (Copper Conductor)
Copper Conductors, up to 10kA Fault Level
Nominal
Conductor Area
Nominal
Conductor Dia.
Nominal
Insulation
Thickness
Nominal Dia.
over Insulation
Nominal Screen
Area on Each Core
No.and Nominal
Dia. of Screen
 Wires
Nominal Dia.
 Over Wire
Screen
Nominal
Overall Dia.
Approx.
Weight
mm mm mm mm mm no/mm mm mm kg/km
16 4.8  2.5 11.0  17.0  10/0.85 14.3 35.60  1300
25 5.8  2.5 12.0  25.5  15/0.85 15.3 37.90  1700
35 6.8  2.5 13.0  34.0  20/0.85 16.3 40.30  2150
50 8.0  2.5 14.1 49.4 29/0.85 17.4 43.00  2750
70 9.6  2.5 15.7 68.1 40/0.85 19.0  46.70  3600
95 11.5  2.5 17.6 68.1 40/0.85 20.9  51.10  4550
120 13.1  2.5 19.2 68.1 40/0.85 22.5  54.80  5450
150 14.5  2.5 20.6 68.1 40/0.85 23.9 58.20  6300
185 16.1  2.5 22.2 68.1 40/0.85 25.5 61.80  7350
240 18.5  2.6 24.9 68.1 40/0.85 28.2 67.90  9300
300 20.7  2.8  27.6 68.1 40/0.85 30.9 74.30  11300
400 23.6  3.0  30.9 68.1 40/0.85 34.2 81.80  14400
Expand More
3.8/6.6kV Three Core XLPE  Insulated, Screened & PVC Sheathed (Aluminum Conductor)
Aluminium Conductors, up to 10kA Fault Level
Nominal
Conductor Area
Nominal
Conductor Dia.
Nominal
Insulation
Thickness
Nominal Dia.
Over Insulation
Nominal Screen
Area on Each Core
No. and Nominal
Dia. of Screen
 Wires
Nominal Dia.
Over Wire
Screen
Nominal
Overall Dia.
Approx.
Weight
mm2 mm mm mm mm2 no/mm mm mm kg/km
35 6.9  2.5  13.0  23.8  14/0.85 16.3 40.5 1400
50 8.1  2.5  14.2  32.3  19/0.85 17.5 43.1 1700
70 9.6  2.5  15.8  46.0  27/0.85 19.1 46.8 2100
95 11.4  2.5  17.5  61.3  36/0.85 20.8 50.8 2700
120 12.8  2.5  18.9  68.1  40/0.85 22.2 54.1 3050
150 14.2  2.5  20.3  68.1  40/0.85 23.6 57.3 3400
185 15.7  2.5  21.8  68.1  40/0.85 25.1 60.8 3850
240 18.0  2.6  24.3  68.1  40/0.85 27.6 66.6 4650
300 20.1  2.8  27.0  68.1  40/0.85 30.3 72.8 5500
400 23.0  3.0  30.3  68.1  40/0.85 33.6 80.3 6600
Expand More
3.8/6.6kV Three Core XLPE Insulted, Screened PVC/SWA/PVC Sheathed(Copper Conductor)
Copper Conductors, up to 10kA Fault Level
Nominal
Conductor
Area
Nominal
Conductor
Dia.
Nominal
Insulation
Thickness
Nominal Dia.
 Over Insulation
Nominal Screen
 Area on Each Core
No. and Nominal
Dia. of Screen
 Wires
Nominal Wire
Dia. Over
Screen
Nominal Dia.
Armour Bedding
Normal Armour
Wire Dia.
Nominal Dia.
Over Armour
Nominal
Overall
Dia.
Approx.
Mass
mm2 mm mm mm mm2 no/mm mm mm mm mm mm kg/km
16 4.8  2.5  11.0  17.0  10/0.85 14.3 34 2 38 42.6 2950
25 5.8  2.5  12.0  25.5  15/0.85 15.3 36.1 2 40.1 44.9 3450
35 6.8  2.5  13.0  34.0  20/0.85 16.3 38.5 2.5 43.5 48.7 4400
50 8.0  2.5  14.1  49.4  29/0.85 17.4 41 2.5 46 51.4 5150
70 9.6  2.5  15.7  68.1  40/0.85 19 44.6 2.5 49.6 55.2 6300
95 11.5  2.5  17.6  68.1  40/0.85 20.9 48.9 2.5 53.9 59.7 7450
120 13.1  2.5  19.2  68.1  40/0.85 22.5 52.3 2.5 57.3 63.3 8500
150 14.5  2.5  20.6  68.1  40/0.85 23.9 55.7 2.5 60.7 66.9 9600
185 16.1  2.5  22.2  68.1  40/0.85 25.5 59.4 2.5 64.4 70.8 10900
240 18.5  2.6  24.9  68.1  40/0.85 28.2 65.3 3.15 71.6 78.6 14100
300 20.7  2.8  27.6  68.1  40/0.85 30.9 71.4 3.15 77.7 85.2 16600
400 23.6  3.0  30.9  68.1  40/0.85 34.2 78.8 3.15 85.1 92.9 20300
Expand More
3.8/6.6kV Three Core XLPE Insulted, Screened PVC/SWA/PVC Sheathed(Aluminum Conductor)
Aluminum Conductors, up to 10kA Fault Level
Nominal
Conductor
Area
Nominal
Conductor
Dia.
Nominal
Insulation
Thickness
Nominal Dia.
 Over Insulation
Nominal Screen
 Area on Each Core
No.and Nominal
Dia. of Screen
 Wires
Nominal Wire
Dia. Over
Screen
Nominal Dia.
Armour Bedding
Normal Armour
Wire Dia.
Nominal Dia.
Over Armour
Nominal
Overall
Dia.
Approx.
Mass
mm2 mm mm mm mm2 no/mm mm mm mm mm mm kg/km
35 6.9  2.5  13.0  23.8  14/0.85 16.3 38.6 2.50  43.6 48.6 3700
50 8.1  2.5  14.2  32.3  19/0.85 17.5 41.1 2.50  46.1 51.5 4100
70 9.6  2.5  15.8  46.0  27/0.85 19.1 44.7 2.50  49.7 55.3 4800
95 11.4  2.5  17.5  61.3  36/0.85 20.8 48.6 2.50  53.6 59.4 5550
120 12.8  2.5  18.9  68.1  40/0.85 22.2 51.6 2.50  56.6 62.6 6150
150 14.2  2.5  20.3  68.1  40/0.85 23.6 54.9 2.50  59.9 66.1 6650
185 15.7  2.5  21.8  68.1  40/0.85 25.1 58.3 2.50  63.3 69.7 7350
240 18.0  2.6  24.3  68.1  40/0.85 27.6 63.9 3.15  70.2 77.3 9400
300 20.1  2.8  27.0  68.1  40/0.85 30.3 70.0  3.15  76.3 83.7 10700
400 23.0  3.0  30.3  68.1  40/0.85 33.6 77.2 3.15  83.5 91.4 12400
Expand More
