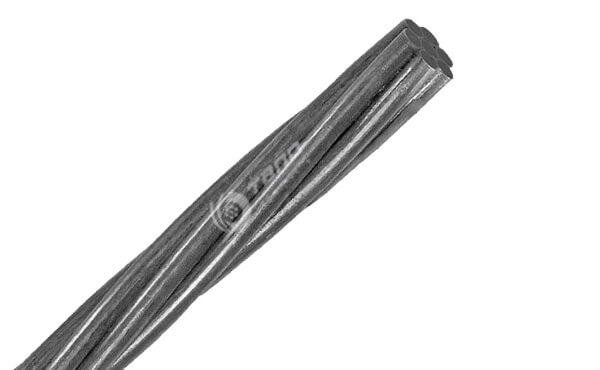

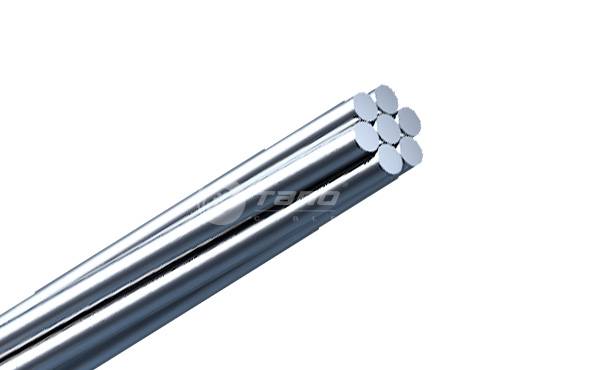

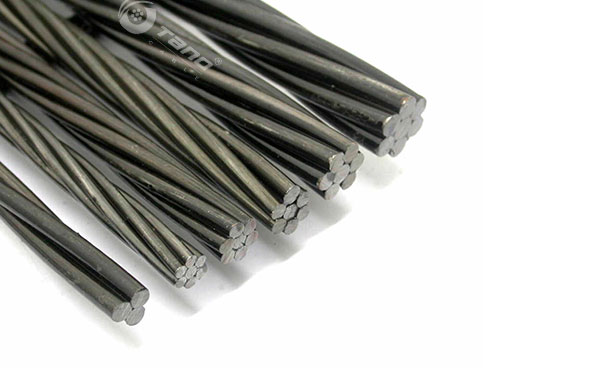

GALVANIZED STEEL CONDUCTOR

Inquire Now
Overview
DESCRIPTION

Messenger Wire, Overhead Ground or Stay Wire, Guy Wire, GI Wire

APPLICATION

Messenger Wire, Overhead Ground or Stay Wire, Guy Wire, GI Wire

STANDARD

ASTM A 475, BS 183, IEC 61089

FINISH COATINGS

CLASS A
DOWNLOAD
CABLE DATASHEET
N/A
ASTM A 475, BS 183, IEC 61089
MESSENGER WIRE/OVERHEAD WIRE
OVERHEAD GROUND OR STAY WIRE
GUY WIRE/GI WIRE
N/A
Specifications
ELECTRICAL PERFORMANCE
N/A
STANDARD
ASTM A 475, BS 183, IEC 61089
APPLICATION
MESSENGER WIRE/OVERHEAD WIRE
OVERHEAD GROUND OR STAY WIRE
GUY WIRE/GI WIRE
CORE IDENTIFICATION
N/A
CHEMICAL PERFORMANCE
Chemical resistant: Good
MECHANICAL PERFORMANCE
Refer to relative standards
FIRE PERFORMANCE
N/A
THERMINAL PERFORMANCE
N/A
Other Properties
APPROVALS
N/A
INSTALLATION CONDITIONS
OPEN AIR
CABLE MARKING
N/A
PACKAGING
BY WOODEN OR STEEL-WOODEN OR FULL STEEL REEL/DRUM

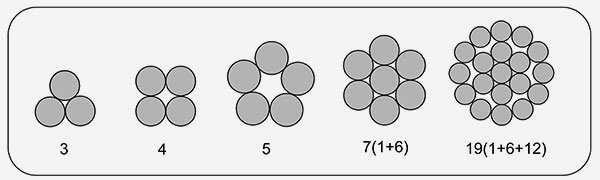

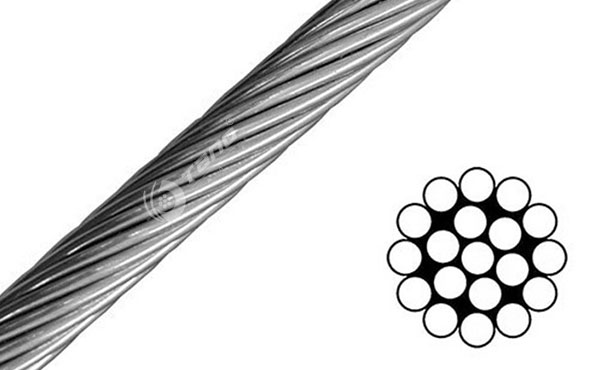

CONSTRUCTION
1. Conductor

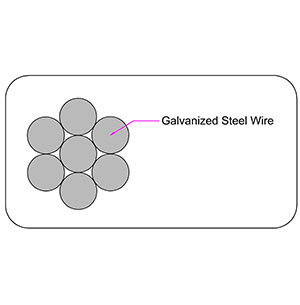

Galvanized steel wire

Generally, the Galvanized Steel Conductor is formed by the following construction:

PARAMETER

IEC 61089
ASTM A475
BS 183
Code
 No.
Section
Area
No. / Dia of Wire Approx. Overall
Dia.
Approx.
Weight
Breaking Load
S1A S1B S2A S3A
mm2 No./mm mm kg/km kN kN kN kN
4 27.1  7/2.22 6.66 213.3  36.3  33.6  39.3  43.9
6.3 42.7  7/2.79 8.36 335.9  55.9  51.7  60.2  67.9
10 67.8  7/3.51 10.53 553.2  87.4  80.7  93.5  103.0
12.5 84.7  7/3.93 11.78 666.5  109.3  100.8  116.9  128.8
16 108.4  7/4.44 13.32 853.1  139.9  129.0  199.7  164.8
16 108.4  19/2.70 13.48 857.0  142.1  131.2  152.9  172.4
25 169.4  19/3.37 16.85 1339.1  218.6  201.6  238.9  262.6
40 271.1  19/4.26 21.31 2141.6  349.7  322.6  374.1  412.1
40 271.1  37/3.05 21.38 2148.1  349.7  322.6  382.3  420.2
63 427.0  37/3.83 26.83 3383.2  550.8  508.1  589.3  649.0
Expand More
Nominal Overall
Dia.of Conductor
No. / Dia. of Wire Approx.
Weight
Minimum Breaking Strength of Conductor
Common Grade Siemens-Martin Grade High-Strength
Grade
Extra High-Strength
Grade
 in mm No./mm [kg/km lbf kN lbf kN lbf kN lbf kN
1/8 3.18  7/1.04 48 540 2.402 910 4.048 1330 5.916 1830 8.140
5/32 3.97  7/1.32 76 870 3.87 1470 6.539 2140 9.519 2940 13.078
3/16 4.76  7/1.57 109 1150 5.115 1900 8.452 2850 12.677 3990 17.748
3/16 4.76  7/1.65 119
7/32 5.56  3/2.64 131 1400 6.228 2340 10.409 3500 15.569 4900 21.796
7/32 5.56  7/1.83 146 1540 6.85 2560 11.387 3850 17.126 5400 24.020
1/4 6.35  3/3.05 174 1860 8.274 3040 13.523 4730 21.04 6740 29.981
1/4 6.35  3/3.05 174
1/4 6.35  7/2.03 180 1900 8.452 3150 14.012 4750 21.129 6650 29.581
9/32 7.14  3/3.30 204 2080 9.252 3380 15.035 5260 23.398 7500 33.362
9/32 7.14  7/2.36 244 2570 11.432 4250 18.905 6400 28.469 8950 39.812
5/16 7.94  3/3.68 255 2490 11.076 4090 18.193 6350 28.246 9100 40.479
5/16 7.94  7/2.64 305 3200 14.234 5350 23.798 8000 35.586 11200 49.820
5/16 7.94  7/2.77 335
3/8 9.52  3/4.19 328 3330 14.813 5560 24.732 8360 37.187 11800 52.489
3/8 9.52  7/3.05 407 4250 18.905 6950 30.915 10800 48.04 15400 68.503
7/16 11.11  7/3.68 595 5700 25.355 9350 41.591 14500 64.499 20800 92.523
1/2 12.70  7/4.19 770 7400 32.917 12100 53.823 18800 83.627 26900 119.657
1/2 12.70  19/2.54 751 7620 33.895 12700 56.492 19100 84.961 26700 118.768
9/16 14.29  7/4.78 1000 9600 42.703 15700 69.837 24500 108.981 35000 155.688
9/16 14.29  19/2.87 949 9640 42.881 16100 71.616 24100 107.202 33700 14.905
5/8 15.88  7/5.26 1211 11600 51.599 19100 84.961 29600 131.667 42400 188.605
5/8 15.88  19/3.18 1186 11000 48.93 18100 80.513 28100 124.995 40200 178.819
3/4 19.05  19/3.81 1721 16000 71.172 26200 116.543 40800 181.487 58300 259.331
7/8 22.22  19/4.50 2356 21900 97.416 35900 159.691 55800 248.211 79700 354.523
1 25.40  19/5.08 3089 28700 127.664 47000 209.066 73200 325.61 104500 464.839
1 25.40  37/3.63 3065 28300 125.885 46200 205.508 71900 319.827 102700 456.832
1 1/8 28.58  37/4.09 4010 36000 160.136 58900 262.00  91600 407.457 130800 581.827
1 1/4 31.75  37/4.55 4840 44600 198.391 73000 324.72 113600 505.318 162200 721.502
Expand More
No./Dia of Wire Approx. Overall
Dia.
Minimum Breaking Strength of Conductor Approx.
Weight
Grade 350 Grade 480 Grade 700 Grade 850 Grade 1000 Grade 1150 Grade 1300
No./mm mm kN kN kN kN kN kN kN kg/km
3/1.80 3.9  2.65  3.66            60
3/2.65 5.7  5.80  7.95            130
3/3.25 7.0  8.70  11.95            195
3/4.00 8.6  13.20  18.10            295
4/1.80 4.4  3.55  4.90            80
4/2.65 6.4  7.70  10.60            172
4/3.25 7.9  11.60  15.90            260
4/4.00 9.7  17.60  24.10  35.20          390
5/1.50 4.1  3.10  4.24  6.18          69
5/1.80 4.9  4.45  6.10  8.90          95
5/2.65 7.2  9.65  13.25  19.30          220
5/3.25 8.8  14.50  19.90  29.00          320
5/4.00 10.8  22.00  30.15  43.95          490
7/0.56 1.7  0.60  0.83  1.20    1.70  1.98  2.24  14
7/0.71 2.1  0.97  1.33  1.94    2.75  3.19  3.60  28
7/0.85 2.6  1.39  1.90  2.80    3.95  4.57  5.15  31
7/0.90 2.7  1.55  2.14  3.10    4.45  5.12  5.80  35
7/1.00 3.0  1.92  2.64  3.85    5.50  6.32  7.15  43
7/1.25 3.8  3.01  4.10  6.00    8.55  9.88  11.15  67
7/1.40 4.2  3.75  5.17  7.54  9.16  10.75  12.35  14.00  84
7/RSc 4.3  3.85  5.28  7.70  9.35  11.00  12.65  14.30  86
7/1.60 4.8  4.90  6.75  9.85  11.95  14.10  16.20  18.30  110
7/1.80 5.4  6.23  8.55  12.45    17.80  20.50  23.20  140
7/2.00 6.0  7.70  10.55  15.40    22.00  25.30  28.60  170
7/2.36 7.1  10.70  14.70  21.40    30.60  35.20  39.80  240
7/2.65 8.0  13.50  18.50  27.00    38.60  44.40  50.20  300
7/3.00 9.0  17.30  23.75  34.65    49.50  56.90  64.30  392
7/3.15 9.5  19.10  26.20  38.20    54.55  62.75  70.90  430
7/3.25 9.8  20.30  27.85  40.65    58.05  66.80  75.50  460
7/3.65 11.0  25.60  35.15  51.25    73.25  84.20  95.20  570
7/4.00 12.0  30.90  42.20  61.60    88.00  101.00  114.00  690
7/4.25 12.8  34.75  47.65  69.50    99.30  114.00  129.00  780
7/4.75 14.0  43.40  59.45  86.80    124.00  142.70  161.30  970
19/1.00 5.0  5.22  7.16  10.45    14.92  17.16  19.40  120
19/1.25 6.3  8.16  11.19  16.32    23.32  26.81  30.31  180
19/1.40 7.0  10.24  14.04  20.47    29.25  33.64  38.02  230
19/1.60 8.0  13.37  18.34  26.75    38.20  43.93  49.66  300
19/2.00 10.0  20.90  28.65  41.78  50.74  59.69  68.64  77.60  470
19/2.50 12.5  32.65  44.80  65.29  79.28  93.27  107.30  121.30  730
19/3.00 15.0  47.00  64.50  94.00  114.10  134.30  154.50  174.60  1050
19/3.55 17.8  65.80  90.27  131.60  159.90  188.00  216.30  244.50  1470
19/4.00 20.0  83.55  114.60  167.10  203.00  238.70  274.60  210.40  1870
19/4.75 23.8  117.85  161.60  235.70  286.00  336.70  387.20  437.70  2630
Expand More
