ALUMINUM CONDUCTOR ALLOY REINFORCED (ACAR CONDUCTOR)

Inquire Now
Overview
DESCRIPTION

An outer layer of Aluminum conductor concentrically stranded over the central core of solid Aluminum alloy or Stranded Aluminum alloy wire to form ACAR conductor.

APPLICATION

ACAR conductors are used as bare overhead conductor for power transmission and distribution lines,where higher capacity and strength for equal weight are prime line considerations.ACAR is the solution over ACSR due to its better strength-to-weight ratio.

STANDARD

ASTM B524/B524M
DOWNLOAD
CABLE DATASHEET
N/A
ASTM B524/B524M
TRANSMISSION LINE
DISTRIBUTION LINE
N/A
Specifications
ELECTRICAL PERFORMANCE
N/A
STANDARD
ASTM B524/B524M
APPLICATION
TRANSMISSION LINE
DISTRIBUTION LINE
CORE IDENTIFICATION
N/A
CHEMICAL PERFORMANCE
N/A
MECHANICAL PERFORMANCE
Refer to relative standard
FIRE PERFORMANCE
N/A
THERMINAL PERFORMANCE
N/A
Other Properties
APPROVALS
N/A
INSTALLATION CONDITIONS
Open air
CABLE MARKING
N/A
PACKAGING
BY WOODEN OR STEEL-WOODEN OR FULL STEEL REEL/DRUM

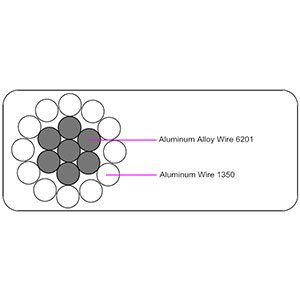

CONSTRUCTION
1. Conductor

1)Outer layer: Aluminum wire 1350
2)Center: Aluminum alloy wire 6201

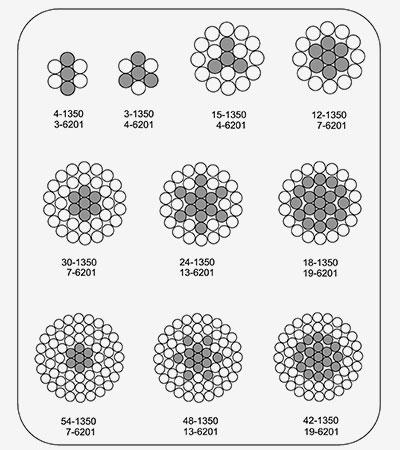

Generally, the ACAR Conductor is formed by the following construction:
PARAMETER

ASTM B524/B524M
Size No. of 1350 Wire
/Dia.
No. of 6201 Wire
/Dia.
Approx. Overall
Dia.
Approx.
Weight
Rated
Strength
Max. DC Resistance
at 20 °C
AWG mm2 No./mm No./mm mm kg/km kgf Ω/km
4 21.1 4/1.96 3/1.96 5.88 58.22 507.5 1.4757
2 33.63 4/2.47 3/2.47 7.42 92.55 793.8 0.9282
1/0 53.51 4/3.12 3/3.12 9.36 147.3 1221.9 0.5833
2/0 67.44 4/3.50 3/3.50 10.51 185.6 1502.5 0.4628
3/0 85.03 4/3.93 3/3.93 11.8 234 1861.4 0.3671
195.7 99.16 4/4.25 3/4.25 12.74 272.9 2170.9 0.3148
4/0 107.22 4/4.42 3/4.42 13.25 295.1 2347.3 0.2911
250 126.68 12/2.91 7/2.91 14.57 348.8 2813.8 0.2442
300 152.01 12/3.20 7/3.20 15.96 418.6 3344 0.2035
350 177.35 15/3.45 4/3.45 17.24 488.7 3390 0.1704
350 177.35 12/3.45 7/3.45 17.24 488.3 3816 0.1744
355 179.88 12/3.47 7/3.47 17.36 495.3 3871 0.1720
392.5 198.88 24/2.62 13/2.62 18.3 547.7 4277 0.1551
400 202.68 12/3.69 7/3.69 18.4 558.1 4318 0.1526
450 228.02 12/3.91 7/3.91 19.54 627.8 4810 0.1357
450 228.02 18/2.80 19/2.80 19.61 627.3 5401 0.1387
450 228.02 15/3.91 4/3.91 19.54 628.4 4240 0.1325
465.9 236.08 12/3.98 7/3.98 19.89 650 4980 0.1310
465.9 236.08 18/2.85 19/2.85 19.95 649.5 5592 0.1339
500 253.35 12/4.12 7/4.12 20.6 697.6 5344 0.1221
500 253.35 18/2.95 19/2.95 20.7 697 6001 0.1248
500 253.35 30/2.95 7/2.95 20.7 698.3 4901 0.1189
500 253.35 24/2.95 13/2.95 20.7 697.7 5395 0.1218
550 278.69 18/3.10 19/3.10 21.68 766.7 6556 0.1135
550 278.69 15/4.32 4/4.32 21.61 768 5183 0.1084
600 304.02 18/3.23 19/3.23 22.64 836.4 7152 0.1040
600 304.02 24/3.24 13/3.24 22.64 837.2 6409 0.1015
650 329.36 18/3.37 19/3.37 23.57 906.1 7534 0.0960
650 329.36 24/3.37 13/3.37 23.57 907 6798 0.0937
700 354.7 30/3.49 7/3.49 24.46 977.6 6680 0.0849
700 354.7 18/3.49 19/3.49 24.46 975.9 8114 0.0891
700 354.7 24/3.49 13/3.49 24.46 976.7 7240 0.0870
739.8 374.86 18/3.59 19/3.59 25.14 1031 8514 0.0844
750 380.03 33/3.62 4/3.62 25.31 1048 6525 0.0783
750 380.03 30/3.62 7/3.62 25.31 1047 7056 0.0793
750 380.03 18/3.62 19/3.62 25.31 1046 8631 0.0832
750 380.03 24/3.62 13/3.62 25.31 1046 7763 0.0812
800 405.37 18/3.74 19/3.74 26.14 1115 9207 0.0780
800 405.37 24/3.74 13/3.74 26.14 1116 8280 0.0761
850 430.7 18/3.85 19/3.85 26.95 1185 9711 0.0734
850 430.7 24/3.85 13/3.85 26.95 1186 8706 0.0716
853.7 432.58 24/3.86 13/3.86 27.01 1191 8744 0.0713
853.7 432.58 30/3.86 7/3.86 27.01 1192 7917 0.0696
900 456.04 18/3.96 19/3.96 27.7 1255 10283 0.0693
900 456.04 24/3.96 13/3.96 27.73 1256 9219 0.0677
900 456.04 30/3.96 7/3.96 27.7 1257 8347 0.0661
918 465.16 18/4.00 19/4.00 28 1280 10488 0.0680
927.2 469.82 18/4.02 19/4.02 28.1 1293 10593 0.0673
950 481.37 18/4.07 19/4.07 28.49 1324 10854 0.0657
950 481.37 30/4.07 7/4.07 28.5 1327 8810 0.0626
950 481.37 24/4.07 13/4.07 28.49 1326 9731 0.0641
1000 506.71 18/4.18 19/4.18 29.23 1394 11425 0.0624
1000 506.71 54/3.25 7/3.25 29.27 1397 8890 0.0588
1000 506.71 30/4.18 7/4.18 29.23 1397 9274 0.0594
1000 506.71 42/3.25 19/3.25 29.27 1396 10211 0.0605
1000 506.71 33/3.25 28/3.25 29.27 1394 10981 0.0619
1024.5 519.12 30/4.23 7/4.23 29.59 1431 9501 0.0580
1024.5 519.12 18/4.23 19/4.23 29.59 1429 11707 0.0609
1024.5 519.12 24/4.23 13/4.23 29.59 1430 10494 0.0594
1080.6 547.55 24/4.34 13/4.34 30.39 1508 11069 0.0563
1080.6 547.55 18/4.34 19/4.34 30.39 1506 12346 0.0578
1100 557.38 24/4.38 13/4.38 30.66 1535 11267 0.0554
1100 557.38 18/4.38 19/4.38 30.66 1533 12568 0.0567
1100 557.38 30/4.38 7/4.38 30.66 1536 10201 0.0540
1100 557.38 48/3.41 13/3.41 30.7 1536 10408 0.0542
1100 557.38 42/3.41 19/3.41 30.7 1535 11232 0.0550
1172 593.86 18/4.52 19/4.52 31.64 1634 13390 0.0532
1198 607.04 30/4.57 7/4.57 31.99 1673 11110 0.0496
1198 607.04 24/4.57 13/4.57 31.99 1672 12271 0.0508
1200 608.05 18/4.57 19/4.57 32.02 1673 13710 0.0520
1200 608.05 24/4.57 13/4.57 32.02 1674 12292 0.0507
1200 608.05 30/4.57 7/4.57 32.02 1676 11129 0.0495
1200 608.05 48/3.56 13/3.56 32.06 1676 11202 0.0497
1250 633.38 30/4.67 7/4.67 32.68 1746 11592 0.0476
1250 633.38 48/3.64 13/3.64 32.72 1746 11668 0.0477
1250 633.38 54/3.64 7/3.64 32.72 1746 10933 0.0470
1250 633.38 33/3.64 28/3.64 32.72 1743 13615 0.0495
1300 658.72 42/3.71 19/3.71 33.37 1814 13126 0.0466
1300 658.72 18/4.76 19/4.76 33.33 1812 14853 0.0480
1300 658.72 30/4.76 7/4.76 33.33 1816 12056 0.0457
1303 660.24 54/3.04 37/3.04 33.43 1818 14367 0.0471
1361.5 689.88 54/3.79 7/3.79 34.15 1902 11908 0.0432
1400 709.39 33/3.85 28/3.85 34.63 1952 15123 0.0442
1400 709.39 48/3.85 13/3.85 34.63 1955 12890 0.0426
1400 709.39 42/3.85 19/3.85 34.63 1954 13976 0.0432
1400 709.39 54/3.85 7/3.85 34.63 1956 12044 0.0420
1500 760.06 33/3.98 28/3.98 35.85 2092 16203 0.0413
1500 760.06 42/3.98 19/3.98 35.85 2093 14974 0.0404
1600 810.73 42/4.11 19/4.11 37.02 2233 15973 0.0378
1600 810.73 54/4.11 7/4.11 37.02 2235 13764 0.0368
1700 861.4 42/4.24 19/4.24 38.16 2373 16971 0.0356
1700 861.4 33/4.24 28/4.24 38.16 2371 18363 0.0364
1703 862.92 42/4.24 19/4.24 38.2 2377 17001 0.0355
1800 912.07 42/4.36 19/4.36 39.27 2512 17969 0.0336
1800 912.07 33/4.36 28/4.36 39.27 2510 19701 0.0344
1900 962.74 42/4.48 19/4.48 40.34 2652 18968 0.0319
2000 1013.41 42/4.60 19/4.60 41.39 2791 19966 0.0303
2250 1140.09 54/4.00 37/4.0 43.93 3169 23572 0.0276
2493 1263.22 54/4.20 37/4.20 46.25 3512 26118 0.0249
2500 1266.77 54/4.21 37/4.21 46.31 3521 26191 0.0248
2750 1393.45 54/4.42 37/4.42 48.57 3874 28811 0.0225
3000 1520.1 54/4.61 37/4.61 50.73 4226 31430 0.0207
