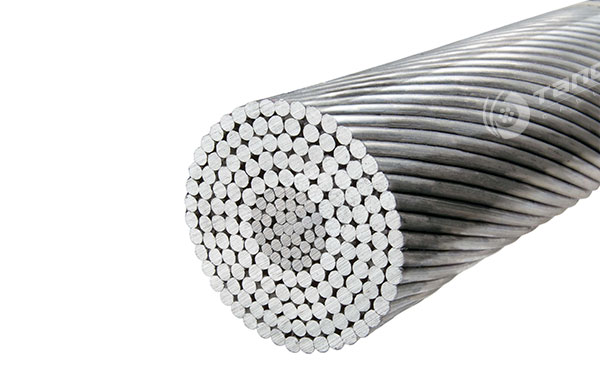

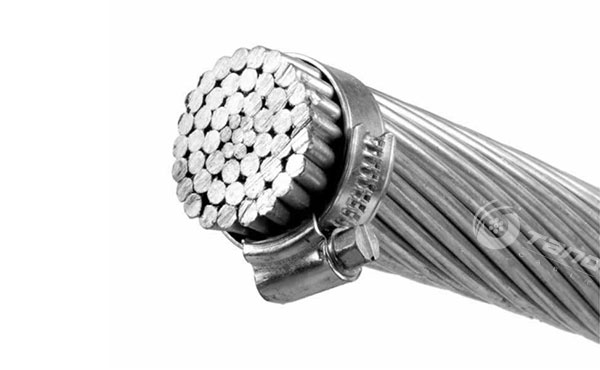

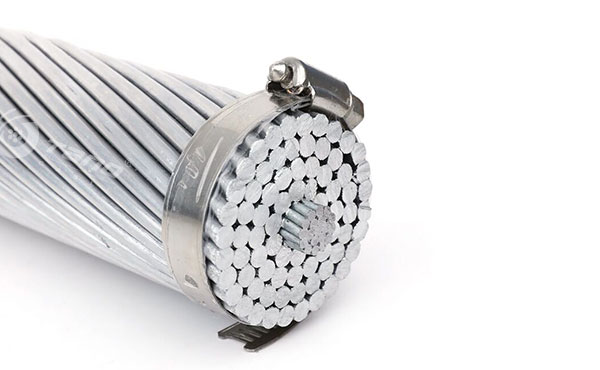

ACSR, Aluminum Conductor Steel Reinforced

Overview Specifications

CONSTRUCTION PARAMETER

Overview

DESCRIPTION

An outer layer of Aluminum of Aluminum conductor concentrically stranded over the central core of galvanized solid or stranded steel wires to form Aluminum steel reinforced conductor.

APPLICATION

ACSR conductor are widely used for electrical power transmission over long distances, since they are ideal for long overhead lines spans. They are also used as a messenger for supporting overhead electrical cables.

STANDARD

BS EN 50182, IEC 61089, ASTM B 232/B 232M, AS 3607, GB/T 1179, BS 215-2, DIN48204, GOST 839

DOWNLOAD
CABLE DATASHEET

N/A

BS EN 50182, IEC 61089, ASTM B 232/B 232M, AS 3607, GB/T 1179, BS 215-2, DIN48204, GOST 839

TRANSMISSION LINE
AS MESSENGER

N/A

Specifications

ELECTRICAL PERFORMANCE

N/A

STANDARD

BS EN 50182, IEC 61089, ASTM B 232/B 232M, AS 3607, GB/T 1179, BS 215-2, DIN48204, GOST 839

APPLICATION

TRANSMISSION LINE
AS MESSENGER

CORE IDENTIFICATION

N/A

CHEMICAL PERFORMANCE

N/A

MECHANICAL PERFORMANCE

Refer to relative standards

FIRE PERFORMANCE

N/A

THERMINAL PERFORMANCE

N/A

Other Properties

APPROVALS

N/A

INSTALLATION CONDITIONS

Open air

CABLE MARKING

N/A

PACKAGING

BY WOODEN OR STEEL-WOODEN OR FULL STEEL REEL/DRUM

CONSTRUCTION

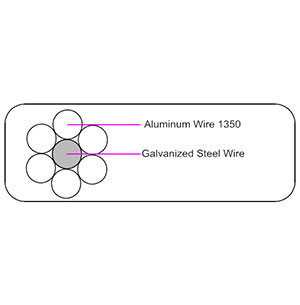

1. Conductor

1)Outer layer: Hard drawn aluminum wire
2)Center: Galvanized steel wire

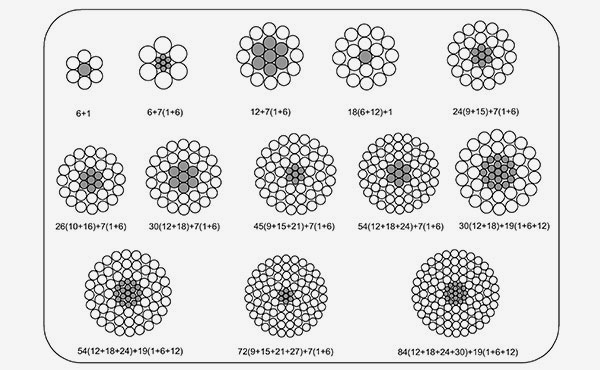

Generally, the ACSR Conductor is formed by the following construction:

PARAMETER

BS 215 Part 2

BS EN 50182

IEC 61089

ASTM B 232/B 232M

DIN 48204

GB/T 1179

AS 3607

GOST 839

Code Name	Nominal Area	No. / Nominal Dia. of Wire		Approx. Overall Dia.	Sectional Area			Approx. Weight	Nominal Breaking Load	Max. DC Resistance at 20°C


		Aluminum	Steel		Aluminum	Steel	Total
	mm2	No./mm	No./mm	mm	mm2	mm2	mm2	kg/km	kN	Ω/km
Gopher	25	6/2.36	1/2.36	7.08	26.24	4.38	30.62	106	9.61	1.093
Weasel	30	6/2.59	1/2.59	7.77	31.61	5.27	36.88	128	11.45	0.9077
Ferret	40	6/3.00	1/3.00	9.00	42.41	7.07	49.48	172	15.2	0.6766
Rabbit	50	6/3.35	1/3.35	10.05	52.88	8.82	61.7	214	18.35	0.5426
Horse	70	12/2.79	7/2.79	13.95	73.37	42.83	116.2	538	61.2	0.3936
Dog	100	6/4.72	7/1.57	14.15	105.0	13.5	118.5	394	32.7	0.2733
Dingo	150	18/3.35	1/3.35	16.75	158.7	8.8	167.5	506	35.7	0.1815
Wolf	150	30/2.59	7/2.59	18.13	158.1	36.8	194.9	726	69.2	0.1828
Lynex	175	30/2.79	7/2.79	19.53	183.4	42.8	226.2	842	79.8	0.1576
Caracal	175	18/3.61	1/3.61	18.05	184.3	10.2	194.5	587	41.1	0.1563
Panther	200	30/3.00	7/3.00	21.00	212.1	49.4	261.5	974	92.25	0.1363
Jaguar	200	18/3.86	1/3.86	19.30	210.6	11.7	222.3	671	46.55	0.1367
Zebra	400	54/3.18	7/3.18	28.62	428.9	55.6	484.5	1621	131.9	0.0674

Expand More

Code Name	No. / Nominal Dia. of Wire		Approx. Overall Dia.	Sectional Area			Approx. Weight	Nominal Breaking Load	Max. DC Resistance at 20°C


	Aluminum	Steel		Aluminum	Steel	Total
	No./mm	No./mm	mm	mm2	mm2	mm2	kg/km	kN	Ω/km
Mole	6/1.50	1/1.50	4.50	10.6	1.77	12.4	42.8	4.14	2.7027
Squirrel	6/2.11	1/2.11	6.33	21.0	3.5	24.5	84.7	7.87	1.3659
Fox	6/2.79	1/2.79	8.37	36.7	6.11	42.8	148.1	13.21	0.7812
Mink	6/3.66	1/3.66	10.98	63.1	10.5	73.6	254.9	21.67	0.4540
Skunk	12/2.59	7/2.59	12.95	63.2	36.9	100.1	463.0	52.79	0.4568
Beaver	6/3.99	1/3.99	11.97	75.0	12.5	87.5	302.9	25.76	0.3820
Racoon	6/4.09	1/4.09	12.27	78.8	13.1	91.9	318.3	27.06	0.3635
Otter	6/4.22	1/4.22	12.66	83.9	14	97.9	338.8	28.81	0.3415
Cat	6/4.50	1/4.50	13.50	95.4	15.9	111.3	385.3	32.76	0.3003
Hare	6/4.72	1/4.72	14.16	105.0	17.5	122.5	423.8	36.04	0.2730
Coyote	26/2.54	7/1.91	15.89	131.7	20.1	151.8	520.7	45.86	0.2192
Cougar	18/3.05	1/3.05	15.25	131.5	7.31	138.8	418.8	29.74	0.2188
Tiger	30/2.36	7/2.36	16.52	131.2	30.6	161.8	602.2	57.87	0.2202
Lion	30/3.18	7/3.18	22.26	238.3	55.6	293.9	1093.4	100.47	0.1213
Bear	30/3.35	7/3.35	23.45	264.4	61.7	326.1	1213.4	111.50	0.1093
Goat	30/3.71	7/3.71	25.97	324.3	75.7	400.0	1488.2	135.13	0.0891
Sheep	30/3.99	7/3.99	27.93	375.1	87.5	462.6	1721.3	156.30	0.0771
Antelope	54/2.97	7/2.97	26.73	374.1	48.5	422.6	1413.8	118.88	0.0773
Bison	54/3.00	7/3.00	27.00	381.7	49.5	431.2	1442.5	121.30	0.0758
Deer	30/4.27	7/4.27	29.89	429.6	100.2	529.8	1971.4	179.00	0.0673
Elk	30/4.50	7/4.50	31.50	477.1	111.3	588.4	2189.5	198.80	0.0606
Camel	54/3.35	7/3.35	30.15	476.0	61.7	537.7	1798.8	146.40	0.0608
Moose	54/3.53	7/3.53	31.77	528.5	68.5	597.0	1997.3	159.92	0.0547

Expand More

Code Number	Nominal Area			No. / Nominal Dia. of Wire		Approx.Overall Dia.	Approx. Weight	Nominal Breaking Load	Max. DC Resistance at 20°C



	Aluminum	Steel	Total	Aluminum	Steel
	mm2	mm2	mm2	No./mm	No./mm	mm	kg/km	kN	Ω/km
16	16	2.67	18.7	6/1.84	1/1.84	5.52	64.6	6.08	1.7934
25	25	4.17	29.2	6/2.30	1/2.30	6.9	100.9	9.13	1.1478
40	40	6.67	46.7	6/2.91	1/2.91	8.73	161.5	14.4	0.7174
63	63	10.5	73.5	6/3.66	1/3.66	10.98	254.4	21.63	0.4555
100	100	16.7	117	6/4.61	1/4.61	13.83	403.8	34.33	0.2869
125	125	6.94	132	18/2.97	1/2.97	14.85	397.9	29.17	0.2304
125	125	20.4	145	26/2.47	7/1.92	15.64	503.9	45.69	0.2310
160	160	8.89	169	18/3.36	1/3.36	16.8	509.3	36.18	0.1800
160	160	26.1	186	26/2.80	7/2.18	17.74	644.9	57.69	0.1805
200	200	11.1	211	18/3.76	1/3.76	18.8	636.7	44.22	0.1440
200	200	32.6	233	26/3.13	7/2.43	19.81	806.2	70.13	0.1444
250	250	24.6	275	22/3.80	7/2.11	21.53	880.6	68.72	0.1154
250	250	40.7	291	26/3.50	7/2.72	22.16	1007.7	87.67	0.1155
315	315	21.8	337	45/2.99	7/1.99	23.91	1039.6	79.03	0.0917
315	315	51.3	366	26/3.93	7/3.05	24.87	1269.7	106.83	0.0917
400	400	27.7	428	45/3.36	7/2.24	26.88	1320.1	98.36	0.0722
400	400	51.9	452	54/3.07	7/3.07	27.63	1510.3	123.04	0.0723
450	450	31.1	481	45/3.57	7/2.38	28.56	1485.2	107.47	0.0642
450	450	58.3	508	54/3.26	7/3.26	29.34	1699.1	138.42	0.0643
500	500	34.6	535	45/3.76	7/2.51	30.09	1650.2	119.41	0.0578
500	500	64.8	565	54/3.43	7/3.43	30.87	1887.9	153.8	0.0578
560	560	38.7	599	45/3.98	7/2.65	31.83	1848.2	133.74	0.0516
560	560	70.9	631	54/3.63	19/2.18	32.68	2103.4	172.59	0.0516
630	630	43.6	674	45/4.22	7/2.81	33.75	2079.2	150.45	0.0459
630	630	79.8	710	54/3.85	19/2.31	34.65	2366.3	191.77	0.0459
710	710	49.1	759	45/4.48	7/2.99	35.85	2343.2	169.56	0.0407
710	710	89.9	800	54/4.09	19/2.45	36.79	2666.8	216.12	0.0407
800	800	34.6	835	72/3.76	7/2.51	37.61	2480.2	167.41	0.0361
800	800	66.7	867	84/3.48	7/3.48	38.28	2732.7	205.33	0.0362
800	800	101	901	54/4.34	19/2.61	39.09	3004.9	243.52	0.0362
900	900	38.9	939	72/3.99	7/2.66	39.9	2790.2	188.33	0.0321
900	900	75	975	84/3.69	7/3.69	40.59	3074.2	226.5	0.0322
1000	1000	43.2	1043	72/4.21	7/2.80	42.08	3100.3	209.26	0.0289
1120	1120	47.3	1167	72/4.45	19/1.78	44.5	3464.9	234.53	0.0258
1120	1120	91.2	1211	84/4.12	19/2.47	45.31	3811.5	283.17	0.0258
1250	1250	102	1352	84/4.35	19/2.61	47.85	4253.9	316.04	0.0232
1250	1250	52.8	1303	72/4.70	19/1.88	47	3867.1	261.75	0.0231

Expand More

Code Name	Nominal Area			No. / Nominal Dia. of Wire		Approx. Overall Dia.	Approx. Weight	Nominal Breaking Load	Max. DC Resistance at 20°C



	Aluminum	Steel	Total	Aluminum	Steel
	mm2	mm2	mm2	No./mm	No./mm	mm	kg/km	kN	Ω/km
Turkey	13.3	2.22	15.52	6/1.68	1/1.68	5.04	53.6	4.98	2.1499
Swan	21.18	3.53	24.71	6/2.12	1/2.12	6.36	85.3	7.83	1.3501
Swanate	21.12	5.35	26.47	7/1.96	1/2.61	6.53	99.6	9.79	1.3539
Sparrow	33.59	5.6	39.19	6/2.67	1/2.67	8.01	135.7	11.92	0.8512
Sparate	33.54	8.55	42.09	7/2.47	1/3.30	8.24	158.7	15.08	0.8525
Robin	42.41	7.07	49.48	6/3.00	1/3.00	9.00	171.1	14.86	0.6742
Raven	53.52	8.92	62.44	6/3.37	1/3.37	10.11	216.1	18.33	0.5343
Quail	67.33	11.22	78.55	6/3.78	1/3.78	11.34	272	22.46	0.4247
Pigeon	85.12	14.19	99.31	6/4.25	1/4.25	12.75	343	28.02	0.3359
Penguin	107.22	17.87	125.09	6/4.77	1/4.77	14.31	432.7	35.36	0.2667
Waxwing	134.98	7.5	142.48	18/3.09	1/3.09	15.45	430.2	29.80	0.2129
Partridge	134.87	21.99	156.86	26/2.57	7/2.00	16.28	545.9	47.15	0.2141
Ostrich	152.19	24.71	176.9	26/2.73	7/2.12	17.28	613.4	53.38	0.1897
Merlin	170.22	9.46	179.68	18/3.47	1/3.47	17.35	542.8	37.36	0.1688
Linnet	170.55	27.83	198.38	26/2.89	7/2.25	18.31	687.5	59.16	0.1693
Oriole	170.5	39.78	210.28	30/2.69	7/2.69	18.83	783.3	72.06	0.1698
Chickadee	200.93	11.16	212.09	18/3.77	1/3.77	18.85	641.3	43.15	0.1430
Brant	201.56	26.13	227.69	24/3.27	7/2.18	19.62	761	61.83	0.1433
Ibis	201.34	32.73	234.07	26/3.14	7/2.44	19.88	812.4	68.05	0.1434
Lark	200.9	46.88	247.78	30/2.92	7/2.92	20.44	925.2	84.07	0.1441
Pelican	242.31	13.46	255.77	18/4.14	1/4.14	20.70	769.7	51.15	0.1186
Flicker	241.58	31.4	272.98	24/3.58	7/2.39	21.49	913.5	72.06	0.1195
Hawk	241.65	39.19	280.84	26/3.44	7/2.67	21.77	975.1	81.84	0.1195
Hen	241.27	56.3	297.57	30/3.20	7/3.20	22.40	1110.6	98.30	0.1200
Osprey	282.47	15.69	298.16	18/4.47	1/4.47	22.35	897.7	59.60	0.1017
Parakeet	282.31	36.6	318.91	24/3.87	7/2.58	23.22	1065.6	83.18	0.1023
Dove	282.59	45.92	328.51	26/3.72	7/2.89	23.55	1138.6	94.30	0.1022
Eagle	282.07	65.82	347.89	30/3.46	7/3.46	24.22	1295.6	114.76	0.1026
Peacock	306.13	39.78	345.91	24/4.03	7/2.69	24.19	1158.9	90.74	0.0943
Squab	305.83	49.81	355.64	26/3.87	7/3.01	24.51	1237	101.41	0.0944
Wood Duck	307.06	71.65	378.71	30/3.61	7/3.61	25.27	1408.4	121.43	0.0943
Teal	307.06	69.62	376.68	30/3.61	19/2.16	25.24	1396.6	124.54	0.0943
Kingbird	323.01	17.95	340.96	18/4.78	1/4.78	23.90	1026.6	68.05	0.0890
Swift	323.02	8.97	331.99	36/3.38	1/3.38	23.66	956.5	60.05	0.0890
Rook	323.07	41.88	364.95	24/4.14	7/2.76	24.84	1217.5	95.19	0.0894
Grosbeak	321.84	52.49	374.33	26/3.97	7/3.09	25.15	1300.8	104.97	0.0897
Scoter	322.56	75.26	397.82	30/3.70	7/3.70	25.90	1480.7	127.66	0.0897
Egret	322.56	73.54	396.1	30/3.70	19/2.22	25.90	1469	130.77	0.0897
Flamingo	337.27	43.72	380.99	24/4.23	7/2.82	25.38	1276.6	99.64	0.0856
Gannet	338.26	54.9	393.16	26/4.07	7/3.16	25.76	1363.3	110.31	0.0854
Stilt	363.27	46.88	410.15	24/4.39	7/2.92	26.32	1370.4	107.20	0.0795
Starling	361.93	59.15	421.08	26/4.21	7/3.28	26.68	1463.7	118.32	0.0798
Redwing	362.06	82.41	444.47	30/3.92	19/2.35	27.43	1650.6	143.23	0.0799
Coot	401.86	11.16	413.02	36/3.77	1/3.77	26.39	1195.8	73.39	0.0715
Tern	403.77	27.83	431.6	45/3.38	7/2.25	27.03	1331.8	94.30	0.0715
Condor	402.33	52.15	454.48	54/3.08	7/3.08	27.72	1520.7	118.32	0.0718
Cuckoo	402.33	52.15	454.48	24/4.62	7/3.08	27.72	1522.2	117.43	0.0718
Drake	402.56	65.44	468	26/4.44	7/3.45	28.11	1626.4	131.66	0.0717
Mallard	403.84	91.78	495.62	30/4.14	19/2.48	28.96	1836	159.24	0.0717
Ruddy	455.5	31.67	487.17	45/3.59	7/2.40	28.74	1507.3	104.53	0.0634
Canary	456.28	59.15	515.43	54/3.28	7/3.28	29.52	1723.1	134.33	0.0633
Catbird	484.61	13.46	498.07	36/4.14	1/4.14	28.98	1434.4	86.74	0.0593
Rail	483.84	33.54	517.38	45/3.70	7/2.47	29.61	1598.1	110.76	0.0597
Cardinal	484.53	62.81	547.34	54/3.38	7/3.38	30.42	1825.9	142.34	0.0596
Tanager	522.79	14.52	537.31	36/4.30	1/4.30	30.10	1553.5	93.85	0.0550
Orotlan	523.87	36.31	560.18	45/3.85	7/2.57	30.81	1730.5	118.32	0.0551
Curlew	522.51	67.73	590.24	54/3.51	7/3.51	31.59	1977.6	153.90	0.0553
Bluejay	565.49	38.9	604.39	45/4.00	7/2.66	31.98	1866	127.66	0.0511
Finch	565.03	71.57	636.6	54/3.65	19/2.19	32.85	2127.8	164.58	0.0514
Bunting	605.76	41.88	647.64	45/4.14	7/2.76	33.12	1996.9	136.55	0.0477
Grackle	602.79	76.89	679.68	54/3.77	19/2.27	33.97	2278.1	176.59	0.0481
Skylark	646.02	17.95	663.97	36/4.78	1/4.78	33.46	1913.6	115.65	0.0445
Bittern	644.4	44.66	689.06	45/4.27	7/2.85	34.17	2130.8	145.89	0.0448
Pheasant	645.08	81.71	726.79	54/3.90	19/2.34	35.10	2431.4	183.26	0.0450
Dipper	684.24	47.2	731.44	45/4.40	7/2.93	35.19	2263.2	154.79	0.0422
Martin	685.39	86.67	772.06	54/4.02	19/2.41	36.17	2581.7	194.82	0.0423
Bobolink	725.27	50.14	775.41	45/4.53	7/3.02	36.24	2397.2	164.13	0.0398
Plover	726.92	91.78	818.7	54/4.14	19/2.48	37.24	2734.9	206.39	0.0399
Nuthatch	764.2	52.83	817.03	45/4.65	7/3.10	37.20	2529.6	171.25	0.0378
Parrot	766.06	97.03	863.09	54/4.25	19/2.55	38.25	2883.7	217.51	0.0379
Lapwing	807.53	55.6	863.13	45/4.78	7/3.18	38.22	2663.5	180.14	0.0358
Falcon	806.23	102.43	908.66	54/4.36	19/2.62	39.26	3038.5	229.52	0.0360
Chukar	903.18	73.54	976.72	84/3.70	19/2.22	40.70	3083.1	217.51	0.0321
Bluebird	1092.84	88.84	1181.68	84/4.07	19/2.44	44.76	3731.9	256.65	0.0266
Kiwi	1099.76	47.52	1147.28	72/4.41	7/2.94	44.10	3423.9	215.28	0.0264
Thrasher	1171.42	63.94	1235.36	76/4.43	19/2.07	45.79	3754.2	243.75	0.0248
ACSR WITH HIGH STRENGTH STRANDING
Grouse	40.54	14.12	54.66	8/2.54	1/4.24	9.32	221.4	21.75	0.7089
Petrel	51.61	30.1	81.71	12/2.34	7/2.34	11.70	377.7	42.08	0.5595
Minorca	56.11	32.73	88.84	12/2.44	7/2.44	12.20	411.1	45.81	0.5146
Leghorn	68.2	39.78	107.98	12/2.69	7/2.69	13.45	499.2	55.16	0.4234
Guinea	80.36	46.88	127.24	12/2.92	7/2.92	14.60	589.7	64.94	0.3593
Dotterel	89.41	52.15	141.56	12/3.08	7/3.08	15.40	656.1	70.28	0.3230
Dorking	96.51	56.3	152.81	12/3.20	7/3.20	16.00	707.8	75.62	0.2992
Cochin	107.04	62.44	169.48	12/3.37	7/3.37	16.85	783.9	84.07	0.2698
Brahma	102.79	91.78	194.57	16/2.86	19/2.48	18.12	1003.8	114.76	0.2809

Expand More

Nominal Sectional Area	Sectional Area			No. / Nominal Dia. of Wire		Approx. Overall Dia.	Approx. Weight	Nominal Breaking Load	Max. DC Resistance at 20°C



	Aluminum	Steel	Total	Aluminum	Steel
mm2	mm2	mm2	mm2	No./mm	No./mm	mm	kg/km	kN	Ω/km
16/2.5	15.27	2.54	17.8	6/1.80	1/1.80	5.4	62	5.81	1.8793
25/4	23.86	3.98	27.8	6/2.25	1/2.25	6.8	97	9.02	1.2028
35/6	34.35	5.73	40.1	6/2.70	1/2.70	8.1	140	12.70	0.8353
44/32	43.98	31.67	75.7	14/2.00	7/2.40	11.2	373	45.46	0.6573
50/8	48.25	8.04	56.3	6/3.20	1/3.20	9.6	196	17.18	0.5946
50/30	51.17	29.85	81	12/2.33	7/2.33	11.7	378	44.28	0.5644
70/12	69.89	11.4	81.3	26/1.85	7/1.44	11.7	284	26.31	0.4130
95/15	94.39	15.33	109.7	26/2.15	7/1.67	13.6	383	35.17	0.3058
95/55	96.51	56.3	152.8	12/3.20	7/3.20	16.0	714	80.20	0.2992
105/75	105.67	75.55	181.2	14/3.10	19/2.25	17.5	899	106.69	0.2736
120/20	121.57	19.85	141.4	26/2.44	7/1.90	15.5	494	44.94	0.2374
120/70	122.15	71.25	193.4	12/3.60	7/3.60	18.0	904	98.16	0.2364
125/30	127.92	29.85	157.8	30/2.33	7/2.33	16.3	590	57.86	0.2259
150/25	148.86	24.25	173.1	26/2.70	7/2.10	17.1	604	54.37	0.1939
170/40	171.77	40.08	211.9	30/2.70	7/2.70	18.9	794	77.01	0.1682
185/30	183.78	29.85	213.6	26/3.00	7/2.33	19.0	744	66.28	0.1571
210/35	209.1	34.09	243.2	26/3.20	7/2.49	20.3	848	74.94	0.1380
210/50	212.06	49.48	261.5	30/3.00	7/3.00	21.0	979	92.25	0.1363
230/30	230.91	29.85	260.8	24/3.50	7/2.33	21.0	874	73.09	0.1249
240/40	243.05	39.49	282.5	26/3.45	7/2.68	21.8	985	86.46	0.1188
265/35	263.66	34.09	297.8	24/3.74	7/2.49	22.4	998	82.94	0.1094
300/50	304.26	49.48	353.7	26/3.86	7/3.00	24.5	1233	105.09	0.0949
305/40	304.62	39.49	344.1	54/2.68	7/2.68	24.1	1155	99.30	0.0949
340/30	339.29	29.85	369.1	48/3.00	7/2.33	25.0	1174	92.56	0.0851
380/50	381.7	49.48	431.2	54/3.00	7/3.00	27.0	1448	120.91	0.0757
385/35	386.04	34.09	420.1	48/3.20	7/2.49	26.7	1336	104.31	0.0748
435/55	434.29	56.3	490.6	54/3.20	7/3.20	28.8	1647	136.27	0.0666
450/40	448.71	39.49	488.2	48/3.45	7/2.68	28.7	1553	120.19	0.0644
490/65	490.28	63.55	553.8	54/3.40	7/3.40	30.6	1860	152.85	0.0590
495/35	494.4	34.1	528.5	45/3.74	7/2.49	29.9	1636	122.72	0.0584
510/45	510.5	45.3	555.8	48/3.68	7/2.87	30.7	1770	137.02	0.0566
550/70	549.65	71.25	620.9	54/3.60	7/3.60	32.4	2085	167.42	0.0526
560/50	561.7	49.48	611.2	48/3.86	7/3.00	32.2	1943	146.28	0.0514
570/40	571.2	39.5	610.7	45/4.02	7/2.68	32.2	1889	140.74	0.0506
650/45	653.5	45.3	698.8	45/4.30	7/2.87	34.4	2163	158.63	0.0442
680/85	678.58	85.95	764.5	54/4.00	19/2.40	36.0	2564	209.99	0.0426
1045/45	1045.6	45.3	1090.9	72/4.30	7/2.87	43.0	3249	222.23	0.0277

Expand More

Nominal Sectional Area	Sectional Area			No. / Nominal Dia. of Wire		Approx. Overall Dia.	Approx. Weight	Nominal Breaking Load	Max. DC Resistance at 20°C
	Sectional Area			No. / Nominal Dia. of Wire
	Aluminum	Steel	Total	Aluminum	Steel
mm2	mm2	mm2	mm2	No./mm	No./mm	mm	kg/km	kN	Ω/km
10/2	10.60	1.77	12.37	6/1.50	1/1.50	4.50	42.8	4.14	2.7062
16/3	16.13	2.69	18.82	6/1.85	1/1.85	5.55	65.1	6.13	1.7791
35/6	34.86	5.81	40.67	6/2.72	1/2.72	8.16	140.8	12.55	0.8230
50/8	48.25	8.04	56.30	6/3.20	1/3.20	9.60	194.8	16.81	0.5946
50/30	50.73	29.59	80.32	12/2.32	7/2.32	11.6	371.1	42.61	0.5693
70/10	68.05	11.34	79.39	6/3.80	1/3.80	11.4	274.8	23.36	0.4217
70/40	69.73	40.67	110.40	12/2.72	7/2.72	13.6	510.2	58.22	0.4141
95/15	94.39	15.33	109.73	26/2.15	7/2.15	13.6	380.2	34.93	0.3050
95/20	95.14	18.82	113.96	7/4.16	7/4.16	13.9	408.2	37.24	0.3020
95/55	96.51	56.30	152.81	12/3.20	7/3.20	16.0	706.1	77.85	0.2992
120/7	118.89	6.61	125.50	18/2.90	1/2.90	14.5	378.5	27.74	0.2422
120/20	115.67	18.82	134.49	26/2.38	7/2.38	15.1	466.1	42.26	0.2496
120/25	122.48	24.25	146.73	7/4.72	7/4.72	15.7	525.7	47.96	0.2346
120/70	122.15	71.25	193.40	12/3.60	7/3.60	18.0	893.7	97.92	0.2364
150/8	144.76	8.04	152.80	18/3.20	1/3.20	16.0	460.9	32.73	0.1990
150/20	145.68	18.82	164.50	24/2.78	7/1.85	16.7	548.5	46.78	0.1981
150/25	148.86	24.25	173.11	26/2.70	7/2.15	17.1	600.1	53.67	0.1940
150/35	147.26	34.36	181.62	30/2.50	7/2.50	17.5	675	64.94	0.1962
185/10	183.22	10.18	193.40	18/3.60	1/3.60	18.0	583.3	40.51	0.1572
185/25	187.03	24.25	211.28	24/3.15	7/2.10	18.9	704.9	59.23	0.1543
185/30	181.34	29.59	210.93	26/2.98	7/2.32	18.9	731.4	64.56	0.1592
185/45	184.73	43.10	227.83	30/2.80	7/2.80	19.6	846.7	80.54	0.1564
210/10	204.14	11.34	215.48	18/3.80	1/3.80	19.0	649.9	45.14	0.1411
210/25	209.02	27.10	236.12	24/3.33	7/2.22	20.0	787.8	66.19	0.1380
210/35	211.73	34.36	246.09	26/3.22	7/2.50	20.4	852.5	74.11	0.1364
210/50	209.24	48.82	258.06	30/2.98	7/2.98	20.9	959	91.23	0.1381
240/30	244.29	31.67	275.96	24/3.60	7/2.40	21.6	920.7	75.19	0.1181
240/40	238.84	38.90	277.74	26/3.42	7/2.66	21.7	962.8	83.76	0.1209
240/55	241.27	56.30	297.57	30/3.20	7/3.20	22.4	1105.8	101.74	0.1198
300/15	296.88	15.33	312.21	42/3.00	7/1.67	23.0	938.7	68.41	0.0973
300/20	303.42	20.91	324.32	45/2.93	7/1.95	23.4	1000.8	76.04	0.0952
300/25	306.21	27.10	333.31	48/2.85	7/2.22	23.8	1057	83.76	0.0944
300/40	300.09	38.90	338.99	24/3.99	7/2.66	23.9	1131	92.36	0.0961
300/50	299.54	48.82	348.37	26/3.83	7/2.98	24.3	1207.7	103.58	0.0964
300/70	305.36	71.25	376.61	30/3.60	7/3.60	25.2	1399.6	127.23	0.0946
400/20	406.40	20.91	427.31	42/3.51	7/1.95	26.9	1284.3	89.48	0.0710
400/25	391.91	27.10	419.01	45/3.33	7/2.22	26.6	1293.5	96.37	0.0737
400/35	390.88	34.36	425.24	48/3.22	7/2.50	26.8	1347.5	103.67	0.0739
400/65	398.94	65.06	464.00	26/4.42	7/3.44	28.0	1608.7	135.39	0.0724
400/95	407.75	93.27	501.02	30/4.16	19/2.50	29.1	1856.7	171.56	0.0709
500/45	488.58	43.10	531.68	48/3.60	7/2.80	30.0	1685.5	127.31	0.0591
630/55	639.92	56.30	696.22	48/4.12	7/3.20	34.3	2206.4	164.31	0.0452
800/55	814.30	56.30	870.60	45/4.80	7/3.20	38.4	2687.5	192.22	0.0355
800/70	808.15	71.25	879.40	48/4.63	7/3.60	38.6	2887.6	207.68	0.0358

Expand More

Code Name	No. / Nominal Dia. of Wire		Approx. Overall Dia.	Cross Sectional Area	Approx. Weight	Nominal Breaking Load	Max.DC Resistance at 20°C
	No. / Nominal Dia. of Wire
	Aluminum	Steel
	No./mm	No./mm	mm	mm2	kg/km	kN	Ω/km
Almond	6/2.50	1/2.50	7.5	34.4	119	10.5	0.9750
Apricot	6/2.75	1/2.75	8.3	41.6	144	12.6	0.8050
Apple	6/3.00	1/3.00	9.0	49.5	171	14.9	0.6770
Banana	6/3.75	1/3.75	11.3	77.3	268	22.7	0.4330
Cherry	6/4.75	7/1.60	14.3	120.0	402	33.4	0.2710
Grape	30/2.50	7/2.50	17.5	182.0	677	63.5	0.1960
Lemon	30/3.00	7/3.00	21.0	262.0	973	90.4	0.1360
Lychee	30/3.25	7/3.25	22.8	307.0	1140	105.0	0.1160
Lime	30/3.50	7/3.50	24.5	356.0	1320	122.0	0.1000
Mango	54/3.00	7/3.00	27.0	431.0	1440	119.0	0.0758
Orange	54/3.25	7/3.25	29.3	506.0	1690	137.0	0.0646
Olive	54/3.50	7/3.50	31.5	587.0	1960	159.0	0.0557
Pawpaw	54/3.75	19/2.25	33.8	672.0	2240	178.0	0.0485
Quince	3/1.75	4/1.75	5.3	16.8	95	12.7	3.2500
Raisin	3/2.50	4/2.50	7.5	34.4	195	24.4	1.5900
Sultana	4/3.00	3/3.00	9.0	49.5	243	28.3	0.8970
Walnut	4/3.75	3/3.75	11.3	77.3	380	43.9	0.5730

Expand More

Code	Nominal Area			Stranding		Overall Diameter Total	Weight （Approx.）	Resistance at 20℃	Breaking load
	AL	Steel	Total	AL	Steel
	mm2	mm2	mm2	No.×mm	No.×mm	mm	Kg/Km	Ohm/km	N
10/1.8	10.6	1.77	12.37	6/1.50	1/1.50	4.5	42.7	2.766300	4089
16/2.7	16.1	2.69	18.79	6/1.85	1/1.85	5.6	64.9	1.800934	6220
25/4.2	24.9	4.15	29.05	6/2.30	1/2.30	6.9	100.3	1.175900	9296
35/6.2	36.9	6.155	43.05	6/2.80	1/2.80	8.4	148.0	0.789700	13524
50/8	48.2	8.04	56.24	6/3.20	1/3.20	9.6	195.0	0.602980	17112
70/11	68.0	11.30	79.30	6/3.80	1/3.80	11.4	276.0	0.428590	24130
70/72	68.4	72.20	140.60	18/2.20	19/2.20	15.4	755.0	0.427600	96826
95/16	95.4	15.90	111.30	6/4.50	1/4.50	13.5	385.0	0.305990	33369
95/141	91.2	141.00	232.20	24/2.20	37/2.20	19.8	1357.0	0.321080	180775
120/19	118.0	18.80	136.80	26/2.40	7/1.85	15.2	471.0	0.249170	41521
120/27	114.0	26.60	140.60	30/2.20	7/2.20	15.4	528.0	0.252930	49465
150/19	148.0	18.80	166.80	24/2.80	7/1.85	16.8	554.0	0.199190	46307
150/24	149.0	24.20	173.20	26/2.70	7/2.10	17.1	599.0	0.197980	52279
150/34	147.0	34.30	181.30	30/2.50	7/2.50	17.5	675.0	0.200650	62643
185/24	187.0	24.20	211.20	24/3.15	7/2.10	18.9	705.0	0.157010	58075
185/29	181.0	29.00	210.00	26/2.98	7/2.30	18.8	728.0	0.162180	62055
185/43	185.0	43.10	228.10	30/2.80	7/2.80	19.6	846.0	0.157620	77767
185/128	187.0	128.00	315.00	54/2.10	37/2.10	23.1	1525.0	0.157620	183816
205/27	205.0	26.60	231.60	24/3.30	7/2.20	19.8	774.0	0.142940	63740
240/32	244.0	31.70	275.70	24/3.60	7/2.40	21.6	921.0	0.120600	75050
240/39	236.0	38.60	274.60	26/3.40	7/2.65	21.6	952.0	0.124280	80895
240/56	241.0	56.30	297.30	30/3.20	7/3.20	22.4	1106.0	0.121820	98253
300/39	301.0	38.60	339.60	24/4.00	7/2.65	24.0	1132.0	0.097470	90574
300/48	295.0	47.80	342.80	26/3.80	7/2.95	24.1	1186.0	0.099830	100623
300/66	288.5	65.80	354.30	30/3.50	19/2.10	24.5	1313.0	0.102260	126270
300/67	288.5	67.30	355.80	30/3.50	7/3.50	24.5	1323.0	0.102260	117520
300/204	298.0	204.00	502.00	54/2.65	37/2.65	29.2	2428.0	0.099340	284579

Expand More

ALUMINUM CONDUCTOR STEEL REINFORCED (ACSR CONDUCTOR)
