ALL ALUMINUM ALLOY CONDUCTOR (AAAC 1120)

Inquire Now
Overview
DESCRIPTION

The AAAC 1120 are concentrically stranded conductor, it consists one or more layers of aluminum alloy wire 1120

APPLICATION

In air circuits where more than of the AAC conductor (between 40 and 50%) or lower weight and better corrosion resistance and the ACSR conductor. With a conductivity of 59% IACS, the aluminum alloy 1120 greatly replaces the alloy 6201 in relation to electrical resistance.

STANDARD

AS 1531
DOWNLOAD
CABLE DATASHEET
N/A
AS 1531
TRANSMISSION LINE
DISTRIBUTION LINE
AS MESSENGER
N/A
Specifications
ELECTRICAL PERFORMANCE
N/A
STANDARD
AS 1531
APPLICATION
TRANSMISSION LINE
DISTRIBUTION LINE
AS MESSENGER
CORE IDENTIFICATION
N/A
CHEMICAL PERFORMANCE
N/A
MECHANICAL PERFORMANCE
Refer to relative standards
FIRE PERFORMANCE
N/A
THERMINAL PERFORMANCE
N/A
Other Properties
APPROVALS
N/A
INSTALLATION CONDITIONS
OPEN AIR
CABLE MARKING
N/A
PACKAGING
BY WOODEN OR STEEL-WOODEN OR FULL STEEL REEL/DRUM
CONSTRUCTION
1. Conductor

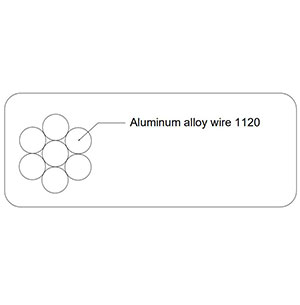

Hard drawn aluminum alloy wire 1120

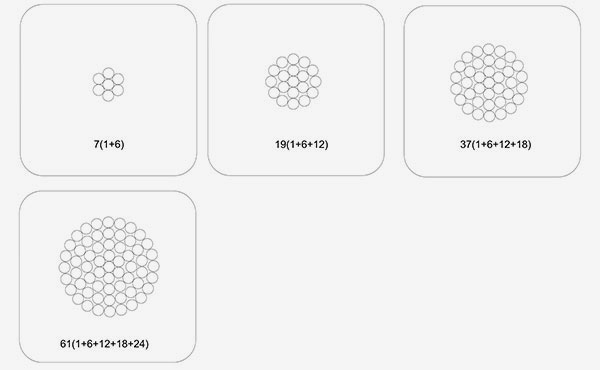

Generally, the AAAC 1120 Conductor is formed by the following construction:

PARAMETER

AS 1531
Code
Name
No. / Dia. of Wire Approx. Overall
Dia.
Approx.
Weight
Calculated Breaking
Load
Max. DC Resistance
at 20℃
No./mm mm kg/km  kN Ω/km
CHLORINE 7/2.50  7.50  94 8.18  0.8637
CHROMIUM 7/2.75 8.25  113 9.91  0.7138
FLUORINE 7/3.00 9.00  135 11.80  0.5998
HELIUM 7/3.75 11.25  211 17.60  0.3839
HYDROGEN 7/4.50 13.50  304 24.30  0.2666
IODINE 7/4.75 14.25  339 27.10  0.2393
- 19/3.19 15.95  417 36.06  0.1964
KRYPTON 19/3.25 16.25  433 37.40  0.1892
- 19/3.45 17.25  488 42.18  0.1679
LUTETIUM 19/3.50 17.50  502 41.70  0.1631
- 19/3.69 18.45  558 46.32  0.1468
NEON 19/3.75 18.80  577 47.80  0.1421
- 19/3.91 19.55  627 52.01  0.1307
- 19/4.12 20.60  696 57.75  0.1177
NITROGEN 37/3.00 21.00  720 62.20  0.1143
- 19/4.32 21.60  765 63.50  0.1071
NOBELIUM 37/3.25 22.80  845 72.80  0.0973
- 19/4.70 23.50  906 72.02  0.0905
- 37/3.37 23.59  909 78.40  0.0906
- 37/3.40 23.80  925 79.78  0.0890
OXYGEN 19/4.75 23.80  925 73.60  0.0886
- 37/3.42 23.94  936 80.72  0.0879
- 37/3.44 24.08  947 81.67  0.0869
- 61/2.72 24.48  978 79.75  0.0845
- 37/3.55 24.85  1009 83.50  0.0816
- 37/3.62 25.34  1049 86.80  0.0785
PHOSPHORUS 37/3.75 26.30  1125 93.10  0.0731
- 37/3.79 26.53  1150 95.17  0.0716
- 61/2.95 26.55  1151 93.81  0.0718
- 37/3.794 26.56  1152 95.37  0.0715
- 37/3.85 26.95  1186 98.20  0.0694
- 37/3.96 27.72  1255 103.90  0.0656
- 61/3.16 28.44  1320 107.64  0.0626
SELENIUM 61/3.25 29.30  1400 114.00  0.0592
- 61/3.26 29.34  1405 114.50  0.0588
- 61/3.30 29.70  1440 117.40  0.0574
- 37/4.28 29.96  1466 121.37  0.0561
- 37/4.38 30.66  1535 127.11  0.0536
- 61/3.49 31.41  1610 131.30  0.0513
- 37/4.49 31.43  1613 133.57  0.0510
SILICON 61/3.50 31.50  1620 127.00  0.0510
- 61/3.56 32.04  1676 131.15  0.0493
- 61/3.64 32.76  1752 137.00  0.0472
- 61/3.71 33.39  1820 142.40  0.0454
SULFUR 61/3.75 33.80  1860 145.50  0.0445
- 61/3.79 34.11  1899 148.64  0.0435
- 61/3.85 34.65  1960 153.40  0.0422
- 61/3.92 35.28  2032 159.00  0.0407
- 61/3.99 35.91  2104 164.74  0.0393
- 61/4.05 36.45  2169 169.70  0.0381
- 61/4.12 37.08  2244 175.70  0.0368
- 61/4.18 37.62  2310 180.80  0.0358
- 61/4.24 38.16  2377 186.04  0.0348
- 61/4.30 38.70  2445 191.34  0.0338
- 61/4.35 39.15  2502 195.80  0.0330
- 61/4.36 39.24  2513 196.71  0.0329
- 61/4.43 39.87  2595 203.10  0.0319
- 61/4.49 40.41  2666 208.62  0.0310
- 61/4.54 40.86  2725 204.40  0.0303
- 61/4.60 41.40  2798 209.84  0.0295
