ALUMINUM CONDUCTOR ALUMINUM CLAD STEEL REINFORCED (ACSR/AW)

Inquire Now
Overview
DESCRIPTION

The ACSR/AW conductor is formed by several wires of Aluminium and Aluminum-clad steel, stranded in concentric layers.

APPLICATION

The ACSR/AW conductor is used as bare overhead transmission and as primary and secondary distribution cable.
ACSR/AW offers strength characteristics similar to ACSR, along with slightly greater ampacity and resistance to corrosion due to aluminum-clad-ding of the steel core wires.

STANDARD

ASTM B549, GB/T 1179, AS 3607
DOWNLOAD
CABLE DATASHEET
N/A
ASTM B549, GB/T 1179, AS 3607
TRANSMISSION LINE
DISTRIBUTION LINE
N/A
Specifications
ELECTRICAL PERFORMANCE
N/A
STANDARD
ASTM B549, GB/T 1179, AS 3607
APPLICATION
TRANSMISSION LINE
DISTRIBUTION LINE
CORE IDENTIFICATION
N/A
CHEMICAL PERFORMANCE
N/A
MECHANICAL PERFORMANCE
Refer to relative standards
FIRE PERFORMANCE
N/A
THERMINAL PERFORMANCE
N/A
Other Properties
APPROVALS
N/A
INSTALLATION CONDITIONS
OPEN AIR
CABLE MARKING
N/A
PACKAGING
BY WOODEN OR STEEL-WOODEN OR FULL STEEL REEL/DRUM

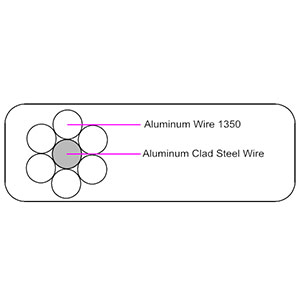

CONSTRUCTION
1. Conductor

1)Outer layer: Aluminum alloy wire 1350
2)Center: Aluminum clad steel wire

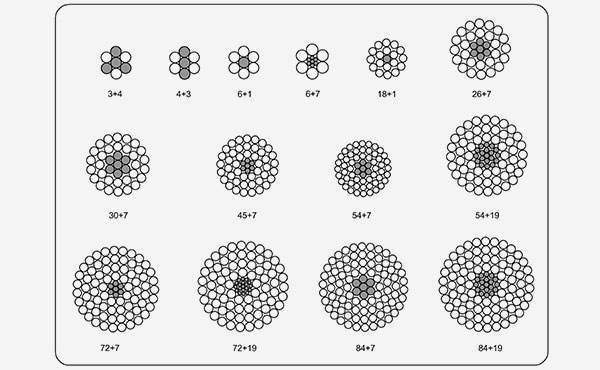

Generally, the ACSR/AW Conductor is formed by the following construction:

PARAMETER

AS 3607
ASTM B549
GB/T 1179
Code
Name
No. & Dia. of Wire Cross Sectional Area Approx. Overall
Dia.
Approx.
Weight
Calculated Breaking
Load
Max. DC Resistance
at 20 °C
Aluminum Al-Clad Steel Aluminum Al-Clad Steel Total
No./mm No./mm mm2 mm2 mm2 mm kg/km kN Ω/km
SKATING 3/1.75 4/1.75 7.2 9.6  16.8 5.3 83 12.3 2.7500
SOCCER 3/2.50 4/2.50 14.7 19.6  34.3 7.5 171 24.9 1.3400
SWIMMING 4/3.00 3/3.00 28.3 21.2  49.5 9 218 28.9 0.8070
TENNIS 4/3.75 3/3.75 44.2 33.1  77.3 11.3 340 42.6 0.5170
ANGLING 6/2.50 1/2.50 29.5 4.9  34.4 7.5 113 10.6 0.9230
ARCHERY 6/3.00 1/3.00 42.4 7.1  49.5 9 163 15.1 0.6410
BASEBALL 6/3.75 1/3.75 66.3 11.0  77.3 11.3 254 22.3 0.4100
BOWLS 6/4.75 7/1.60 106 14.1  120 14.3 385 32.7 0.2590
CRICKET 30/2.50 7/2.50 147 34.4  182 17.5 636 64.4 0.1820
DARTS 30/3.00 7/3.00 212 49.5  262 21 913 91.6 0.1260
DICE 30/3.25 7/3.25 249 58.1  307 22.8 1070 106 0.1080
DIVING 30/3.50 7/3.50 289 67.3  356 24.5 1240 122 0.0928
GOLF 54/3.00 7/3.00 382 49.5  431 27 1380 120 0.0726
GYMNASTICS 54/3.25 7/3.25 448 58.1  506 29.3 1620 139 0.0619
HURDLES 54/3.50 7/3.50 519 67.3  587 31.5 1880 159 0.0533
LACROSSE 54/3.75 19/2.25 596 75.5  672 33.8 2150 180 0.0465
RUGBY 54/4.75 19/2.85 957 121.0  1078 42.8 3450 288 0.0290
Expand More
Code
Name
Nominal Size No.& Dia. of Wire Approx. Overall
Dia.
Approx.
Weight
Rated
Strength
Max. DC Resistance
at 20 °C
Aluminum Al-Clad Steel
AWG or KCM mm2 No/mm No/mm mm kg/km kgf Ω/km
Swan/AW 4 21.15 1/2.118 1/2.118 6.36 81.2  807 1.28500
Swanate/AW 4 21,15 1/2.614 1/2.614 6.54 933.0  1034 1.25100
Sparrow/AW 2 33.63 6/2.672 1/2.672 8.02 129.3  1252 0.80780
Sparate/AW 2 33.63 7/2.474 1/3.299 8.25 148.6  1592 0.78610
Robin/AW 1 42.41 6/3.00 1/3.00 9.00  162.9  1565 0.63980
Raven/AW 1/0 53.51 6/3.371 1/3.371 10.11 205.7  1928 0.50760
Quail/AW 2/0 67.44 6/3.782 1/3.782 11.35 258.9  2327 0.40120
Pigeon/AW 3/0 85.03 6/4.247 1/4.247 12.74 326.5  2858 0.31980
Penguin/AW 4/0 107.2 6/4.77 1/4.77 14.31 411.9  3488 0.25350
Waxwing/AW 266.8 135.1 18/3.091 1/3.091 15.46 421.8  3093 0.20880
Partridge/AW 266.8 135.1 26/2.573 7/2.002 16.30  520.2  4899 0.20240
Ostrich/AW 300 152.0  26/2.728 7/2.121 17.27 584.6  5488 0.18010
Merlin/AW 336.4 170.4 18/3.472 1/3.472 17.36 532.2  3874 0.16550
Linne/AW 336.4 170.4 26/2.888 7/2.245 18.29 655.2  6123 0.16070
Oriole/AW 336.4 170.4 30/2.69 7/2.69 18.83 736.8  7575 0.15730
Chickadee/AW 397.5 201.4 18/3.774 1/3.774 18.87 628.9  4436 0.14000
Bran/AW 397.5 201.4 24/3.269 7/2.179 19.61 730.8  6396 0.13730
Ibis/AW 397.5 201.4 26/3.139 7/2.441 19.88 774.3  7167 0.13600
Lark/AW 397.5 201.4 30/2.924 7/2.924 20.46 870.4  8890 0.13310
Pelican/AW 477 241.7 18/4.135 1/4.135 20.68 754.9  5216 0.11670
Flicker/AW 477 241.7 24/3.581 7/2.388 21.49 8771.0  7575 0.11440
Hawk/AW 477 241.7 26/3.439 7/2.675 21.78 929.3  8573 0.11330
Hen/AW 477 241.7 30/3.203 7/3.203 22.42 1045.0  10614 0.11100
Osprey/AW 556.5 281.9 18/4.465 1/4.465 22.33 880.3  5987 0.10010
Parakee/AW 556.5 281.9 24/3.868 7/2.578 23.21 1023.0  8754 0.09807
Dove/AW 556.5 281.9 26/3.716 7/2.891 23.54 1085 9934 0.09703
Eagle/AW 556.5 281.9 30/3.459 7/3.459 24.22 1219 12156 0.09512
Peacock/AW 605 306.5 24/4.034 7/2.69 24.2 1113 9525 0.09019
Squab/AW 605 306.5 26/3.874 7/3.012 24.53 1179 10705 0.09097
Teal/AW 605 306.5 30/3.607 19/2.164 25.25 1314 12927 0.08767
Kingbird/AW 636 322.2 18/4.775 1/4.775 23.88 1007 6804 0.08750
Rook/AW 636 322.2 24/4.135 7/2.756 24.81 1169 9979 0.08583
Grosbeak/AW 636 322.2 26/3.973 7/3.089 25.16 1240 11249 0.08491
EgreYAW 636 322.2 30/3.698 19/2.22 25.89 1382 13562 0.08337
Flarningo/AW 666.6 337.7 24/4.234 7/2.822 25.4 1226 10478 0.08186
GanneVAW 666.6 337.8 26/4.067 7/3.162 25.75 1299 11793 0.08104
Starling/AW 715.5 362.5 26/4.214 7/3.277 26.69 1395 12474 0.07546
Redwing/AW 715.5 362.5 30/3.922 19/2.352 27.45 1554 15150 0.07415
Cuckoo/AW 795 402.8 24/4.623 7/3.081 27.73 1461 12474 0.06867
Drake/AW 795 402.8 26/4.442 7/3.454 28.13 1550 13834 0.06792
Tern/AW 795 402.8 45/3.376 7/2.25 27.01 1300 9752 0.07005
Condor/AW 795 402.8 54/3.081 7/3.081 27.73 1460 12610 0.06861
Mallard/AW 795 402.8 30/4.135 19/2.482 28.95 1728 16828 0.06670
Ruddy/AW 900 456 45/3.592 7/2.395 28.74 1472 10886 0.06188
Canary/AW 900 456 54/3.279 7/3.279 29.51 1654 14061 0.06067
Rail/AW 954 483.4 45/3.698 7/2.466 29.59 1560 11521 0.05837
Cardinal/AW 954 483.4 54/3.376 7/3.376 30.38 1753 14923 0.05722
Oftlan/AW 1033.5 523.6 45/3.848 7/2.565 30.78 1689 12292 0.05384
Curlew/AW 1033.5 523.6 54/3.513 7/3.513 31.62 1898 15921 0.05279
Bluejay/AW 1113 563.9 45/3.995 7/2.664 31.97 1821 13290 0.05269
Finch/AW 1113 563.9 54/3.647 19/2.189 32.83 2045 17010 0.04931
Bunting/AW 1192.5 604.2 45/4.135 7/2.756 33.08 1950 14197 0.04669
Grackle/AW 1192.5 604.2 54/3.774 19/2.266 3398 2190 18234 0.04603
Biftern/AW 1272 644.5 45/4.27 7/2.847 34.16 2080 15150 0.04380
PheasanUAW 1272 644.5 54/3.899 19/2.339 35.09 2336 19232 0.04315
Dipper/AW 1351.5 684.8 45/4.402 7/2.934 35.21 2210 16102 0.04121
Marlin/AW 1351.5 684.8 54/4.018 19/2.41 36.16 2481 20457 0.04062
Bobolink/AW 1431 725.1 45/4.529 7/3.02 36.25 2340 17055 0.03891
Plover/AW 1431 725.1 54/4.135 19/2.482 37.23 2628 21636 0.03835
Nuthatch/AW 1510.5 765.3 45/4.653 7/3.101 37.22 2470 18008 0.03688
Parro/AW 1510.5 765.3 54/4.247 19/2.548 38.22 2771 22816 0.03626
Lapwing/AW 1590 805.6 45/4.775 7/3.183 38.2 2601 18960 0.03507
Falcon/AW 1590 805.6 54/4.359 19/2.616 39.23 2920 24040 0.03452
Chukar/AW 1780 9019 84/3.698 19/2.22 40.69 2999 22407 0.03191
Bluebird/AW 2156 1092.5 84/4.069 19/2.441 44.76 3630 26762 0.02585
Kiwi/AW 2167 1098 72/4.407 7/2.939 44.07 3371 22271 0.02604
Thrasher/AW 2312 1171.5 76/4.43 19/2.068 45.78 3683 25084 0.02432
Joree/AW 2515 1274.4 76/4.62 16/2.156 47.74 4007 27306 0.02236
Grouse/AW 80 40.5 8/2.54 1/4.242 9.32 204.9 2218 0.63710
Petrel/AW 101.8 51.5 12/2.339 7/2.339 11.7 342.1 4495 0.46750
Minorca/AW 110.8 56.1 12/2.441 7/2.441 12.2 372.5 4899 0.43500
Leghorn/AW 134.6 68.2 12/2.69 7/2.69 13.45 452.3 5897 0.35370
Guinea/AW 159 80.5 12/2.924 7/2.924 14.62 534.4 6940 0.29930
Dotterel/AW 176.9 89.6 12/3.084 7/3.084 15.42 594.4 7666 0.26910
Dorking/AW 190.8 96.6 12/3.203 7/3.203 16.01 641.4 8301 0.24940
Brahma/AW 203.2 102.9 16/2.863 7/2.482 18.13 896.9 12292 0.21550
Cochin/AW 211.3 107 12/3.371 7/3.371 16.85 710.3 8981 0.22520
Expand More
Code
Number
Cross Section Area No.& Dia. of Wire Approx. Overall
Dia.
Approx.
Weight
Rated
Strength
Max. DC Resistance
at 20 °C
Aluminum Al clad steel Total Aluminum Al clad steel
mm2 mm2 mm2 mm mm mm Kg/km kN Ω/km
15/5 17.7 2.96 20.7 6/1.94 1/1.94 5.82 68.1  9.31 1.7691
25/5 27.7 4.62 32.3 6/2.42 1/2.42 7.26 106.4  14.54 1.1323
45/5 44.3 7.39 51.7 6/3.07 1/3.07 9.21 170.2  23.27 0.7077
70/10 69.8 11.6 81.4 6/3.85 1/3.85 11.6 268.0  34.79 0.4493
110/20 110 18.5 129 6/4.85 1/4.85 14.6 425.5  53.38 0.2831
143/5 143 7.94 151 18/3.18 1/3.18 15.9 445.5  55.97 0.2293
140/20 139 22.6 161 26/2.61 7/2.03 16.5 532.0  72.17 0.2279
185/10 183 10.2 193 18/3.60 1/3.60 18.0  570.3  69.21 0.1792
180/30 178 28.9 206 26/2.95 7/2.29 18.7 680.9  92.38 0.1781
230/15 229 12.7 241 18/4.02 1/4.02 20.1 712.8  86.0  0.1433
220/36 222 36.1 358 26/3.30 7/2.56 20.9 851.2  115.4 0.1424
282/30 282 27.7 310 22/4.04 7/2.25 22.9 961.7  122.25 0.1144
175/45 277 45.2 323 26/3.69 7/2.87 23.4 1064.0  141.5 0.1140
360/25 359 24.8 384 45/3.19 7/2.12 25.5 1154.6  146.3 0.0912
350/55 349 56.9 406 26/4.14 7/3.22 26.2 1340.6  178.38 0.0904
455/30 456 31.5 487 45/3.59 7/2.39 28.7 1466.1  181.32 0.0718
450/60 448 58.1 506 54/3.25 7/3.25 29.3 1621.6  215.22 0.0715
515/35 513 35.4 548 45/3.81 7/2.54 30.5 1649.4  203.99 0.0638
505/65 504 65.3 569 54/3.45 7/3.45 31.0  1824.3  240.8 0.0636
570/40 570 39.4 609 45/4.01 7/2.68 32.1 1832.6  226.6 0.0574
560/70 560 72.6 632 54/3.63 7/3.63 32.7 2027.0  259.0  0.0572
640/45 638 44.1 682 45/4.25 7/2.83 34.0  2052.6  253.8 0.0513
630/80 628 79.5 707 54/3.85 19/2.31 34.6 2261.6  293.0  0.0511
715/50 718 49.6 767 45/4.51 7/3.0 36.1 2309.1  285.58 0.0456
705/90 706 89.4 795 54/4.08 19/2.45 36.7 2544.3  329.6 0.0454
810/55 809 55.9 865 45/4.78 7/3.19 38.3 2602.3  321.8 0.0405
800/100 796 101 896 54/4.33 19/2.6 39.0  2867.4  371.5 0.0403
920/40 918 39.7 958 72/4.03 7/2.69 40.3 2798.8  336.7 0.0360
910/75 908 75.6 983 84/3.71 7/3.71 40.8 3010.0  369.1 0.0359
900/115 896 114 1010 54/4.60 19/2.76 41.4 3230.9  418.6 0.0358
1035/45 1033 44.6 1077 72/4.27 7/2.85 42.7 3148.6  378.9 0.0320
1020/85 1021 85.1 1106 84/3.90 7/3.93 43.2 3386.3  415.2 0.0319
1150/50 1148 49.6 1197 72/4.50 7/3.00 45.0  3498.5  420.9 0.0288
1290/55 1286 54.3 1340 72/4.77 19/1.91 47.7 3912.3  470.1 0.0257
1270/105 1271 104 1375 84/4.39 19/2.63 48.3 4202.7  524.73 0.0257
1435/60 1435 60.6 1495 72/5.04 19/2.01 50.4 4366.4  524.6 0.0231
1420/115 1419 116 1535 84/4.64 19/2.78 51.0  4690.5  585.6 0.0230
