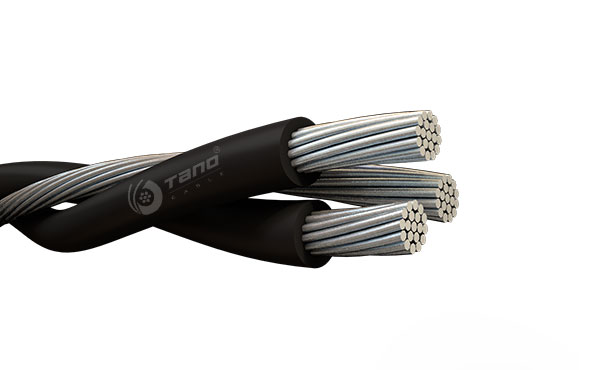

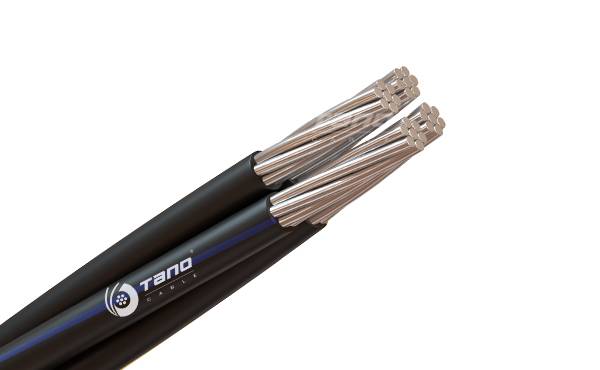

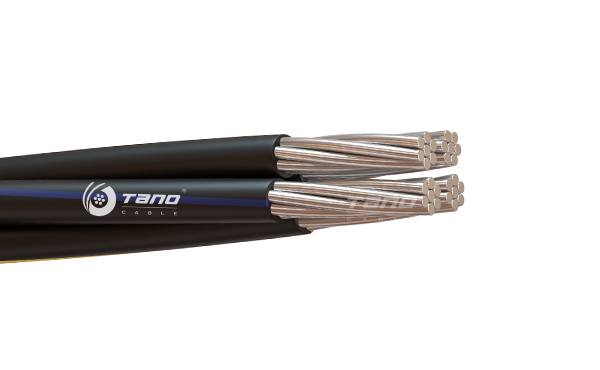

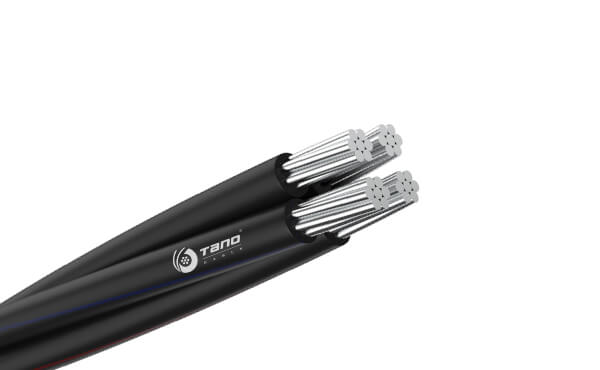

AERIAL BUNDLED CABLE NF C 33-209

Inquire Now
Overview
APPLICATION

The aerial bundled cables are used for overhead distribution line and electrical installations with alternating power networks with nominal voltage U0/U 0.6/1kV or in direct power networks with maximum voltage according to land 0.9kV.

STANDARD

NF C 33-209
DOWNLOAD
CABLE DATASHEET
0.6/1kV
NF C 33-209
DISTRIBUTION LINE
POWER NETWORKS
BY COLOR STRIPE
BY RIB
BY NUMBER
Specifications
ELECTRICAL PERFORMANCE
0.6/1kV
STANDARD
NF C 33-209
APPLICATION
DISTRIBUTION LINE
POWER NETWORKS
CORE IDENTIFICATION
BY COLOR STRIPE
BY RIB
BY NUMBER
CHEMICAL PERFORMANCE
Chemical & UV & Oil resistance:Good
MECHANICAL PERFORMANCE
Minimum bending radius:x10 cable diameter
FIRE PERFORMANCE
N/A
THERMINAL PERFORMANCE
Maximum service temperature:90℃
Maximum short-circuit temperature:250℃(max. 5s)
Minimum service temperature:-40℃
Other Properties
APPROVALS
N/A
INSTALLATION CONDITIONS
OPEN AIR
BURIED
CABLE MARKING
OIL INK PRINTING
LASER PRINTING
EMBOSSING PRINTING
PACKAGING
BY ROLL
BY POLYWOOD OR WOODEN OR STEEL-WOODEN REEL/DRUM

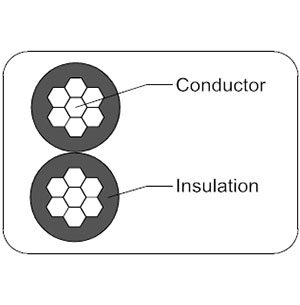

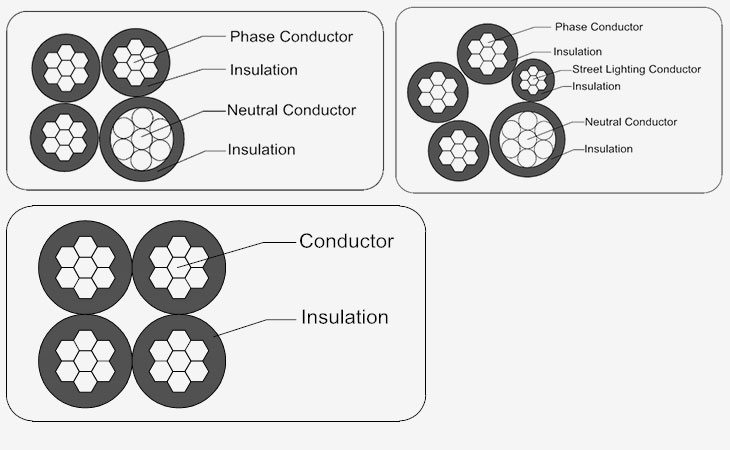

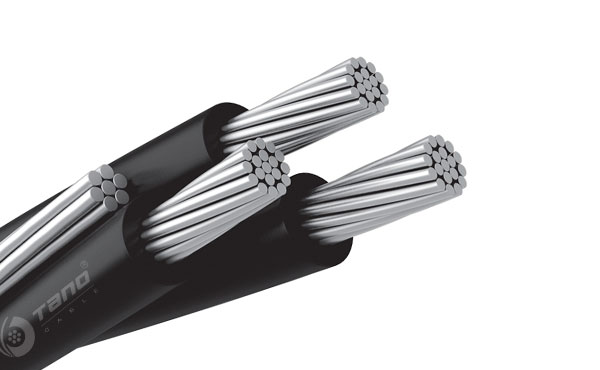

CONSTRUCTION
1. Phase Conductor

Circular stranded, rounded, compacted aluminum conductor

2. Neutral(Messenger) Conductor

Non-compacted or Compacted All Aluminum Alloy Conductor(AAAC)

3. Street Lighting Conductor

Circular stranded, rounded, compacted aluminum conductor

4. Insulation

Black color Polyethylene(PE) or Cross-linked polyethylene(XLPE)

PARAMETER

NF C 33-209
No. of Conductor
and Cross Section Area
Phase Core Neutral Core Street Lighting Core Complete Cable
No. and
Section Area
No. of Wire Dia. of Conductor
(Approx.)
Insulation
Thickness
No. and
Section Area
No. of Wire Dia. of Conductor
(Approx.)
Insulation
Thickness
No. and
Section area
No. of Wires Diameter
of
conductor
Insulation
Thickness
Overall Diameter
(Approx.)
Weight
(Approx.)
mm2 mm2 No. mm mm mm2 No. mm mm mm2 No. mm mm mm kg/km
2x16 2x16 7 4.8  1.2  - - - - - - - - 14.2 126
2x25 2x25 7 6.0  1.4  - - - - - - - - 17.6 194
2x35 2x35 7 7.0  1.6  - - - - - - - - 20.4 266
2x50 2x50 7 8.1  1.6  - - - - - - - - 22.6 341
4x16 4x16 7 4.8  1.2  - - - - - - - - 17.2 252
4x25 4x25 7 6.0  1.4  - - - - - - - - 21.2 388
4x35 4x35 7 7.0  1.6  - - - - - - - - 24.6 533
3x25+54.6 3x25 7 6.0  1.4  1x54.6 7 9.45  1.6 - - - - 23.6  496
3x25+54.6+1x16 3x25 7 6.0  1.4  1x54.6 7 9.45  1.6 1x16 7 4.8 1.2 24.9 560
3x25+54.6+2x16 3x25 7 6.0  1.4  1x54.6 7 9.45  1.6 2x16 7 4.8 1.2 26.6 624
3x35+54.6 3x35 7 7.0  1.6  1x54.6 7 9.45  1.6 - - - - 26.1 604
3x35+54.6+1x16 3x35 7 7.0  1.6  1x54.6 7 9.45  1.6 1x16 7 4.8 1.2 27.2 668
3x35+54.6+2x16 3x35 7 7.0  1.6  1x54.6 7 9.45  1.6 2x16 7 4.8 1.2 28.7 732
3x50+54.6 3x50 7 8.1  1.6  1x54.6 7 9.45  1.6 - - - - 28.1 716
3x50+54.6+1x16 3x50 7 8.1  1.6  1x54.6 7 9.45  1.6 1x16 7 4.8 1.2 28.9 780
3x50+54.6+2x16 3x50 7 8.1  1.6  1x54.6 7 9.45  1.6 2x16 7 4.8 1.2 30.3 844
3x70+54.6 3x70 12 10.0  1.8  1x54.6 7 9.45  1.6 - - - - 32.2 940
3x70+54.6+1x16 3x70 12 10.0  1.8  1x54.6 7 9.45  1.6 1x16 7 4.8 1.2 32.7 1004
3x70+54.6+2x16 3x70 12 10.0  1.8  1x54.6 7 9.45  1.6 2x16 7 4.8 1.2 33.8 1068
3x70+54.6+1x25 3x70 12 10.0  1.8  1x54.6 7 9.45  1.6 1x25 7 6.0  1.4 33.6 1038
3x70+54.6+2x25 3x70 12 10.0  1.8  1x54.6 7 9.45  1.6 2x25 7 6.0  1.4 35.5 1137
3x70+70 3x70 12 10.0  1.8  1x70 7 10.20  1.5 - - - - 32.1 970
3x70+70+1x16 3x70 12 10.0  1.8  1x70 7 10.20  1.5 1x16 7 4.8 1.2 32.5 1035
3x70+70+2x16 3x70 12 10.0  1.8  1x70 7 10.20  1.5 2x16 7 4.8 1.2 33.6 1099
3x95+70 3x95 19 11.7  1.8  1x70 7 10.20  1.5 - - - - 35.6 1212
3x95+70+1x16 3x95 19 11.7  1.8  1x70 7 10.20  1.5 1x16 7 4.8 1.2 35.7 1276
3x95+70+2x16 3x95 19 11.7  1.8  1x70 7 10.20  1.5 2x16 7 4.8 1.2 36.6 1340
3x120+70 3x120 19 13.0  1.8  1x70 7 10.20  1.5 - - - - 38.0  1439
3x120+70+1x16 3x120 19 13.0  1.8  1x70 7 10.20  1.5 1x16 7 4.8 1.2 37.8 1503
3x120+70+2x16 3x120 19 13.0  1.8  1x70 7 10.20  1.5 2x16 7 4.8 1.2 38.6 1567
3x150+70 3x150 19 14.4  1.7  1x70 7 10.20  1.5 - - - - 40.2 1650
3x150+70+1x16 3x150 19 14.4  1.7  1x70 7 10.20  1.5 1x16 7 4.8 1.2 39.8 1714
3x150+70+2x16 3x150 19 14.4  1.7  1x70 7 10.20  1.5 2x16 7 4.8 1.2 40.4 1778
3x120+95 3x120 19 13.0  1.8  1x95 19 12.50  1.6 - - - - 39.5 1526
3x120+95+1x16 3x120 19 13.0  1.8  1x95 19 12.50  1.6 1x16 7 4.8 1.2 39.5 1590
3x120+95+2x16 3x120 19 13.0  1.8  1x95 19 12.50  1.6 2x16 7 4.8 1.2 39.8 1654
3x150+95 3x150 19 14.4  1.7  1x95 19 12.50  1.6 - - - - 41.7 1736
3x150+95+1x16 3x150 19 14.4  1.7  1x95 19 12.50  1.6 1x16 7 4.8 1.2 41.7 1800
3x150+95+2x16 3x150 19 14.4  1.7  1x95 19 12.50  1.6 2x16 7 4.8 1.2 41.6 1865
