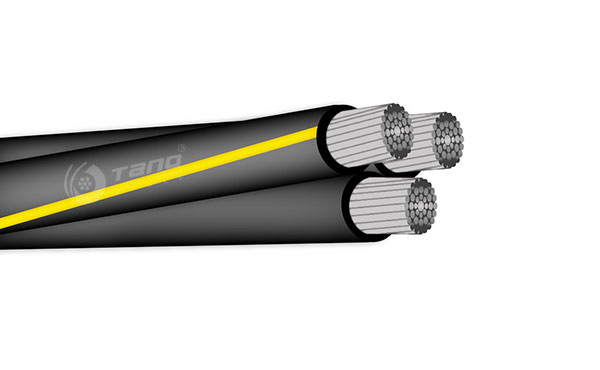

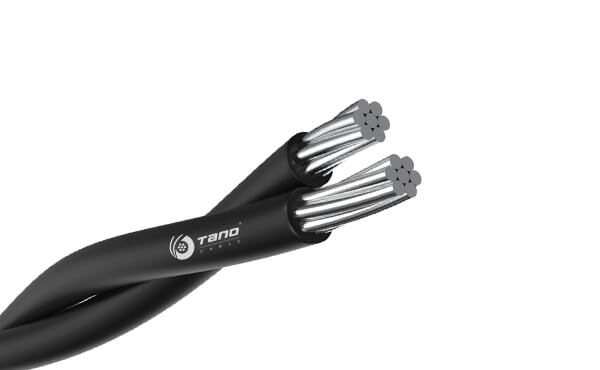

AERIAL BUNDLED CABLE (ABC) BS 7870-5

Inquire Now
Overview
APPLICATION

The aerial bundled cables are used for overhead distribution line and electrical installations with alternating power networks with nominal voltage U0/U 0.6/1kV or in direct power networks with maximum voltage according to land 0.9kV.

STANDARD

BS 7870-5
DOWNLOAD
CABLE DATASHEET
0.6/1kV
BS 7870-5
DISTRIBUTION LINE
POWER NETWORKS
BY COLOR STRIPE
BY RIB
BY NUMBER
Specifications
ELECTRICAL PERFORMANCE
0.6/1kV
STANDARD
BS 7870-5
APPLICATION
DISTRIBUTION LINE
POWER NETWORKS
CORE IDENTIFICATION
BY COLOR STRIPE
BY RIB
BY NUMBER
CHEMICAL PERFORMANCE
Chemical & UV & Oil resistance:Good
MECHANICAL PERFORMANCE
Minimum bending radius:x10 cable diameter
FIRE PERFORMANCE
N/A
THERMINAL PERFORMANCE
Maximum service temperature:90℃
Maximum short-circuit temperature:250℃(max. 5s)
Minimum service temperature:-40℃
Other Properties
APPROVALS
N/A
INSTALLATION CONDITIONS
OPEN AIR
BURIED
CABLE MARKING
OIL INK PRINTING
LASER PRINTING
EMBOSSING PRINTING
PACKAGING
BY ROLL
BY POLYWOOD OR WOODEN OR STEEL-WOODEN REEL/DRUM

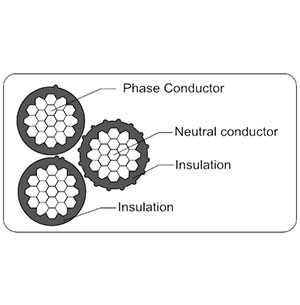

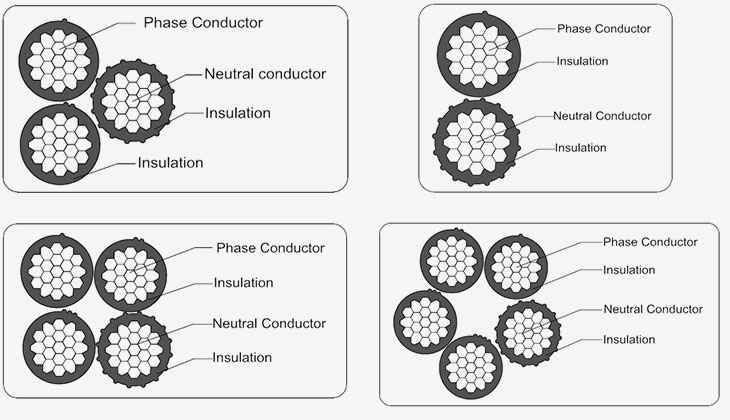

CONSTRUCTION
1. Phase Conductor

Circular stranded, rounded, compacted aluminum conductor

2. Neutral(Messenger) Conductor

Circular stranded, rounded, compacted aluminum conductor

3. Insulation

Black color Polyethylene(PE) or Cross-linked polyethylene(XLPE)



PARAMETER

BS 7870-5
No. of Core
& Size
Phase Core Neutral Core Complete Cable
No. &
Section Area
No. of wire Dia. of Conductor
(Approx.)
Insulation
Thickness
No. &
Section Area
No. of Wire Dia. of Conductor
(Approx.)
Insulation
Thickness
Overall Diameter
(Approx.)
Weight
(Approx.)
mm2 mm2 No. mm mm mm2 No. mm mm mm kg/km
1x25 1x25 7 6.0  1.3  - - - - 8.6  96
1x35 1x35 7 7.0  1.3  - - - - 9.6  126
1x50 1x50 19 8.4  1.5  - - - - 11.4  183
1x70 1x70 19 10.0  1.5  - - - - 13.0  236
1x95 1x95 19 11.6  1.7  - - - - 15.0  323
1x120 1x120 19 13.0  1.7  - - - - 16.4  399
2x25 1x25 7 6.0  1.3  1x25 7 6.0  1.3  17.2  192
2x35 1x35 7 7.0  1.3  1x35 7 7.0  1.3  19.2  252
2x50 1x50 19 8.4  1.5  1x50 19 8.4  1.5  22.8  365
2x70 1x70 19 10.0  1.5  1x70 19 10.0  1.5  26.0  472
2x95 1x95 19 11.6  1.7  1x95 19 11.6  1.7  30.0  645
2x120 1x120 19 13.0  1.7  1x120 19 13.0  1.7  32.8  798
3x25 2x25 7 6.0  1.3  1x25 7 6.0  1.3  18.5  288
3x35 2x35 7 7.0  1.3  1x35 7 7.0  1.3  20.6  378
3x50 2x50 19 8.4  1.5  1x50 19 8.4  1.5  24.5  548
3x70 2x70 19 10.0  1.5  1x70 19 10.0  1.5  28.0  708
3x95 2x95 19 11.6  1.7  1x95 19 11.6  1.7  32.3  968
3x120 2x120 19 13.0  1.7  1x120 19 13.0  1.7  35.3  1196
4x25 3x25 7 6.0  1.3  1x25 7 6.0  1.3  20.7  384
4x35 3x35 7 7.0  1.3  1x35 7 7.0  1.3  23.1  504
4x50 3x50 19 8.4  1.5  1x50 19 8.4  1.5  27.5  731
4x70 3x70 19 10.0  1.5  1x70 19 10.0  1.5  31.4  943
4x95 3x95 19 11.6  1.7  1x95 19 11.6  1.7  36.2  1290
4x120 3x120 19 13.0  1.7  1x120 19 13.0  1.7  39.6  1595
5x25 4x25 7 6.0  1.3  1x25 7 6.0  1.3  23.2  480
5x35 4x35 7 7.0  1.3  1x35 7 7.0  1.3  25.9  630
5x50 4x50 19 8.4  1.5  1x50 19 8.4  1.5  30.8  914
5x70 4x70 19 10.0  1.5  1x70 19 10.0  1.5  35.1  1179
5x95 4x95 19 11.6  1.7  1x95 19 11.6  1.7  40.5  1613
5x120 4x120 19 13.0  1.7  1x120 19 13.0  1.7  44.3  1993
