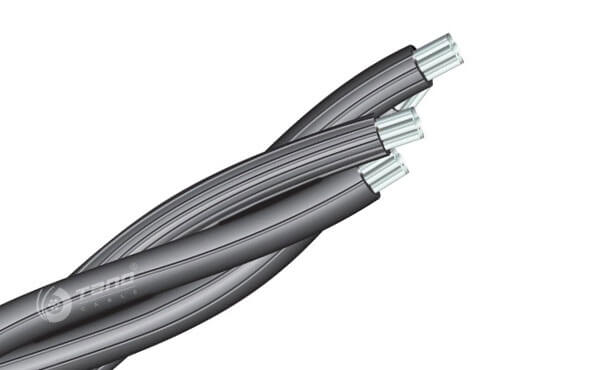

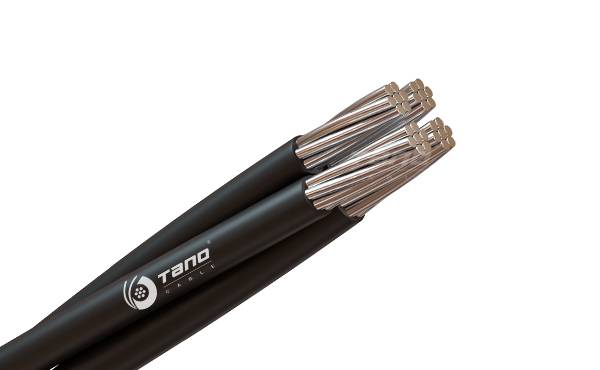

AERIAL BUNDLED CABLE AS/NZS 3560.1

Inquire Now
Overview
APPLICATION

The aerial bundled cables are used for overhead distribution line and electrical installations with alternating power networks with nominal voltage U0/U 0.6/1kV or in direct power networks with maximum voltage according to land 0.9kV.

STANDARD

AS/NZS 3560.1
DOWNLOAD
CABLE DATASHEET
0.6/1kV
AS/NZS 3560.1
DISTRIBUTION LINE
POWER NETWORKS
BY COLOR STRIPE
BY RIB
BY NUMBER
Specifications
ELECTRICAL PERFORMANCE
0.6/1kV
STANDARD
AS/NZS 3560.1
APPLICATION
DISTRIBUTION LINE
POWER NETWORKS
CORE IDENTIFICATION
BY COLOR STRIPE
BY RIB
BY NUMBER
CHEMICAL PERFORMANCE
Chemical & UV & Oil resistance:Good
MECHANICAL PERFORMANCE
Minimum bending radius:x10 cable diameter
FIRE PERFORMANCE
N/A
THERMINAL PERFORMANCE
Maximum service temperature:90℃
Maximum short-circuit temperature:250℃(max. 5s)
Minimum service temperature:-40℃
Other Properties
APPROVALS
N/A
INSTALLATION CONDITIONS
OPEN AIR
BURIED
CABLE MARKING
OIL INK PRINTING
LASER PRINTING
EMBOSSING PRINTING
PACKAGING
BY ROLL
BY POLYWOOD OR WOODEN OR STEEL-WOODEN REEL/DRUM

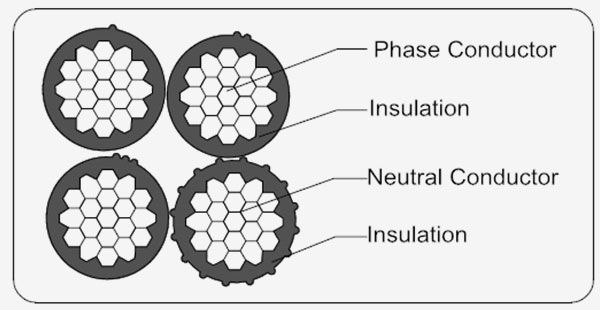

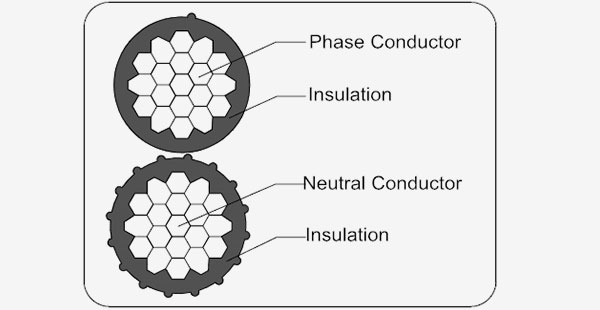

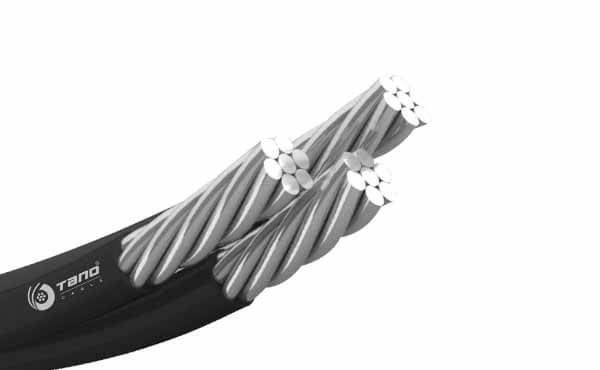

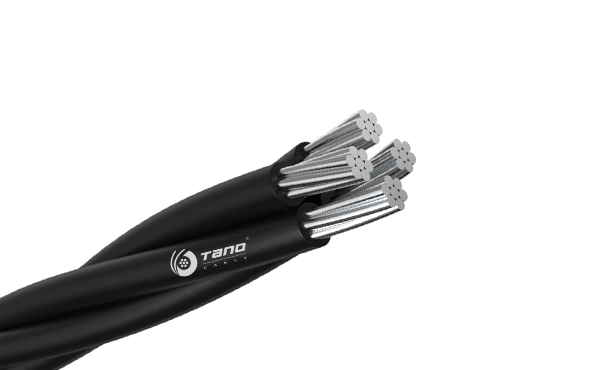

CONSTRUCTION
1. Phase Conductor

Circular stranded, rounded, compacted aluminum conductor

2. Neutral(Messenger) Conductor

Circular stranded, rounded, compacted aluminum conductor

3. Insulation

Black color Polyethylene(PE) or Cross-linked polyethylene(XLPE)


PARAMETER

AS/NZS 3560.1
No. of Core
& Size
Phase Core Neutral Core Complete Cable
No. &
Section Area
No. of Wire Dia. of Conductor
(Approx.)
Insulation
Thickness
No. & Section Area No. of Wire Dia. of Conductor
(Approx.)
Insulation
Thickness
Overall Dia.
(Approx.)
Weight
(Approx.)
mm2 mm2 No. mm mm mm2 No. mm mm mm kg/km
2x16 1x16 7 4.7  1.3  1x16 7 4.7  1.3  14.6  132
4x16 3x16 7 4.7  1.3  1x16 7 4.7  1.3  17.6  263
2x25 1x25 7 6.0  1.3  1x25 7 6.0  1.3  17.2  189
3x25 2x25 7 6.0  1.3  1x25 7 6.0  1.3  18.5  283
4x25 3x25 7 6.0  1.3  1x25 7 6.0  1.3  20.8  378
2x35 1x35 7 7.0  1.3  1x35 7 7.0  1.3  19.2  249
3x35 2x35 7 7.0  1.3  1x35 7 7.0  1.3  20.7  373
4x35 3x35 7 7.0  1.3  1x35 7 7.0  1.3  23.2  497
2x50 1x50 7 8.1  1.5  1x50 7 8.1  1.5  22.2  334
3x50 2x50 7 8.1  1.5  1x50 7 8.1  1.5  23.9  501
4x50 3x50 7 8.1  1.5  1x50 7 8.1  1.5  26.8  668
4x70 3x70 19 10.0  1.5  1x70 19 10.0  1.5  31.4  933
2x95 1x95 19 11.6  1.7  1x95 19 11.6  1.7  30.0  638
4x95 3x95 19 11.6  1.7  1x95 19 11.6  1.7  36.2  1276
4x120 3x120 19 13.0  1.7  1x120 19 13.0  1.7  39.6  1579
4x150 3x150 19 14.6  1.7  1x150 19 14.6  1.7  43.5  1883
