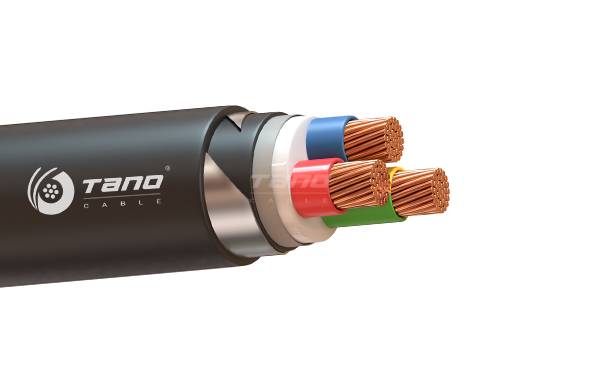

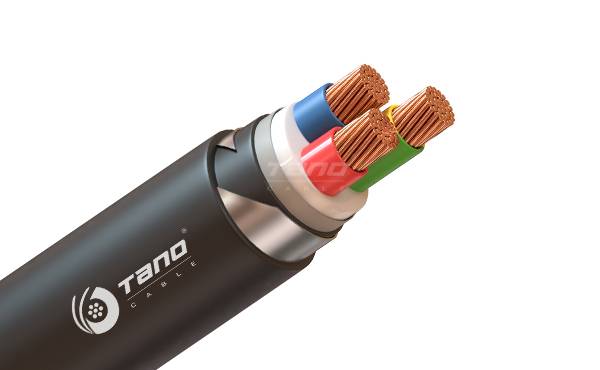

XLPE Insulated Power Cable

Overview Specifications

CONSTRUCTION PARAMETER

Overview

APPLICATION

The unarmoured cables are designated for general use including underground burial, where they are not likely to suffer mechanical damage.

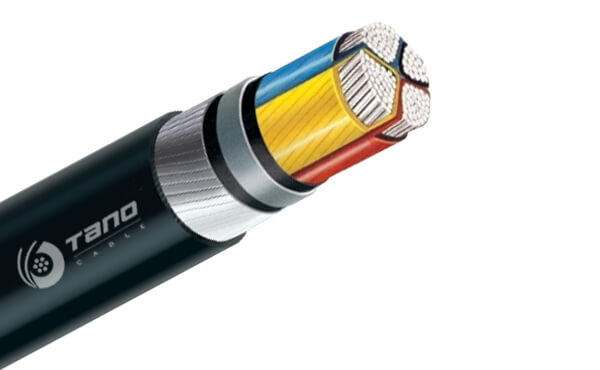

The armoured cables are most suitable for underground burial where there is a risk of mechanical damage

DESCRIPTION

Single core and multi-core cables with copper or aluminum conductor, XLPE insulated and PVC sheathed, cables are rated at 0.6/1(1.2)kV.

STANDARD

IEC 60502-1, GB/T 12706.1
Note: we can aslo manufacture cables according to BS 5467, AS/NZS 5000.1

DOWNLOAD
CABLE DATASHEET

0.6/1kV

IEC 60502-1, GB/T 12706.1, BS 5467, AS/NZS 5000.1

DISTRIBUTION NETWORKS
INDUSTRIAL USE

BY COLOR
BY COLOR STRIPE

Specifications

ELECTRICAL PERFORMANCE

0.6/1kV

STANDARD

IEC 60502-1, GB/T 12706.1, BS 5467, AS/NZS 5000.1

APPLICATION

DISTRIBUTION NETWORKS
INDUSTRIAL USE

CORE IDENTIFICATION

BY COLOR
BY COLOR STRIPE

CHEMICAL PERFORMANCE

Chemical & Oil resistance:Good

MECHANICAL PERFORMANCE

Minimum bending radius:x10 cable diameter(unarmoured)
Minimum bending radius:x20 cable diameter(armoured)

FIRE PERFORMANCE

Flame non-propagation base on IEC 60332-1
Reduced emission of halogens chlorine＜15%

THERMINAL PERFORMANCE

Maximum service temperature:90℃
Maximum short-circuit temperature:160℃(max. 5s)
Minimum service temperature:-40℃

Other Properties

APPROVALS

N/A

INSTALLATION CONDITIONS

OPEN AIR
BURIED
IN CONDUIT

CABLE MARKING

OIL INK PRINTING
EMBOSSING PRINTING

PACKAGING

BY ROLL
BY WOODEN OR STEEL-WOODEN OR FULL STEEL REEL/DRUM

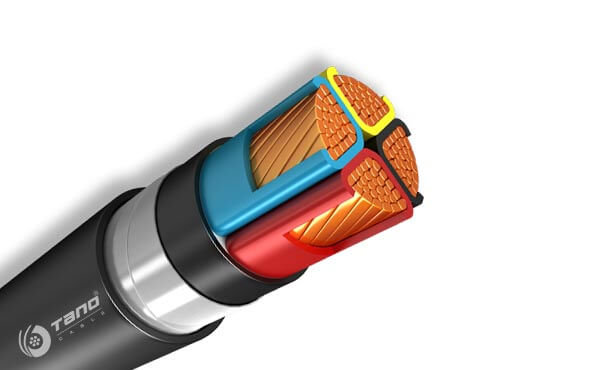

CONSTRUCTION

1. Conductor

Plain cicrcular, compacted or shaped stranded copper or aluminum conductor, conform to IEC 60228 class 2

2. Insulation

XLPE (cross-linked polyethylene), rated at 90°C

3. Colours for core identification

Single core: natural(black on request)

Two core: red, black

Three core: red, yellow and blue

Four core: red, yellow, blue and black

Five core: red, yellow, blue, black and yellow/green

4. Assembly(for multi-cores cables)

Two, three, four or five insuated conductors are laid up together if necessary filled with non-hygroscopic material compatble with the insulation and covered with a layer of PVC bedding which maybe an integral part of the filling

5. Armour(for armoured cables)

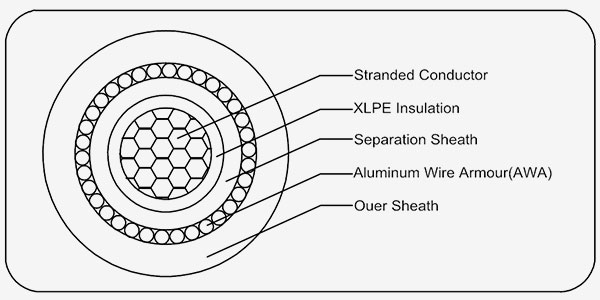

Single core: Aluminum wire shall be applied over the PVC bedding

Muiti core: Glavanized steel wire or Galvanized steel tape shall be applied over the PVC bedding

6. Sheath

PVC(Polyvinyl chloride)or PE(Polyethylene)

PARAMETER

Table 1

Table 2

Table 3

Table 4

Table 5

Table 6

Table 7

Table 8

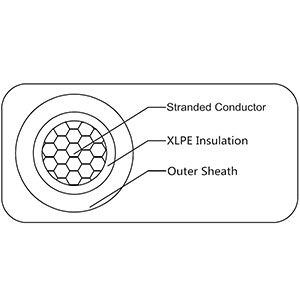

Single Core Non-Armored XLPE Cable
Cross Section	Conductor Dia. (Approx.)	XLPE Insulation Thickness	PVC Sheath Thickness	Overall Dia. (Approx.)	Weight of Cable (Approx.)
					Weight of Cable (Approx.)
					Copper	Aluminum
mm2	mm	mm	mm	mm	kg/km	kg/km
*1.5	1.38	0.7	1.4	5.6	44.5	--
*2.5	1.78	0.7	1.4	6.0	56.2	41.3
*4	2.25	0.7	1.4	6.5	73.5	49.4
6	2.76	0.7	1.4	7.0	94.5	--
*6	2.83	0.7	1.4	7.0	--	60.9
*10	3.57	0.7	1.4	7.8	137.3	76.6
10	4.05	0.7	1.4	8.3	141.4	80.8
*16	4.5	0.7	1.4	8.7	196.8	100.3
16	5.1	0.7	1.4	9.3	201.9	105.4
25	5.9	0.9	1.4	10.5	294.1	143.2
35	6.9	0.9	1.4	11.5	388.6	178.3
50	8.1	1.0	1.4	12.9	510.6	226.0
70	9.7	1.1	1.4	14.7	717.3	302.8
95	11.4	1.1	1.5	16.6	968.2	395.9
120	12.9	1.2	1.5	18.3	1207.3	483.5
150	14.2	1.4	1.6	20.2	1478.8	590.9
185	15.9	1.6	1.6	22.3	1835.5	723.1
240	18.3	1.7	1.7	25.1	2383.9	923.8
300	20.4	1.8	1.8	27.6	2957.1	1131.9
400	23.2	2.0	1.9	31.0	3807.2	1440.7
500	26.3	2.2	2.0	34.7	4824.3	1808.2
630	30.0	2.4	2.2	39.2	6201.4	2309.8
800	34.0	2.6	2.3	43.8	7865.5	2897.3
NOTE: The sectional area with "*", the conductor is made by solid copper or aluminum material

Single Core Aluminum Wire Armored（AWA) XLPE Cable
Cross Section	Conductor Dia. (Approx.)	XLPE Insulation Thickness	Dia. of Armored Wire	PVC Sheath Thickness	Overall Dia. (Approx.)	Weight of Cable (Approx.)
						Weight of Cable (Approx.)
						Copper	Aluminum
mm2	mm	mm	mm	mm	mm	kg/km	kg/km
*1.5	1.38	0.7	0.8	1.8	9.98	130.8	--
*2.5	1.78	0.7	0.8	1.8	10.38	147.9	133.1
*4	2.25	0.7	0.8	1.8	10.85	171.1	147.0
6	2.76	0.7	0.8	1.8	11.36	196.8	--
*6	2.83	0.7	0.8	1.8	11.43	--	165.0
*10	3.57	0.7	0.8	1.8	12.17	249.0	188.4
10	4.05	0.7	0.8	1.8	12.65	259.0	198.4
*16	4.5	0.7	0.8	1.8	13.1	320.1	223.6
16	5.1	0.7	0.8	1.8	13.7	331.9	235.4
25	5.9	0.9	0.8	1.8	14.9	438.9	287.9
35	6.9	0.9	0.8	1.8	15.9	544.0	333.7
50	8.1	1	1.25	1.8	18.2	729.7	445.1
70	9.7	1.1	1.25	1.8	20	965.1	550.5
95	11.4	1.1	1.25	1.8	21.7	1233.0	660.7
120	12.9	1.2	1.6	1.8	24.1	1547.4	823.5
150	14.2	1.4	1.6	1.8	25.8	1836.5	948.7
185	15.9	1.6	1.6	1.8	27.9	2227.3	1114.8
240	18.3	1.7	1.6	1.9	30.7	2820.6	1360.5
300	20.4	1.8	1.6	1.9	33	3416.2	1591.1
400	23.2	2	2	2.1	37.8	4466.2	2099.7
500	26.3	2.2	2	2.2	41.5	5552.8	2536.7
630	30	2.4	2	2.3	45.8	6993.9	3102.3
800	34	2.6	2.5	2.5	52	8982.4	4014.2
NOTE: The sectional area with "*", the conductor is made by solid copper or aluminum material

Expand More

Two Cores Non-Armored XLPE Cable
Cross Section	Conductor Dia. (Approx.)	XLPE Insulation Thickness	PVC Sheath Thickness	Overall Dia. (Approx.)	Weight of Cable (Approx.)
					Weight of Cable (Approx.)
					Copper	Aluminum
mm2	mm	mm	mm	mm	kg/km	kg/km
2x1.5	1.38	0.7	1.8	9.76	111.0	--
2x2.5	1.78	0.7	1.8	10.56	136.2	106.3
2x4	2.25	0.7	1.8	11.5	182.1	133.5
2x6	2.76	0.7	1.8	12.52	226.6	--
*2x6	2.83	0.7	1.8	12.66	--	159.2
2x10	4.05	0.7	1.8	15.1	338.4	216.3
2x16	5.1	0.7	1.8	17.2	479.8	285.4
2x25	5.9	0.9	1.8	19.6	664.4	360.4
2x35	6.9	0.9	1.8	21.6	869.0	445.3
2x50	9.37	1	1.8	19.4	1037.2	464.0
2x70	11.2	1.1	1.8	22.1	1455.6	620.7
2x95	13.23	1.1	1.9	24.8	1958.6	806.0
2x120	14.92	1.2	2	27.2	2451.4	993.5
2x150	16.44	1.4	2.2	30.7	3046.7	1258.6
2x185	18.49	1.6	2.3	33.7	3788.9	1548.5
2x240	21.4	1.7	2.5	38.9	4941.0	1974.0
2x300	24.1	1.8	2.6	42.7	6125.0	2417.0
2x400	27.2	2.0	2.9	48.1	7837.0	3071.0
2x500	31.0	2.2	3.1	53.6	10010.0	3882.0
NOTE: The sectional area with "*", the conductor is made by solid copper or aluminum material

Two Cores Steel Tape Armored(STA) XLPE Cable
Cross Section	Conductor Dia. (Approx.)	XLPE Insulation Thickness	Thickness of Armored Tape	PVC Sheath Thickness	Overall Dia. (Approx.)	Weight of Cable (Approx.)
						Weight of Cable (Approx.)
						Copper	Aluminum
mm2	mm	mm	mm	mm	mm	kg/km	kg/km
2x1.5	1.38	0.7	0.2	1.8	11.9	196.2	--
2x2.5	1.78	0.7	0.2	1.8	12.7	228.8	198.9
2x4	2.25	0.7	0.2	1.8	13.7	283.3	234.7
2x6	2.76	0.7	0.2	1.8	14.7	337.1	--
*2x6	2.83	0.7	0.2	1.8	14.8	--	271.0
2x10	4.05	0.7	0.2	1.8	17.3	472.6	350.5
2x16	5.1	0.7	0.2	1.8	19.4	633.3	438.9
2x25	5.9	0.9	0.2	1.8	21.8	839.7	535.7
2x35	6.9	0.9	0.2	1.8	23.8	1062.6	638.9
2x50	9.37	1.0	0.2	1.8	21.6	1210.5	637.3
2x70	11.2	1.1	0.2	1.9	24.5	1664.7	829.8
2x95	13.23	1.1	0.2	2.0	27.2	2192.8	1040.2
2x120	14.92	1.2	0.5	2.1	30.8	2948.2	1490.3
2x150	16.44	1.4	0.5	2.3	34.1	3596.9	1808.8
2x185	18.49	1.6	0.5	2.4	37.1	4392.0	2151.6
2x240	21.4	1.7	0.5	2.6	44.0	5881.0	2914.0
2x300	24.1	1.8	0.5	2.8	48.2	7203.0	3494.0
2x400	27.2	2.0	0.5	3.0	53.6	9042.0	4276.0
2x500	31.0	2.2	0.5	3.3	59.1	11346.0	5218.0
NOTE: The sectional area with "*", the conductor is made by solid copper or aluminum material

Two Cores Steel Wire Armored(SWA) XLPE Cable
Cross Section	Conductor Dia. (Approx.)	XLPE Insulation Thickness	Dia. of Armored Wire	PVC Sheath Thickness	Overall Dia. (Approx.)	Weight of Cable (Approx.)
						Weight of Cable (Approx.)
						Copper	Aluminum
mm2	mm	mm	mm	mm	mm	kg/km	kg/km
2x1.5	1.38	0.7	0.8	1.8	13.36	307.1	--
2x2.5	1.78	0.7	0.8	1.8	14.16	348.2	318.3
2x4	2.25	0.7	0.8	1.8	15.1	410.6	362.0
2x6	2.76	0.7	0.8	1.8	16.12	475.8	--
*2x6	2.83	0.7	0.8	1.8	16.26	--	413.1
2x10	4.05	0.7	1.25	1.8	19.6	778.4	656.3
2x16	5.1	0.7	1.25	1.8	21.7	978.7	784.3
2x25	5.9	0.9	1.6	1.8	24.8	1367.3	1063.3
2x35	6.9	0.9	1.6	1.8	26.8	1645.7	1222.0
2x50	9.37	1.0	1.6	1.8	24.6	1739.2	1166.0
2x70	11.2	1.1	1.6	2.0	27.7	2276.1	1441.3
2x95	13.23	1.1	2.0	2.1	31.6	3100.0	1947.4
2x120	14.92	1.2	2.0	2.2	34.0	3711.1	2253.2
2x150	16.44	1.4	2.0	2.3	37.3	4416.4	2628.3
2x185	18.49	1.6	2.5	2.5	41.9	5723.4	3483.0
2x240	21.4	1.7	2.5	2.7	47.2	7210.0	4243.0
2x300	24.1	1.8	2.5	2.9	51.5	8859.0	4950.0
2x400	27.2	2.0	2.5	3.1	56.8	10659.0	5893.0
2x500	31	2.2	3.15	3.4	63.7	13868.0	7740.0
NOTE: The sectional area with "*", the conductor is made by solid copper or aluminum material

Expand More

Three Cores Non-Armored XLPE Cable
Cross Section	Conductor Dia. (Approx.)	XLPE Insulation Thickness	PVC Sheath Thickness	Overall Dia. (Approx.)	Weight of Cable (Approx.)
					Weight of Cable (Approx.)
					Copper	Aluminum
mm2	mm	mm	mm	mm	kg/km	kg/km
3x1.5	1.38	0.7	1.8	10.2	130.4	--
3x2.5	1.78	0.7	1.8	11.1	168.3	123.5
3x4	2.25	0.7	1.8	12.1	224.3	151.4
3x6	2.76	0.7	1.8	13.2	290.3	-
*3x6	2.83	0.7	1.8	13.3	-	188.7
3x10	4.05	0.7	1.8	16.0	439.7	256.5
3x16	5.1	0.7	1.8	18.2	632.7	341.1
3x25	5.9	0.9	1.8	20.8	912.0	456.0
3x35	6.9	0.9	1.8	23.0	1206.6	571.1
3x50	9.34	1.0	1.8	25.4	1531.8	672.0
3x70	11.22	1.1	1.9	28.8	2165.7	913.4
3x95	13.16	1.1	2.0	32.4	2916.8	1187.9
3x120	14.76	1.2	2.1	35.3	3648.4	1461.5
3x150	16.34	1.4	2.3	38.7	4505.3	1823.2
3x185	18.3	1.6	2.4	42.4	5605.7	2245.1
3x240	20.92	1.7	2.6	47.2	7236.8	2825.7
3x300	23.38	1.8	2.7	51.5	8986.0	3472.2
3x400	26.46	2.0	3.0	57.5	11593.7	4444.4
3x500	30.0	2.2	3.2	64.3	14809.0	5617.0
NOTE: The sectional area with "*", the conductor is made by solid copper or aluminum material

Three Cores Steel Tape Armored(STA) XLPE Cable
Cross Section	Conductor Dia. (Approx.)	XLPE Insulation Thickness	Thickness of Armored Tape	PVC Sheath Thickness	Overall Dia. (Approx.)	Weight of Cable (Approx.)
						Weight of Cable (Approx.)
						Copper	Aluminum
mm2	mm	mm	mm	mm	mm	kg/km	kg/km
3x1.5	1.38	0.7	0.2	1.8	12.4	266.0	--
3x2.5	1.78	0.7	0.2	1.8	13.2	314.0	259.0
3x4	2.25	0.7	0.2	1.8	14.2	381.0	291.0
3x6	2.76	0.7	0.2	1.8	15.3	465.0	--
*3x6	2.83	0.7	0.2	1.8	15.5	--	308.0
3x10	4.05	0.7	0.2	1.8	18.1	581.9	398.8
3x16	5.1	0.7	0.2	1.8	20.4	795.7	504.1
3x25	5.9	0.9	0.2	1.8	23.0	1090.8	634.8
3x35	6.9	0.9	0.2	1.8	25.1	1403.3	767.8
3x50	9.34	1.0	0.2	1.8	27.6	1760.5	900.7
3x70	11.22	1.1	0.2	1.9	31.0	2424.8	1172.6
3x95	13.16	1.1	0.2	2.1	34.6	3219.2	1490.3
3x120	14.76	1.2	0.5	2.2	38.7	4286.5	2099.7
3x150	16.34	1.4	0.5	2.4	42.1	5240.8	2558.7
3x185	18.3	1.6	0.5	2.5	45.8	6404.2	3043.6
3x240	20.92	1.7	0.5	2.7	50.6	8153.4	3742.4
3x300	23.38	1.8	0.5	2.9	55.1	9979.1	4465.3
3x400	26.46	2.0	0.5	3.1	60.9	12664.5	5515.2
3x500	30.0	2.2	0.5	3.4	70.3	16481.0	7289.0
NOTE: The sectional area with "*", the conductor is made by solid copper or aluminum material

Three Cores Steel Wire Armored(SWA) XLPE Cable
Cross Section	Conductor Dia. (Approx.)	XLPE Insulation Thickness	Dia.of Armored Wire	PVC Sheath Thickness	Overall Dia. (Approx.)	Weight of Cable (Approx.)
						Weight of Cable (Approx.)
						Copper	Aluminum
mm2	mm	mm	mm	mm	mm	kg/km	kg/km
3x1.5	1.38	0.7	0.8	1.8	13.8	336.7	--
3x2.5	1.78	0.7	0.8	1.8	14.7	390.7	345.8
3x4	2.25	0.7	0.8	1.8	15.7	467.5	394.7
3x6	2.76	0.7	0.8	1.8	16.8	554.7	--
*3x6	2.83	0.7	0.8	1.8	16.9	--	453.8
3x10	4.05	0.7	1.25	1.8	20.5	903.4	720.2
3x16	5.1	0.7	1.25	1.8	22.7	1156.1	864.5
3x25	5.9	0.9	1.6	1.8	26.0	1644.9	1188.8
3x35	6.9	0.9	1.6	1.8	28.2	2012.0	1376.5
3x50	9.34	1.0	1.6	1.9	30.8	2453.2	1593.4
3x70	11.22	1.1	2.0	2.0	35.6	3497.2	2244.9
3x95	13.16	1.1	2.0	2.2	39.2	4386.7	2657.8
3x120	14.76	1.2	2.0	2.3	42.1	5239.8	3052.9
3x150	16.34	1.4	2.5	2.5	46.5	6674.3	3992.2
3x185	18.3	1.6	2.5	2.6	50.2	7955.6	4595.0
3x240	20.92	1.7	2.5	2.8	55.4	9939.1	5528.1
3x300	23.38	1.8	2.5	3.0	60.3	11972.0	6458.2
3x400	26.46	2.0	2.5	3.2	66.1	14883.6	7734.3
3x500	30.0	2.2	3.15	3.6	74.9	19493.0	10300.0
NOTE: The sectional area with "*", the conductor is made by solid copper or aluminum material

Expand More

Three Cores Non-Armored XLPE Cable With One Neutral Core
Cross Section		Conductor Dia. (Approx.)		XLPE Insulation Thickness		PVC Sheath Thickness	Overall Dia. (Approx.)	Weight of Cable (Approx.)
								Weight of Cable (Approx.)
								Copper	Aluminum
Phase	Earth	Phase	Earth	Phase	Earth			Copper	Aluminum
mm2	mm2	mm	mm	mm	mm	mm	mm	kg/km	kg/km
3x2.5	1x1.5	1.78	1.38	0.7	0.7	1.8	11.7	189.9	--
3x4	1x2.5	2.25	1.78	0.7	0.7	1.8	12.7	256.8	169.0
3x6	1x4	2.76	2.25	0.7	0.7	1.8	14.0	339.1	--
*3x6	*1x4	2.83	2.25	0.7	0.7	1.8	14.1	--	213.0
3x10	1x6	4.05	2.76	0.7	0.7	1.8	16.6	506.2	--
*3x10	*1x6	4.05	2.83	0.7	0.7	1.8	16.7	--	289.1
3x16	1x10	5.1	4.05	0.7	0.7	1.8	19.3	742.5	389.9
3x25	1x16	5.9	5.1	0.9	0.7	1.8	22.1	1084.9	531.7
3x35	*1x16	6.9	5.1	0.9	0.7	1.8	23.9	1373.6	640.9
3x50	1x25	9.1	5.9	1.0	0.9	1.8	25.4	1786.6	774.8
3x70	1x35	10.94	6.9	1.1	0.9	1.8	29.4	2506.1	1041.9
3x95	1x50	12.91	9.0	1.1	1.0	1.8	32.8	3360.4	1344.9
3x120	1x70	14.51	10.83	1.2	1.1	1.9	36.0	4292.7	1688.4
3x150	*1x70	16.11	10.83	1.4	1.1	2.1	39.4	5122.4	2022.9
3x185	1x95	18.04	12.17	1.6	1.1	2.2	43.3	6452.9	2516.0
3x240	1x120	20.65	14.39	1.7	1.2	2.3	48.4	8332.4	3192.4
3x300	1x150	23.08	15.93	1.8	1.4	2.5	53.3	10335.0	3927.2
3x400	1x185	25.49	17.77	2.0	1.6	2.7	59.4	13251.3	4981.8
NOTE: The sectional area with "*", the conductor is made by solid copper or aluminum material

Three Cores Steel Tape Armored(STA) XLPE Cable With One Neutral Core
Cross Section		Conductor Dia. (Approx.)		XLPE Insulation Thickness		Thickness of Armored Tape	PVC Sheath Thickness	Overall Dia. (Approx.)	Weight of Cable (approx.)
									Weight of Cable (approx.)
									Copper	Aluminum
Phase	Earth	Phase	Earth	Phase	Earth				Copper	Aluminum
mm2	mm2	mm	mm	mm	mm	mm	mm	mm	kg/km	kg/km
3x2.5	1x1.5	1.8	1.4	0.7	0.7	0.2	1.8	13.8	324.0	--
3x4	1x2.5	2.3	1.8	0.7	0.7	0.2	1.8	14.9	369.4	281.6
3x6	1x4	2.8	2.3	0.7	0.7	0.2	1.8	16.1	462.9	--
*3x6	*1x4	2.8	2.3	0.7	0.7	0.2	1.8	16.2	--	337.9
3x10	1x6	4.1	2.8	0.7	0.7	0.2	1.8	18.8	654.2	--
*3x10	*1x6	4.1	2.8	0.7	0.7	0.2	1.8	18.8	--	437.5
3x16	1x10	5.1	4.1	0.7	0.7	0.2	1.8	21.4	915.3	562.6
3x25	1x16	5.9	5.1	0.9	0.7	0.2	1.8	24.3	1283.5	730.2
3x35	*1x16	6.9	5.1	0.9	0.7	0.2	1.8	26.1	1588.8	856.1
3x50	1x25	9.1	5.9	1.0	0.9	0.2	1.8	27.6	2015.3	1003.5
3x70	1x35	10.9	6.9	1.1	0.9	0.2	1.8	31.0	2760.0	1295.9
3x95	1x50	12.9	9.0	1.1	1.0	0.2	1.9	34.6	3661.3	1645.8
3x120	1x70	14.5	10.8	1.2	1.1	0.2	2.0	37.8	4623.2	2018.9
3x150	*1x70	16.1	10.8	1.4	1.1	0.5	2.2	42.8	5836.1	2736.5
3x185	1x95	18.0	12.2	1.6	1.1	0.5	2.3	46.7	7236.3	3299.4
3x240	1x120	20.7	14.4	1.7	1.2	0.5	2.4	51.8	9207.6	4067.6
3x300	1x150	23.1	15.9	1.8	1.4	0.5	2.6	56.7	11296.2	4888.3
3x400	1x185	25.5	17.8	2.0	1.6	0.5	2.8	62.8	14320.5	6051.0
NOTE: The sectional area with "*", the conductor is made by solid copper or aluminum material

Three Cores Steel Wire Armored（SWA) XLPE Cable With One Neutral Core
Cross Section		Conductor Dia. (Approx.)		XLPE Insulation Thickness		Dia. of Armored Wire	PVC Sheath Thickness	Overall Dia. (Approx.)	Weight of Cable (Approx.)
									Weight of Cable (Approx.)
									Copper	Aluminum
Phase	Earth	Phase	Earth	Phase	Earth				Copper	Aluminum
mm2	mm2	mm	mm	mm	mm	mm	mm	mm	kg/km	kg/km
3x2.5	1x1.5	1.8	1.4	0.7	0.7	0.8	1.8	15.3	423.1	--
3x4	1x2.5	2.3	1.8	0.7	0.7	0.8	1.8	16.3	511.2	423.3
3x6	1x4	2.8	2.3	0.7	0.7	0.8	1.8	17.6	619.2	--
*3x6	*1x4	2.8	2.3	0.7	0.7	0.8	1.8	17.7	--	493.7
3x10	1x6	4.1	2.8	0.7	0.7	0.8	1.8	20.2	834.8	--
*3x10	*1x6	4.1	2.8	0.7	0.7	0.8	1.8	20.3	--	622.0
3x16	1x10	5.1	4.1	0.7	0.7	1.3	1.8	23.8	1300.4	947.8
3x25	1x16	5.9	5.1	0.9	0.7	1.3	1.8	26.6	1714.9	1161.7
3x35	*1x16	6.9	5.1	0.9	0.7	1.6	1.8	29.1	2225.6	1492.9
3x50	1x25	9.1	5.9	1.0	0.9	1.6	1.9	30.8	2708.0	1696.2
3x70	1x35	10.9	6.9	1.1	0.9	1.6	2.0	34.6	3571.4	2107.3
3x95	1x50	12.9	9.0	1.1	1.0	1.6	2.1	38.6	4607.7	2592.2
3x120	1x70	14.5	10.8	1.2	1.1	2.0	2.2	42.6	5923.7	3319.4
3x150	*1x70	16.1	10.8	1.4	1.1	2.0	2.4	46.4	6938.3	3838.7
3x185	1x95	18.0	12.2	1.6	1.1	2.0	2.5	50.3	8423.8	4486.8
3x240	1x120	20.7	14.4	1.7	1.2	2.5	2.7	57.0	11098.0	5958.0
3x300	1x150	23.1	15.9	1.8	1.4	2.5	2.9	61.9	13343.0	6935.1
3x400	1x185	25.5	17.8	2.0	1.6	2.5	3.1	68.4	16688.3	8418.8
NOTE: The sectional area with "*", the conductor is made by solid copper or aluminum material

Expand More

Three Cores Non-Armored XLPE Cable With Two Neutral Cores
Cross Section		Conductor Dia. (Approx.)		XLPE Insulation Thickness		PVC Sheath Thickness	Overall Dia. (Approx.)	Weight of Cable (Approx.)
								Weight of Cable (Approx.)
								Copper	Aluminum
Phase	Earth	Phase	Earth	Phase	Earth			Copper	Aluminum
mm2	mm2	mm	mm	mm	mm	mm	mm	kg/km	kg/km
3x2.5	2x1.5	1.8	1.4	0.7	0.7	1.8	12.4	215.5	--
3x4	2x2.5	2.3	1.8	0.7	0.7	1.8	13.5	293.4	190.6
3x6	2x4	2.8	2.3	0.7	0.7	1.8	14.9	390.2	--
*3x6	*2x4	2.8	2.3	0.7	0.7	1.8	15.0	--	239.7
3x10	2x6	4.1	2.8	0.7	0.7	1.8	17.5	577.0	--
*3x10	*2x6	4.1	2.8	0.7	0.7	1.8	17.6	--	327.9
3x16	2x10	5.1	4.1	0.7	0.7	1.8	20.6	858.7	445.0
3x25	2x16	5.9	5.1	0.9	0.7	1.8	23.7	1249.5	599.1
3x35	*2x16	6.9	5.1	0.9	0.7	1.8	25.3	1535.5	705.6
3x50	2x25	9.1	6.5	1.0	0.9	1.8	30.6	2083.4	919.6
3x70	2x35	10.9	7.7	1.1	0.9	1.8	34.1	2886.6	1210.7
3x95	2x50	12.9	8.9	1.1	1.0	1.8	38.4	3861.2	1559.1
3x120	2x70	14.5	10.8	1.2	1.1	1.8	42.1	4980.2	1958.5
3x150	*2x70	16.0	10.7	1.4	1.1	1.9	44.7	5788.1	2271.1
3x185	2x95	18.0	13.1	1.6	1.1	2.0	49.8	7370.2	2857.0
3x240	2x120	20.6	14.2	1.7	1.2	2.2	55.3	9501.4	3632.4
3x300	2x150	23.0	15.8	1.8	1.4	2.3	60.7	11744.6	4442.6
3x400	2x185	26.1	20.1	2.0	1.6	3.2	68.1	15317.0	5907.0
NOTE: The sectional area with "*", the conductor is made by solid copper or aluminum material

Three Cores Steel Tape Armored(STA) XLPE Cable With Two Neutral Cores
Cross Section		Conductor Dia. (approx.)		XLPE Insulation Thickness		Thickness of Armored Tape	PVC Sheath Thickness	Overall Dia. (Approx.)	Weight of Cable (Approx.)
									Weight of Cable (Approx.)
									Copper	Aluminum
Phase	Earth	Phase	Earth	Phase	Earth				Copper	Aluminum
mm2	mm2	mm	mm	mm	mm	mm	mm	mm	kg/km	kg/km
3x2.5	2x1.5	1.8	1.4	0.7	0.7	0.2	1.8	14.5	324.5	--
3x4	2x2.5	2.3	1.8	0.7	0.7	0.2	1.8	15.7	413.4	310.6
3x6	2x4	2.8	2.3	0.7	0.7	0.2	1.8	17.0	522.4	--
*3x6	*2x4	2.8	2.3	0.7	0.7	0.2	1.8	17.1	--	372.9
3x10	2x6	4.1	2.8	0.7	0.7	0.2	1.8	19.7	733.5	--
*3x10	*2x6	4.1	2.8	0.7	0.7	0.2	1.8	19.7	--	485.0
3x16	2x10	5.1	4.1	0.7	0.7	0.2	1.8	22.8	1043.6	629.9
3x25	2x16	5.9	5.1	0.9	0.7	0.2	1.8	25.8	1462.6	812.2
3x35	*2x16	6.9	5.1	0.9	0.7	0.2	1.8	27.5	1763.5	933.6
3x50	2x25	9.1	6.5	1.0	0.9	0.2	1.8	32.6	2355.3	1191.5
3x70	2x35	10.9	7.7	1.1	0.9	0.2	1.8	36.1	3190.5	1514.5
3x95	2x50	12.9	8.9	1.1	1.0	0.2	1.8	40.4	4204.3	1902.2
3x120	2x70	14.5	10.8	1.2	1.1	0.2	1.9	44.3	5377.5	2355.8
3x150	*2x70	16.0	10.7	1.4	1.1	0.2	2.0	46.9	6209.5	2692.5
3x185	2x95	18.0	13.1	1.6	1.1	0.5	2.1	53.2	8277.6	3764.3
3x240	2x120	20.6	14.2	1.7	1.2	0.5	2.3	58.7	10505.8	4636.8
3x300	2x150	23.04	15.77	1.8	1.4	0.5	2.4	64.05	12846.3	5544.3
3x400	2x185	26.1	20.1	2.0	1.6	0.5	3.4	74.1	16999.0	7589
NOTE: The sectional area with "*", the conductor is made by solid copper or aluminum material

Three Cores Steel Wire Armored（SWA) XLPE Cable With Two Neutral Cores
Cross Section		Conductor Dia. (Approx.)		XLPE Insulation Thickness		Dia. of Armored Wire	PVC Sheath Thickness	Overall Dia. (Approx.)	Weight of Cable (Approx.)
									Weight of Cable (Approx.)
									Copper	Aluminum
Phase	Earth	Phase	Earth	Phase	Earth				Copper	Aluminum
mm2	mm2	mm	mm	mm	mm	mm	mm	mm	kg/km	kg/km
3x2.5	2x1.5	1.8	1.4	0.7	0.7	0.8	1.8	16.0	462.4	--
3x4	2x2.5	2.3	1.8	0.7	0.7	0.8	1.8	17.1	561.8	459.0
3x6	2x4	2.8	2.3	0.7	0.7	0.8	1.8	18.5	684.8	--
*3x6	*2x4	2.8	2.3	0.7	0.7	0.8	1.8	18.6	--	534.8
3x10	2x6	4.1	2.8	0.7	0.7	0.8	1.8	21.1	923.9	--
*3x10	*2x6	4.1	2.8	0.7	0.7	0.8	1.8	21.2	--	675.1
3x16	2x10	5.1	4.1	0.7	0.7	1.3	1.8	25.1	1449.6	1035.9
3x25	2x16	5.9	5.1	0.9	0.7	1.3	1.8	28.2	1926.3	1275.8
3x35	*2x16	6.9	5.1	0.9	0.7	1.3	1.8	29.8	2259.1	1429.2
3x50	2x25	9.1	6.5	1.0	0.9	1.6	1.8	35.8	3176.1	2012.3
3x70	2x35	10.9	7.7	1.1	0.9	1.6	1.9	39.5	4110.5	2434.6
3x95	2x50	12.9	8.9	1.1	1.0	1.6	2.0	44.0	5256.4	2954.3
3x120	2x70	14.5	10.8	1.2	1.1	1.6	2.1	48.3	6588.5	3566.8
3x150	*2x70	16.0	10.7	1.4	1.1	2.0	2.2	51.7	7838.8	4321.8
3x185	2x95	18.0	13.1	1.6	1.1	2.0	2.4	57.0	9660.9	5147.7
3x240	2x120	20.6	14.2	1.7	1.2	2.0	2.5	62.7	12088.6	6219.7
3x300	2x150	23.0	15.8	1.8	1.4	2.5	2.7	69.3	15203.6	7901.7
3x400	2x185	26.1	20.1	2.0	1.6	3.2	3.6	78.7	20109.0	10699.0
NOTE: The sectional area with "*", the conductor is made by solid copper or aluminum material

Expand More

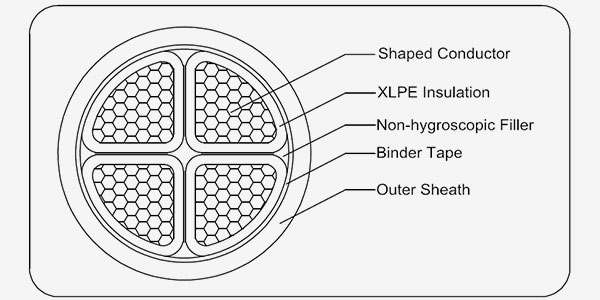

Four Cores Non-Armored XLPE Cable
Cross Section	Conductor Dia. (Approx.)	XLPE Insulation Thickness	PVC Sheath Thickness	Overall Dia. (Approx.)	Weight of Cable (Approx.)
					Weight of Cable (Approx.)
					Copper	Aluminum
mm2	mm	mm	mm	mm	kg/km	kg/km
4x1.5	1.4	0.7	1.8	10.9	156.5	--
4x2.5	1.8	0.7	1.8	11.9	202.3	142.5
4x4	2.3	0.7	1.8	13.0	269.8	172.6
4x6	2.8	0.7	1.8	14.3	360.9	--
*4x6	2.8	0.7	1.8	14.4	--	225.1
4x10	4.1	0.7	1.8	17.4	551.7	307.5
4x16	5.1	0.7	1.8	19.9	802.2	413.5
4x25	5.9	0.9	1.8	22.8	1157.2	549.1
4x35	6.9	0.9	1.8	25.3	1540.7	693.4
4x50	9.1	1.0	1.8	25.5	1972.8	826.5
4x70	11.0	1.1	2.0	29.6	2823.0	1153.3
4x95	12.9	1.1	2.1	33.4	3811.7	1506.5
4x120	14.5	1.2	2.3	37.0	4796.7	1880.9
4x150	16.1	1.4	2.4	41.1	5920.3	2344.1
4x185	18.0	1.6	2.6	45.5	7400.4	2919.6
4x240	20.6	1.7	2.8	51.3	9611.2	3729.8
4x300	23.0	1.8	3.0	56.4	11926.5	4574.8
4x400	26.1	2.0	3.3	63.2	15377.3	5844.9
4x500	29.5	2.2	3.5	73.8	19711.0	7455.0
NOTE: The sectional area with "*", the conductor is made by solid copper or aluminum material

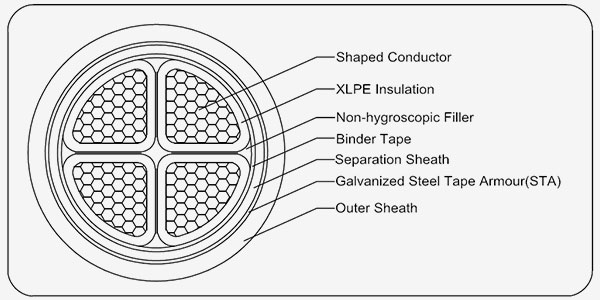

Four Cores Steel Tape Armored(STA) XLPE Cable
Cross Section	Conductor Dia. (Approx.)	XLPE Insulation Thickness	Thickness of Armored Tape	PVC Sheath Thickness	Overall Dia. (Approx.)	Weight of Cable (Approx.)
						Weight of Cable (Approx.)
						Copper	Aluminum
mm2	mm	mm	mm	mm	mm	kg/km	kg/km
4x1.5	1.4	0.7	0.2	1.8	13.1	320.0	--
4x2.5	1.8	0.7	0.2	1.8	14.0	338.0	278.0
4x4	2.3	0.7	0.2	1.8	15.2	391.0	293.0
4x6	2.8	0.7	0.2	1.8	16.4	487.5	--
*4x6	2.8	0.7	0.2	1.8	16.6	--	353.3
4x10	4.1	0.7	0.2	1.8	19.5	706.9	462.7
4x16	5.1	0.7	0.2	1.8	22.1	980.8	592.0
4x25	5.9	0.9	0.2	1.8	25.0	1362.4	754.3
4x35	6.9	0.9	0.2	1.8	27.4	1768.1	920.8
4x50	9.1	1.0	0.2	1.9	27.9	2215.3	1068.9
4x70	11.0	1.1	0.2	2.0	31.6	3083.9	1414.2
4x95	12.9	1.1	0.5	2.2	36.8	4414.9	2109.6
4x120	14.5	1.2	0.5	2.4	40.4	5461.9	2546.1
4x150	16.1	1.4	0.5	2.5	44.5	6658.9	3082.7
4x185	18.0	1.6	0.5	2.7	48.9	8215.7	3734.9
4x240	20.6	1.7	0.5	2.9	54.7	10529.1	4647.7
4x300	23.0	1.8	0.5	3.1	59.8	12934.1	5582.3
4x400	26.1	2.0	0.5	3.4	66.6	16503.6	6971.3
4x500	29.5	2.2	0.8	3.7	81.1	22377.0	10121.0
NOTE: The sectional area with "*", the conductor is made by solid copper or aluminum material

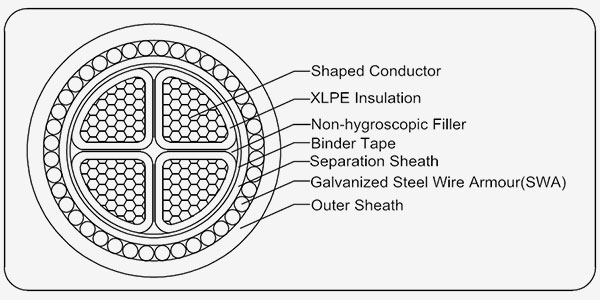

Four Cores Steel Wire Armored(SWA) XLPE Cable
Cross Section	Conductor Dia. (Approx.)	XLPE Insulation Thickness	Dia. of Armored Wire	PVC Sheath Thickness	Overall Dia. (Approx.)	Weight of Cable (Approx.)
						Weight of Cable (Approx.)
						Copper	Aluminum
mm2	mm	mm	mm	mm	mm	kg/km	kg/km
4x1.5	1.4	0.7	0.8	1.8	14.5	374.2	--
4x2.5	1.8	0.7	0.8	1.8	15.5	440.6	380.8
4x4	2.3	0.7	0.8	1.8	16.6	529.5	432.3
4x6	2.8	0.7	1.3	1.8	18.8	777.3	--
*4x6	2.8	0.7	1.3	1.8	18.9	--	642.3
4x10	4.1	0.7	1.3	1.8	21.9	1051.5	807.3
4x16	5.1	0.7	1.6	1.8	25.1	1522.8	1134.0
4x25	5.9	0.9	1.6	1.8	28.0	1971.9	1363.8
4x35	6.9	0.9	1.6	1.9	30.7	2461.4	1614.1
4x50	9.1	1.0	1.6	2.0	31.1	2909.1	1762.7
4x70	11.0	1.1	2.0	2.2	36.4	4173.9	2504.2
4x95	12.9	1.1	2.0	2.3	40.2	5340.4	3035.1
4x120	14.5	1.2	2.5	2.5	45.2	6873.8	3958.0
4x150	16.1	1.4	2.5	2.6	49.3	8227.1	4650.9
4x185	18.0	1.6	2.5	2.8	53.7	9941.4	5460.5
4x240	20.6	1.7	2.5	3.0	59.9	12526.0	6644.6
4x300	23.0	1.8	2.5	3.2	65.0	15085.4	7733.7
4x400	26.1	2.0	3.2	3.5	73.5	19773.1	10240.7
4x500	29.5	2.2	3.2	3.9	84.4	25042.0	12785.0
NOTE: The sectional area with "*", the conductor is made by solid copper or aluminum material

Expand More

Four Cores Non-Armored XLPE Cable With One Neutral Core
Cross Section		Conductor Dia. (Approx.)		XLPE Insulation Thickness		PVC Sheath Thickness	Overall Dia. (Approx.)	Weight of Cable (Approx.)
								Weight of Cable (Approx.)
								Copper	Aluminum
Phase	Earth	Phase	Earth	Phase	Earth			Copper	Aluminum
mm2	mm2	mm	mm	mm	mm	mm	mm	kg/km	kg/km
4x2.5	1x1.5	1.8	1.4	0.7	0.7	1.8	12.6	227.6	--
4x4	1x2.5	2.3	1.8	0.7	0.7	1.8	13.8	311.0	198.9
4x6	1x4	2.8	2.3	0.7	0.7	1.8	15.2	414.4	--
*4x6	*1x4	2.8	2.3	0.7	0.7	1.8	15.3	--	254.2
4x10	1x6	4.1	2.8	0.7	0.7	1.8	18.2	622.8	--
*4x10	*1x6	4.1	2.8	0.7	0.7	1.8	18.3	--	344.6
4x16	1x10	5.1	4.1	0.7	0.7	1.8	21.2	918.7	468.9
4x25	1x16	5.9	5.1	0.9	0.7	1.8	24.3	1347.1	641.9
4x35	*1x16	6.9	5.1	0.9	0.7	1.8	26.5	1730.4	785.9
4x50	1x25	9.1	5.9	1.0	0.9	1.8	26.9	2239.0	940.6
4x70	1x35	10.9	6.9	1.1	0.9	1.9	31.0	3167.0	1285.4
4x95	1x50	12.9	8.1	1.1	1.0	2.0	35.3	4274.4	1682.6
4x120	1x70	14.5	9.7	1.2	1.1	2.1	39.1	5441.8	2108.6
4x150	*1x70	16.0	9.7	1.4	1.1	2.3	42.6	6530.4	2536.8
4x185	1x95	18.0	11.4	1.6	1.1	2.4	47.3	8219.6	3162.5
4x240	1x120	20.6	12.9	1.7	1.2	2.6	52.6	10646.0	4035.6
4x300	1x150	23.2	18.4	1.8	1.4	3.1	64.7	13540.0	5224.0
4x400	1x185	26.3	20.5	2.0	1.6	3.4	72.7	17304.0	6641.0
NOTE: The sectional area with "*", the conductor is made by solid copper or aluminum material

Four Cores Steel Tape Armored(STA) XLPE Cable With One Neutral Core
Cross Section		Conductor Dia. (Approx.)		XLPE Insulation Thickness		Thickness of Armored Tape	PVC Sheath Thickness	Overall Dia. (Approx.)	Weight of Cable (Approx.)
									Weight of Cable (Approx.)
									Copper	Aluminum
Phase	Earth	Phase	Earth	Phase	Earth				Copper	Aluminum
mm2	mm2	mm	mm	mm	mm	mm	mm	mm	kg/km	kg/km
4x2.5	1x1.5	1.8	1.4	0.7	0.7	0.2	1.8	14.7	338.6	--
4x4	1x2.5	2.3	1.8	0.7	0.7	0.2	1.8	16.0	433.3	321.2
4x6	1x4	2.8	2.3	0.7	0.7	0.2	1.8	17.3	549.1	--
*4x6	*1x4	2.8	2.3	0.7	0.7	0.2	1.8	17.5	--	390.3
4x10	1x6	4.1	2.8	0.7	0.7	0.2	1.8	20.4	785.7	--
*4x10	*1x6	4.1	2.8	0.7	0.7	0.2	1.8	20.4	--	507.8
4x16	1x10	5.1	4.1	0.7	0.7	0.2	1.8	23.3	1108.8	659.0
4x25	1x16	5.9	5.1	0.9	0.7	0.2	1.8	26.5	1566.2	860.9
4x35	*1x16	6.9	5.1	0.9	0.7	0.2	1.8	28.7	1969.3	1024.7
4x50	1x25	9.1	5.9	1.0	0.9	0.2	1.8	29.1	2481.9	1183.5
4x70	1x35	10.9	6.9	1.1	0.9	0.2	1.9	32.5	3434.1	1552.5
4x95	1x50	12.9	8.1	1.1	1.0	0.2	2.1	37.0	4596.9	2005.1
4x120	1x70	14.5	9.7	1.2	1.1	0.5	2.2	42.0	6138.4	2805.1
4x150	*1x70	16.0	9.7	1.4	1.1	0.5	2.4	45.9	7298.4	3304.7
4x185	1x95	18.0	11.4	1.6	1.1	0.5	2.5	50.6	9072.0	4014.9
4x240	1x120	20.6	12.9	1.7	1.2	0.5	2.7	55.9	11591.3	4981.0
4x300	1x150	23.2	18.4	1.8	1.4	0.5	3.2	70.3	15152.0	6835.0
4x400	1x185	26.3	20.5	2.0	1.6	0.8	3.6	80.0	19935.0	9272.0
NOTE: The sectional area with "*", the conductor is made by solid copper or aluminum material

Four Cores Steel Wire Armored（SWA) XLPE Cable With One Neutral Core
Cross Section		Conductor Dia. (Approx.)		XLPE Insulation Thickness		Dia. of Armored Wire	PVC Sheath Thickness	Overall Dia. (Approx.)	Weight of Cable (Approx.)
									Weight of Cable (Approx.)
									Copper	Aluminum
Phase	Earth	Phase	Earth	Phase	Earth				Copper	Aluminum
mm2	mm2	mm	mm	mm	mm	mm	mm	mm	kg/km	kg/km
4x2.5	1x1.5	1.8	1.4	0.7	0.7	0.8	1.8	16.2	477.0	--
4x4	1x2.5	2.3	1.8	0.7	0.7	0.8	1.8	17.4	586.4	474.2
4x6	1x4	2.8	2.3	0.7	0.7	0.8	1.8	18.8	716.2	--
*4x6	*1x4	2.8	2.3	0.7	0.7	0.8	1.8	18.9	--	560.7
4x10	1x6	4.1	2.8	0.7	0.7	1.3	1.8	22.7	1146.2	--
*4x10	*1x6	4.1	2.8	0.7	0.7	1.3	1.8	22.8	--	868.1
4x16	1x10	5.1	4.1	0.7	0.7	1.3	1.8	25.7	1524.8	1074.9
4x25	1x16	5.9	5.1	0.9	0.7	1.6	1.8	29.5	2217.2	1512.0
4x35	*1x16	6.9	5.1	0.9	0.7	1.6	1.9	31.9	2689.7	1745.2
4x50	1x25	9.1	5.9	1.0	0.9	1.6	2.0	32.5	3231.6	1933.2
4x70	1x35	10.9	6.9	1.1	0.9	2.0	2.2	37.6	4586.5	2704.9
4x95	1x50	12.9	8.1	1.1	1.0	2.0	2.3	41.9	5876.9	3285.1
4x120	1x70	14.5	9.7	1.2	1.1	2.0	2.4	45.7	7198.4	3865.2
4x150	*1x70	16.0	9.7	1.4	1.1	2.5	2.6	51.0	8948.1	4954.5
4x185	1x95	18.0	11.4	1.6	1.1	2.5	2.8	55.9	10938.8	5881.6
4x240	1x120	20.6	12.9	1.7	1.2	2.5	3.0	61.6	13702.1	7091.8
4x300	1x150	23.2	18.4	1.8	1.4	3.2	3.4	74.9	18175.0	9858.0
4x400	1x185	26.3	20.5	2.0	1.6	3.2	3.7	83.3	22568.0	11906.0
NOTE: The sectional area with "*", the conductor is made by solid copper or aluminum material

Expand More

Five Cores Non-Armored XLPE Cable
Cross Section	Conductor Dia. (Approx.)	XLPE Insulation Thickness	PVC Sheath Thickness	Overall Dia. (Approx.)	Weight of Cable (Approx.)
					Weight of Cable (Approx.)
					Copper	Aluminum
mm2	mm	mm	mm	mm	kg/km	kg/km
5x1.5	1.4	0.8	1.8	12.2	184.4	--
5x2.5	1.8	0.8	1.8	13.3	241.2	166.4
5x4	2.3	1.0	1.8	15.7	357.5	236.0
5x6	2.8	1.0	1.8	17.1	466.8	-
*5x6	2.8	1.0	1.8	17.2	--	297.2
5x10	4.1	1.0	1.8	20.5	713.7	408.4
5x16	5.1	1.0	1.8	23.4	1027.6	541.6
5x25	5.9	0.9	1.8	24.8	1404.1	644.0
5x35	6.9	0.9	1.8	27.9	1878.0	818.8
5x50	9.0	1.0	1.9	31.1	2475.9	1042.9
5x70	10.9	1.1	2.1	35.0	3527.3	1440.2
5x95	12.8	1.1	2.2	39.5	4762.0	1880.5
5x120	14.4	1.2	2.4	43.7	5990.8	2346.1
5x150	15.9	1.4	2.6	46.5	7346.4	2876.2
5x185	17.9	1.6	2.8	51.8	9188.2	3587.2
5x240	20.5	1.7	3.0	57.4	11929.8	4578.0
5x300	22.9	1.8	3.2	63.1	14816.2	5626.5
5x400	26.8	2.0	3.5	74.6	19251.0	7336.0
5x500	30.4	2.2	3.8	83.8	24639.0	9319.0
NOTE: The sectional area with "*", the conductor is made by solid copper or aluminum material

Five Cores Steel Tape Armored(STA) XLPE Cable
Cross Section	Conductor Dia. (Approx.)	XLPE Insulation Thickness	Thickness of Armored Tape	PVC Sheath Thickness	Overall Dia. (Approx.)	Weight of Cable (Approx.)
						Weight of Cable (Approx.)
						Copper	Aluminum
mm2	mm	mm	mm	mm	mm	kg/km	kg/km
5x1.5	1.4	0.8	0.2	1.8	14.4	292.2	--
5x2.5	1.8	0.8	0.2	1.8	15.5	358.5	283.8
5x4	2.3	1.0	0.2	1.8	17.8	496.6	375.1
5x6	2.8	1.0	0.2	1.8	19.2	618.8	--
*5x6	2.8	1.0	0.2	1.8	19.4	--	451.0
5x10	4.1	1.0	0.2	1.8	22.7	897.4	592.1
5x16	5.1	1.0	0.2	1.8	25.5	1237.5	751.5
5x25	5.9	0.9	0.2	1.8	27.1	1630.7	870.6
5x35	6.9	0.9	0.2	1.9	30.0	2138.9	1079.7
5x50	9.0	1.0	0.2	2.0	33.3	2766.7	1333.7
5x70	10.9	1.1	0.5	2.2	38.4	4160.0	2072.8
5x95	12.8	1.1	0.5	2.3	42.9	5475.4	2593.9
5x120	14.4	1.2	0.5	2.5	47.1	6777.2	3132.5
5x150	15.9	1.4	0.5	2.7	49.9	8180.2	3709.9
5x185	17.9	1.6	0.5	2.9	55.2	10115.3	4514.3
5x240	20.5	1.7	0.5	3.1	60.8	12955.7	5604.0
5x300	22.9	1.8	0.5	3.3	66.5	15942.9	6753.1
5x400	26.8	2.0	0.8	3.7	81.9	21946.0	10031.0
5x500	30.4	2.2	0.8	4.0	91.1	27650.0	12330.0
NOTE: The sectional area with "*", the conductor is made by solid copper or aluminum material

Five Cores Steel Wire Armored(SWA) XLPE Cable
Cross Section	Conductor Dia. (Approx.)	XLPE Insulation Thickness	Dia.of Armored Wire	PVC Sheath Thickness	Overall Dia. (Approx.)	Weight of Cable (Approx.)
						Weight of Cable (Approx.)
						Copper	Aluminum
mm2	mm	mm	mm	mm	mm	kg/km	kg/km
5x1.5	1.4	0.8	0.8	1.8	15.8	427.3	--
5x2.5	1.8	0.8	0.8	1.8	16.9	504.8	430.0
5x4	2.3	1.0	1.3	1.8	20.2	808.1	686.7
5x6	2.8	1.0	1.3	1.8	21.6	953.5	--
*5x6	2.8	1.0	1.3	1.8	21.7	--	794.6
5x10	4.1	1.0	1.3	1.8	25.0	1304.2	998.9
5x16	5.1	1.0	1.6	1.8	28.6	1858.0	1372.0
5x25	5.9	0.9	1.6	1.8	30.2	2295.0	1534.9
5x35	6.9	0.9	1.6	1.9	33.1	2872.9	1813.8
5x50	9.0	1.0	2.0	2.1	37.9	3910.3	2477.3
5x70	10.9	1.1	2.0	2.3	41.8	5116.8	3029.6
5x95	12.8	1.1	2.5	2.4	47.7	7013.0	4131.4
5x120	14.4	1.2	2.5	2.6	51.9	8435.0	4790.3
5x150	15.9	1.4	2.5	2.8	54.7	9934.2	5463.9
5x185	17.9	1.6	2.5	3.0	60.4	12107.2	6506.2
5x240	20.5	1.7	2.5	3.2	66.0	15175.8	7824.1
5x300	22.9	1.8	3.2	3.4	73.4	19270.7	10081.0
5x400	26.8	2.0	3.2	3.9	85.2	24639.0	12724.0
5x500	30.4	2.2	3.2	4.1	94.4	30646.0	15326.0
NOTE: The sectional area with "*", the conductor is made by solid copper or aluminum material

Expand More

XLPE INSULATED POWER CABLE
