0.6/1KV NYY, N2XY, NAYY, NA2XY TRIPLE

Inquire Now
Overview
APPLICATION

General use as power cable. In low voltage distribution networks, industrial installations, buildings and operating centers. For fixed installations, in indoor areas (trays, ducts), in underground ducts or buried direct in ground, in dry or wet locations.

DESCRIPTION

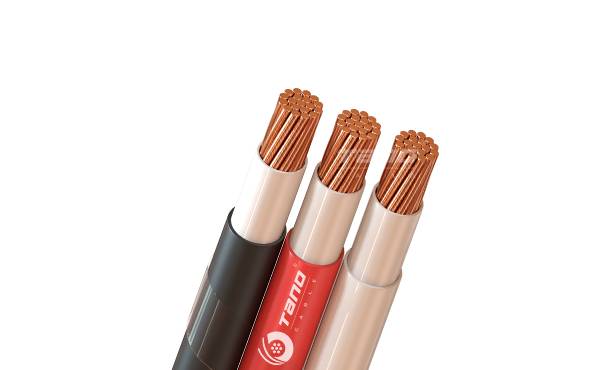

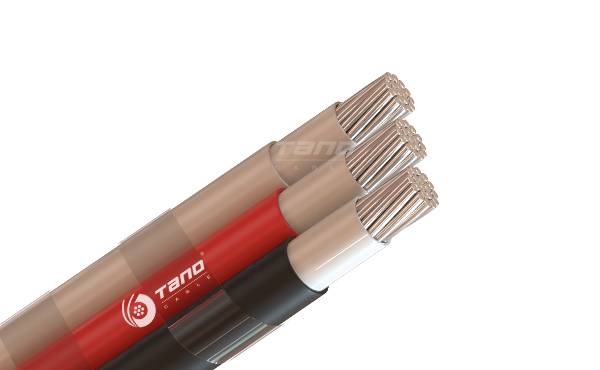

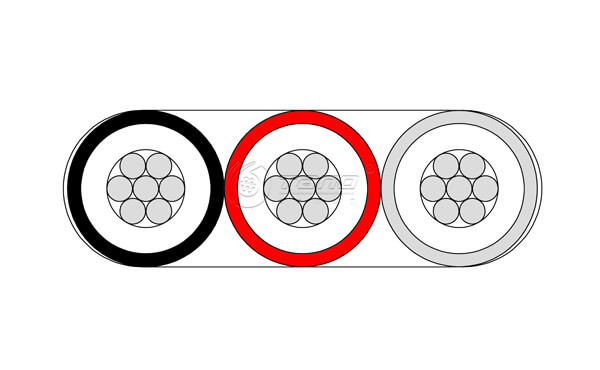

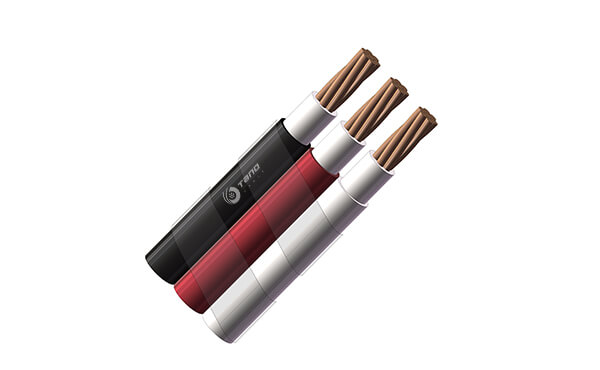

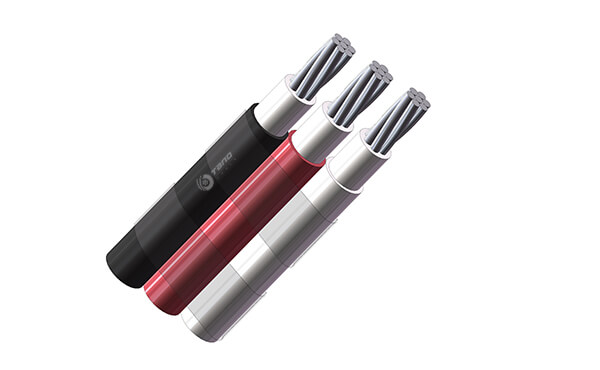

The three cores are arranged in parallel and bound together by polyester tape. The triple cores with copper or aluminum conductor, PVC or XLPE insulated and PVC sheathed, cables are rated at 0.6/1kV.


STANDARD

NTP-IEC 60228: Conductors of insulated cables.
NTP-IEC 60502-1:Power cables with extruded insulation and their accessories for rated voltage.

MAIN CHARACTERISTICS

Good electrical and mechanical properties.
The PVC outer sheath provides an adequate resistance to grease, oils and abrasion.
Cables with better dissipation of heat allowing a higher current capacity. Sunlight resistance.
Flame retardant.


DOWNLOAD
CABLE DATASHEET
0.6/1kV
NTP-IEC 60228,
NTP-IEC 60502-1
DISTRIBUTION NETWORKS
INDUSTRIAL USE
BUILDINGS AND OPERATING CENTERS
BY COLOR
Specifications
ELECTRICAL PERFORMANCE
0.6/1kV
STANDARD
NTP-IEC 60228,
NTP-IEC 60502-1
APPLICATION
DISTRIBUTION NETWORKS
INDUSTRIAL USE
BUILDINGS AND OPERATING CENTERS
CORE IDENTIFICATION
BY COLOR
CHEMICAL PERFORMANCE
Chemical & Oil resistance: Good
MECHANICAL PERFORMANCE
Minimum bending radius:x10 cable diameter
FIRE PERFORMANCE
Flame non-propagation base on IEC 60332-1-2
THERMINAL PERFORMANCE
Maximum operating temperature: 80℃
Overload maximum core temperature: 100℃
Short-circuit max. Conductor temperature: 160℃
Other Properties
APPROVALS
N/A
INSTALLATION CONDITIONS
OPEN AIR
BURIED
IN CONDUIT
CABLE MARKING
LASER PRINTING
OIL INK PRINTING
EMBOSSING PRINTING
PACKAGING

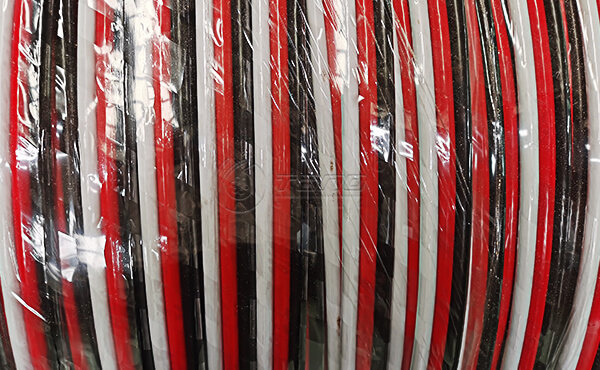

BY WOODEN REEL/DRUM

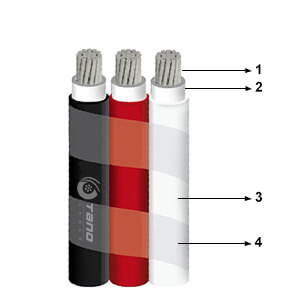

CONSTRUCTION
1. Conductor:
Copper / Aluminium 1350, class 2.

2. Insulation:
Compound polyvinyl chloride PVC / crosslinked polyethylene XLPE

3. Outer sheath:
Compound polyvinyl chloride PVC.

4. Tape:
Polyester tape

Core Colour:
Insulation: Natural.
Outer sheath: Black, red and white

Cross section:
From 16 mm2 up to 150 mm2.


Other cables with similar properties
