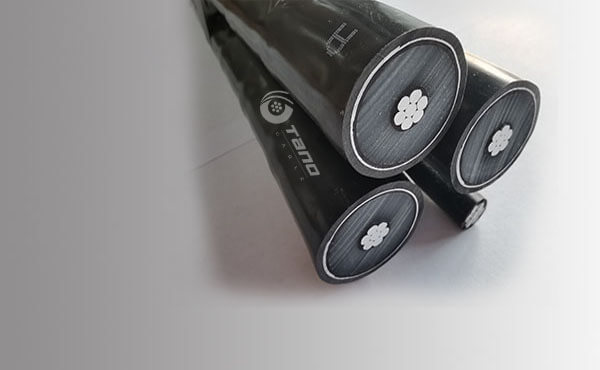

na2xsa2y s cable - TANO CABLE

Overview Specifications

CONSTRUCTION PARAMETER

Overview

APPLICATION

Medium voltage aerial power distribution. Transformer feeders, power plants, industrial and operation installations, in places where underground networks cannot be possible, mining installations, tree-lined urban zones or with little space.

STANDARD

IEC 60228, IEC 60502-1, ICEA S-93-639

VOLTAGE

6/10kV, 8.7/15kV, 12/20kV, 18/30kV

MAIN CHARACTERISTICS

Excellent properties against heat aging. Resistance to abrasion, moisture and sunlight. Good resistance to traction. The outer sheath has the following characteristics: low emission dense smoke and halogen free. Flame retardant.

DOWNLOAD
CABLE DATASHEET

6/10kV, 8.7/15kV
12/20kV, 18/30kV

IEC 60228, IEC 60502-1
ICEA S-93-639

DISTRIBUTION LINE
POWER NETWORKS

BY COLOR STRIPE
BY RIB
BY NUMBER

Specifications

ELECTRICAL PERFORMANCE

6/10kV, 8.7/15kV
12/20kV, 18/30kV

STANDARD

IEC 60228, IEC 60502-1
ICEA S-93-639

APPLICATION

DISTRIBUTION LINE
POWER NETWORKS

CORE IDENTIFICATION

BY COLOR STRIPE
BY RIB
BY NUMBER

CHEMICAL PERFORMANCE

Chemical & UV & Oil resistance:Good

MECHANICAL PERFORMANCE

Minimum bending radius:x10 cable diameter

FIRE PERFORMANCE

N/A

THERMINAL PERFORMANCE

Maximum service temperature:90℃
Maximum short-circuit temperature:250℃(max. 5s)
Minimum service temperature:-40℃

Other Properties

APPROVALS

N/A

INSTALLATION CONDITIONS

OVERHEAD

CABLE MARKING

OIL INK PRINTING
LASER PRINTING
EMBOSSING PRINTING

PACKAGING

BY ROLL
BY POLYWOOD OR WOODEN OR STEEL-WOODEN REEL/DRUM

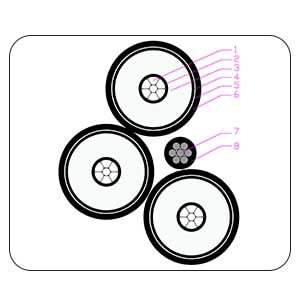

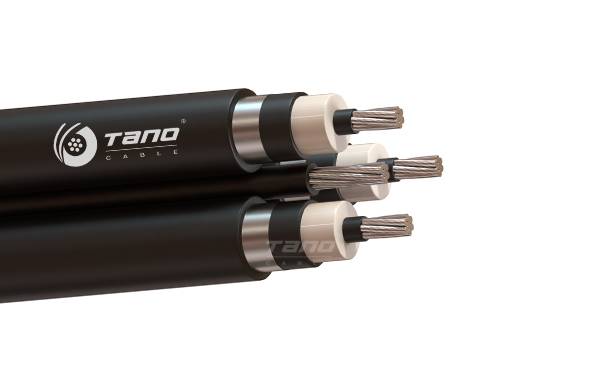

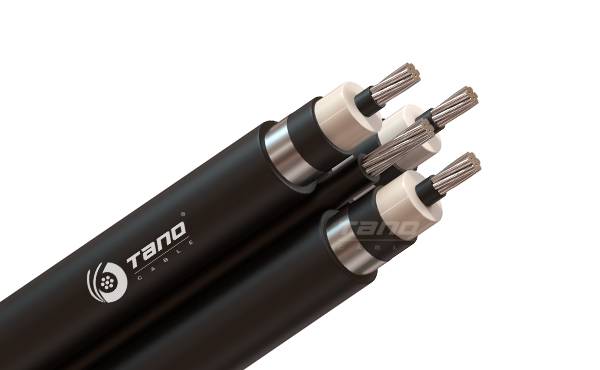

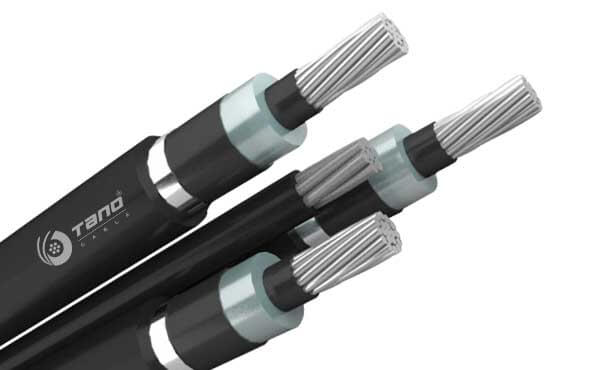

CONSTRUCTION

1. Conductor

Compact stranded aluminium 1350, class 2.

2. Conductor Screen

Semi-conducting compound

3. Insulation

Cross linked polyethylene XLPE-TR (Tree retardant).

4. Insulation Screen

Semi-conducting compound

5. Screen

Aluminum tape

6. Outer Sheath

Linear Low Density Polyethylene LLDPE-UV.

7. Messenger

Galvanized stranded steel wire

8. Insulation

Linear Low Density Polyethylene LLDPE-UV

PARAMETER

6/10kV NA2XSA2Y-S CABLE

8.7/15kV NA2XSA2Y-S CABLE

12/20kV NA2XSA2Y-S CABLE

18/30kV NA2XSA2Y-S CABLE

6/10kV NA2XSA2Y-S CABLE
Cross Section Area	Conductor Diameter	Diameter Over Insulation
Cross Section Area	Conductor Diameter	Diameter Over Insulation	Diameter Over Screen	Diameter Over Sheath	Messenger Conductor Diameter	Nominal Outer Diameter	Approximate Weight
mm2	mm	mm	mm	mm	mm	mm	kg/km
3x1x25	5.8	14.0	16.1	19.7	7.92	42.2	1441
3x1x35	6.9	15.1	17.2	20.8	7.92	44.2	1592
3x1x50	8.1	16.3	18.4	22.0	7.92	46.4	1783
3x1x70	9.8	18.0	20.1	23.7	7.92	49.5	2070
3x1x95	11.5	19.7	21.8	25.6	7.92	52.9	2408
3x1x120	12.8	21.0	23.1	26.9	11.04	57.2	3011
3x1x150	14.3	22.5	24.6	28.6	11.04	60.3	3355
3x1x185	16.0	24.2	26.3	30.3	11.04	63.4	3750

Expand More

8.7/15kV NA2XSA2Y-S CABLE
Cross Section Area	Conductor Diameter	Diameter Over Insulation
Cross Section Area	Conductor Diameter	Diameter Over Insulation	Diameter Over Screen	Diameter Over Sheath	Messenger Conductor Diameter	Nominal Outer Diameter	Approximate Weight
mm2	mm	mm	mm	mm	mm	mm	kg/km
3x1x25	5.8	16.2	18.3	21.9	7.92	46.2	1657
3x1x35	6.9	17.3	19.4	23.0	7.92	48.2	1818
3x1x50	8.1	18.5	20.6	24.2	7.92	50.4	2021
3x1x70	9.8	20.2	22.3	25.9	7.92	53.5	2324
3x1x95	11.5	21.9	24.0	27.8	11.04	58.8	2979
3x1x120	12.8	23.2	25.3	29.1	11.04	61.2	3296
3x1x150	14.3	24.7	26.8	30.6	11.04	63.9	3630
3x1x185	16.0	26.4	28.5	32.5	11.04	67.4	4068

Expand More

12/20kV NA2XSA2Y-S CABLE
Cross Section Area	Conductor Diameter	Diameter Over Insulation
Cross Section Area	Conductor Diameter	Diameter Over Insulation	Diameter Over Screen	Diameter Over Sheath	Messenger Conductor Diameter	Nominal Outer Diameter	Approximate Weight
mm2	mm	mm	mm	mm	mm	mm	kg/km
3x1x50	8.1	20.5	22.6	26.6	9.00	55.4	2394
3x1x70	9.8	22.2	24.3	28.5	9.00	58.9	2740
3x1x95	11.5	23.9	26.0	30.2	9.00	62.0	3091
3x1x120	12.8	25.2	27.3	31.7	9.00	64.7	3449
3x1x150	14.3	26.7	28.8	33.2	9.00	67.4	3800

Expand More

18/30kV NA2XSA2Y-S CABLE
Cross Section Area	Conductor Diameter	Diameter Over Insulation
Cross Section Area	Conductor Diameter	Diameter Over Insulation	Diameter Over Screen	Diameter Over Sheath	Messenger Conductor Diameter	Nominal Outer Diameter	Approximate Weight
mm2	mm	mm	mm	mm	mm	mm	kg/km
3x1x50	8.1	25.5	27.6	31.6	7.92	63.8	2974
3x1x70	9.8	27.2	29.3	33.3	7.92	66.9	3332
3x1x95	11.5	28.9	31.0	35.2	11.04	72.3	4048
3x1x120	12.8	30.2	32.3	36.5	11.04	74.6	4407
3x1x150	14.3	31.7	33.8	38.2	14.88	80.0	5320
