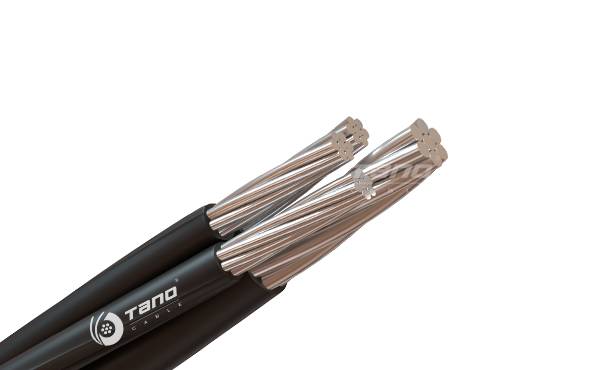

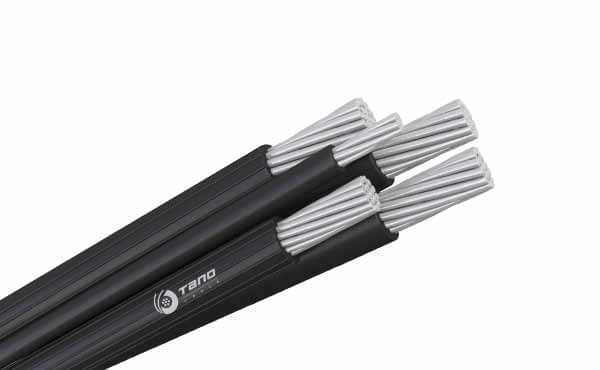

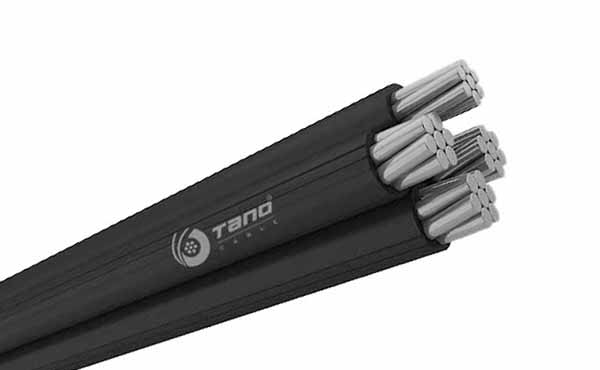

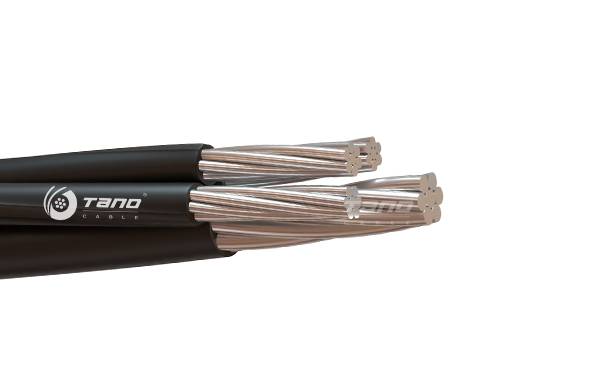

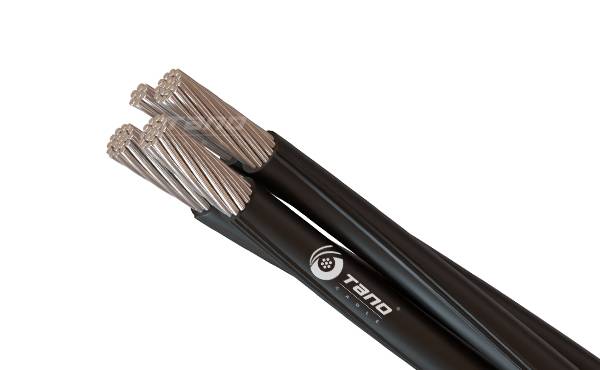

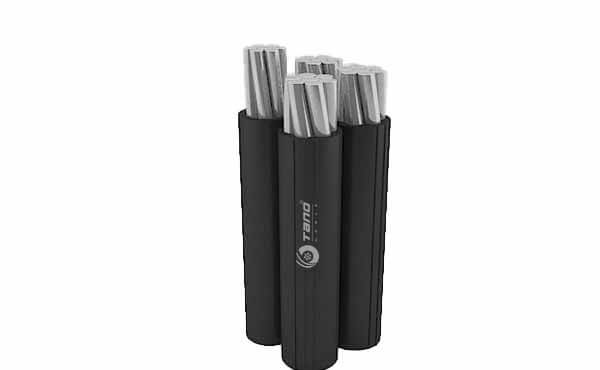

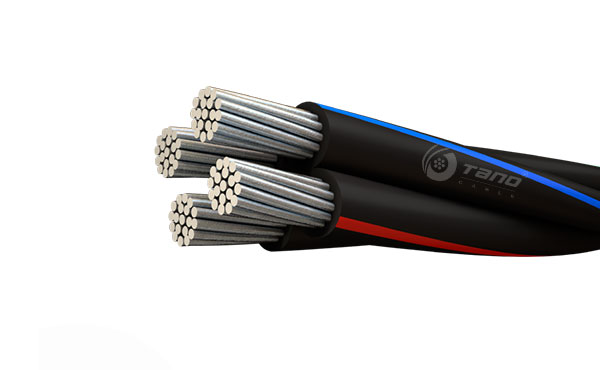

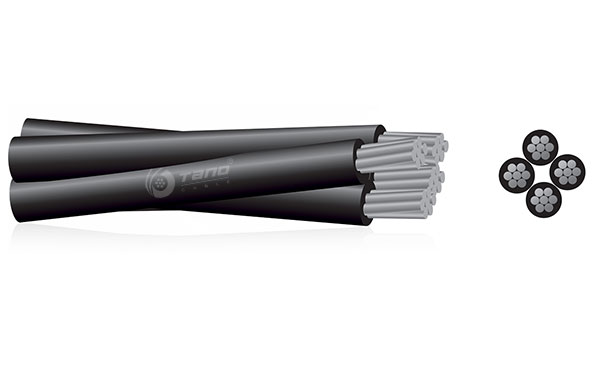

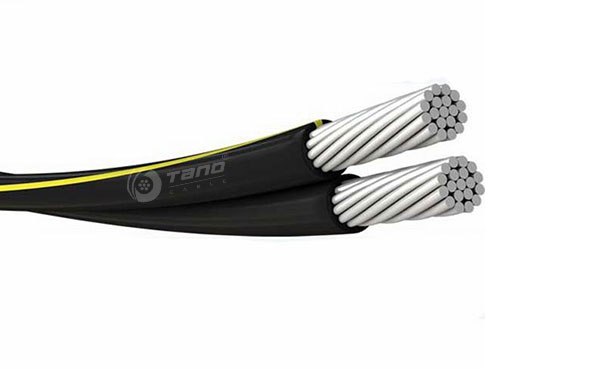

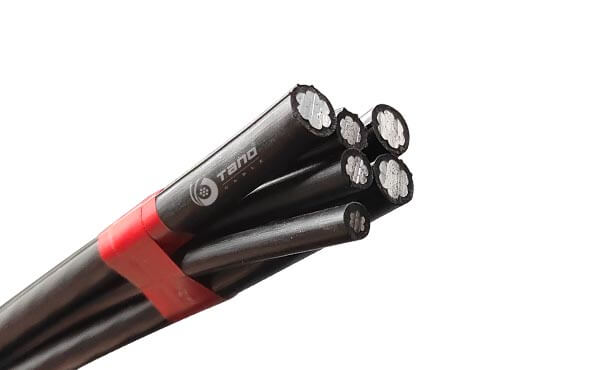

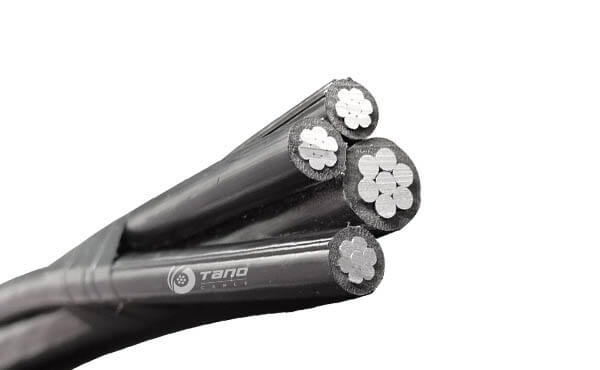

CAAI CABLE/SELF-SUPPORTING CABLE

Inquire Now
Overview
NOMINAL VOLTAGE

U0/U=0.6/1kV

OPERATING TEMPERATURE

90°C

MANUFACTURING STANDARD

NTP 370.254  ICEA S-76-474

APPLICATIONS

For air networks of secondary distribution of low-cost electricity in urban and rural areas.
They are installed both in posts and attached to walls, in both cases, with the appropriate accessories.
They do not require the use of insulators.
DOWNLOAD
CABLE DATASHEET
0.6/1kV
NTP 370.254  ICEA S-76-474
URBAN POWER GRID
RURAL POWER GRID
BY COLOR STRIPE
BY RIB
BY NUMBER
Specifications
ELECTRICAL PERFORMANCE
0.6/1kV
STANDARD
NTP 370.254  ICEA S-76-474
APPLICATION
URBAN POWER GRID
RURAL POWER GRID
CORE IDENTIFICATION
BY COLOR STRIPE
BY RIB
BY NUMBER
CHEMICAL PERFORMANCE
Chemical & UV & Oil resistance:Good
MECHANICAL PERFORMANCE
Minimum bending radius:x10 cable diameter
FIRE PERFORMANCE
N/A
THERMINAL PERFORMANCE
Maximum service temperature:90℃
Maximum short-circuit temperature:250℃(max. 5s)
Minimum service temperature:-40℃
Other Properties
APPROVALS
N/A
INSTALLATION CONDITIONS
OPEN AIR BURIED
CABLE MARKING
OIL INK PRINTING
LASER PRINTING
EMBOSSING PRINTING
PACKAGING
BY ROLL
BY POLYWOOD OR WOODEN OR STEEL-WOODEN REEL/DRUM

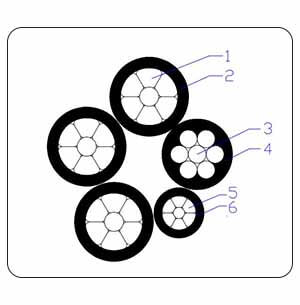

CONSTRUCTION
1. Phase condcutor:

Hard drawn aluminum conductor (class 2)

2. Neutral messenger conductor:

Aluminum alloy conductor (AAAC 6201)

3. Lighting conductor:

Hard drawn aluminum conductor (class 2)

4. Insulation:

XLPE

DESIGNATION

CAAI--- Aluminum conductor with aluminum alloy support conductors, the support conductor can be bare "ND" or insulated “NA ".
PARAMETER

Phase conductor (Aluminum Conductor )
Neutral Conductor ( Aluminum Alloy Conductor )
Street Lighting Conductor ( Aluminum Conductor )
Completed Cable
Phase conductor (Aluminum Conductor )
Size Construction of Conductor XLPE Insulation Approx. Max. DC Resistance
No. of Wire Dia. of Wire Approx. Conductor Dia. Nominal Thickness Insulation Dia.   Weight  at 20°C of conductor
mm2 No. mm mm mm mm kg/km Ω/km
16 7 1.72 4.8 1.14 7.08 63.35 1.91
25 7 2.18 6 1.14 8.28 91.75 1.2
35 7 2.55 7 1.14 9.28 120.56 0.868
50 7 2.97 8 1.52 11.04 168.55 0.641
70 19 2.2 10 1.52 13.04 235.51 0.443
95 19 2.58 11.6 1.52 14.64 312.79 0.32
120 19 2.88 13 2.03 17.06 413.94 0.253
Expand More
Neutral Conductor ( Aluminum Alloy Conductor )
Size Construction of Conductor XLPE Insulation Approx. Max. DC Resistance
No. of Wire Dia. of Wire Approx. Conductor Dia. Nominal Thickness Insulation Dia.  Weight at 20°C of Conductor
mm2 No. mm mm mm mm kg/km Ω/km
25 7 2.13 ± 0.03 6.39 1.14 8.67 94.82 1.3511
35 7 2.52 ± 0.03 7.56 1.14 9.84 126.23 0.9651
50 7 3.02 ± 0.03 9.06 1.52 12.1 186.51 0.6755
70 7 3.57 ± 0.03 10.71 1.52 13.75 249.23 0.4825
Expand More
Street Lighting Conductor ( Aluminum Conductor )
Size Construction of Conductor XLPE Insulation Approx. Max. DC Resistance
No. of Wire Dia. of Wire Approx. Conductor Dia. Nominal Thickness Insulation Dia.   Weight at 20°C of Conductor
mm2 No. mm mm mm mm kg/km Ω/km
16 7 1.72 4.8 1.14 7.08 63.35 1.91
25 7 2.18 6 1.14 8.28 91.75 1.2
Expand More
Completed Cable
Size Approx. Overall Dia. Approx.
Weight
Size Approx. Overall Dia. Approx.
Weight
 mm2 mm kg/km  mm2 mm kg/km
1x16 7.08 63.4 1x16+16+ND25 14.83 196.2
1x25 8.28 91.8 1x16+16+NA25 16.47 222.7
1x35 9.28 120.6 2x16+16+ND25 16.73 259.6
1x50 11.04 168.6 2x25+16+ND25 18.18 316.4
1x70 13.04 235.5 2x16+16+NA25 18.12 286
1x95 14.64 321.8 2x25+16+NA25 19.56 342.8
1x120 17.06 413.9 2x35+16+NA25 20.77 400.5
1x150 18.46 490.7 3x16+NA25 16.68 284.9
2x16 14.16 126.7 3x25+NA25 20.22 370.1
2x25 16.56 183.5 3x16+16+ND25 18.79 322.9
2x35 18.56 241.1 3x16+16+NA25 20.02 349.4
3x16 15.25 190.1 3x25+16+NA25 21.97 434.6
3x25 17.83 275.3 3x25+2x16+NA25 23.93 499.1
3x35 19.98 361.7 2x35+ND25 17.92 309.5
3x50 23.78 505.7 2x35+NA25 19.55 336
3x70 28.08 706.5 3x35+NA25 22.04 456.5
4x16 17.09 253.4 3x35+16+ND25 22.36 494.6
4x25 19.98 367.1 3x35+16+NA25 23.59 521
1x16+ND25 13.47 131.8 3x35+2x16+NA25 25.44 585.5
1x16+NA25 15.75 158.2 3x50+NA35 25.93 631.9
1x25+NA25 16.95 186.6 3x50+16+NA25 26.38 663.8
2x16+ND25 14.75 195.1 3x50+16+NA35 27.07 696.4
2x16+NA25 16.39 221.5 3x50+25+NA35 27.77 724.7
2x25+ND25 16.47 251.9 3x70+NA35 29.55 832.8
2x25+16 16.97 246.9 3x70+16+NA50 31.53 957.5
2x35+16 18.48 305.7 3x70+25+NA50 32.24 985.8
3x25+16 19.32 339.8 3x95+16+NA50 34.13 1188.3
3x35+16 21.13 426.2 3x95+NA50 33.81 1124.9
3x120+16 36.75 1306.3 3x95+16+NA70 35.02 1252.1
2x25+NA25 18.12 278.4 3x120+16+NA70 38.94 1555.5
Expand More
