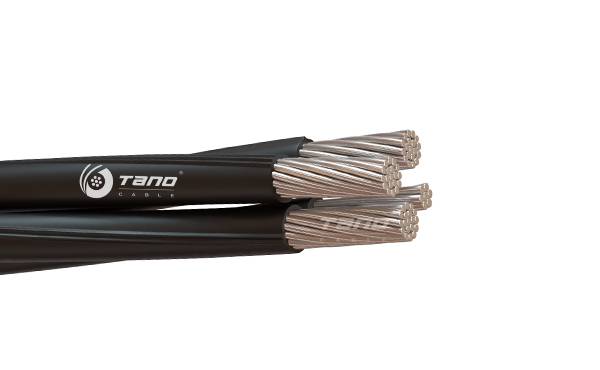

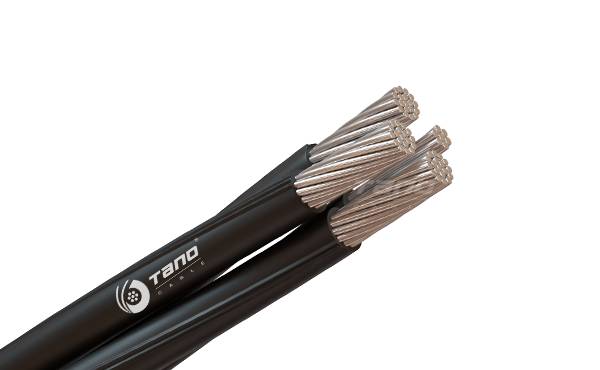

CAAI-S cable

Overview Specifications

CONSTRUCTION PARAMETER

Overview

NOMINAL VOLTAGE

U0/U=0.6/1kV

OPERATING TEMPERATURE

90°C

MANUFACTURING STANDARD

NTP 370.254 ICEA S-76-474

APPLICATIONS

For air networks of secondary distribution of low-cost electricity in urban and rural areas.
They are installed both in posts and attached to walls, in both cases, with the appropriate accessories.
They do not require the use of insulators.

DOWNLOAD
CABLE DATASHEET

0.6/1kV

NTP 370.254 ICEA S-76-474

URBAN AREA
RURAL AREA

BLACK COLOR WITH RIBS
OR WITH NUMBER

Specifications

ELECTRICAL PERFORMANCE

0.6/1kV

STANDARD

NTP 370.254 ICEA S-76-474

APPLICATION

URBAN AREA
RURAL AREA

CORE IDENTIFICATION

BLACK COLOR WITH RIBS
OR WITH NUMBER

CHEMICAL PERFORMANCE

N/A

MECHANICAL PERFORMANCE

N/A

FIRE PERFORMANCE

N/A

THERMINAL PERFORMANCE

Maximum service temperature:90℃
Maximum short-circuit temperature:250℃(max. 5s)
Minimum service temperature:-40℃

Other Properties

APPROVALS

N/A

INSTALLATION CONDITIONS

NO LESS THAN - 10°C
RECOMMENDED 15 °C

CABLE MARKING

OIL INK PRINTING
LASER PRINTING
EMBOSSING PRINTING

PACKAGING

BY ROLL
BY POLYWOOD OR WOODEN OR STEEL-WOODEN REEL/DRUM

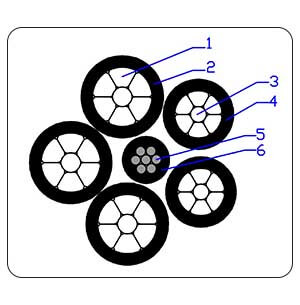

CONSTRUCTION

1. Phase conductor

Hard drawn aluminum conductor (class 2)

2. Insulation

XLPE

3. Lighting conductor

Hard drwan aluminum conductor(class 2)

4. Insulation

XLPE

5. Neutral messenger conductor

Galvanized steel conductor

6. Insulation

XLPE

DESIGNATION

CAAI--- Aluminum conductor with aluminum alloy support conductors, the support conductor can be bare "ND" or insulated “NA ".

PARAMETER

Phase conductor (Aluminum Conductor )

Neutral Conductor ( Galvanized Steel Conductor )

Street Lighting Conductor ( Aluminum Conductor )

Completed Cable

Size	Construction of Conductor			XLPE Insulation		Approx. Weight	Max. DC resistance at 20°C of conductor
Size	Number of wires	Diameter of wire	Approx. Conductor diameter	Nominal thickness	Insulation diameter	Approx. Weight	Max. DC resistance at 20°C of conductor
mm2	No.	mm	mm	mm	mm	kg/km	Ω/km
16	7	1.72	4.8	1.14	7.08	63.35	1.91
25	7	2.18	6.0	1.14	8.28	91.75	1.20
35	7	2.55	7.0	1.14	9.28	120.56	0.868
50	7	2.97	8.0	1.52	11.04	168.55	0.641
70	19	2.20	10.0	1.52	13.04	235.51	0.443
95	19	2.58	11.6	1.52	14.64	310.92	0.320

Expand More

Size	Construction of Conductor			XLPE Insulation		Approx. Weight
Size	Number of wires	Diameter of wire	Approx. Conductor diameter	Nominal thickness	Insulation diameter	Approx. Weight
mm	No.	mm	mm	mm	mm	kg/km
3.18	7	1.04 ± 0.03	3.12	0.8	4.72	56.32
6.35	7	2.03± 0.03	6.09	0.8	7.69	195.35

Expand More

Size	Construction of Conductor			XLPE Insulation		Approx. Weight	Max. DC resistance at 20°C of conductor
Size	Number of wires	Diameter of wire	Approx. Conductor diameter	Nominal thickness	Insulation diameter	Approx. Weight	Max. DC resistance at 20°C of conductor
mm2	No.	mm	mm	mm	mm	kg/km	Ω/km
16	7	1.72	4.8	1.14	7.08	63.35	1.91
25	7	2.18	6.0	1.14	8.28	91.75	1.20

Expand More

Size	Approx. Overall Diameter	Approx. Weight	Size	Approx. Overall Diameter	Approx. Weight
mm2	mm	kg/km	mm2	mm	kg/km
3x25+2x16+P3.18	21.9	455	2x16+P3.18	12.5	184
3x35+2x16+P3.18	23.4	544	3x70+2x35+P3.18	31.2	1004
3x50+2x25+P3.18	27.4	748	3x95+2x16+P6.35	29.6	1252

Expand More
