PVC INSULATED CONTROL CABLE

Inquire Now
Overview
APPLICATION

The control cable has a very good property for resistant causticity of chemical solvent. It is used as a connecting wire of electrical equipment and instrument ,transmitting wire of automatic control system for rock oil, chemical, electric power, metallurgical and so on.

STANDARD

IEC 60227, IEC 60502, GB/T 9330, BS 6500

TECHNICAL DATA

Voltage(U0/U): 450/750V
Conductor working temperature: 70°C
Minimum bending radius:
Non-armored cables: 6 x Ø
Armored or copper tape screen cables: 12 x Ø
Screened flexible cables: 6 x Ø

DOWNLOAD
CABLE DATASHEET
450/750V
IEC 60227, IEC 60502, GB/T 9330, BS 6500
INDUSTRIAL USE
BY COLOR
BY NUMBER
Specifications
ELECTRICAL PERFORMANCE
450/750V
STANDARD
IEC 60227, IEC 60502, GB/T 9330, BS 6500
APPLICATION
INDUSTRIAL USE
CORE IDENTIFICATION
BY COLOR
BY NUMBER
CHEMICAL PERFORMANCE
Chemical & Oil resistance: Good
MECHANICAL PERFORMANCE
Minimum bending radius: x10 cable diameter
FIRE PERFORMANCE
Flame non-propagation base on IEC 60332-1
Reduced emission of halogens chlorine<15%
THERMINAL PERFORMANCE
Maximum service temperature:70℃
Maximum short-circuit temperature:160℃(max. 5s)
Minimum service temperature:-40℃
Other Properties
APPROVALS
N/A
INSTALLATION CONDITIONS
OPEN AIR
BURIED
IN CONDUIT
CABLE MARKING
OIL INK PRINTING
EMBOSSING PRINTING
PACKAGING
BY COIL/BY ROLL
BY PLASTIC, POLYWOOD, WOODEN REEL/DRUM
CONSTRUCTION
CABLE TYPES:

MODEL DESCRIPTION

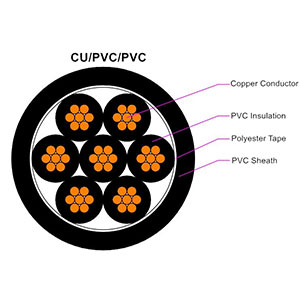

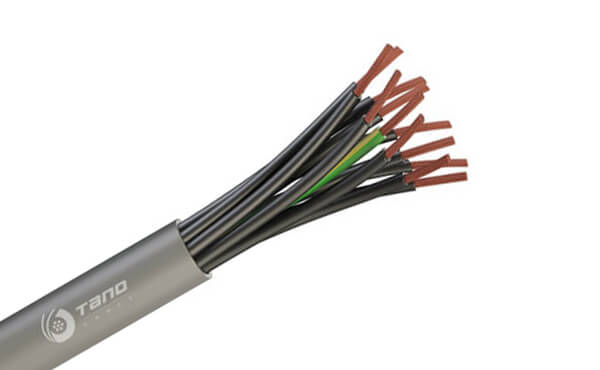

KVV Copper Conductor PVC Insulated PVC Sheathed Control Cable

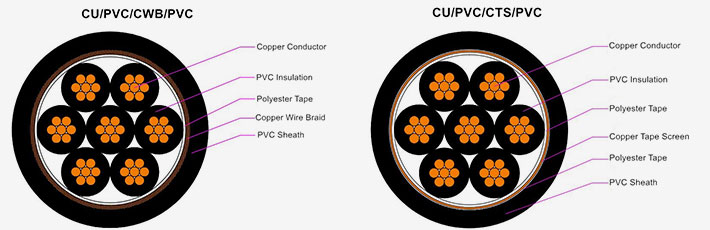

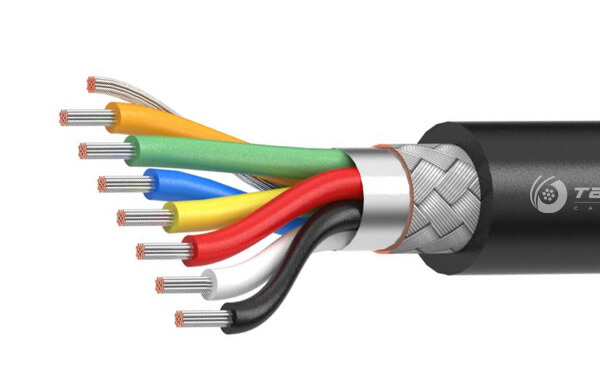

KVVP Copper Conductor PVC Insulated Copper Wire Braided Screen PVC Sheathed Control Cable
KVVP2 Copper Conductor PVC Insulated Copper Tape Screen PVC Sheathed Control Cable

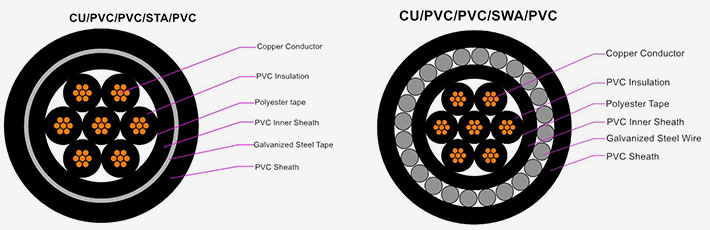

KVV22 Copper Conductor PVC Insulated Galvanized Steel Tape Armored PVC Sheathed Control Cable
KVV32 Copper Conductor PVC Insulated Galvanized Steel Wire Armored PVC Sheathed Control Cable

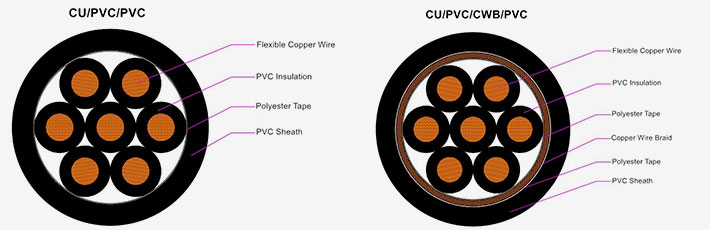

KVVR Copper Conductor PVC Insulated PVC Sheathed Flexible Control Cable

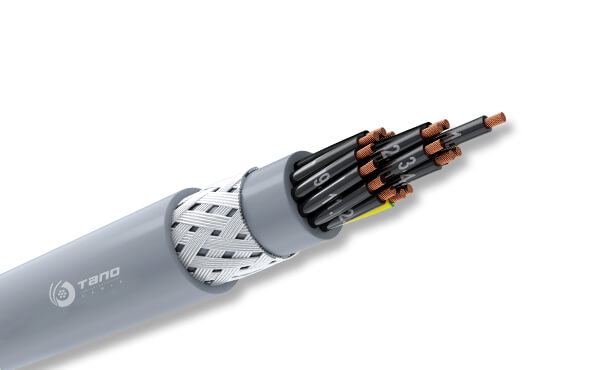

KVVRP Copper Conductor PVC Insulated Copper Wire Braided Screen PVC Sheathed Flexible Control Cable



PARAMETER

KVV
KVV22
KVV32
KVVP
KVVP2
KVVR
KVVRP
Nominal
Size
Conductor Structure Insulation Thickness Sheath Thickness Approx. Overall Dia. Approx. Weight Nominal
Size
Conductor Structure Insulation Thickness Sheath Thickness Approx. Overall Dia. Approx. Weight
mm2 No./mm mm mm mm kg/km mm2 No./mm mm mm mm kg/km
2×0.75 1/0.97 0.6 1.2 6.8  59 2×0.75 7/0.37 0.6 1.2 7.1 62
3×0.75 1/0.97 0.6 1.2 7.2  68 3×0.75 7/0.37 0.6 1.2 7.4 71
4×0.75 1/0.97 0.6 1.2 7.8  83 4×0.75 7/0.37 0.6 1.2 8.1 87
5×0.75 1/0.97 0.6 1.2 8.4  101 5×0.75 7/0.37 0.6 1.2 8.8 106
6×0.75 1/0.97 0.6 1.2 9.0  118 6×0.75 7/0.37 0.6 1.2 9.4 123
7×0.75 1/0.97 0.6 1.2 9.0  123 7×0.75 7/0.37 0.6 1.2 9.4 129
8x0.75 1/0.97 0.6 1.2 9.7  138 8x0.75 7/0.37 0.6 1.2 10.1 144
10x0.75 1/0.97 0.6 1.2 11.2  174 10x0.75 7/0.37 0.6 1.2 11.7 182
12x0.75 1/0.97 0.6 1.5 12.1  210 12x0.75 7/0.37 0.6 1.5 12.7 219
14x0.75 1/0.97 0.6 1.5 12.7  236 14x0.75 7/0.37 0.6 1.5 13.3 247
16x0.75 1/0.97 0.6 1.5 13.3  266 16x0.75 7/0.37 0.6 1.5 13.9 277
19x0.75 1/0.97 0.6 1.5 14.0  301 19x0.75 7/0.37 0.6 1.5 14.6 314
24x0.75 1/0.97 0.6 1.5 16.1  376 24x0.75 7/0.37 0.6 1.5 16.9 393
27x0.75 1/0.97 0.6 1.5 16.4  407 27x0.75 7/0.37 0.6 1.5 17.3 426
30x0.75 1/0.97 0.6 1.5 17.1  446 30x0.75 7/0.37 0.6 1.5 17.9 466
37x0.75 1/0.97 0.6 1.7 18.7  549 37x0.75 7/0.37 0.6 1.7 19.6 574
44x0.75 1/0.97 0.6 1.7 20.9  649 44x0.75 7/0.37 0.6 1.7 21.9 679
48x0.75 1/0.97 0.6 1.7 21.2  692 48x0.75 7/0.37 0.6 1.7 22.3 722
52x0.75 1/0.97 0.6 1.7 21.7  737 52x0.75 7/0.37 0.6 1.7 22.8 770
61x0.75 1/0.97 0.6 1.7 23.1  852 61x0.75 7/0.37 0.6 1.7 24.3 889
Nominal
Size
Conductor Structure Insulation Thickness Sheath Thickness Approx. Overall Dia. Approx. Weight Nominal
Size
Conductor Structure Insulation Thickness Sheath Thickness Approx. Overall Dia. Approx. Weight
mm2 No./mm mm mm mm kg/km mm2 No./mm mm mm mm kg/km
2×1 1/1.13 0.6 1.2 7.1  68 2×1 7/0.43 0.6 1.2 7.5 71
3×1 1/1.13 0.6 1.2 7.5  79 3×1 7/0.43 0.6 1.2 7.9 82
4×1 1/1.13 0.6 1.2 8.2  97 4×1 7/0.43 0.6 1.2 8.5 101
5×1 1/1.13 0.6 1.2 8.9  119 5×1 7/0.43 0.6 1.2 9.3 124
6×1 1/1.13 0.6 1.2 9.5  138 6×1 7/0.43 0.6 1.2 10 145
7×1 1/1.13 0.6 1.2 9.5  146 7×1 7/0.43 0.6 1.2 10 152
8x1 1/1.13 0.6 1.2 10.2  164 8x1 7/0.43 0.6 1.2 10.7 171
10x1 1/1.13 0.6 1.5 12.4  224 10x1 7/0.43 0.6 1.5 13 234
12x1 1/1.13 0.6 1.5 12.8  249 12x1 7/0.43 0.6 1.5 13.4 259
14x1 1/1.13 0.6 1.5 13.4  281 14x1 7/0.43 0.6 1.5 14.1 293
16x1 1/1.13 0.6 1.5 14.1  317 16x1 7/0.43 0.6 1.5 14.8 330
19x1 1/1.13 0.6 1.5 14.8  360 19x1 7/0.43 0.6 1.5 15.5 376
24x1 1/1.13 0.6 1.5 17.1  453 24x1 7/0.43 0.6 1.5 18 472
27x1 1/1.13 0.6 1.5 17.5  493 27x1 7/0.43 0.6 1.5 18.4 512
30x1 1/1.13 0.6 1.7 18.4  554 30x1 7/0.43 0.6 1.7 19.4 578
37x1 1/1.13 0.6 1.7 19.8  663 37x1 7/0.43 0.6 1.7 20.9 690
44x1 1/1.13 0.6 1.7 22.1  782 44x1 7/0.43 0.6 1.7 23.4 818
48x1 1/1.13 0.6 1.7 22.5  837 48x1 7/0.43 0.6 1.7 23.8 872
52x1 1/1.13 0.6 1.7 23.1  899 52x1 7/0.43 0.6 1.7 24.4 935
61x1 1/1.13 0.6 1.7 24.5  1034 61x1 7/0.43 0.6 1.7 25.9 1077
Nominal
Size
Conductor Structure Insulation Thickness Sheath Thickness Approx. Overall Dia. Approx. Weight Nominal
Size
Conductor Structure Insulation Thickness Sheath Thickness Approx. Overall Dia. Approx. Weight
mm2 No./mm mm mm mm kg/km mm2 No./mm mm mm mm kg/km
2×1.5 1/1.38 0.7 1.2 8.1  89 2×1.5 7/0.52 0.7 1.2 8.5 94
3×1.5 1/1.38 0.7 1.2 8.6  111 3×1.5 7/0.52 0.7 1.2 8.9 116
4×1.5 1/1.38 0.7 1.2 9.2  134 4×1.5 7/0.52 0.7 1.2 9.8 143
5×1.5 1/1.38 0.7 1.2 10.0  157 5×1.5 7/0.52 0.7 1.2 10.5 165
6×1.5 1/1.38 0.7 1.2 10.8  187 6×1.5 7/0.52 0.7 1.2 11.4 196
7×1.5 1/1.38 0.7 1.2 10.8  198 7×1.5 7/0.52 0.7 1.2 11.4 207
8x1.5 1/1.38 0.7 1.5 12.3  241 8x1.5 7/0.52 0.7 1.5 12.9 251
10x1.5 1/1.38 0.7 1.5 14.2  303 10x1.5 7/0.52 0.7 1.5 15 317
12x1.5 1/1.38 0.7 1.5 14.6  339 12x1.5 7/0.52 0.7 1.5 15.4 354
14x1.5 1/1.38 0.7 1.5 15.4  385 14x1.5 7/0.52 0.7 1.5 16.2 402
16x1.5 1/1.38 0.7 1.5 16.1  434 16x1.5 7/0.52 0.7 1.5 17.1 455
19x1.5 1/1.38 0.7 1.5 17.0  498 19x1.5 7/0.52 0.7 1.5 17.9 517
24x1.5 1/1.38 0.7 1.7 20.2  646 24x1.5 7/0.52 0.7 1.7 21.3 675
27x1.5 1/1.38 0.7 1.7 20.6  703 27x1.5 7/0.52 0.7 1.7 21.8 733
30x1.5 1/1.38 0.7 1.7 21.3  770 30x1.5 7/0.52 0.7 1.7 22.6 803
37x1.5 1/1.38 0.7 1.7 23.0  924 37x1.5 7/0.52 0.7 1.7 24.3 965
44x1.5 1/1.38 0.7 1.7 25.7  1098 44x1.5 7/0.52 0.7 1.7 27.3 1150
48x1.5 1/1.38 0.7 1.7 26.2  1174 48x1.5 7/0.52 0.7 1.7 27.8 1231
52x1.5 1/1.38 0.7 1.7 26.9  1261 52x1.5 7/0.52 0.7 1.7 28.5 1315
61x1.5 1/1.38 0.7 2 29.1  1498 61x1.5 7/0.52 0.7 2 30.8 1562
Nominal
Size
Conductor Structure Insulation Thickness Sheath Thickness Approx. Overall Dia. Approx. Weight Nominal
Size
Conductor Structure Insulation Thickness Sheath Thickness Approx. Overall Dia. Approx. Weight
mm2 No./mm mm mm mm kg/km mm2 No./mm mm mm mm kg/km
2×2.5 1/1.78 0.8 1.2 9.3  123 2×2.5 7/0.68 0.8 1.2 9.8 131
3×2.5 1/1.78 0.8 1.2 9.8  156 3×2.5 7/0.68 0.8 1.2 10.3 165
4×2.5 1/1.78 0.8 1.2 10.7  192 4×2.5 7/0.68 0.8 1.2 11.3 204
5×2.5 1/1.78 0.8 1.5 12.2  245 5×2.5 7/0.68 0.8 1.5 12.9 258
6×2.5 1/1.78 0.8 1.5 13.2  291 6×2.5 7/0.68 0.8 1.5 14 308
7×2.5 1/1.78 0.8 1.5 13.2  310 7×2.5 7/0.68 0.8 1.5 14 326
8x2.5 1/1.78 0.8 1.5 14.3  349 8x2.5 7/0.68 0.8 1.5 15.1 368
10x2.5 1/1.78 0.8 1.5 16.6  442 10x2.5 7/0.68 0.8 1.5 17.7 467
12x2.5 1/1.78 0.8 1.5 17.2  500 12x2.5 7/0.68 0.8 1.5 18.3 526
14x2.5 1/1.78 0.8 1.5 18.0  569 14x2.5 7/0.68 0.8 1.5 19.2 599
16x2.5 1/1.78 0.8 1.7 19.4  664 16x2.5 7/0.68 0.8 1.7 20.6 700
19x2.5 1/1.78 0.8 1.7 20.4  762 19x2.5 7/0.68 0.8 1.7 21.7 802
24x2.5 1/1.78 0.8 1.7 23.8  961 24x2.5 7/0.68 0.8 1.7 25.3 1013
27x2.5 1/1.78 0.8 1.7 24.3  1051 27x2.5 7/0.68 0.8 1.7 25.9 1105
30x2.5 1/1.78 0.8 1.7 25.2  1154 30x2.5 7/0.68 0.8 1.7 26.8 1214
37x2.5 1/1.78 0.8 1.7 27.2  1395 37x2.5 7/0.68 0.8 1.7 29 1466
44x2.5 1/1.78 0.8 2 31.1  1698 44x2.5 7/0.68 0.8 2 33.2 1787
48x2.5 1/1.78 0.8 2 31.6  1822 48x2.5 7/0.68 0.8 2 33.8 1916
52x2.5 1/1.78 0.8 2 32.6  1964 52x2.5 7/0.68 0.8 2 34.8 2065
61x2.5 1/1.78 0.8 2.2 34.9  2300 61x2.5 7/0.68 0.8 2.2 37.3 2418
Nominal
Size
Conductor Structure Insulation Thickness Sheath Thickness Approx. Overall Dia. Approx. Weight Nominal
Size
Conductor Structure Insulation Thickness Sheath Thickness Approx. Overall Dia. Approx. Weight
mm2 No./mm mm mm mm kg/km mm2 No./mm mm mm mm kg/km
2×4 1/2.25 0.8 1.2 10.2  162 2×4 7/0.85 0.8 1.2 10.8 171
3×4 1/2.25 0.8 1.2 10.8  210 3×4 7/0.85 0.8 1.2 11.4 219
4×4 1/2.25 0.8 1.5 12.4  279 4×4 7/0.85 0.8 1.5 13.1 291
5×4 1/2.25 0.8 1.5 13.5  331 5×4 7/0.85 0.8 1.5 14.3 345
6×4 1/2.25 0.8 1.5 14.7  395 6×4 7/0.85 0.8 1.5 15.6 411
7×4 1/2.25 0.8 1.5 14.7  426 7×4 7/0.85 0.8 1.5 15.6 441
8x4 1/2.25 0.8 1.5 15.8  481 8x4 7/0.85 0.8 1.5 16.7 496
10x4 1/2.25 0.8 1.7 18.9  628 10x4 7/0.85 0.8 1.7 20.1 652
12x4 1/2.25 0.8 1.7 19.5  712 12x4 7/0.85 0.8 1.7 20.7 737
14x4 1/2.25 0.8 1.7 20.5  814 14x4 7/0.85 0.8 1.7 21.8 842
Nominal
Size
Conductor Structure Insulation Thickness Sheath Thickness Approx. Overall Dia. Approx. Weight Nominal
Size
Conductor Structure Insulation Thickness Sheath Thickness Approx. Overall Dia. Approx. Weight
mm2 No./mm mm mm mm kg/km mm2 No./mm mm mm mm kg/km
2×6 1/2.77 0.8 1.2 11.2  214 2×6 7/1.04 0.8 1.2 11.9 222
3×6 1/2.77 0.8 1.5 12.5  299 3×6 7/1.04 0.8 1.5 13.3 309
4×6 1/2.77 0.8 1.5 13.7  374 4×6 7/1.04 0.8 1.5 14.5 385
5×6 1/2.77 0.8 1.5 14.9  446 5×6 7/1.04 0.8 1.5 15.8 458
6×6 1/2.77 0.8 1.5 16.1  532 6×6 7/1.04 0.8 1.5 17.3 549
7×6 1/2.77 0.8 1.5 16.2  580 7×6 7/1.04 0.8 1.5 17.2 591
8x6 1/2.77 0.8 1.7 17.9  674 8x6 7/1.04 0.8 1.7 19.1 689
10x6 1/2.77 0.8 1.7 21.0  854 10x6 7/1.04 0.8 1.7 22.4 874
12x6 1/2.77 0.8 1.7 21.7  975 12x6 7/1.04 0.8 1.7 23 991
14x6 1/2.77 0.8 1.7 22.8  1117 14x6 7/1.04 0.8 1.7 24.3 1141
Nominal Size Conductor Structure Insulation Thickness Sheath Thickness Approx. Overall Dia. Approx. Weight
mm2 No./mm mm mm mm kg/km
2×10 7/1.35 1 1.5 15.2  365
3×10 7/1.35 1 1.5 16.1  478
4×10 7/1.35 1 1.5 17.7  602
5×10 7/1.35 1 1.7 19.8  738
10×10 7/1.35 1 1.7 21.7  888
7×10 7/1.35 1 1.7 21.7  961
8x10 7/1.35 1 1.7 23.5  1090
10x10 7/1.35 1 1.7 27.7  1390
Expand More
Nominal
Size
Conductor Structure Insulation Thickness Thickness of Inner Sheath  Thickness of Steel Tape Sheath Thickness Approx. Overall Dia. Approx. Weight Nominal
Size
Conductor Structure Insulation Thickness Thickness of Inner Sheath  Thickness of Steel Tape Sheath Thickness Approx. Overall Dia. Approx. Weight
mm2 No./mm mm mm mm mm mm kg/km mm2 No./mm mm mm mm mm mm kg/km
5×0.75 1/0.97 0.6 1.1  0.2  1.5  12.00  231 5×0.75 7/0.37 0.6 1.1  0.2  1.5  12.39  241
6×0.75 1/0.97 0.6 1.1  0.2  1.5  12.67  258 6×0.75 7/0.37 0.6 1.1  0.2  1.5  13.11  271
7×0.75 1/0.97 0.6 1.1  0.2  1.5  12.67  264 7×0.75 7/0.37 0.6 1.1  0.2  1.5  13.11  276
8x0.75 1/0.97 0.6 1.1  0.2  1.5  13.35  289 8x0.75 7/0.37 0.6 1.2  0.2  1.5  13.83  303
10x0.75 1/0.97 0.6 1.2  0.2  1.5  14.93  348 10x0.75 7/0.37 0.6 1.2  0.2  1.5  15.51  366
12x0.75 1/0.97 0.6 1.2  0.2  1.5  15.28  373 12x0.75 7/0.37 0.6 1.2  0.2  1.5  15.88  391
14x0.75 1/0.97 0.6 1.2  0.2  1.5  15.87  407 14x0.75 7/0.37 0.6 1.2  0.2  1.5  16.51  427
16x0.75 1/0.97 0.6 1.2  0.2  1.5  16.51  445 16x0.75 7/0.37 0.6 1.2  0.2  1.5  17.20  468
19x0.75 1/0.97 0.6 1.2  0.2  1.5  17.19  490 19x0.75 7/0.37 0.6 1.2  0.2  1.5  17.92  515
24x0.75 1/0.97 0.6 1.2  0.2  1.7  19.64  606 24x0.75 7/0.37 0.6 1.2  0.2  1.7  20.52  638
27x0.75 1/0.97 0.6 1.2  0.2  1.7  19.99  642 27x0.75 7/0.37 0.6 1.2  0.2  1.7  20.89  676
30x0.75 1/0.97 0.6 1.2  0.2  1.7  20.58  688 30x0.75 7/0.37 0.6 1.2  0.2  1.7  21.51  724
37x0.75 1/0.97 0.6 1.2  0.2  1.7  21.90  795 37x0.75 7/0.37 0.6 1.2  0.2  1.7  22.92  837
44x0.75 1/0.97 0.6 1.2  0.2  1.7  24.16  928 44x0.75 7/0.37 0.6 1.2  0.2  1.7  25.12  965
48x0.75 1/0.97 0.6 1.2  0.2  1.7  24.31  963 48x0.75 7/0.37 0.6 1.2  0.2  1.7  25.49  1014
52x0.75 1/0.97 0.6 1.2  0.2  1.7  24.89  1020 52x0.75 7/0.37 0.6 1.2  0.2  1.7  26.12  1075
61x0.75 1/0.97 0.6 1.2  0.2  1.7  26.22  1149 61x0.75 7/0.37 0.6 1.2  0.2  1.7  27.53  1211
Nominal
Size
Conductor Structure Insulation Thickness Thickness of Inner Sheath  Thickness of Steel Tape Sheath Thickness Approx. Overall Dia. Approx. Weight Nominal
Size
Conductor Structure Insulation Thickness Thickness of Inner Sheath  Thickness of Steel Tape Sheath Thickness Approx. Overall Dia. Approx. Weight
mm2 No./mm mm mm mm mm mm kg/km mm2 No./mm mm mm mm mm mm kg/km
4×1 1/1.13 0.6 1.1 0.2 1.5 11.75  224 4×1 7/0.43 0.6 1.1 0.2 1.5 12.16 234
5×1 1/1.14 1.6 1.1 0.2 1.5 12.45  254 5×1 7/0.43 0.6 1.1 0.2 1.5 12.9 266
6×1 1/1.15 2.6 1.1 0.2 1.5 13.17  286 6×1 7/0.43 0.6 1.2 0.2 1.5 13.67 301
7×1 1/1.16 3.6 1.1 0.2 1.5 13.17  294 7×1 7/0.43 0.6 1.2 0.2 1.5 13.67 308
8x1 1/1.17 4.6 1.2 0.2 1.5 13.90  322 8x1 7/0.43 0.6 1.2 0.2 1.5 14.45 338
10x1 1/1.18 5.6 1.2 0.2 1.5 15.60  391 10x1 7/0.43 0.6 1.2 0.2 1.5 16.26 411
12x1 1/1.19 6.6 1.2 0.2 1.5 15.97  421 12x1 7/0.43 0.6 1.2 0.2 1.5 16.66 442
14x1 1/1.20 7.6 1.2 0.2 1.5 16.60  462 14x1 7/0.43 0.6 1.2 0.2 1.5 17.33 485
16x1 1/1.21 8.6 1.2 0.2 1.5 17.29  507 16x1 7/0.43 0.6 1.2 0.2 1.5 18.08 532
19x1 1/1.22 9.6 1.2 0.2 1.5 18.02  561 19x1 7/0.43 0.6 1.2 0.2 1.5 18.65 580
24x1 1/1.23 10.6 1.2 0.2 1.7 20.64  696 24x1 7/0.43 0.6 1.2 0.2 1.7 21.64 733
27x1 1/1.24 11.6 1.2 0.2 1.7 21.02  741 27x1 7/0.43 0.6 1.2 0.2 1.7 22.04 779
30x1 1/1.25 12.6 1.2 0.2 1.7 21.65  796 30x1 7/0.43 0.6 1.2 0.2 1.7 22.71 837
37x1 1/1.26 13.6 1.2 0.2 1.7 23.07  925 37x1 7/0.43 0.6 1.2 0.2 1.7 24.03 960
44x1 1/1.27 14.6 1.2 0.2 1.7 25.29  1070 44x1 7/0.43 0.6 1.2 0.2 1.7 26.62 1126
48x1 1/1.28 15.6 1.2 0.2 1.7 25.66  1128 48x1 7/0.43 0.6 1.2 0.2 1.7 27.02 1187
52x1 1/1.29 16.6 1.2 0.2 1.7 26.29  1198 52x1 7/0.43 0.6 1.2 0.2 1.7 27.69 1260
61x1 1/1.30 17.6 1.2 0.2 1.7 27.71  1355 61x1 7/0.43 0.6 1.2 0.2 1.7 29.01 1410
Nominal
Size
Conductor Structure Insulation Thickness Thickness of Inner Sheath  Thickness of Steel Tape Sheath Thickness Approx. Overall Dia. Approx. Weight Nominal
Size
Conductor Structure Insulation Thickness Thickness of Inner Sheath  Thickness of Steel Tape Sheath Thickness Approx. Overall Dia. Approx. Weight
mm2 No./mm mm mm mm mm mm kg/km mm2 No./mm mm mm mm mm mm kg/km
3×1.5 1/1.38 0.7 1.1 0.2 1.5 12.13  243 3×1.5 7/0.52 0.7 1.1 0.2 1.5 12.53  253
4×1.5 1/1.38 0.7 1.1 0.2 1.5 12.88  278 4×1.5 7/0.52 0.7 1.1 0.2 1.5 13.34  290
5×1.5 1/1.38 0.7 1.2 0.2 1.5 13.71  313 5×1.5 7/0.52 0.7 1.2 0.2 1.5 14.22  325
6×1.5 1/1.38 0.7 1.2 0.2 1.5 14.58  356 6×1.5 7/0.52 0.7 1.2 0.2 1.5 15.14  372
7×1.5 1/1.38 0.7 1.2 0.2 1.5 14.58  367 7×1.5 7/0.52 0.7 1.2 0.2 1.5 15.14  382
8x1.5 1/1.38 0.7 1.2 0.2 1.5 15.44  405 8x1.5 7/0.52 0.7 1.2 0.2 1.5 16.06  422
10x1.5 1/1.38 0.7 1.2 0.2 1.5 17.47  496 10x1.5 7/0.52 0.7 1.2 0.2 1.5 18.22  518
12x1.5 1/1.38 0.7 1.2 0.2 1.5 17.91  538 12x1.5 7/0.52 0.7 1.2 0.2 1.5 18.69  561
14x1.5 1/1.38 0.7 1.2 0.2 1.5 18.67  595 14x1.5 7/0.52 0.7 1.2 0.2 1.7 19.69  628
16x1.5 1/1.38 0.7 1.2 0.2 1.7 19.69  665 16x1.5 7/0.52 0.7 1.2 0.2 1.7 20.57  691
19x1.5 1/1.38 0.7 1.2 0.2 1.7 20.56  741 19x1.5 7/0.52 0.7 1.2 0.2 1.7 21.50  771
24x1.5 1/1.38 0.7 1.2 0.2 1.7 23.45  914 24x1.5 7/0.52 0.7 1.2 0.2 1.7 24.37  941
27x1.5 1/1.38 0.7 1.2 0.2 1.7 23.90  977 27x1.5 7/0.52 0.7 1.2 0.2 1.7 24.85  1005
30x1.5 1/1.38 0.7 1.2 0.2 1.7 24.45  1043 30x1.5 7/0.52 0.7 1.2 0.2 1.7 25.65  1085
37x1.5 1/1.38 0.7 1.2 0.2 1.7 26.14  1223 37x1.5 7/0.52 0.7 1.2 0.2 1.7 27.45  1271
44x1.5 1/1.38 0.7 1.2 0.2 2 29.63  1480 44x1.5 7/0.52 0.7 1.2 0.2 2 30.93  1525
48x1.5 1/1.38 0.7 1.2 0.2 2 29.88  1549 48x1.5 7/0.52 0.7 1.2 0.2 2 31.41  1611
52x1.5 1/1.38 0.7 1.2 0.2 2 30.63  1648 52x1.5 7/0.52 0.7 1.2 0.2 2 32.21  1713
61x1.5 1/1.38 0.7 1.2 0.2 2 32.32  1872 61x1.5 7/0.52 0.7 1.2 0.2 2 34.01  1945
Nominal
Size
Conductor Structure Insulation Thickness Thickness of Inner Sheath  Thickness of Steel Tape Sheath Thickness Approx. Overall Dia. Approx. Weight Nominal
Size
Conductor Structure Insulation Thickness Thickness of Inner Sheath  Thickness of Steel Tape Sheath Thickness Approx. Overall Dia. Approx. Weight
mm2 No./mm mm mm mm mm mm kg/km mm2 No./mm mm mm mm mm mm kg/km
2×2.5 1/1.78 0.8 1.2 0.2 1.5 13.13  275 2×2.5 7/0.68 0.8 1.2 0.2 1.5 13.68 291
3×2.5 1/1.78 0.8 1.2 0.2 1.5 13.68  316 3×2.5 7/0.68 1.8 1.2 0.2 1.5 14.06 326
4×2.5 1/1.78 0.8 1.2 0.2 1.5 14.39  358 4×2.5 7/0.68 2.8 1.2 0.2 1.5 15.04 379
5×2.5 1/1.78 0.8 1.2 0.2 1.5 15.40  409 5×2.5 7/0.68 3.8 1.2 0.2 1.5 16.13 432
6×2.5 1/1.78 0.8 1.2 0.2 1.5 16.45  469 6×2.5 7/0.68 4.8 1.2 0.2 1.5 17.26 497
7×2.5 1/1.78 0.8 1.2 0.2 1.5 16.45  488 7×2.5 7/0.68 5.8 1.2 0.2 1.5 17.26 516
8x2.5 1/1.78 0.8 1.2 0.2 1.5 17.50  542 8x2.5 7/0.68 6.8 1.2 0.2 1.5 18.4 573
10x2.5 1/1.78 0.8 1.2 0.2 1.7 20.16  679 10x2.5 7/0.68 7.8 1.2 0.2 1.7 21.25 719
12x2.5 1/1.78 0.8 1.2 0.2 1.7 20.71  743 12x2.5 7/0.68 8.8 1.2 0.2 1.7 21.83 786
14x2.5 1/1.78 0.8 1.2 0.2 1.7 21.62  828 14x2.5 7/0.68 9.8 1.2 0.2 1.7 22.81 875
16x2.5 1/1.78 0.8 1.2 0.2 1.7 22.63  920 16x2.5 7/0.68 10.8 1.2 0.2 1.7 23.9 974
19x2.5 1/1.78 0.8 1.2 0.2 1.7 23.68  1034 19x2.5 7/0.68 11.8 1.2 0.2 1.7 24.83 1080
24x2.5 1/1.78 0.8 1.2 0.2 1.7 27.00  1272 24x2.5 7/0.68 12.8 1.2 0.2 1.7 28.62 1346
27x2.5 1/1.78 0.8 1.2 0.2 1.7 27.54  1369 27x2.5 7/0.68 13.8 1.2 0.2 1.7 29 1432
30x2.5 1/1.78 0.8 1.2 0.2 1.7 28.45  1486 30x2.5 7/0.68 14.8 1.2 0.2 1.7 29.98 1555
37x2.5 1/1.78 0.8 1.2 0.5 2 32.11  2086 37x2.5 7/0.68 15.8 1.2 0.5 2 34 2207
44x2.5 1/1.78 0.8 1.2 0.5 2.2 36.03  2479 44x2.5 7/0.68 16.8 1.2 0.5 2.2 37.99 2604
48x2.5 1/1.78 0.8 1.2 0.5 2.2 36.37  2596 48x2.5 7/0.68 17.8 1.2 0.5 2.2 38.57 2746
52x2.5 1/1.78 0.8 1.2 0.5 2.2 37.28  2757 52x2.5 7/0.68 18.8 1.2 0.5 2.2 39.56 2916
61x2.5 1/1.78 0.8 1.2 0.5 2.2 39.34  3120 61x2.5 7/0.68 19.8 1.3 0.5 2.2 41.77 3299
Nominal
Size
Conductor Structure Insulation Thickness Thickness of Inner Sheath  Thickness of Steel Tape Sheath Thickness Approx. Overall Dia. Approx. Weight Nominal
Size
Conductor Structure Insulation Thickness Thickness of Inner Sheath  Thickness of Steel Tape Sheath Thickness Approx. Overall Dia. Approx. Weight
mm2 No./mm mm mm mm mm mm kg/km mm2 No./mm mm mm mm mm mm kg/km
2×4 1/2.25 0.8 1.2 0.2 1.5 13.91  321 2×4 7/0.85 0.8 1.2 0.2 1.5 14.54 339
3×4 1/2.25 0.8 1.2 0.2 1.5 14.53  378 3×4 7/0.85 0.8 1.2 0.2 1.5 15.2 397
4×4 1/2.25 0.8 1.2 0.2 1.5 15.57  446 4×4 7/0.85 0.8 1.2 0.2 1.5 16.32 468
5×4 1/2.25 0.8 1.2 0.2 1.5 16.71  514 5×4 7/0.85 0.8 1.2 0.2 1.5 17.56 538
6×4 1/2.25 0.8 1.2 0.2 1.5 17.92  595 6×4 7/0.85 0.8 1.2 0.2 1.5 18.65 614
7×4 1/2.25 0.8 1.2 0.2 1.5 17.92  625 7×4 7/0.85 0.8 1.2 0.2 1.5 18.65 642
8x4 1/2.25 0.8 1.2 0.2 1.7 19.32  705 8x4 7/0.85 0.8 1.2 0.2 1.7 20.35 737
10x4 1/2.25 0.8 1.2 0.2 1.7 22.12  876 10x4 7/0.85 0.8 1.2 0.2 1.7 23.37 918
12x4 1/2.25 0.8 1.2 0.2 1.7 22.74  970 12x4 7/0.85 0.8 1.2 0.2 1.7 24.03 1012
14x4 1/2.25 0.8 1.2 0.2 1.7 23.78  1087 14x4 7/0.85 0.8 1.2 0.2 1.7 24.95 1121
Nominal
Size
Conductor Structure Insulation Thickness Thickness of Inner Sheath  Thickness of Steel Tape Sheath Thickness Approx. Overall Dia. Approx. Weight Nominal
Size
Conductor Structure Insulation Thickness Thickness of Inner Sheath  Thickness of Steel Tape Sheath Thickness Approx. Overall Dia. Approx. Weight
mm2 No./mm mm mm mm mm mm kg/km mm2 No./mm mm mm mm mm mm kg/km
2×6 1/2.76 0.8 1.2 0.2 1.5 14.97  387 2×6 7/1.04 0.8 1.2 0.2 1.5 15.72  408
3×6 1/2.76 0.8 1.2 0.2 1.5 15.67  465 3×6 7/1.04 0.8 1.2 0.2 1.5 16.48  488
4×6 1/2.76 0.8 1.2 0.2 1.5 16.85  556 4×6 7/1.04 0.8 1.2 0.2 1.5 17.75  581
5×6 1/2.76 0.8 1.2 0.2 1.7 18.35  653 5×6 7/1.04 0.8 1.2 0.2 1.7 19.36  682
6×6 1/2.76 0.8 1.2 0.2 1.7 19.71  761 6×6 7/1.04 0.8 1.2 0.2 1.7 20.83  796
7×6 1/2.76 0.8 1.2 0.2 1.7 19.71  806 7×6 7/1.04 0.8 1.2 0.2 1.7 20.83  838
8x6 1/2.76 0.8 1.2 0.2 1.7 21.07  903 8x6 7/1.04 0.8 1.2 0.2 1.7 22.30  939
10x6 1/2.76 0.8 1.2 0.2 1.7 24.04  1115 10x6 7/1.04 0.8 1.2 0.2 1.7 25.54  1162
12x6 1/2.76 0.8 1.2 0.2 1.7 24.74  1245 12x6 7/1.04 0.8 1.2 0.2 1.7 26.30  1293
14x6 1/2.76 0.8 1.2 0.2 1.7 25.92  1406 14x6 7/1.04 0.8 1.2 0.2 1.7 27.57  1458
Nominal
Size
Conductor
Structure
Insulation
Thickness
Thickness of
Inner Sheath
Thickness of
Steel Tape
Sheath
Thickness
Approx.
Overall Dia.
Approx.
Weight
mm2 No./mm mm mm mm mm mm kg/km
2×10 7/1.35 1 1.2 0.2 1.7 18.9 589
3×10 7/1.35 1 1.2 0.2 1.7 19.7 707
4×10 7/1.35 1 1.2 0.2 1.7 21.3 854
5×10 7/1.35 1 1.2 0.2 1.7 23.1 1000
10×10 7/1.35 1 1.2 0.2 1.7 24.8 1164
7×10 7/1.35 1 1.2 0.2 1.7 24.8 1237
8x10 7/1.35 1 1.2 0.2 1.7 26.7 1393
10x10 7/1.35 1 1.2 0.2 2 31.5 1786


Expand More
Nominal
Size
Conductor Structure Insulation Thickness Thickness
of Inner Sheath
Dia.
of Steel
Wire
Sheath Thickness Approx. Overall Dia. Approx. Weight Nominal
Size
Conductor Structure Insulation Thickness Thickness of Inner Sheath  Dia.
of Steel Wire
Sheath Thickness Approx. Overall Dia. Approx. Weight
mm2 No./mm mm mm mm mm mm kg/km mm2 No./mm mm mm mm mm mm kg/km
3x0.75 1/0.97 0.6 1.1  1.6 1.5 13.29 419 3x0.75 7/0.37 0.6 1.1  1.6 1.5 13.63 435
4x0.75 1/0.97 0.6 1.1  1.6 1.5 13.92 457 4x0.75 7/0.37 0.6 1.1  1.6 1.5 14.29 476
5×0.75 1/0.97 0.6 1.1  1.6 1.5 14.61  501 5×0.75 7/0.37 0.6 1.1  1.6 1.5 15.03  522
6×0.75 1/0.97 0.6 1.1  1.6 1.5 15.33  547 6×0.75 7/0.37 0.6 1.1  1.6 1.5 15.80  571
7×0.75 1/0.97 0.6 1.1  1.6 1.5 15.33  552 7×0.75 7/0.37 0.6 1.1  1.6 1.5 15.80  577
8x0.75 1/0.97 0.6 1.1  1.6 1.5 15.86  588 8x0.75 7/0.37 0.6 1.2  1.6 1.5 16.37  615
10x0.75 1/0.97 0.6 1.2  1.6 1.5 17.33  676 10x0.75 7/0.37 0.6 1.2  1.6 1.5 17.96  710
12x0.75 1/0.97 0.6 1.2  1.6 1.5 17.71  710 12x0.75 7/0.37 0.6 1.2  1.6 1.5 18.35  745
14x0.75 1/0.97 0.6 1.2  1.6 1.5 18.33  760 14x0.75 7/0.37 0.6 1.2  1.6 1.5 18.82  789
16x0.75 1/0.97 0.6 1.2  1.6 1.5 18.82  807 16x0.75 7/0.37 0.6 1.2  1.6 1.7  19.96  867
19x0.75 1/0.97 0.6 1.2  1.6 1.7  19.95  888 19x0.75 7/0.37 0.6 1.2  1.6 1.7  20.73  934
24x0.75 1/0.97 0.6 1.2  1.6 1.7  21.95  1034 24x0.75 7/0.37 0.6 1.2  1.6 1.7  22.88  1090
27x0.75 1/0.97 0.6 1.2  1.6 1.7  22.32  1080 27x0.75 7/0.37 0.6 1.2  1.6 1.7  23.28  1138
30x0.75 1/0.97 0.6 1.2  1.6 1.7  22.95  1142 30x0.75 7/0.37 0.6 1.2  1.6 1.7  23.95  1204
37x0.75 1/0.97 0.6 1.2  1.6 1.7  24.36  1285 37x0.75 7/0.37 0.6 1.2  1.6 1.7  25.26  1344
44x0.75 1/0.97 0.6 1.2  1.6 1.7  26.58  1470 44x0.75 7/0.37 0.6 1.2  1.6 1.7  27.61  1534
48x0.75 1/0.97 0.6 1.2  1.6 1.7  26.74  1509 48x0.75 7/0.37 0.6 1.2  1.6 1.7  27.81  1581
52x0.75 1/0.97 0.6 1.2  1.6 1.7  27.37  1583 52x0.75 7/0.37 0.6 1.2  1.6 1.7  28.48  1659
61x0.75 1/0.97 0.6 1.2  1.6 2.0  29.18  1777 61x0.75 7/0.37 0.6 1.2  1.6 2.0  30.58  1878
Nominal
Size
Conductor Structure Insulation Thickness Thickness of Inner Sheath  Dia. of Steel Wire Sheath Thickness Approx. Overall Dia. Approx. Weight Nominal
Size
Conductor Structure Insulation Thickness Thickness of Inner Sheath  Dia. of Steel Wire Sheath Thickness Approx. Overall Dia. Approx. Weight
mm2 No./mm mm mm mm mm mm kg/km mm2 No./mm mm mm mm mm mm kg/km
2x1 1/1.13 0.6 1.2 1.6 1.5  13.27 418 2x1 7/0.43 0.6 1.2 1.6 1.5  13.63 436
3x1 1/1.13 0.6 1.2 1.6 1.5  13.67 444 3x1 7/0.43 0.6 1.2 1.6 1.5  14.06 462
4×1 1/1.13 0.6 1.2 1.6 1.5  14.4  487 4×1 7/0.43 0.6 1.2 1.6 1.5  14.78 508
5×1 1/1.13 0.6 1.2 1.6 1.5  15.1  537 5×1 7/0.43 0.6 1.2 1.6 1.5  15.57 560
6×1 1/1.13 0.6 1.2 1.6 1.5  15.9  588 6×1 7/0.43 0.6 1.2 1.6 1.5  15.99 596
7×1 1/1.13 0.6 1.2 1.6 1.5  15.9  596 7×1 7/0.43 0.6 1.2 1.6 1.5  15.99 603
8x1 1/1.13 0.6 1.2 1.6 1.5  16.2  624 8x1 7/0.43 0.6 1.2 1.6 1.5  16.82 654
10x1 1/1.13 0.6 1.2 1.6 1.5  18.1  737 10x1 7/0.43 0.6 1.2 1.6 1.5  18.76 775
12x1 1/1.13 0.6 1.2 1.6 1.7  18.5  777 12x1 7/0.43 0.6 1.2 1.6 1.7  19.39 826
14x1 1/1.13 0.6 1.2 1.6 1.7  19.3  844 14x1 7/0.43 0.6 1.2 1.6 1.7  20.11 888
16x1 1/1.13 0.6 1.2 1.6 1.7  20.1  908 16x1 7/0.43 0.6 1.2 1.6 1.7  20.9 956
19x1 1/1.13 0.6 1.2 1.6 1.7  20.8  983 19x1 7/0.43 0.6 1.3 1.6 1.7  21.73 1035
24x1 1/1.13 0.6 1.2 1.6 1.7  23.0  1151 24x1 7/0.43 0.6 1.2 1.6 1.7  24.09 1216
27x1 1/1.13 0.6 1.2 1.6 1.7  23.4  1206 27x1 7/0.43 0.6 1.2 1.6 1.7  24.51 1273
30x1 1/1.13 0.6 1.2 1.6 1.7  24.1  1279 30x1 7/0.43 0.6 1.2 1.6 1.7  25.03 1339
37x1 1/1.13 0.6 1.2 1.6 1.7  25.4  1436 37x1 7/0.43 0.6 1.3 1.6 1.7  26.66 1517
44x1 1/1.13 0.6 1.2 1.6 2.0  27.6  1631 44x1 7/0.43 0.6 1.2 1.6 2.0  29.61 1766
48x1 1/1.13 0.6 1.2 1.6 2.0  28.6  1739 48x1 7/0.43 0.6 1.2 1.6 2.0  30.04 1838
52x1 1/1.13 0.6 1.2 1.6 2.0  29.3  1828 52x1 7/0.43 0.6 1.2 1.6 2.0  30.76 1932
61x1 1/1.13 0.6 1.2 1.6 2.0  30.8  2028 61x1 7/0.43 0.6 1.2 1.6 2.0  31.97 2108
Nominal
Size
Conductor Structure Insulation Thickness Thickness of Inner Sheath  Dia. of Steel Wire Sheath Thickness Approx. Overall Dia. Approx. Weight Nominal
Size
Conductor Structure Insulation Thickness Thickness of Inner Sheath  Dia. of Steel Wire Sheath Thickness Approx. Overall Dia. Approx. Weight
mm2 No./mm mm mm mm mm mm kg/km mm2 No./mm mm mm mm mm mm kg/km
2x1.5 1/1.38 0.7 1.2 1.6 1.5 14.28 477 2x1.5 7/0.52 0.7 1.2 1.6 1.5 14.68 497
3×1.5 1/1.38 0.7 1.2 1.6 1.5 14.8  517 3×1.5 7/0.52 0.7 1.2 1.6 1.5 15.18 538
4×1.5 1/1.38 0.7 1.2 1.6 1.5 15.6  572 4×1.5 7/0.52 0.7 1.2 1.6 1.5 15.84 589
5×1.5 1/1.38 0.7 1.2 1.6 1.5 16.0  609 5×1.5 7/0.52 0.7 1.2 1.6 1.5 16.57 636
6×1.5 1/1.38 0.7 1.2 1.6 1.5 17.0  675 6×1.5 7/0.52 0.7 1.2 1.6 1.5 17.56 705
7×1.5 1/1.38 0.7 1.2 1.6 1.5 17.0  686 7×1.5 7/0.52 0.7 1.2 1.6 1.5 17.56 716
8x1.5 1/1.38 0.7 1.2 1.6 1.5 17.9  747 8x1.5 7/0.52 0.7 1.2 1.6 1.5 18.55 781
10x1.5 1/1.38 0.7 1.2 1.6 1.7 20.3  903 10x1.5 7/0.52 0.7 1.2 1.6 1.7 21.05 946
12x1.5 1/1.38 0.7 1.2 1.6 1.7 20.7  957 12x1.5 7/0.52 0.7 1.2 1.6 1.7 21.56 1002
14x1.5 1/1.38 0.7 1.2 1.6 1.7 21.5  1035 14x1.5 7/0.52 0.7 1.2 1.6 1.7 22 1057
16x1.5 1/1.38 0.7 1.2 1.6 1.7 22.0  1095 16x1.5 7/0.52 0.7 1.2 1.6 1.7 22.94 1147
19x1.5 1/1.38 0.7 1.2 1.6 1.7 22.9  1194 19x1.5 7/0.52 0.7 1.2 1.6 1.7 23.93 1250
24x1.5 1/1.38 0.7 1.2 1.6 1.7 25.8  1436 24x1.5 7/0.52 0.7 1.2 1.6 1.7 26.81 1489
27x1.5 1/1.38 0.7 1.2 1.6 1.7 26.3  1512 27x1.5 7/0.52 0.7 1.2 1.6 1.7 27.32 1566
30x1.5 1/1.38 0.7 1.2 1.6 1.7 26.9  1593 30x1.5 7/0.52 0.7 1.2 1.6 1.7 27.97 1656
37x1.5 1/1.38 0.7 1.2 1.6 2.0  29.1  1848 37x1.5 7/0.52 0.7 1.2 1.6 2.0  30.5 1936
44x1.5 1/1.38 0.7 1.2 1.6 2.0  32.0  2137 44x1.5 7/0.52 0.7 1.2 1.6 2.2  34.44 2477
48x1.5 1/1.38 0.7 1.2 1.6 2.0  32.3  2213 48x1.5 7/0.52 0.7 1.2 1.6 2.2  34.95 2580
52x1.5 1/1.38 0.7 1.2 1.6 2.0  33.9  2573 52x1.5 7/0.52 0.7 1.2 1.6 2.2  35.8 2714
61x1.5 1/1.38 0.7 1.2 1.6 2.2 35.9  2877 61x1.5 7/0.52 0.7 1.2 1.6 2.2 37.53 2997
Nominal
Size
Conductor Structure Insulation Thickness Thickness of Inner Sheath  Dia. of Steel Wire Sheath Thickness Approx. Overall Dia. Approx. Weight Nominal
Size
Conductor Structure Insulation Thickness Thickness of Inner Sheath  Dia. of Steel Wire Sheath Thickness Approx. Overall Dia. Approx. Weight
mm2 No./mm mm mm mm mm mm kg/km mm2 No./mm mm mm mm mm mm kg/km
2×2.5 1/1.78 0.8 1.2 1.6 1.5  15.6  563 2×2.5 7/0.68 0.8 1.2  1.6  1.5  15.99 586
3×2.5 1/1.78 0.8 1.2 1.6 1.5  16.0  611 3×2.5 7/0.68 0.8 1.2 1.6  1.5  16.4 631
4×2.5 1/1.78 0.8 1.2 1.6 1.5  11.2  672 4×2.5 7/0.68 0.8 1.2 1.6  1.5  11.9 710
5×2.5 1/1.78 0.8 1.2 1.6 1.5  12.3  749 5×2.5 7/0.68 0.8 1.2 1.6  1.5  13.01 793
6×2.5 1/1.78 0.8 1.2 1.6 1.5  13.2  830 6×2.5 7/0.68 0.8 1.2 1.6  1.5  13.99 879
7×2.5 1/1.78 0.8 1.2 1.6 1.5  13.2  849 7×2.5 7/0.68 0.8 1.2 1.6  1.5  13.99 898
8x2.5 1/1.78 0.8 1.2 1.6 1.7  14.6  950 8x2.5 7/0.68 0.8 1.2 1.6  1.7  15.56 1006
10x2.5 1/1.78 0.8 1.2 1.6 1.7  17.0  1121 10x2.5 7/0.68 0.8 1.2 1.6  1.7  18.08 1191
12x2.5 1/1.78 0.8 1.2 1.6 1.7  17.5  1200 12x2.5 7/0.68 0.8 1.2 1.6  1.7  18.68 1274
14x2.5 1/1.78 0.8 1.2 1.6 1.7  18.5  1310 14x2.5 7/0.68 0.8 1.2 1.6  1.7  19.49 1379
16x2.5 1/1.78 0.8 1.2 1.6 1.7  19.3  1419 16x2.5 7/0.68 0.8 1.2 1.6  1.7  20.61 1508
19x2.5 1/1.78 0.8 1.2 1.6 1.7  20.4  1562 19x2.5 7/0.68 0.8 1.2 1.6  1.7  21.77 1640
24x2.5 1/1.78 0.8 1.2 1.6 2.0  24.4  1924 24x2.5 7/0.68 0.8 1.2 1.6  2.0  25.87 2032
27x2.5 1/1.78 0.8 1.2 1.6 2.0  25.0  2037 27x2.5 7/0.68 0.8 1.2 1.6  2.0  26.47 2150
30x2.5 1/1.78 0.8 1.2 1.6 2.0  25.7  2167 30x2.5 7/0.68 0.8 1.2 1.6  2.0  27.48 2282
37x2.5 1/1.78 0.8 1.2 1.6 2.0  28.1  2737 37x2.5 7/0.68 0.8 1.2 2.0  2.2  30.02 2910
44x2.5 1/1.78 0.8 1.2 1.6 2.2  31.5  3177 44x2.5 7/0.68 0.8 1.2 2.0  2.2  33.71 3356
48x2.5 1/1.78 0.8 1.2 1.6 2.2  32.0  3303 48x2.5 7/0.68 0.8 1.2 2.0  2.2  34.11 3495
52x2.5 1/1.78 0.8 1.2 1.6 2.2  33.0  3489 52x2.5 7/0.68 0.8 1.2 2.0  2.2  35.13 3692
61x2.5 1/1.78 0.8 1.2 1.6 2.5  35.5  3949 61x2.5 7/0.68 0.8 1.2 2.0  2.5  37.81 4163
Nominal
Size
Conductor Structure Insulation Thickness Thickness of Inner Sheath  Dia. of Steel Wire Sheath Thickness Approx. Overall Dia. Approx. Weight Nominal
Size
Conductor Structure Insulation Thickness Thickness of Inner Sheath  Dia. of Steel Wire Sheath Thickness Approx. Overall Dia. Approx. Weight
mm2 No./mm mm mm mm mm mm kg/km mm2 No./mm mm mm mm mm mm kg/km
2×4 1/2.25 0.8 1.2 1.6 1.5 16.3  625 2×4 7/0.85 0.8 1.2 1.6 1.5 16.94 658
3×4 1/2.25 0.8 1.2 1.6 1.5 16.9  697 3×4 7/0.85 0.8 1.2 1.6 1.5 17.6 732
4×4 1/2.25 0.8 1.2 1.6 1.5 18.0  789 4×4 7/0.85 0.8 1.2 1.6 1.5 18.72 830
5×4 1/2.25 0.8 1.2 1.6 1.5 19.1  884 5×4 7/0.85 0.8 1.2 1.6 1.5 19.96 930
6×4 1/2.25 0.8 1.2 1.6 1.7 20.7  1013 6×4 7/0.85 0.8 1.2 1.6 1.7 21.45 1052
7×4 1/2.25 0.8 1.2 1.6 1.7 20.7  1043 7×4 7/0.85 0.8 1.2 1.6 1.7 21.45 1080
8x4 1/2.25 0.8 1.2 1.6 1.7 21.7  1131 8x4 7/0.85 0.8 1.2 1.6 1.7 22.75 1187
10x4 1/2.25 0.8 1.2 1.6 1.7 24.5  1368 10x4 7/0.85 0.8 1.2 1.6 1.7 25.77 1441
12x4 1/2.25 0.8 1.2 1.6 1.7 25.1  1476 12x4 7/0.85 0.8 1.2 1.6 1.7 26.43 1551
14x4 1/2.25 0.8 1.2 1.6 1.7 26.2  1619 14x4 7/0.85 0.8 1.2 1.6 1.7 27.35 1682
Nominal
Size
Conductor Structure Insulation Thickness Thickness of Inner Sheath  Dia. of Steel Wire Sheath Thickness Approx. Overall Dia. Approx. Weight Nominal
Size
Conductor Structure Insulation Thickness Thickness of Inner Sheath  Dia. of Steel Wire Sheath Thickness Approx. Overall Dia. Approx. Weight
mm2 No./mm mm mm mm mm mm kg/km mm2 No./mm mm mm mm mm mm kg/km
2×6 1/2.76 0.8 1.2 1.6 1.5 17.4  716 2×6 7/1.04 0.8 1.2 1.6 1.5 18.12 756
3×6 1/2.76 0.8 1.2 1.6 1.5 18.1  811 3×6 7/1.04 0.8 1.2 1.6 1.5 18.88 853
4×6 1/2.76 0.8 1.2 1.6 1.5 19.3  929 4×6 7/1.04 0.8 1.2 1.6 1.5 20.15 977
5×6 1/2.76 0.8 1.2 1.6 1.7 20.7  1056 5×6 7/1.04 0.8 1.2 1.6 1.7 21.76 1109
6×6 1/2.76 0.8 1.2 1.6 1.7 22.1  1196 6×6 7/1.04 0.8 1.2 1.6 1.7 23.23 1258
7×6 1/2.76 0.8 1.2 1.6 1.7 22.1  1241 7×6 7/1.04 0.8 1.2 1.6 1.7 23.23 1300
8x6 1/2.76 0.8 1.2 1.6 1.7 23.5  1370 8x6 7/1.04 0.8 1.2 1.6 1.7 24.7 1436
10x6 1/2.76 0.8 1.2 1.6 1.7 26.4  1653 10x6 7/1.04 0.8 1.2 1.6 1.7 27.94 1737
12x6 1/2.76 0.8 1.2 1.6 1.7 27.1  1800 12x6 7/1.04 0.8 1.2 1.6 1.7 28.7 1886
14x6 1/2.76 0.8 1.2 1.6 1.7 28.3  1988 14x6 7/1.04 0.8 1.2 1.6 1.7 29.97 2082
Nominal
Size
Conductor Structure Insulation Thickness Thickness of Inner Sheath  Diameter of Steel Wire Sheath Thickness Approx. Overall Diameter Approx. Weight
mm2 No./mm mm mm mm mm mm kg/km
2×10 7/1.35 1.0 1.2 1.6 1.7 21.3 1011
3×10 7/1.35 1.0 1.2 1.6 1.7 22.1 1148
4×10 7/1.35 1.0 1.2 1.6 1.7 23.7 1336
5×10 7/1.35 1.0 1.2 1.6 1.7 25.5 1525
10×10 7/1.35 1.0 1.2 1.6 1.7 27.2 1732
7×10 7/1.35 1.0 1.2 1.6 1.7 27.2 1803
8x10 7/1.35 1.0 1.2 1.6 1.7 29.1 2006
10x10 7/1.35 1.0 1.2 1.6 2.0 33.9 2506
Expand More
Nominal
Size
Conductor Structure Insulation Thickness Dia. of braided copper wire  Sheath Thickness Approx. Overall Dia. Approx. Weight Nominal
Size
Conductor Structure Insulation Thickness Dia. of Braided Copper Wire  Sheath Thickness Approx. Overall Dia. Approx. Weight
mm2 No./mm mm mm mm mm kg/km mm2 No./mm mm mm mm mm kg/km
2×0.75 1/0.97 0.6 0.15 1.2  7.7  87 2×0.75 7/0.37 0.6 0.15 1.2  8.0  92
3×0.75 1/0.97 0.6 0.15 1.2  8.1  97 3×0.75 7/0.37 0.6 0.15 1.2  8.4  102
4×0.75 1/0.97 0.6 0.15 1.2  8.7  114 4×0.75 7/0.37 0.6 0.15 1.2  9.0  120
5×0.75 1/0.97 0.6 0.15 1.2  9.3  136 5×0.75 7/0.37 0.6 0.15 1.2  9.6  141
6×0.75 1/0.97 0.6 0.15 1.2  9.9  155 6×0.75 7/0.37 0.6 0.15 1.2  10.3  163
7×0.75 1/0.97 0.6 0.15 1.2  9.9  160 7×0.75 7/0.37 0.6 0.15 1.2  10.3  169
8x0.75 1/0.97 0.6 0.15 1.2  10.6  178 8x0.75 7/0.37 0.6 0.15 1.2  11.0  187
10x0.75 1/0.97 0.6 0.20  1.5  12.9  252 10x0.75 7/0.37 0.6 0.20  1.5  13.4  265
12x0.75 1/0.97 0.6 0.20  1.5  13.2  274 12x0.75 7/0.37 0.6 0.20  1.5  13.8  288
14x0.75 1/0.97 0.6 0.20  1.5  13.8  303 14x0.75 7/0.37 0.6 0.20  1.5  14.4  319
16x0.75 1/0.97 0.6 0.20  1.5  14.4  336 16x0.75 7/0.37 0.6 0.20  1.5  15.1  353
19x0.75 1/0.97 0.6 0.20  1.5  15.1  375 19x0.75 7/0.37 0.6 0.20  1.5  15.8  395
24x0.75 1/0.97 0.6 0.20  1.5  17.2  462 24x0.75 7/0.37 0.6 0.20  1.5  18.1  488
27x0.75 1/0.97 0.6 0.20  1.5  17.5  496 27x0.75 7/0.37 0.6 0.20  1.5  18.4  522
30x0.75 1/0.97 0.6 0.20  1.7  18.5  554 30x0.75 7/0.37 0.6 0.20  1.7  19.4  583
37x0.75 1/0.97 0.6 0.20  1.7  19.8  650 37x0.75 7/0.37 0.6 0.20  1.7  20.8  683
44x0.75 1/0.97 0.6 0.25  1.7  22.2  787 44x0.75 7/0.37 0.6 0.25  1.7  23.3  828
48x0.75 1/0.97 0.6 0.25  1.7  22.5  831 48x0.75 7/0.37 0.6 0.25  1.7  23.6  875
52x0.75 1/0.97 0.6 0.25  1.7  23.0  881 52x0.75 7/0.37 0.6 0.25  1.7  24.2  930
61x0.75 1/0.97 0.6 0.25  1.7  24.4  1005 61x0.75 7/0.37 0.6 0.25  1.7  25.6  1055
Nominal
Size
Conductor Structure Insulation Thickness Dia. of Braided Copper Wire  Sheath Thickness Approx. Overall Dia. Approx. Weight Nominal
Size
Conductor Structure Insulation Thickness Dia. of Braided Copper Wire  Sheath Thickness Approx. Overall Dia. Approx. Weight
mm2 No./mm mm mm mm mm kg/km mm2 No./mm 0.6 mm mm mm kg/km
2×1 1/1.13 0.6 0.15  1.2 8.0  96 2×1 7/0.43 0.6 0.15  1.2 8.4 101
3×1 1/1.13 0.6 0.15  1.2 8.4  108 3×1 7/0.43 0.6 0.15  1.2 8.8 113
4×1 1/1.13 0.6 0.15  1.2 9.1  129 4×1 7/0.43 0.6 0.15  1.2 9.4 134
5×1 1/1.13 0.6 0.15  1.2 9.8  154 5×1 7/0.43 0.6 0.15  1.2 10.1 158
6×1 1/1.13 0.6 0.15  1.2 10.4  178 6×1 7/0.43 0.6 0.15  1.2 10.9 184
7×1 1/1.13 0.6 0.15  1.2 10.4  184 7×1 7/0.43 0.6 0.15  1.2 10.9 192
8x1 1/1.13 0.6 0.15  1.5 11.7  221 8x1 7/0.43 0.6 0.15  1.5 12.2 230
10x1 1/1.13 0.6 0.20  1.5 13.5  288 10x1 7/0.43 0.6 0.20  1.5 14.4 301
12x1 1/1.13 0.6 0.20  1.5 13.9  315 12x1 7/0.43 0.6 0.20  1.5 14.5 328
14x1 1/1.13 0.6 0.20  1.5 14.5  350 14x1 7/0.43 0.6 0.20  1.5 15.2 365
16x1 1/1.13 0.6 0.20  1.5 15.2  390 16x1 7/0.43 0.6 0.20  1.5 15.9 406
19x1 1/1.13 0.6 0.20  1.5 15.9  438 19x1 7/0.43 0.6 0.20  1.5 16.6 456
24x1 1/1.13 0.6 0.20  1.7 18.6  580 24x1 7/0.43 0.6 0.20  1.7 19.5 584
27x1 1/1.13 0.6 0.20  1.7 19.0  601 27x1 7/0.43 0.6 0.20  1.7 19.9 628
30x1 1/1.13 0.6 0.20  1.7 19.6  651 30x1 7/0.43 0.6 0.20  1.7 20.5 678
37x1 1/1.13 0.6 0.20  1.7 20.9  768 37x1 7/0.43 0.6 0.20  1.7 22 799
44x1 1/1.13 0.6 0.25  1.7 23.5  929 44x1 7/0.43 0.6 0.25  1.7 24.7 968
48x1 1/1.13 0.6 0.25  1.7 23.8  985 48x1 7/0.43 0.6 0.25  1.7 25.1 1025
52x1 1/1.13 0.6 0.25  1.7 24.4  1050 52x1 7/0.43 0.6 0.25  1.7 25.7 1092
61x1 1/1.13 0.6 0.25  1.7 25.8  1196 61x1 7/0.43 0.6 0.25  1.7 27.2 1243
Nominal
Size
Conductor Structure Insulation Thickness Dia. of Braided Copper Wire  Sheath Thickness Approx. Overall Dia. Approx. Weight Nominal
Size
Conductor Structure Insulation Thickness Dia. of Braided Copper Wire  Sheath Thickness Approx. Overall Dia. Approx. Weight
mm2 No./mm mm mm mm mm kg/km mm2 No./mm mm mm mm mm kg/km
2×1.5 1/1.38 0.7 0.15  1.2  90.5  121 2×1.5 7/0.52 0.7 0.15  1.2  9.3  126
3×1.5 1/1.38 0.7 0.15  1.2  9.5  145 3×1.5 7/0.52 0.7 0.15  1.2  9.8  150
4×1.5 1/1.38 0.7 0.15  1.2  10.1  171 4×1.5 7/0.52 0.7 0.15  1.2  10.5  178
5×1.5 1/1.38 0.7 0.15  1.2  10.9  197 5×1.5 7/0.52 0.7 0.15  1.2  11.4  204
6×1.5 1/1.38 0.7 0.15  1.2  12.3  248 6×1.5 7/0.52 0.7 0.15  1.5  12.9  258
7×1.5 1/1.38 0.7 0.15  1.2  12.3  259 7×1.5 7/0.52 0.7 0.15  1.5  12.9  269
8x1.5 1/1.38 0.7 0.15  1.5  13.4  303 8x1.5 7/0.52 0.7 0.20  1.5  14.0  315
10x1.5 1/1.38 0.7 0.20  1.5  15.3  377 10x1.5 7/0.52 0.7 0.20  1.5  16.0  392
12x1.5 1/1.38 0.7 0.20  1.5  15.7  415 12x1.5 7/0.52 0.7 0.20  1.5  16.5  431
14x1.5 1/1.38 0.7 0.20  1.5  16.4  461 14x1.5 7/0.52 0.7 0.20  1.5  17.3  483
16x1.5 1/1.38 0.7 0.20  1.5  17.2  519 16x1.5 7/0.52 0.7 0.20  1.5  18.1  538
19x1.5 1/1.38 0.7 0.20  1.5  18.5  604 19x1.5 7/0.52 0.7 0.20  1.7  19.4  627
24x1.5 1/1.38 0.7 0.20  1.7  21.3  751 24x1.5 7/0.52 0.7 0.20  1.7  22.4  781
27x1.5 1/1.38 0.7 0.20  1.7  21.7  811 27x1.5 7/0.52 0.7 0.20  1.7  22.8  841
30x1.5 1/1.38 0.7 0.20  1.7  22.6  907 30x1.5 7/0.52 0.7 0.25  1.7  23.8  941
37x1.5 1/1.38 0.7 0.20  1.7  24.3  1073 37x1.5 7/0.52 0.7 0.25  1.7  25.5  1112
44x1.5 1/1.38 0.7 0.25  1.7  27.0  1265 44x1.5 7/0.52 0.7 0.25  1.7  28.5  1312
48x1.5 1/1.38 0.7 0.25  1.7  27.5  1344 48x1.5 7/0.52 0.7 0.25  1.7  28.9  1393
52x1.5 1/1.38 0.7 0.25  2.0  28.8  1478 52x1.5 7/0.52 0.7 0.25  2.0  30.3  1530
61x1.5 1/1.38 0.7 0.25  2.0  30.4  1686 61x1.5 7/0.52 0.7 0.25  2.0  32.0  1746
Nominal
Size
Conductor Structure Insulation Thickness Dia. of Braided Copper Wire  Sheath Thickness Approx. Overall Dia. Approx. Weight Nominal
Size
Conductor Structure Insulation Thickness Dia. of Braided Copper Wire  Sheath Thickness Approx. Overall Dia. Approx. Weight
mm2 No./mm mm mm mm mm kg/km mm2 No./mm mm mm mm mm kg/km
2×2.5 1/1.79 0.8 0.15  1.2  10.3  168 2×2.5 7/0.68 0.8 0.15  1.2  10.7  176
3×2.5 1/1.79 0.8 0.15  1.2  10.8  204 3×2.5 7/0.68 0.8 0.15  1.2  11.2  214
4×2.5 1/1.79 0.8 0.20  1.5  12.5  278 4×2.5 7/0.68 0.8 0.20  1.5  13.0  291
5×2.5 1/1.79 0.8 0.20  1.5  13.5  322 5×2.5 7/0.68 0.8 0.20  1.5  14.0  332
6×2.5 1/1.79 0.8 0.20  1.5  14.6  375 6×2.5 7/0.68 0.8 0.20  1.5  15.1  393
7×2.5 1/1.79 0.8 0.20  1.5  14.6  394 7×2.5 7/0.68 0.8 0.20  1.5  15.1  411
8x2.5 1/1.79 0.8 0.20  1.5  15.6  440 8x2.5 7/0.68 0.8 0.20  1.5  16.2  460
10x2.5 1/1.79 0.8 0.20  1.5  18.0  551 10x2.5 7/0.68 0.8 0.20  1.5  18.8  576
12x2.5 1/1.79 0.8 0.20  1.7  18.9  628 12x2.5 7/0.68 0.8 0.20  1.7  19.7  656
14x2.5 1/1.79 0.8 0.20  1.7  19.8  706 14x2.5 7/0.68 0.8 0.20  1.7  20.7  738
16x2.5 1/1.79 0.8 0.20  1.7  20.8  792 16x2.5 7/0.68 0.8 0.20  1.7  21.7  823
19x2.5 1/1.79 0.8 0.20  1.7  21.9  897 19x2.5 7/0.68 0.8 0.20  1.7  22.8  938
24x2.5 1/1.79 0.8 0.20  1.7  25.3  1121 24x2.5 7/0.68 0.8 0.20  1.7  26.4  1173
27x2.5 1/1.79 0.8 0.20  1.7  25.9  1215 27x2.5 7/0.68 0.8 0.20  1.7  27.0  1269
30x2.5 1/1.79 0.8 0.20  1.7  26.8  1325 30x2.5 7/0.68 0.8 0.20  1.7  27.9  1384
37x2.5 1/1.79 0.8 0.20  2.0  29.4  1622 37x2.5 7/0.68 0.8 0.20  2.0  30.7  1694
44x2.5 1/1.79 0.8 0.20  2.0  32.8  1912 44x2.5 7/0.68 0.8 0.20  2.0  34.3  1999
48x2.5 1/1.79 0.8 0.20  2.0  33.4  2040 48x2.5 7/0.68 0.8 0.20  2.0  34.9  2132
52x2.5 1/1.79 0.8 0.20  2.2  34.7  2217 52x2.5 7/0.68 0.8 0.20  2.2  36.2  2316
61x2.5 1/1.79 0.8 0.20  2.2  36.7  2542 61x2.5 7/0.68 0.8 0.20  2.2  38.4  2656
Nominal
Size
Conductor Structure Insulation Thickness Dia. of Braided Copper Wire  Sheath Thickness Approx. Overall Dia. Approx. Weight Nominal
Size
Conductor Structure Insulation Thickness Dia. of Braided Copper Wire  Sheath Thickness Approx. Overall Dia. Approx. Weight
mm2 No./mm mm mm mm mm kg/km mm2 No./mm mm mm mm mm kg/km
2×4 1/2.25 0.8 0.2 1.5  8.9 233 2×4 7/0.85 0.8 0.2 1.5 12.5 254
3×4 1/2.25 0.8 0.2 1.5  9.49 285 3×4 7/0.85 0.8 0.2 1.5 13.1 309
4×4 1/2.25 0.8 0.2 1.5  10.49 344 4×4 7/0.85 0.8 0.2 1.5 14.2 371
5×4 1/2.25 0.8 0.2 1.5  11.6 403 5×4 7/0.85 0.8 0.2 1.5 15.4 426
6×4 1/2.25 0.8 0.2 1.5  12.75 474 6×4 7/0.85 0.8 0.2 1.5 16.6 509
7×4 1/2.25 0.8 0.2 1.5  12.75 504 7×4 7/0.85 0.8 0.2 1.5 16.6 538
8x4 1/2.25 0.8 0.2 1.7  13.91 582 8x4 7/0.85 0.8 0.2 1.7 18.3 621
10x4 1/2.25 0.8 0.2 1.7  16.6 729 10x4 7/0.85 0.8 0.2 1.7 21.2 779
12x4 1/2.25 0.8 0.2 1.7  17.19 817 12x4 7/0.85 0.8 0.2 1.7 21.8 869
14x4 1/2.25 0.8 0.2 1.7  18.19 925 14x4 7/0.85 0.8 0.2 1.7 22.9 982
Nominal
Size
Conductor Structure Insulation Thickness Dia. of Braided Copper Wire  Sheath Thickness Approx. Overall Dia. Approx. Weight Nominal
Size
Conductor Structure Insulation Thickness Dia. of Braided Copper Wire  Sheath Thickness Approx. Overall Dia. Approx. Weight
mm2 No./mm mm mm mm mm kg/km mm2 No./mm mm mm mm mm kg/km
2×6 1/2.76 0.8 0.2 1.5 12.9  299 2×6 7/1.04 0.8 0.2 1.5 13.6 315
3×6 1/2.76 0.8 0.2 1.5 13.6  372 3×6 7/1.04 0.8 0.2 1.5 14.4 390
4×6 1/2.76 0.8 0.2 1.5 14.7  454 4×6 7/1.04 0.8 0.2 1.5 15.6 475
5×6 1/2.76 0.8 0.2 1.5 16.0  534 5×6 7/1.04 0.8 0.2 1.5 16.9 548
6×6 1/2.76 0.8 0.2 1.5 17.3  631 6×6 7/1.04 0.8 0.2 1.5 18.3 659
7×6 1/2.76 0.8 0.2 1.5 17.3  676 7×6 7/1.04 0.8 0.2 1.5 18.3 703
8x6 1/2.76 0.8 0.2 1.7 19.0  779 8x6 7/1.04 0.8 0.2 1.7 20.2 810
10x6 1/2.76 0.8 0.2 1.7 22.1  978 10x6 7/1.04 0.8 0.2 1.7 23.5 1019
12x6 1/2.76 0.8 0.2 1.7 22.7  1103 12x6 7/1.04 0.8 0.2 1.7 24.2 1145
14x6 1/2.76 0.8 0.2 1.7 23.9  1255 14x6 7/1.04 0.8 0.2 1.7 25.4 1301
Nominal Size Conductor Structure Insulation Thickness Dia. of Braided Copper Wire  Sheath Thickness Approx. Overall Dia. Approx. Weight
mm2 No./mm mm mm mm mm kg/km
2×10 7/1.35 1.0  0.2 1.5 16.3  458
3×10 7/1.35 1.0  0.2 1.5 17.2  577
4×10 7/1.35 1.0  0.2 1.7 19.2  729
5×10 7/1.35 1.0  0.2 1.7 20.9  860
10×10 7/1.35 1.0  0.2 1.7 22.8  1022
7×10 7/1.35 1.0  0.2 1.7 22.8  1096
8x10 7/1.35 1.0  0.2 1.7 24.6  1237
10x10 7/1.35 1.0  0.2 1.7 28.8  1564
Expand More
Nominal
Size
Conductor Structure Insulation Thickness Thickness
of Copper Tape
Sheath Thickness Approx. Overall Dia. Approx. Weight Nominal
Size
Conductor Structure Insulation Thickness Thickness of Copper Tape  Sheath Thickness Approx. Overall Dia. Approx. Weight
mm2 No./mm mm mm mm mm kg/km mm2 No./mm mm mm mm mm kg/km
2×0.75 1/0.97 0.6 0.1  1.2  7.5  83 2×0.75 7/0.37 0.6 0.10  1.2  7.8  89
3×0.75 1/0.97 0.6 0.1  1.2  7.9  93 3×0.75 7/0.37 0.6 0.10  1.2  8.2  99
4×0.75 1/0.97 0.6 0.1  1.2  8.5  110 4×0.75 7/0.37 0.6 0.10  1.2  8.8  118
5×0.75 1/0.97 0.6 0.1  1.2  9.1  131 5×0.75 7/0.37 0.6 0.10  1.2  9.4  138
6×0.75 1/0.97 0.6 0.1  1.2  9.7  150 6×0.75 7/0.37 0.6 0.10  1.2  10.1  160
7×0.75 1/0.97 0.6 0.1  1.2  9.7  156 7×0.75 7/0.37 0.6 0.10  1.2  10.1  166
8x0.75 1/0.97 0.6 0.1  1.5  11.0  188 8x0.75 7/0.37 0.6 0.10  1.5  11.4  200
10x0.75 1/0.97 0.6 0.1  1.5  12.5  232 10x0.75 7/0.37 0.6 0.10  1.5  13.0  248
12x0.75 1/0.97 0.6 0.1  1.5  12.8  253 12x0.75 7/0.37 0.6 0.10  1.5  13.4  270
14x0.75 1/0.97 0.6 0.1  1.5  13.4  282 14x0.75 7/0.37 0.6 0.10  1.5  14.0  300
16x0.75 1/0.97 0.6 0.1  1.5  14.0  314 16x0.75 7/0.37 0.6 0.10  1.5  14.7  334
19x0.75 1/0.97 0.6 0.1  1.5  14.7  352 19x0.75 7/0.37 0.6 0.10  1.5  15.4  374
24x0.75 1/0.97 0.6 0.1  1.5  16.8  436 24x0.75 7/0.37 0.6 0.10  1.5  17.6  463
27x0.75 1/0.97 0.6 0.1  1.7  17.6  484 27x0.75 7/0.37 0.6 0.10  1.7  18.4  515
30x0.75 1/0.97 0.6 0.1  1.7  18.1  524 30x0.75 7/0.37 0.6 0.10  1.7  19.0  557
37x0.75 1/0.97 0.6 0.1  1.7  19.4  617 37x0.75 7/0.37 0.6 0.10  1.7  20.4  656
44x0.75 1/0.97 0.6 0.1  1.7  21.6  726 44x0.75 7/0.37 0.6 0.10  1.7  22.7  771
48x0.75 1/0.97 0.6 0.1  1.7  21.9  770 48x0.75 7/0.37 0.6 0.10  1.7  23.0  817
52x0.75 1/0.97 0.6 0.1  1.7  22.4  818 52x0.75 7/0.37 0.6 0.10  1.7  23.6  871
61x0.75 1/0.97 0.6 0.1  1.7  23.8  937 61x0.75 7/0.37 0.6 0.10  1.7  25.0  993
Nominal
Size
Conductor Structure Insulation Thickness Thickness of Copper Tape  Sheath Thickness Approx. Overall Dia. Approx. Weight Nominal
Size
Conductor Structure Insulation Thickness Thickness of Copper Tape  Sheath Thickness Approx. Overall Dia. Approx. Weight
mm2 No./mm mm mm mm mm kg/km mm2 No./mm mm mm mm mm kg/km
2×1 1/1.13 0.6 0.10  1.2 7.96  94 2×1 7/0.43 1.28 0.10  1.2 8.17  99
3×1 1/1.13 0.6 0.10  1.2 8.32  106 3×1 7/0.43 1.28 0.10  1.2 8.55  111
4×1 1/1.13 0.6 0.10  1.2 8.94  126 4×1 7/0.43 1.28 0.10  1.2 9.20  133
5×1 1/1.13 0.6 0.10  1.2 9.62  150 5×1 7/0.43 1.28 0.10  1.2 9.91  157
6×1 1/1.13 0.6 0.10  1.2 10.33  175 6×1 7/0.43 1.28 0.10  1.2 10.65  183
7×1 1/1.13 0.6 0.10  1.2 10.33  182 7×1 7/0.43 1.28 0.10  1.2 10.65  191
8x1 1/1.13 0.6 0.10  1.5 11.65  219 8x1 7/0.43 1.28 0.10  1.5 12.00  229
10x1 1/1.13 0.6 0.10  1.5 13.31  271 10x1 7/0.43 1.28 0.10  1.5 13.74  284
12x1 1/1.13 0.6 0.10  1.5 13.68  297 12x1 7/0.43 1.28 0.10  1.5 14.12  311
14x1 1/1.13 0.6 0.10  1.5 14.30  332 14x1 7/0.43 1.28 0.10  1.5 14.77  248
16x1 1/1.13 0.6 0.10  1.5 14.98  371 16x1 7/0.43 1.28 0.10  1.5 15.48  287
19x1 1/1.13 0.6 0.10  1.5 15.69  418 19x1 7/0.43 1.28 0.10  1.5 16.22  436
24x1 1/1.13 0.6 0.10  1.7 18.47  536 24x1 7/0.43 1.28 0.10  1.7 19.11  561
27x1 1/1.13 0.6 0.10  1.7 18.83  577 27x1 7/0.43 1.28 0.10  1.7 19.49  603
30x1 1/1.13 0.6 0.10  1.7 19.45  626 30x1 7/0.43 1.28 0.10  1.7 20.13  654
37x1 1/1.13 0.6 0.10  1.7 20.85  741 37x1 7/0.43 1.28 0.10  1.7 21.59  773
44x1 1/1.13 0.6 0.10  1.7 23.22  873 44x1 7/0.43 1.28 0.10  1.7 24.08  911
48x1 1/1.13 0.6 0.10  1.7 23.59  927 48x1 7/0.43 1.28 0.10  1.7 24.46  967
52x1 1/1.13 0.6 0.10  1.7 24.21  991 52x1 7/0.43 1.28 0.10  1.7 25.10  1033
61x1 1/1.13 0.6 0.10  1.7 25.60  1133 61x1 7/0.43 1.28 0.10  1.7 26.56  1181
Nominal
Size
Conductor Structure Insulation Thickness Thickness of Copper Tape  Sheath Thickness Approx. Overall Dia. Approx. Weight Nominal
Size
Conductor Structure Insulation Thickness Thickness of copper tape  Sheath Thickness Approx. Overall Dia. Approx. Weight
mm2 No./mm mm mm mm mm kg/km mm2 No./mm mm mm mm mm kg/km
2×1.5 1.38 0.7 0.10  1.20  8.76  119 2×1.5 7/0.52 0.7 0.10  1.20  9.1 125
3×1.5 1.38 0.7 0.10  1.20  9.19  142 3×1.5 7/0.52 0.7 0.10  1.20  9.6 149
4×1.5 1.38 0.7 0.10  1.20  9.91  169 4×1.5 7/0.52 0.7 0.10  1.20  10.4 178
5×1.5 1.38 0.7 0.10  1.50  11.31  212 5×1.5 7/0.52 0.7 0.10  1.50  11.8 220
6×1.5 1.38 0.7 0.10  1.50  12.14  246 6×1.5 7/0.52 0.7 0.10  1.50  12.7 258
7×1.5 1.38 0.7 0.10  1.50  12.97  258 7×1.5 7/0.52 0.7 0.10  1.50  12.7 270
8x1.5 1.38 0.7 0.10  1.50  12.97  288 8x1.5 7/0.52 0.7 0.10  1.50  13.6 301
10x1.5 1.38 0.7 0.10  1.50  14.92  359 10x1.5 7/0.52 0.7 0.10  1.50  15.7 376
12x1.5 1.38 0.7 0.10  1.50  15.35  397 12x1.5 7/0.52 0.7 0.10  1.50  16.1 415
14x1.5 1.38 0.7 0.10  1.50  16.07  446 14x1.5 7/0.52 0.7 0.10  1.50  16.9 466
16x1.5 1.38 0.7 0.10  1.50  16.87  500 16x1.5 7/0.52 0.7 0.10  1.50  17.8 520
19x1.5 1.38 0.7 0.10  1.50  17.70  566 19x1.5 7/0.52 0.7 0.10  1.50  18.7 591
24x1.5 1.38 0.7 0.10  1.50  20.48  707 24x1.5 7/0.52 0.7 0.10  1.50  21.6 740
27x1.5 1.38 0.7 0.10  1.70  21.31  785 27x1.5 7/0.52 0.7 0.10  1.70  22.5 820
30x1.5 1.38 0.7 0.10  1.70  22.03  855 30x1.5 7/0.52 0.7 0.10  1.70  23.3 893
37x1.5 1.38 0.7 0.10  1.70  23.66  1018 37x1.5 7/0.52 0.7 0.10  1.70  25 1062
44x1.5 1.38 0.7 0.10  1.70  26.44  1203 44x1.5 7/0.52 0.7 0.10  1.70  28 1255
48x1.5 1.38 0.7 0.10  1.70  26.87  1281 48x1.5 7/0.52 0.7 0.10  1.70  28.4 1336
52x1.5 1.38 0.7 0.10  2.00  28.19  1411 52x1.5 7/0.52 0.7 0.10  2.00  29.8 1472
61x1.5 1.38 0.7 0.10  2.00  29.82  1616 61x1.5 7/0.52 0.7 0.10  2.00  31.5 1685
Nominal
Size
Conductor Structure Insulation Thickness Thickness of Copper Tape  Sheath Thickness Approx. Overall Dia. Approx. Weight Nominal
Size
Conductor Structure Insulation Thickness Thickness of Copper Tape  Sheath Thickness Approx. Overall Dia. Approx. Weight
mm2 No./mm mm mm mm mm kg/km mm2 No./mm mm mm mm mm kg/km
2×2.5 1/1.78 0.8 0.10  1.50  10.56  173 2×2.5 7/0.68 0.8 0.10  1.50  11.08 183
3×2.5 1/1.78 0.8 0.10  1.50  11.08  209 3×2.5 7/0.68 0.8 0.10  1.50  11.64 221
4×2.5 1/1.78 0.8 0.10  1.50  11.96  250 4×2.5 7/0.68 0.8 0.10  1.50  12.59 265
5×2.5 1/1.78 0.8 0.10  1.50  12.93  291 5×2.5 7/0.68 0.8 0.10  1.50  13.63 303
6×2.5 1/1.78 0.8 0.10  1.50  13.94  342 6×2.5 7/0.68 0.8 0.10  1.50  14.72 362
7×2.5 1/1.78 0.8 0.10  1.50  13.94  361 7×2.5 7/0.68 0.8 0.10  1.50  14.72 380
8x2.5 1/1.78 0.8 0.10  1.50  14.95  405 8x2.5 7/0.68 0.8 0.10  1.50  15.81 427
10x2.5 1/1.78 0.8 0.10  1.70  17.72  524 10x2.5 7/0.68 0.8 0.10  1.70  18.76 554
12x2.5 1/1.78 0.8 0.10  1.70  18.24  584 12x2.5 7/0.68 0.8 0.10  1.70  19.32 615
14x2.5 1/1.78 0.8 0.10  1.70  19.12  659 14x2.5 7/0.68 0.8 0.10  1.70  20.27 694
16x2.5 1/1.78 0.8 0.10  1.70  20.09  741 16x2.5 7/0.68 0.8 0.10  1.70  21.31 777
19x2.5 1/1.78 0.8 0.10  1.70  21.10  844 19x2.5 7/0.68 0.8 0.10  1.70  22.4 888
24x2.5 1/1.78 0.8 0.10  1.70  24.48  1058 24x2.5 7/0.68 0.8 0.10  1.70  26.04 1115
27x2.5 1/1.78 0.8 0.10  1.70  25.00  1150 27x2.5 7/0.68 0.8 0.10  1.70  26.6 1209
30x2.5 1/1.78 0.8 0.10  1.70  25.88  1257 30x2.5 7/0.68 0.8 0.10  1.70  27.55 1322
37x2.5 1/1.78 0.8 0.10  2.00  28.46  1546 37x2.5 7/0.68 0.8 0.10  2.00  30.28 1625
44x2.5 1/1.78 0.8 0.10  2.20  32.24  1859 44x2.5 7/0.68 0.8 0.10  2.20  34.32 1956
48x2.5 1/1.78 0.8 0.10  2.20  32.76  1983 48x2.5 7/0.68 0.8 0.10  2.20  34.88 2085
52x2.5 1/1.78 0.8 0.10  2.20  33.64  2125 52x2.5 7/0.68 0.8 0.10  2.20  35.83 2234
61x2.5 1/1.78 0.8 0.10  2.20  35.62  2443 61x2.5 7/0.68 0.8 0.10  2.20  37.96 2567
Nominal
Size
Conductor Structure Insulation Thickness Thickness of Copper Tape  Sheath Thickness Approx. Overall Dia. Approx. Weight Nominal
Size
Conductor Structure Insulation Thickness Thickness of Copper Tape  Sheath Thickness Approx. Overall Dia. Approx. Weight
mm2 No./mm mm mm mm mm kg/km mm2 No./mm mm mm mm mm kg/km
2×4 1/2.25 0.8 0.10  1.5 11.5  218 2×4 7/0.85 0.8 0.10  1.5 12.1 229
3×4 1/2.25 0.8 0.10  1.5 12.1  269 3×4 7/0.85 0.8 0.10  1.5 12.7 282
4×4 1/2.25 0.8 0.10  1.5 13.1  327 4×4 7/0.85 0.8 0.10  1.5 13.8 342
5×4 1/2.25 0.8 0.10  1.5 14.2  384 5×4 7/0.85 0.8 0.10  1.5 15 393
6×4 1/2.25 0.8 0.10  1.5 15.4  453 6×4 7/0.85 0.8 0.10  1.5 16.3 473
7×4 1/2.25 0.8 0.10  1.5 15.4  483 7×4 7/0.85 0.8 0.10  1.5 16.3 501
8x4 1/2.25 0.8 0.10  1.7 16.9  560 8x4 7/0.85 0.8 0.10  1.7 17.9 581
10x4 1/2.25 0.8 0.10  1.7 19.6  703 10x4 7/0.85 0.8 0.10  1.7 20.8 732
12x4 1/2.25 0.8 0.10  1.7 20.2  790 12x4 7/0.85 0.8 0.10  1.7 21.4 819
14x4 1/2.25 0.8 0.10  1.7 21.2  896 14x4 7/0.85 0.8 0.10  1.7 22.5 929
Nominal
Size
Conductor Structure Insulation Thickness Thickness of Copper Tape  Sheath Thickness Approx. Overall Dia. Approx. Weight Nominal
Size
Conductor Structure Insulation Thickness Thickness of Copper Tape  Sheath Thickness Approx. Overall Dia. Approx. Weight
mm2 No./mm mm mm mm mm kg/km mm2 No./mm mm mm mm mm kg/km
2×6 1/2.76 0.8 0.10  1.5 12.5  274 2×6 7/1.04 0.8 0.10  1.5 13.2  287
3×6 1/2.76 0.8 0.10  1.5 13.2  346 3×6 7/1.04 0.8 0.10  1.5 14.0  360
4×6 1/2.76 0.8 0.10  1.5 14.3  425 4×6 7/1.04 0.8 0.10  1.5 15.2  441
5×6 1/2.76 0.8 0.10  1.5 15.6  503 5×6 7/1.04 0.8 0.10  1.5 16.5  510
6×6 1/2.76 0.8 0.10  1.5 16.9  596 6×6 7/1.04 0.8 0.10  1.5 18.0  618
7×6 1/2.76 0.8 0.10  1.5 16.9  642 7×6 7/1.04 0.8 0.10  1.5 18.0  660
8x6 1/2.76 0.8 0.10  1.7 18.6  741 8x6 7/1.04 0.8 0.10  1.7 19.8  763
10x6 1/2.76 0.8 0.10  1.7 21.7  934 10x6 7/1.04 0.8 0.10  1.7 23.1  964
12x6 1/2.76 0.8 0.10  1.7 22.3  1057 12x6 7/1.04 0.8 0.10  1.7 23.8  1086
14x6 1/2.76 0.8 0.10  1.7 23.5  1206 14x6 7/1.04 0.8 0.10  1.7 25.0  1238
Nominal Size Conductor Structure Insulation Thickness Thickness of Copper Tape  Sheath Thickness Approx. Overall Dia. Approx. Weight
mm2 No./mm mm mm mm mm kg/km
2×10 7/1.35 1.0  0.10  1.7 16.3  440
3×10 7/1.35 1.0  0.10  1.7 17.2  558
4×10 7/1.35 1.0  0.10  1.7 18.8  690
5×10 7/1.35 1.0  0.10  1.7 20.5  817
10×10 7/1.35 1.0  0.10  1.7 22.4  975
7×10 7/1.35 1.0  0.10  1.7 22.4  1048
8x10 7/1.35 1.0  0.10  1.7 24.2  1185
10x10 7/1.35 1.0  0.10  1.7 28.4  1502
Expand More
Nominal
Size
Conductor Structure Insulation Thickness Sheath Thickness Approx. Overall Dia. Approx. Weight Nominal
Size
Conductor Structure Insulation Thickness Sheath Thickness Approx. Overall Dia. Approx. Weight
mm2 No./mm mm mm mm kg/km mm2 No./mm mm mm mm kg/km
2×0.75 24/0.20 0.6 1.2 7.11  63 2×1 32/0.20 0.6 1.2 7.48  72
3×0.75 24/0.20 0.6 1.2 7.49  72 3×1 32/0.20 0.6 1.2 7.89  83
4×0.75 24/0.20 0.6 1.2 8.14  88 4×1 32/0.20 0.6 1.2 8.59  103
5×0.75 24/0.20 0.6 1.2 8.78  106 5×1 32/0.20 0.6 1.2 9.35  125
6×0.75 24/0.20 0.6 1.2 9.48  126 6×1 32/0.20 0.6 1.2 10.00  147
7×0.75 24/0.20 0.6 1.2 9.48  131 7×1 32/0.20 0.6 1.2 10.00  154
8x0.75 24/0.20 0.6 1.2 10.17  147 8x1 32/0.20 0.6 1.2 10.75  173
10x0.75 24/0.20 0.6 1.2 11.80  186 10x1 32/0.20 0.6 1.5 13.11  237
12x0.75 24/0.20 0.6 1.5 12.76  224 12x1 32/0.20 0.6 1.5 13.49  263
14x0.75 24/0.20 0.6 1.5 13.36  252 14x1 32/0.20 0.6 1.5 14.14  297
16x0.75 24/0.20 0.6 1.5 14.03  283 16x1 32/0.20 0.6 1.5 14.86  335
19x0.75 24/0.20 0.6 1.5 14.73  321 19x1 32/0.20 0.6 1.5 15.61  381
24x0.75 24/0.20 0.6 1.5 17.05  403 24x1 32/0.20 0.6 1.5 18.11  479
27x0.75 24/0.20 0.6 1.5 17.40  435 27x1 32/0.20 0.6 1.5 18.49  520
30x0.75 24/0.20 0.6 1.5 18.05  477 30x1 32/0.20 0.6 1.7 19.54  587
37x0.75 24/0.20 0.6 1.7 19.78  587 37x1 32/0.20 0.6 1.7 21.01  701
44x0.75 24/0.20 0.6 1.7 22.10  695 44x1 32/0.20 0.6 1.7 23.51  831
48x0.75 24/0.20 0.6 1.7 22.46  739 48x1 32/0.20 0.6 1.7 23.90  886
52x0.75 24/0.20 0.6 1.7 23.07  792 52x1 32/0.20 0.6 1.7 24.55  950
61x0.75 24/0.20 0.6 1.7 24.43  910 61x1 32/0.20 0.6 1.7 26.01  1094
Nominal
Size
Conductor Structure Insulation Thickness Sheath Thickness Approx. Overall Dia. Approx. Weight Nominal
Size
Conductor Structure Insulation Thickness Sheath Thickness Approx. Overall Dia. Approx. Weight
mm2 No./mm mm mm mm kg/km mm2 No./mm mm mm mm kg/km
2×1.5 30/0.25 0.7 1.2  8.47  94 2×2.5 50/0.25 0.8 1.2  9.77  130
3×1.5 30/0.25 0.7 1.2  8.95  117 3×2.5 50/0.25 0.8 1.2  10.33  165
4×1.5 30/0.25 0.7 1.2  9.77  143 4×2.5 50/0.25 0.8 1.2  11.28  203
5×1.5 30/0.25 0.7 1.2  10.53  163 5×2.5 50/0.25 0.8 1.5  12.92  253
6×1.5 30/0.25 0.7 1.2  11.42  197 6×2.5 50/0.25 0.8 1.5  14.01  306
7×1.5 30/0.25 0.7 1.2  11.42  208 7×2.5 50/0.25 0.8 1.5  14.01  325
8x1.5 30/0.25 0.7 1.5  12.92  252 8x2.5 50/0.25 0.8 1.5  15.10  366
10x1.5 30/0.25 0.7 1.5  15.00  318 10x2.5 50/0.25 0.8 1.5  17.64  465
12x1.5 30/0.25 0.7 1.5  15.46  355 12x2.5 50/0.25 0.8 1.5  18.20  522
14x1.5 30/0.25 0.7 1.5  16.23  403 14x2.5 50/0.25 0.8 1.5  19.15  596
16x1.5 30/0.25 0.7 1.5  17.08  454 16x2.5 50/0.25 0.8 1.7  20.59  692
19x1.5 30/0.25 0.7 1.5  17.97  521 19x2.5 50/0.25 0.8 1.7  21.68  798
24x1.5 30/0.25 0.7 1.7  21.35  677 24x2.5 50/0.25 0.8 1.7  25.32  1008
27x1.5 30/0.25 0.7 1.7  21.81  735 27x2.5 50/0.25 0.8 1.7  25.88  1099
30x1.5 30/0.25 0.7 1.7  22.58  805 30x2.5 50/0.25 0.8 1.7  26.82  1207
37x1.5 30/0.25 0.7 1.7  24.32  967 37x2.5 50/0.25 0.8 1.7  28.95  1458
44x1.5 30/0.25 0.7 1.7  27.30  1148 44x2.5 50/0.25 0.8 2.0  33.19  1782
48x1.5 30/0.25 0.7 1.7  27.75  1227 48x2.5 50/0.25 0.8 2.0  33.75  1907
52x1.5 30/0.25 0.7 1.7  28.53  1318 52x2.5 50/0.25 0.8 2.0  34.69  2049
61x1.5 30/0.25 0.7 2.0  30.87  1565 61x2.5 50/0.25 0.8 2.2  37.23  2405
Expand More
Nominal
Size
Conductor Structure Insulation Thickness Dia. of Braided Copper Wire  Sheath Thickness Approx. Overall Dia. Approx. Weight Nominal
Size
Conductor Structure Insulation Thickness Dia. of Braided Copper Wire  Sheath Thickness Approx. Overall Dia. Approx. Weight
mm2 No./mm mm mm mm mm kg/km mm2 No./mm mm mm mm mm kg/km
2×0.75 24/0.20 0.6 0.15 1.2  8.0  92 2×1 32/0.2 0.6 0.15 1.2 8.4  103
3×0.75 24/0.20 0.6 0.15 1.2  8.4  103 3×1 32/0.2 0.6 0.15 1.2 8.8  115
4×0.75 24/0.20 0.6 0.15 1.2  9.0  121 4×1 32/0.2 0.6 0.15 1.2 9.5  138
5×0.75 24/0.20 0.6 0.15 1.2  9.7  143 5×1 32/0.2 0.6 0.15 1.2 10.2  162
6×0.75 24/0.20 0.6 0.15 1.2  10.4  165 6×1 32/0.2 0.6 0.15 1.2 10.9  188
7×0.75 24/0.20 0.6 0.15 1.2  10.4  171 7×1 32/0.2 0.6 0.15 1.2 10.9  196
8x0.75 24/0.20 0.6 0.15 1.2  11.1  190 8x1 32/0.2 0.6 0.15 1.2 11.7  218
10x0.75 24/0.20 0.6 0.20  1.5  13.5  269 10x1 32/0.2 0.6 0.2 1.2 13.6  287
12x0.75 24/0.20 0.6 0.20  1.5  13.9  291 12x1 32/0.2 0.6 0.2 1.5 14.6  335
14x0.75 24/0.20 0.6 0.20  1.5  14.5  323 14x1 32/0.2 0.6 0.2 1.5 15.2  373
16x0.75 24/0.20 0.6 0.20  1.5  15.1  358 16x1 32/0.2 0.6 0.2 1.5 16.0  414
19x0.75 24/0.20 0.6 0.20  1.5  15.8  400 19x1 32/0.2 0.6 0.2 1.5 16.7  465
24x0.75 24/0.20 0.6 0.20  1.5  18.2  495 24x1 32/0.2 0.6 0.2 1.7 19.6  596
27x0.75 24/0.20 0.6 0.20  1.5  18.5  530 27x1 32/0.2 0.6 0.2 1.7 20.0  639
30x0.75 24/0.20 0.6 0.20  1.7  19.5  592 30x1 32/0.2 0.6 0.2 1.7 20.6  692
37x0.75 24/0.20 0.6 0.20  1.7  20.9  694 37x1 32/0.2 0.6 0.2 1.7 22.1  815
44x0.75 24/0.20 0.6 0.25  1.7  23.4  841 44x1 32/0.2 0.6 0.25 1.7 24.8  987
48x0.75 24/0.20 0.6 0.25  1.7  23.8  888 48x1 32/0.2 0.6 0.25 1.7 25.2  1045
52x0.75 24/0.20 0.6 0.25  1.7  24.3  941 52x1 32/0.2 0.6 0.25 1.7 25.8  1114
61x0.75 24/0.20 0.6 0.25  1.7  25.8  1074 61x1 32/0.2 0.6 0.25 1.7 27.3  1268
Nominal
Size
Conductor Structure Insulation Thickness Dia. of Braided Copper Wire  Sheath Thickness Approx. Overall Dia. Approx. Weight Nominal
Size
Conductor Structure Insulation Thickness Dia. of Braided Copper Wire  Sheath Thickness Approx. Overall Dia. Approx. Weight
mm2 No./mm mm mm mm mm kg/km mm2 No./mm mm mm mm mm kg/km
2×1.5 30/0.25 0.7 0.15 1.2 9.37  129 2×2.5 50/0.25 3.64 0.20  1.5 11.5  198
3×1.5 30/0.25 0.7 0.15 1.2 9.85  154 3×2.5 50/0.25 3.64 0.20  1.5 12.0  236
4×1.5 30/0.25 0.7 0.15 1.2 10.67  183 4×2.5 50/0.25 3.64 0.20  1.5 13.0  281
5×1.5 30/0.25 0.7 0.15 1.2 11.43  207 5×2.5 50/0.25 3.64 0.20  1.5 14.0  321
6×1.5 30/0.25 0.7 0.15 1.2 12.32  245 6×2.5 50/0.25 3.64 0.20  1.5 15.1  381
7×1.5 30/0.25 0.7 0.15 1.5 12.92  274 7×2.5 50/0.25 3.64 0.20  1.5 15.1  399
8x1.5 30/0.25 0.7 0.20  1.5 14.02  320 8x2.5 50/0.25 3.64 0.20  1.5 16.2  447
10x1.5 30/0.25 0.7 0.20  1.5 16.10  399 10x2.5 50/0.25 3.64 0.20  1.5 18.7  560
12x1.5 30/0.25 0.7 0.20  1.5 16.56  438 12x2.5 50/0.25 3.64 0.20  1.7 19.7  639
14x1.5 30/0.25 0.7 0.20  1.5 17.33  490 14x2.5 50/0.25 3.64 0.20  1.7 20.6  719
16x1.5 30/0.25 0.7 0.20  1.5 18.18  546 16x2.5 50/0.25 3.64 0.20  1.7 21.7  803
19x1.5 30/0.25 0.7 0.20  1.7 19.47  637 19x2.5 50/0.25 3.64 0.20  1.7 22.8  916
24x1.5 30/0.25 0.7 0.20  1.7 22.45  793 24x2.5 50/0.25 3.64 0.25  1.7 26.6  1177
27x1.5 30/0.25 0.7 0.20  1.7 22.91  853 27x2.5 50/0.25 3.64 0.25  1.7 27.2  1272
30x1.5 30/0.25 0.7 0.25  1.7 23.88  954 30x2.5 50/0.25 3.64 0.25  1.7 28.1  1387
37x1.5 30/0.25 0.7 0.25  1.7 25.62  1129 37x2.5 50/0.25 3.64 0.25  2.0  30.9  1696
44x1.5 30/0.25 0.7 0.25  1.7 28.60  1331 44x2.5 50/0.25 3.64 0.30  2.0  34.7  2043
48x1.5 30/0.25 0.7 0.25  1.7 29.05  1413 48x2.5 50/0.25 3.64 0.30  2.0  35.2  2173
52x1.5 30/0.25 0.7 0.25  1.7 29.83  1509 52x2.5 50/0.25 3.64 0.30  2.0  36.6  2357
61x1.5 30/0.25 0.7 0.25  1.7 31.57  1726 61x2.5 50/0.25 3.64 0.30  2.0  38.7  2698
Expand More
Other cables with similar properties
Inquiry
We respond quickly to any questions, inquiries, needs and feedback. If you have business needs or questions about our products, feel free to contact us.
Your Country
Company name
Your name *
Email *
Phone *
Skype/WhatsApp/Wechat
Your message *
