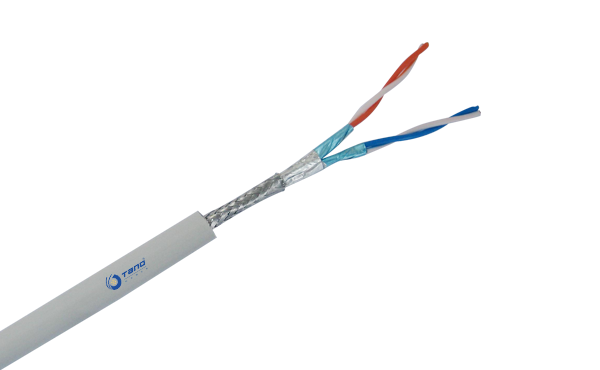

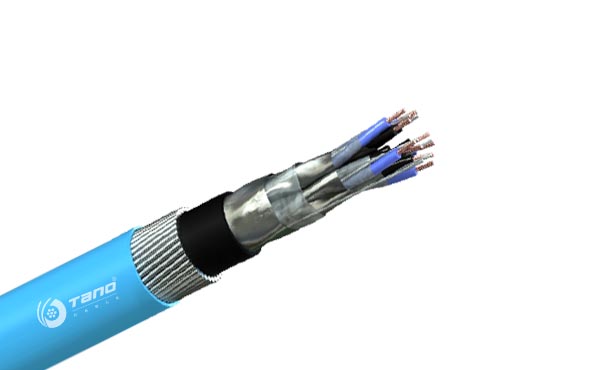

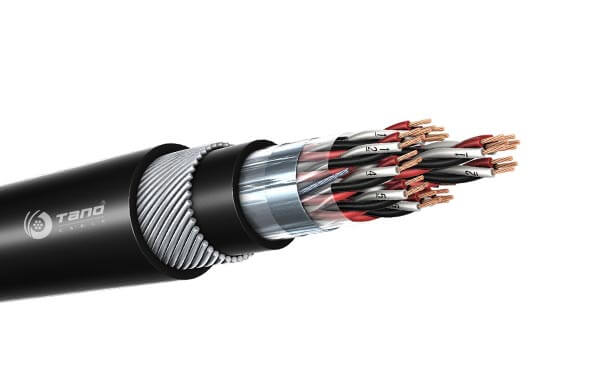

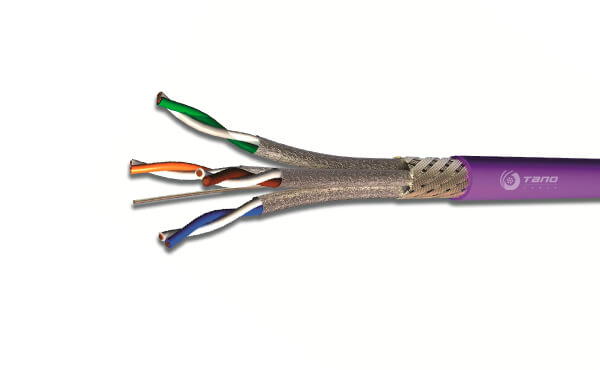

Instrument Cable

Overview Specifications

CONSTRUCTION

Overview

APPLICATION

Instrument cables are designed for use in communication and instrumentation applications in and around process industries like oil exploration, cement, paper, steel, power generation and others. Cables made to specific rigid requirements are utilized in process controls, transmission of signals, computers, control systems and monitor networks as well as in intrinsically safe systems in hazardous areas like petrochemical plants and thermal power plants.

STANDARD

BS 5308

DOWNLOAD
CABLE DATASHEET

300/500V

BS 5308

INDUSTRIAL USE

BY COLOR
BY NUMBER

Specifications

ELECTRICAL PERFORMANCE

300/500V

STANDARD

BS 5308

APPLICATION

INDUSTRIAL USE

CORE IDENTIFICATION

BY COLOR
BY NUMBER

CHEMICAL PERFORMANCE

Chemical & Oil resistance: Good

MECHANICAL PERFORMANCE

Minimum bending radius: x10 cable diameter

FIRE PERFORMANCE

Flame non-propagation base on IEC 60332-1
Reduced emission of halogens chlorine＜15%

THERMINAL PERFORMANCE

Maximum service temperature:90℃
Maximum short-circuit temperature:250℃(max. 5s)
Minimum service temperature:-40℃

Other Properties

APPROVALS

N/A

INSTALLATION CONDITIONS

OIL INK PRINTING
EMBOSSING PRINTING

CABLE MARKING

OIL INK PRINTING
EMBOSSING PRINTING

PACKAGING

BY COIL/BY ROLL
BY PLASTIC, POLYWOOD, WOODEN REEL/DRUM

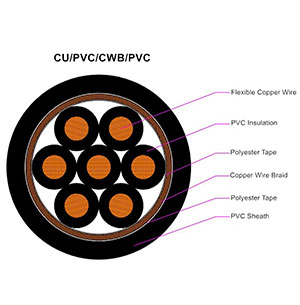

CONSTRUCTION

CABLE TYPES:

1. PE-OS-PVC/RE-2Y(St)Y
2. PE-IS-OS-PVC/RE-2Y(St)Y PIMF
3. MG-XLPE-OS-LSOH
4. XLPE-OS-LSOH/RE-2X(St)H
5. XLPE-IS-OS-LSOH/RE-2X(St)H PIMF
6. PE-OS-SWA-PVC/RE-2Y(St)2Y SWAY
7. PE-IS-OS-SWA-PVC/RE-2Y(St)2Y PIMF SWAY
8. MG-XLPE-OS-SWA-LSOH
9. MG-XLPE-IS-OS-SWA-LSOH
10. XLPE-OS-SWA-LSOH/RE-2X(St)H SWAH
11. XLPE-IS-OS-SWA-LSOH/RE-2X(St)H PIMF SWAH
12. PE-OS-LEAD-SWA-PVC/RE-2Y(St)Y MY WWAY
13. PE-IS-OS-LEAD-SWA-PVC/RE-2Y(St)Y PIMF MY WWAY
14. PVC-OS-PVC/RE-Y(St)Y
15. PVC-IS-OS-PVC/RE-Y(St)Y PIMF
16. PVC-OS-SWA-PVC/RE-Y(St)Y SWAY
17. PVC-IS-OS-SWA-PVC/RE-Y(St)Y PIMF SWAY
