APPLICATION

Flexible cables for mobile lightweight, suitable for installation in homes, kitchens, offices, for connection of portable light as hair dryers, washing machines, refrigerators etc.., Which may be used for cooking and heating appliances provided they are not in contact with hot parts, not suitable for external use, in industrial buildings or for non-domestic portable tools.

STANDARD

BS EN 50525-2-11
DOWNLOAD
CABLE DATASHEET
300/500V
BS EN 50525-2-11
HOME USE
INDUSTRIAL USE
COMMERCIAL USE
BY COLOR
Specifications
ELECTRICAL PERFORMANCE
300/500V
STANDARD
BS EN 50525-2-11
APPLICATION
HOME USE
INDUSTRIAL USE
COMMERCIAL USE
CORE IDENTIFICATION
BY COLOR
CHEMICAL PERFORMANCE
Chemical & Oil resistance:Good
MECHANICAL PERFORMANCE
Minimum bending radius:x5 cable diameter
FIRE PERFORMANCE
Flame non-propagation base on IEC 60332-1
Reduced emission of halogens chlorine<15%
THERMINAL PERFORMANCE
Maximum service temperature:60℃
Maximum short-circuit temperature:150℃(max. 5s)
Minimum service temperature:5℃
Other Properties
APPROVALS
CE
INSTALLATION CONDITIONS
OPEN AIR
IN CONDUIT
CABLE MARKING
OIL INK PRINTING
EMBOSSING PRINTING
PACKAGING
BY COIL/BY ROLL
BY PLASTIC, POLYWOOD, WOODEN REEL/DRUM

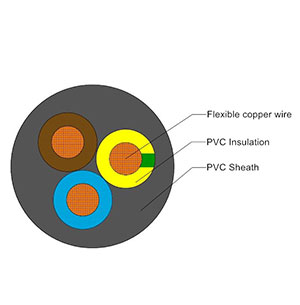

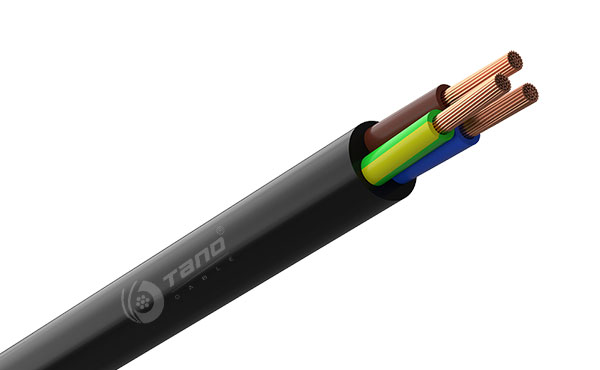

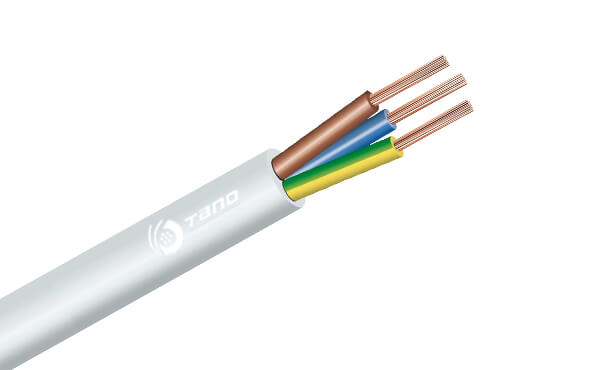

CONSTRUCTION
1. Conductor:

Annealed copper wire to BS 6360, IEC 60228 class 5

2. Insulation:

PVC compound type TI 2

3. Outer sheath:

PVC compound type TM 2

CHARACTERISTIC

Maximum conductor operating temperature: +60°C

Temperature range:
flexing -5 °C to +70 °C
fixed installation -40 °C to +70 °C

Nominal voltage: Uo/U: 300/ 500 V

Test voltage: 2000V

Minimum bending radius: 6xD(cable diameter)
PARAMETER

H05VV-F
Nominal Cross
Section Area
No. of Wires
/Dia. of Wires
Approx. Dia. of Conductor Thickness
of
Insulation
Thickness
of
Sheath
Approx. Overall
 Dia.
Approx.
Weight
of Cable
Max. Conductor
Resistance
 at 20°C
Min.
Insulation
Resistance
at 70°C
mm2 No./mm mm mm mm mm kg/km Ω/km MΩ.km
2x0.75 24/0.2 1.12 0.6 0.8  6.24  54  26.0  0.011
2x1.0 34/0.2 1.29 0.6 0.8  6.58  62  19.5 0.010
2x1.5 30/0.25 1.57 0.7 0.8  7.54  84  13.3 0.010
2x2.5 49/0.25 2.02 0.8 1.0  9.24  130  7.98  0.0095
2x4.0 56/0.3 2.9 0.8  1.1  11.20  193  4.95 0.0078
3x0.75 24/0.2 1.12 0.6  0.8  6.60  65  26.0  0.0110
3x1.0 34/0.2 1.29 0.6 0.8  6.96  76  19.5 0.0100
3x1.5 30/0.25 1.57 0.7 0.9  8.20  106  13.3 0.0100
3x2.5 49/0.25 2.02 0.8 1.1  10.00  163  7.98  0.0095
3x4.0 56/0.3 2.9 0.8 1.2  12.10  242  4.95 0.0078
4x0.75 24/0.2 1.12 0.6 0.8  7.20  78  26.0  0.0110
4x1.0 34/0.2 1.29 0.6 0.9  7.81  95  19.5 0.0100
4x1.5 30/0.25 1.57 0.7 1.0  9.17  134  13.3 0.0100
4x2.5 49/0.25 2.02 0.8  1.1  10.94  199  7.98  0.0095
4x4.0 56/0.3 2.9 0.8 1.2  13.26  297  4.95 0.0078
5x0.75 24/0.2 1.12 0.6 0.9  8.06  96  26.0  0.0110
5x1.0 34/0.2 1.29 0.6 0.9  8.52  113  19.5 0.0100
5x1.5 30/0.25 1.57 0.7 1.1  10.22  163  13.3 0.0100
5x2.5 49/0.25 2.02 0.8  1.2  12.17  242  7.98  0.0095
5x4.0 56/0.3 2.9 0.8 1.4  14.95  367  4.95 0.0078
