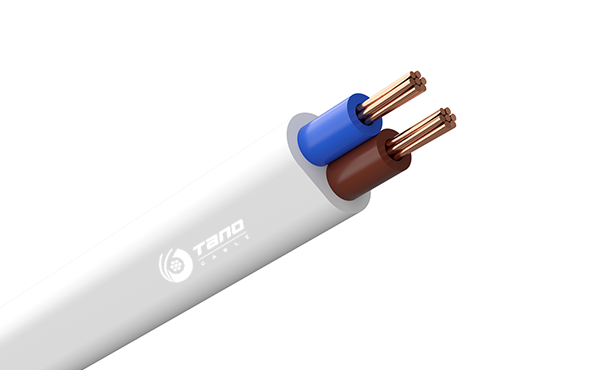

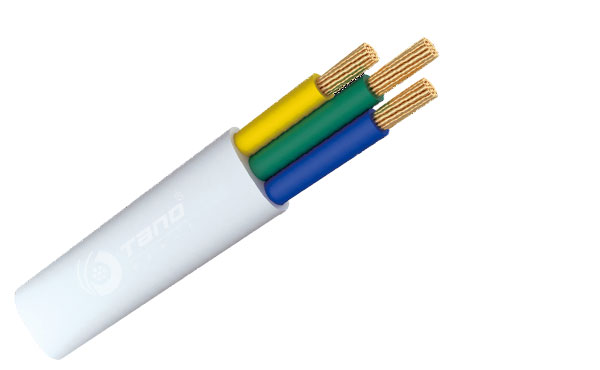

FLAT TPS CABLE - TANO CABLE

Overview Specifications

CONSTRUCTION PARAMETER

Overview

APPLICATION

It is used in conduit, underground ducts for domestic, commercial and industrial installations where not subject to mechanical damage. Suitable for single phase applications requiring neutral and earth.

STANDARD

AS/NZS 5000.2

DOWNLOAD
CABLE DATASHEET

450/750V

AS/NZS 5000.2

HOME USE
INDUSTRIAL USE
COMMERCIAL USE

BY COLOR

Specifications

ELECTRICAL PERFORMANCE

450/750V

STANDARD

AS/NZS 5000.2

APPLICATION

HOME USE
INDUSTRIAL USE
COMMERCIAL USE

CORE IDENTIFICATION

BY COLOR

CHEMICAL PERFORMANCE

Chemical & Oil resistance:Acceptable

MECHANICAL PERFORMANCE

Minimum bending radius:x5 cable diameter

FIRE PERFORMANCE

Flame non-propagation base on IEC 60332-1

THERMINAL PERFORMANCE

Maximum service temperature:70℃
Maximum short-circuit temperature:160℃(max. 5s)
Minimum service temperature:-40℃

Other Properties

APPROVALS

N/A

INSTALLATION CONDITIONS

IN CONDUIT
UNDERGROUND DUCT

CABLE MARKING

OIL INK PRINTING
EMBOSSING PRINTING

PACKAGING

BY COIL/BY ROLL
BY PLASTIC, POLYWOOD, WOODEN REEL/DRUM

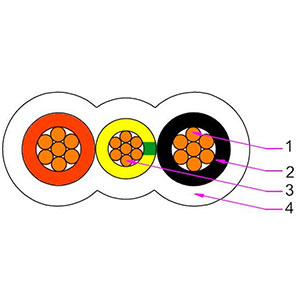

CONSTRUCTION

1. Phase Conductor:

class 1 plain annealed solid copper wire, or class 2 plain annealed stranded copper wire

2. Insulation:

PVC, V-90, Color: Red, Black, Yellow/Green

3. Earth Conductor:

class 1 plain annealed solid copper wire, or class 2 plain annealed stranded copper wire

4. Outer Sheath:

PVC, 3V-90, Color: White

Nominal Operating temperature: 75°C

Nominal Voltage:Uo/U: 450/ 750 V

PARAMETER

FLAT TPS CABLE

Nominal Cross Section	Phase Conductor		Phase Insulation		Earth Conductor		Earth Insulation		Outer Sheath			Weight
Nominal Cross Section	Construction	Diameter	Nominal Thickness	Diameter	Construction	Diameter	Nominal Thickness	Diameter	Nominal Thickness	Width	Height	Weight
mm2	No./mm	mm	mm	mm	No./mm	mm	mm	mm	mm	mm	mm	kg/km
2x1.0+1.0	1/1.13	1.13	0.6	2.33	1/1.13	1.13	0.6	2.33	0.9	8.79	4.13	72.12
2x1.5+1.5	7/0.52	1.56	0.6	2.76	7/0.52	1.56	0.6	2.76	0.9	10.08	4.56	93.63
2x2.5+2.5	7/0.68	2.04	0.7	3.44	7/0.68	2.04	0.7	3.44	1.0	12.32	5.44	143.65
2x4+2.5	7/0.85	2.55	0.8	4.15	7/0.68	2.04	0.7	3.44	1.1	13.94	6.35	188.97
2x6+2.5	7/1.04	3.12	0.8	4.72	7/0.68	2.04	0.7	3.44	1.1	15.08	6.92	234.16
2x10+4	7/1.35	4.05	1.0	6.05	7/0.85	2.55	0.8	4.15	1.2	18.65	8.45	365.37
2x16+6	7/1.70	5.10	1.0	7.10	7/1.04	3.12	0.8	4.72	1.3	21.52	9.70	522.80
