Overview

APPLICATION

PVC panel wiring for use in the switch control, relay and instrumentation panels of power switchgear and for purposes such as internal connectors in rectifier equipment, motor starters and controllers.

STANDARD

BS EN 50525-2-31

DOWNLOAD
CABLE DATASHEET

300/500V

BS EN 50525-2-31

ELECTRICAL PANEL WIRING
HOME USE
INDUSTRIAL USE
COMMERCIAL USE

BY COLOR

Specifications

ELECTRICAL PERFORMANCE

300/500V

STANDARD

BS EN 50525-2-31

APPLICATION

ELECTRICAL PANEL WIRING
HOME USE
INDUSTRIAL USE
COMMERCIAL USE

CORE IDENTIFICATION

BY COLOR

CHEMICAL PERFORMANCE

Chemical & Oil resistance:Acceptable

MECHANICAL PERFORMANCE

Minimum bending radius:x5 cable diameter

FIRE PERFORMANCE

Flame non-propagation base on IEC 60332-1

THERMINAL PERFORMANCE

Maximum service temperature:70℃
Maximum short-circuit temperature:160℃(max. 5s)
Minimum service temperature:-40℃

Other Properties

APPROVALS

INSTALLATION CONDITIONS

IN CONDUIT

CABLE MARKING

OIL INK PRINTING
EMBOSSING PRINTING

PACKAGING

BY COIL/BY ROLL
BY PLASTIC, POLYWOOD, WOODEN REEL/DRUM

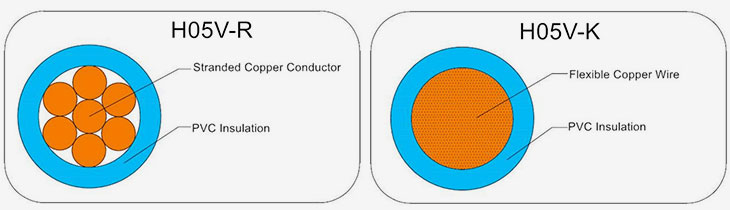

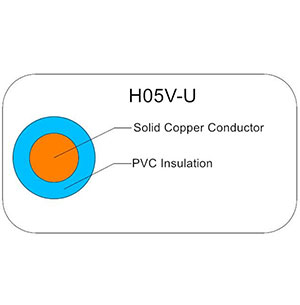

CONSTRUCTION

1. Conductor:

annealed copper conductor acc. to EN 60228:

class 1 solid -H05V-U

class 2 stranded H05V-R

class 5 flexible H05V-K

2. Insulation:

PVC compound type TI 1

3. Color of insulation:

blue, black, brown, green/yellow or other colors

CHARACTERISTIC

Maximum conductor operating temperature: +70°C

Lowest ambient temperature for fixed installation: -30°C

Lowest installation temperature: -5°C

Nominal voltage: Uo/U: 300/ 500 V

Test voltage: 2000V

Minimum bending radius:

Minimum bending radius:	For cable diameter D (mm)
	D≤8	8<D≤12	12<D≤20	D>20
Normal use	4 D	5 D	6 D	6 D
Careful bending at termination	2 D	3 D	4 D	4 D

PARAMETER

H05V-U

H05V-K

H05V-R

Nominal Cross Section Area	No. of Wires /Dia. of Wires	Approx. Dia. of Conductor	Thickness of Insulation	Approx. Overall Dia.	Approx. Weight of Cable	Max. Conductor Resistance at 20°C	Min. Insulation Resistance at 70°C



mm2	No./mm	mm	mm	mm	kg/km	Ω/km	MΩ.km
H05V-U
0.5	1/0.80	0.80	0.6	2.1	8.9	36.0	0.014
0.75	1/0.97	0.97	0.6	2.2	11.5	24.5	0.013
1	1/1.13	1.13	0.6	2.4	14.3	18.1	0.011

Expand More

Nominal Cross Section Area	No. of Wires /Dia. of Wires	Approx. Dia. of Conductor	Thickness of Insulation	Approx. Overall Dia.	Approx. Weight of Cable	Max. Conductor Resistance at 20°C	Min. Insulation Resistance at 70°C



mm2	No./mm	mm	mm	mm	kg/km	Ω/km	MΩ.km
H05V-K
0.5	16/0.20	0.91	0.6	2.2	9.2	39.0	0.013
0.75	24/0.20	1.12	0.6	2.4	12.1	26.0	0.011
1	32/0.20	1.29	0.6	2.6	14.9	19.5	0.010

Expand More

Nominal Cross Section Area	No. of Wires /Dia. of Wires	Approx. Dia. of Conductor	Thickness of Insulation	Approx. Overall Dia.	Approx. Weight of Cable	Max. Conductor Resistance at 20°C	Min. Insulation Resistance at 70°C



mm2	No./mm	mm	mm	mm	kg/km	Ω/km	MΩ.km
H05V-R
0.5	7/0.30	0.90	0.6	2.1	8.9	36.0	0.014
0.75	7/0.37	1.11	0.6	2.3	11.5	24.5	0.012
1	7/0.43	1.29	0.6	2.5	14.4	18.1	0.011

Expand More

H05V-U & H05V-R & H05V-K
