APPLICATION

These cables are designed to provide high flexibility and have the capacity to withstand weather,oils/greases,mechanical and thermal stresses.
Applications include handling equipment, mobile power supplies, work sites, stage and audio visual equipment, port areas and dams. Also for use in drainage and water treatment, cold environments and severe industrial environments.

STANDARD

HD 22.4 S4
DOWNLOAD
CABLE DATASHEET
450/750V
HD 22.4 S4
INDUSTRIAL USE
MOBILE USE
ROBOTICS
WINDMILLS
BY COLOR
Specifications
ELECTRICAL PERFORMANCE
450/750V
STANDARD
HD 22.4 S4
APPLICATION
INDUSTRIAL USE
MOBILE USE
ROBOTICS
WINDMILLS
CORE IDENTIFICATION
BY COLOR
CHEMICAL PERFORMANCE
Chemical & Oil resistance:Excellent
MECHANICAL PERFORMANCE
Minimum bending radius:x10 cable diameter
FIRE PERFORMANCE
Flame non-propagation base on IEC 60332-1
THERMINAL PERFORMANCE
Maximum service temperature:85℃
Maximum short-circuit temperature:200℃(max. 5s)
Minimum service temperature:-25℃
Other Properties
APPROVALS
CE
INSTALLATION CONDITIONS
OPEN AIR
CABLE MARKING
OIL INK PRINTING
EMBOSSING PRINTING
PACKAGING
BY COIL/BY ROLL
BY WOODEN OR STEEL-WOODEN OR FULL STEEL REEL/DRUM

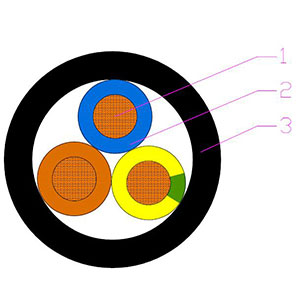

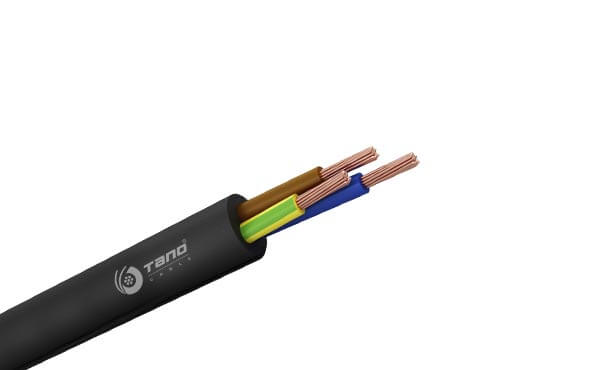

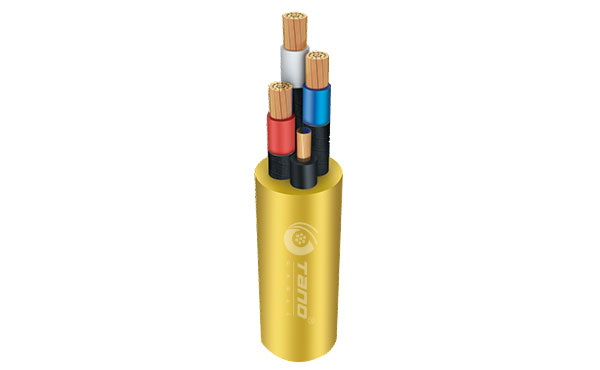

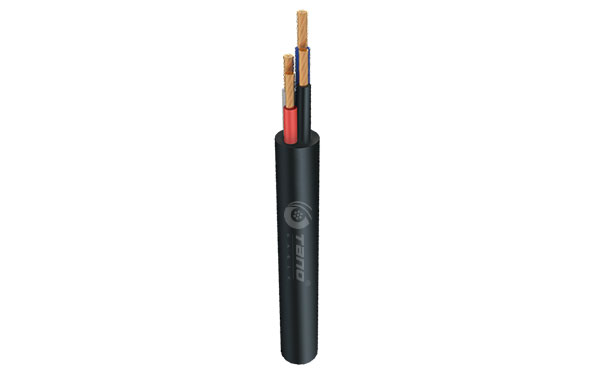

CONSTRUCTION

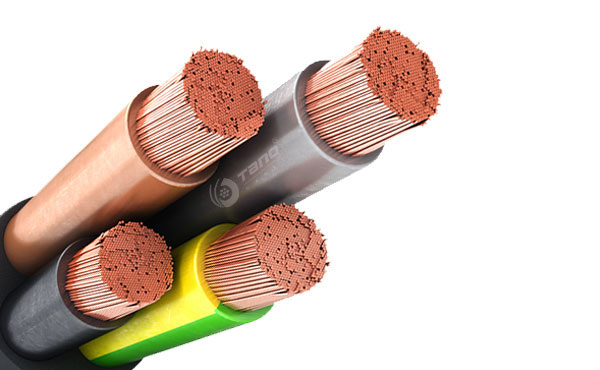

1. Conductor:

Plain annealed copper wire class 5 to BS EN 60228

2. Insulation:

EPR (Ethylene Propylene Rubber) Type EI4 to BS7655

3. Sheath:

PCP (Polychloroprene) Type EM2 to BS7655

TECHINCAL DATA

Voltage rating: 450/750V
Conductor operating temperature: -30°C to +60°C (85°C max)

Minimum Bending Radius

Up to 25mm2: 6 x overall diameter
Above 25mm2: 8 x overall diameter

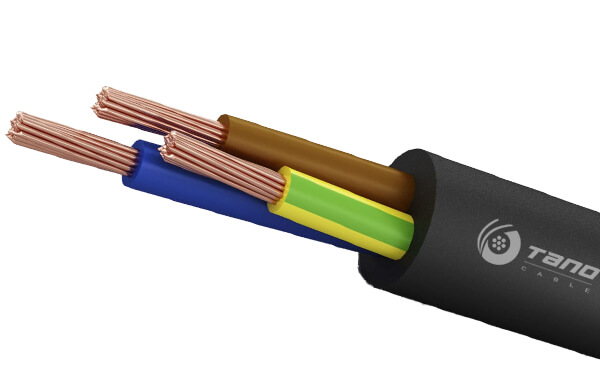

Core Identification

2 Cores: Blue, Brown
3 Cores: Green/Yellow, Blue, Brown
4 Cores: Green/Yellow, Brown, Black, Grey
5 Cores: Green/Yellow, Blue, Brown, Black, Grey
6 Cores and above: Black with White numerals, Green/Yellow

Sheath Color: Black
PARAMETER

H07RN-F CABLE
No. & Nominal Cross
Sectional Area of Conductors
Thickness of Insulation
Specified Value
Thickness of Sheath
Specified Value
Mean Overall Dia.
One Layer Two Layers Lower Limit Upper Limit
Inner Layer Outer Layer
mm2 mm mm mm mm mm mm
1 x 1.5 0.8  1.4  - - 5.7 7.1
1 x 2.5 0.9  1.4  - - 6.3 7.9
1 x 4 1.0  1.5  - - 7.2 9.0
1 x 6 1.0  1.6  - - 7.9 9.8
1 x 10 1.2  1.8  - - 9.5 11.9
1 x 16 1.2  1.9  - - 10.8 13.4
1 x 25 1.4  2.0  - - 12.7 15.8
1 x 35 1.4  2.2  - - 14.3 17.9
1 x 50 1.6  2.4  - - 16.5 20.6
1 x 70 1.6  2.6  1.0  1.6 18.6 23.3
1 x 95 1.8  2.8  1.1  1.7 20.8 26.0
1 x 120 1.8  3.0  1.2  1.8 22.8 28.6
1 x 150 2.0  3.2  1.3  1.9 25.2 31.4
1 x 185 2.2  3.4  1.4  2.0  27.6 34.4
1 x 240 2.4  3.5  1.4  2.1 30.6 38.3
1 x 300 2.6  3.6  1.4  2.2 33.5 41.9
1 x 400 2.8  3.8  1.5  2.3 37.4 46.8
1 x 500 3.0  4.0  1.6  2.4 41.3 52.0
1 x 630 3.0  4.1  1.6  2.5 45.5 57.0
2 x 1.0 0.8  1.3  - - 7.7 10.0
2 x 1.5 0.8  1.5  - - 8.5 11.0
2 x 2.5 0.9  1.7  - - 10.2 13.1
2 x 4 1.0  1.8  - - 11.8 15.1
2 x 6 1.0  2.0  - - 13.1 16.8
2 x 10 1.2  3.1  1.2 1.9 17.7 22.6
2 x 16 1.2  3.3  1.3 2.0  20.2 25.7
2 x 25 1.4  3.6  1.4 2.2 24.3 30.7
3 x 1.0 0.8  1.4  - - 8.3 10.7
3 x 1.5 0.8  1.6  - - 9.2 11.9
3 x 2.5 0.9  1.8  - - 10.9 14.0
3 x 4 1.0  1.9  - - 12.7 16.2
3 x 6 1.0  2.1  - - 14.1 18.0
3 x 10 1.2  3.3  1.3 2.0  19.1 24.2
3 x 16 1.2  3.5  1.4 2.1 21.8 27.6
3 x 25 1.4  3.8  1.5 2.3 26.1 33.0
3 x 35 1.4  4.1  1.6 2.5 29.3 37.1
3 x 50 1.6  4.5  1.8 2.7 34.1 42.9
3 x 70 1.6  4.8  1.9 2.9 38.4 48.3
3 x 95 1.8  5.3  2.1 3.2 43.3 54.0
3 x 120 1.8  5.6  2.2 3.4 47.4 60.0
3 x 150 2.0  6.0  2.4 3.6 52.0  66.0
3 x 185 2.2  6.4  2.5 3.9 57.0  72.0
3 x 240 2.4  7.1  2.8 4.3 65.0  82.0
3 x 300 2.6  7.7  3.1 4.6 72.0  90.0
4 x 1.0 0.8  1.5  - - 9.2  11.9
4 x 1.5 0.8  1.7  - - 10.2  13.1
4 x 2.5 0.9  1.9  - - 12.1  15.5
4 x 4 1.0  2.0  - - 14.0  17.9
4 x 6 1.0  2.3  - - 15.7  20.0
4 x 10 1.2  3.4  1.4 2.0  20.9  26.5
4 x 16 1.2  3.6  1.4 2.2 23.8  30.1
4 x 25 1.4  4.1  1.6 2.5 28.9  36.6
4 x 35 1.4  4.4  1.7 2.7 32.5  41.1
4 x 50 1.6  4.8  1.9 2.9 37.7  47.5
4 x 70 1.6  5.2  2.0  3.2 42.7  54.0
4 x 95 1.8  5.9  2.3 3.6 48.4  61.0
4 x 120 1.8  6.0  2.4 3.6 53.0  66.0
4 x 150 2.0  6.5  2.6 3.9 58.0  73.0
4 x 185 2.2  7.0  2.8 4.2 64.0  80.0
4 x 240 2.4  7.7  3.1 4.6 72.0  91.0
4 x 300 2.6  8.4  3.3 5.1 80.0  101.0
5 x 1.0 0.8  1.6  - - 10.2  13.1
5 x 1.5 0.8  1.8  - - 11.2  14.4
5 x 2.5 0.9  2.0  - - 13.3  17.0
5 x 4 1.0  2.2  - - 15.6  19.9
5 x 6 1.0  2.5  1.0  1.5 17.5  22.2
5 x 10 1.2  3.6  1.4 2.2 22.9  29.1
5 x 16 1.2  3.9  1.5 2.4 26.4  33.3
5x25 1.4  4.4  1.7 2.7 32.0  40.4
