APPLICATION

These cables are designed for various uses, including main feeder cable for continuous miners, pump cable, and power supply cable. Overall semiconductive screen provides protective earth contact for any object breaching the sheath prior to contact with power conductors.

STANDARD

AS/NZS 1802:2003
AS/NZS 1125
AS/NZS 3808
AS/NZS 5000.1

VOLTAGE

1.1/1.1kV
DOWNLOAD
CABLE DATASHEET
1.1/1.1kV
AS/NZS 1802:2003, AS/NZS 1125, AS/NZS 3808, AS/NZS 5000.1
INDUSTRIAL USE
BY COLOR
Specifications
ELECTRICAL PERFORMANCE
1.1/1.1kV
STANDARD
AS/NZS 1802:2003, AS/NZS 1125, AS/NZS 3808, AS/NZS 5000.1
APPLICATION
INDUSTRIAL USE
CORE IDENTIFICATION
BY COLOR
CHEMICAL PERFORMANCE
Chemical & Oil resistance:Excellent
MECHANICAL PERFORMANCE
Minimum bending radius:x10 cable diameter
FIRE PERFORMANCE
Flame non-propagation base on IEC 60332-1
THERMINAL PERFORMANCE
Maximum service temperature:85℃
Maximum short-circuit temperature:200℃(max. 5s)
Minimum service temperature:-25℃
Other Properties
APPROVALS
N/A
INSTALLATION CONDITIONS
OPEN AIR
CABLE MARKING
OIL INK PRINTING
EMBOSSING PRINTING
PACKAGING
BY WOODEN OR STEEL-WOODEN OR FULL STEEL REEL/DRUM

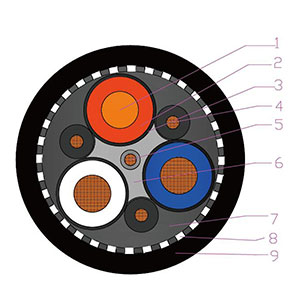

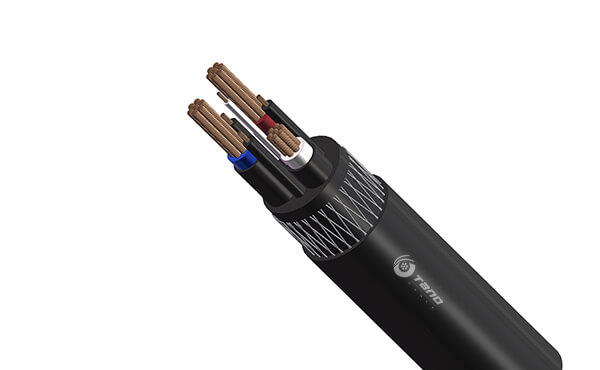

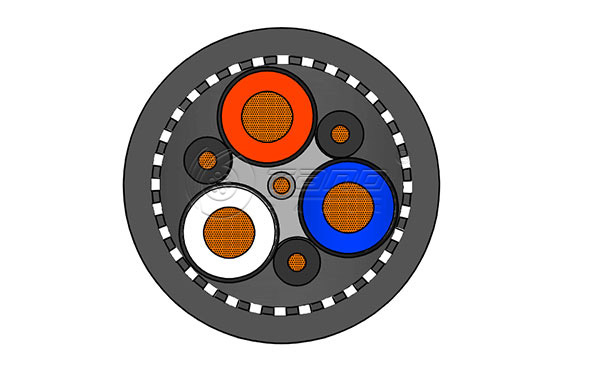

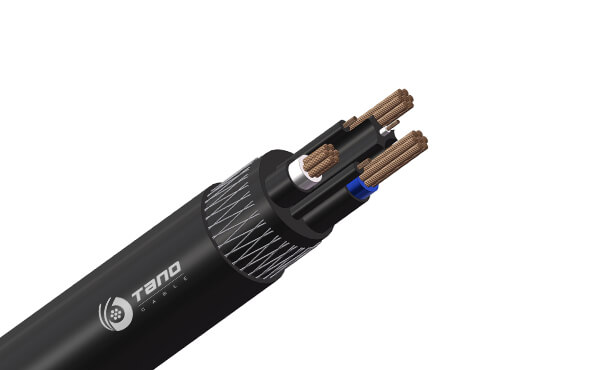

CONSTRUCTION
1. Conductor: class 5 plain annealed tinned copper conductor

2. Insulation: EPR(red, white, blue)

3. Insulation screen: semi-conductive elastomer

4. Earth core: Semi-conductive PCP insulated (Black)

5. Central pilot core: EPR insulated (Grey)

6. Cradle separator: semi-conductive PCP(Black)

7. Semi-conductive elastomer screen for core assembly

8. Textile braid reinforcement

9. Outer sheath: Heavy duty PCP(Black).Heavy duty CPE/CSP sheath can be offered upon request.

PARAMETER

241.1 CABLE
Nominal
Conductor
Area
Strand Size Insulation
Thickness
Earth Conductor Pilot Conductor Thickness
of Sheath
Including
SC PCP
Layer
Nominal
Overall
Dia.
Nominal
Weight
Strand Size Thickness
of Covering
Strand Size Thickness
of Covering
mm2 No./mm mm No./mm mm No./mm mm mm mm kg/km
6 84/0.30 1.5 18/0.30 1.0 24/0.20 0.8 3.8 28.5 1060
10 77/0.40 1.5 27/0.30 1.0 24/0.20 0.8 3.8 31.1 1270
16 126/0.40 1.6 42/0.30 1.0 24/0.20 0.8 3.9 34.1 1640
25 209/0.40 1.6 66/0.30 1.0 24/0.20 0.8 4.2 37.9 2080
35 285/0.40 1.6 90/0.30 1.0 24/0.20 0.8 4.4 41.2 2540
50 380/0.40 1.7 120/0.30 1.0 40/0.20 0.8 4.9 45.9 3280
70 203/0.67 1.8 39/0.67 1.0 40/0.20 0.8 5.3 52.2 4800
95 259/0.67 2.0 39/0.67 1.0 40/0.20 0.8 5.8 56.7 6000
120 336/0.67 2.1 42/0.67 1.2 40/0.20 0.8 6.3 62.7 7100
150 427/0.67 2.3 54/0.67 1.2 40/0.20 0.8 6.7 68.3 8650
185 518/0.67 2.5 63/0.67 1.4 40/0.20 0.8 7.3 74.9 10300
240 672/0.67 2.8 77/0.67 1.4 40/0.20 0.8 8.0 83.3 13000
300 854/0.67 3.0 98/0.67 1.4 40/0.20 0.8 8.7 91.2 16000
