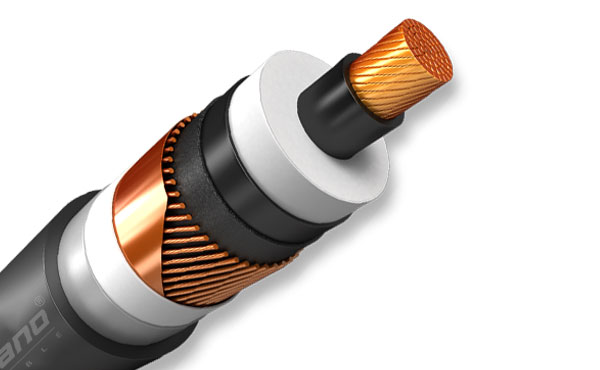

64/110kV High Voltage Power Cable

Overview Specifications

CONSTRUCTION PARAMETER

Overview

APPLICATION

These high voltage cables are designed for installation mostly in power supply stations, indoors and in cable ducts, outdoors, underground and in water as well as for installation on cable trays for industries, switchboards and power stations.

STANDARD

IEC 60840, IEC 62067

DOWNLOAD
CABLE DATASHEET

64/110kV

IEC 60840, IEC 62067

POWER STATION
INDUSTRIAL USE
UNDERSEA USE

N/A

Specifications

ELECTRICAL PERFORMANCE

64/110kV

STANDARD

IEC 60840, IEC 62067

APPLICATION

POWER STATION
INDUSTRIAL USE
UNDERSEA USE

CORE IDENTIFICATION

N/A

CHEMICAL PERFORMANCE

Chemical & Oil resistance:Good

MECHANICAL PERFORMANCE

Minimum bending radius:x20 cable diameter

FIRE PERFORMANCE

Flame non-propagation base on and IEC 60332-1
Reduced emission of halogens chlorine＜15%

THERMINAL PERFORMANCE

Maximum service temperature:90℃
Maximum short-circuit temperature:250℃(max. 5s)
Minimum service temperature:-40℃

Other Properties

APPROVALS

N/A

INSTALLATION CONDITIONS

OPEN AIR
BURIED
IN CONDUIT

CABLE MARKING

OIL INK PRINTING

PACKAGING

FULL STEEL REEL/DRUM RECOMMENDED

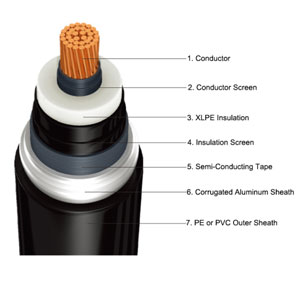

CONSTRUCTION

1. Conductor:

Copper

2. Conductor screen:

Semi-conducting compound

3. Insulation:

XLPE

4. Insulation screen:

Semi-conducting compound

5. Binder tape:

Semi-conducting tape

6. Metal sheath:

Corrugated Aluminum Sheath or Lead Sheath or Aluminum Laminated Tape

7. Outer sheath:

PE or PVC

PARAMETER

Table 1

Table 2

Table 3

64/110 (123) kV with Corrugated Aluminum Sheath
Continuous Current Ratings for Single Circuit (A)
Cross-Sectional Area (mm2)	Direct Buried	Pipe Duct	In Air
Cross-Sectional Area (mm2)	Direct Buried	Pipe Duct	Trefoil	Flat (S=2D)
240	520	491	592	657
300	587	550	677	755
400	667	639	775	873
500	758	725	889	1006
630	860	821	1020	1169
800	961	915	1147	1333
1000	1109	1057	1346	1581
1200	1187	1180	1451	1717
1600	1338	1332	1635	1995
2000	1458	1447	1787	2236
2500	1538	1526	1885	2358

Conductor			Thickness of Conductor Screen (Approx.)	Thickness of Insulation	Thickness of Insulation Screen (Approx.)	Thickness of Aluminum Sheath	Thickness of Outer Sheath	Outer Dia. of Cable	Weight of Cable	Max. DC Conductor Resistance at 20 ℃	Capacitance
Cross-Sectional Area	Shape	Dia.	Thickness of Conductor Screen (Approx.)	Thickness of Insulation	Thickness of Insulation Screen (Approx.)	Thickness of Aluminum Sheath	Thickness of Outer Sheath	Outer Dia. of Cable	Weight of Cable	Max. DC Conductor Resistance at 20 ℃	Capacitance
mm2		mm	mm	mm	mm	mm	mm	mm	kg/km	Ω/km	μF/km
240	Compact Round Stranded	18.1	1.2	14.0	1.0	1.7	3.5	76	6300	0.0754	0.17
300		20.4	1.2	14.0	1.0	1.8	3.5	78	7000	0.0601	0.18
400		23.2	1.2	14.0	1.0	1.8	3.5	81	8000	0.0470	0.20
500		26.3	1.2	14.0	1.0	1.9	4.0	86	9300	0.0366	0.21
630		30.2	1.2	14.0	1.0	2.0	4.0	90	11000	0.0283	0.23
800		34.0	1.2	14.0	1.0	2.0	4.0	94	12900	0.0221	0.25
1000	Segment Stranded (Miliken)	38.7	1.2	14.0	1.0	2.1	4.0	99	15400	0.0176	0.28
1200		41.8	1.2	14.0	1.0	2.2	4.5	104	17700	0.0151	0.30
1600		48.1	1.2	14.0	1.0	2.4	4.5	111	22100	0.0113	0.33
2000		54.3	1.2	14.0	1.0	2.5	4.5	118	26500	0.0090	0.36
2500		63.0	1.2	14.0	1.0	2.6	4.5	128	33000	0.0072	0.40

Expand More

64/110 (123) kV with Lead Sheath
Continuous Current Ratings for Single Circuit (A)
Cross Sectional Area (mm2)	Direct Buried	Pipe Duct	In Air
Cross Sectional Area (mm2)	Direct Buried	Pipe Duct	Trefoil	Flat (S=2D)
240	533	498	617	692
300	602	563	705	794
400	687	654	816	923
500	782	744	939	1068
630	891	846	1083	1243
800	1001	949	1229	1425
1000	1176	1108	1486	1718
1200	1269	1235	1612	1871
1600	1455	1415	1870	2206
2000	1609	1562	2087	2505
2500	1695	1647	2201	2642

Conductor			Thickness of Conductor Screen (Approx.)	Thickness of Insulation	Thickness of Insulation Screen (Approx.)	Thickness of Lead Sheath	Thickness of Outer Sheath	Outer Dia. of Cable (Approx.)	Weight of Cable (Approx.)	Max. DC Conductor Resistance at 20°C	Capacitance
Cross Sectional Area	Shape	Dia.	Thickness of Conductor Screen (Approx.)	Thickness of Insulation	Thickness of Insulation Screen (Approx.)	Thickness of Lead Sheath	Thickness of Outer Sheath	Outer Dia. of Cable (Approx.)	Weight of Cable (Approx.)	Max. DC Conductor Resistance at 20°C	Capacitance
mm2		mm	mm	mm	mm	mm	mm	mm	kg/km	Ω/km	μF/km
240	Compact Round Stranded	18.1	1.2	14.0	1.0	2.3	3.5	68	9600	0.0754	0.17
300		20.4	1.2	14.0	1.0	2.4	3.5	71	10900	0.0601	0.18
400		23.2	1.2	14.0	1.0	2.5	3.5	74	12300	0.0470	0.20
500		26.3	1.2	14.0	1.0	2.5	4.0	78	13800	0.0366	0.21
630		30.2	1.2	14.0	1.0	2.6	4.0	82	16000	0.0283	0.23
800		34.0	1.2	14.0	1.0	2.7	4.0	86	18500	0.0221	0.25
1000	Segment Stranded (Miliken)	38.7	1.2	14.0	1.0	2.9	4.0	92	21900	0.0176	0.28
1200		41.8	1.2	14.0	1.0	3.0	4.5	97	24700	0.0151	0.30
1600		48.1	1.2	14.0	1.0	3.2	4.5	103	30100	0.0113	0.33
2000		54.3	1.2	14.0	1.0	3.4	4.5	110	35700	0.0090	0.36
2500		63.0	1.2	14.0	1.0	3.6	4.5	118	42000	0.0072	0.40

Expand More

64/110 (123) kV with Aluminum Laminated Tape
Continuous Current Ratings for Single Circuit (A)
Cross Sectional Area (mm2)	Direct Buried	Pipe Duct	In Air
Cross Sectional Area (mm2)	Direct Buried	Pipe Duct	Trefoil	Flat (S=2D)
240	528	495	605	682
300	597	559	692	783
400	681	650	800	909
500	775	739	922	1053
630	884	841	1065	1226
800	994	945	1208	1406
1000	1169	1106	1465	1695
1200	1264	1231	1595	1849
1600	1456	1415	1860	2185
2000	1618	1570	2089	2487
2500	1706	1656	2203	2623

Conductor			Thickness of Conductor Screen (Approx.)	Thickness of Insulation	Thickness of Insulation Screen (Approx.)	Dia. & No. of Copper Wires	Thickness of Outer Sheath	Outer Dia. of Cable (Approx.)	Weight of Cable (Approx.)	Max. DC Conductor Resistance at 20°C	Capacitance
Cross Sectional Area	Shape	Dia.	Thickness of Conductor Screen (Approx.)	Thickness of Insulation	Thickness of Insulation Screen (Approx.)	Dia. & No. of Copper Wires	Thickness of Outer Sheath	Outer Dia. of Cable (Approx.)	Weight of Cable (Approx.)	Max. DC Conductor Resistance at 20°C	Capacitance
mm2		mm	mm	mm	mm	mm	mm	mm	kg/km	Ω/km	μF/km
240	Compact Round Stranded	18.1	1.2	14.0	1.0	1.2×40	3.5	64	5000	0.0754	0.17
300		20.4	1.2	14.0	1.0	1.2×40	3.5	66	5700	0.0601	0.18
400		23.2	1.2	14.0	1.0	1.2×40	3.5	69	6600	0.0470	0.20
500		26.3	1.2	14.0	1.0	1.2×40	4.0	73	7900	0.0366	0.21
630		30.2	1.2	14.0	1.0	1.2×40	4.0	77	9400	0.0283	0.23
800		34.0	1.2	14.0	1.0	1.2×40	4.0	81	11200	0.0221	0.25
1000	Segment Stranded (Miliken)	38.7	1.2	14.0	1.0	1.2×40	4.0	86	13600	0.0176	0.28
1200		41.8	1.2	14.0	1.0	1.2×40	4.5	91	15600	0.0151	0.30
1600		48.1	1.2	14.0	1.0	1.2×40	4.5	97	19600	0.0113	0.33
2000		54.3	1.2	14.0	1.0	1.2×40	4.5	103	23700	0.0090	0.36
2500		63.0	1.2	14.0	1.0	1.2×40	4.5	111	29000	0.0072	0.40

Expand More
