APPLICATION
OPGW cables are used power transmission, communication, and lightning protection. It could replace traditional static / shield / earth wires on overhead transmission lines with containing optical fibers which can be used for telecommunications purposes. It is suitable for high-voltage/ultra-high-voltage lines in intercity or cross-country projects that need both communication and grounding functions over long distances.
Central Stainless Steel Tube OPGW applies to the transformation of old lines.
DESCRIPTION

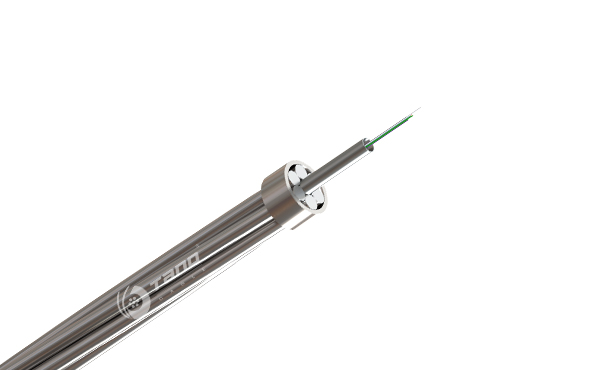

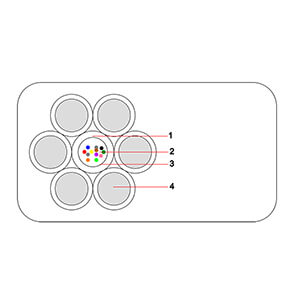

The central stainless steel tube is surrounded by single or double layers of aluminium clad steel wires(ACS) or mix ACS wires and aluminium alloy wires.
MAIN CHARACTERISTICS
●Small cable diameter and short-circuit current capacity, light weight.
●The stainless steel tube can form a suitable primary fiber excess length.
●It has slightly worse tensile, torsion and crush resistance performance.
STANDARD
ITU-TG.652
Characteristics of a single mode optical fiber.
ITU-TG.655
Characteristics of a non-zero dispersion -shifted single mode fibers optical.
EIA/TIA598 B

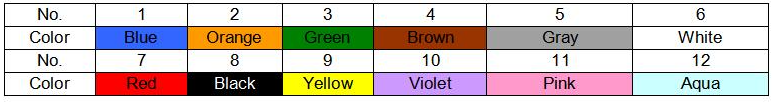

Col code of fiber optic cables.
IEC 60794-4-10
Aerial optical cables along electrical power lines-family specification for OPGW.
IEC 60794-1-2
Optical fiber cables -part test procedures.
IEEE1138-2009
IEEE Standard for testing and performance for optical ground wire for use on electric utility power lines.
IEC61232
Aluminum -Clad steel wire for electrical purposes.
IEC60104
Aluminum magnesium silicon alloy wire for overhead line conductors.
IEC 61089
Round wire concentric lay overhead electrical stranded conductors.
