APPLICATION
OPGW cables are used power transmission, communication, and lightning protection. It could replace traditional static / shield / earth wires on overhead transmission lines and add benefit of containing optical fibers which can be used for telecommunications purposes. It is suitable for high-voltage/ultra-high-voltage lines in intercity or cross-country projects that need both communication and grounding functions over long distances.

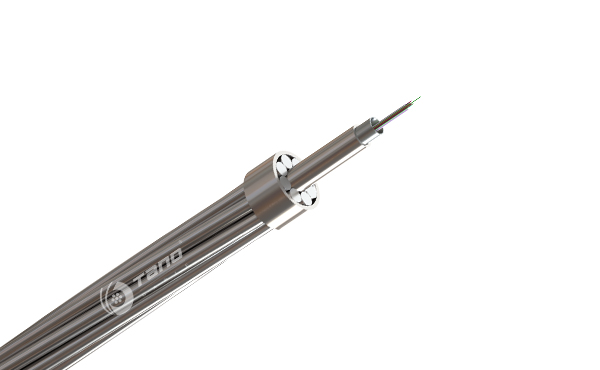

Central Al-covered Stainless Steel Tube applies to the transmission line which requires small diameter and large fault current.
DESCRIPTION

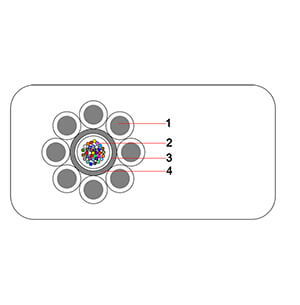

The central Al-covered steel tube is surrounded by single or double layers of aluminium clad steel wires(ACS) or mix ACS wires and aluminium alloy wires.
MAIN CHARACTERISTICS
●Al-covered Stainless Steel tube design increases the cross section of AL, to reach a better fault current and lightning resistance performance. Good anti-corrosion performance.
●Good anti-corrosion performance
STANDARD
ITU-TG.652
Characteristics of a single mode optical fiber.
ITU-TG.655
Characteristics of a non-zero dispersion -shifted single mode fibers optical.

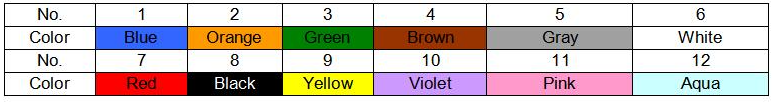

EIA/TIA598 B
Col code of fiber optic cables.
IEC 60794-4-10
Aerial optical cables along electrical power lines-family specification for OPGW.
IEC 60794-1-2
Optical fiber cables -part test procedures.
IEEE1138-2009
IEEE Standard for testing and performance for optical ground wire for use on electric utility power lines.
IEC61232
Aluminum -Clad steel wire for electrical purposes.
IEC60104
Aluminum magnesium silicon alloy wire for overhead line conductors.
IEC 61089
Round wire concentric lay overhead electrical stranded conductors.
