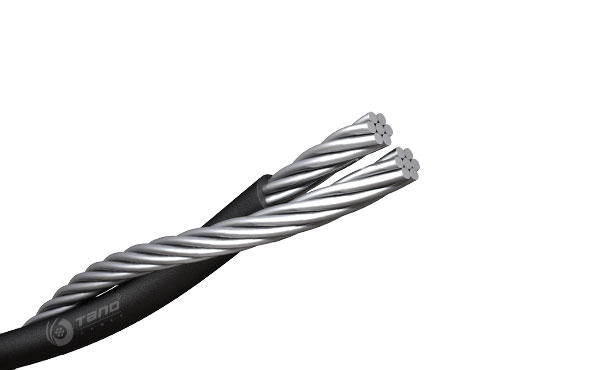

DUPLEX SERVICE DROP CABLE

Inquire Now
Overview
APPLICATION

Primarily used for 120 volt overhead service applications such as street lighting, outdoor lighting, and temporary service for construction. To be used at voltages of 600 volts phase or less and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for crosslinked polyethylene(XLP) insulated conductors.

SPECIFICATION

Tano Cable's duplex service drop cable meets or exceeds the following ASTM specifications:
• B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
• B-231 Aluminum Conductors, Concentric-Lay-Stranded.
• B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
• B-399 Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors.
• B-901 Compressed Round Stranded Aluminum Conductors Using Single Input Wire.

Tano Cable's duplex service drop cable meets or exceeds all applicable requirements of ANSI/ICEA S-76-474.
DOWNLOAD
CABLE DATASHEET
0.6/1kV
ANSI/ICEA S-76-474
OVERHEAD SERVICE
BY COLOR STRIPE
BY RIB
BY NUMBER
Specifications
ELECTRICAL PERFORMANCE
0.6/1kV
STANDARD
ANSI/ICEA S-76-474
APPLICATION
OVERHEAD SERVICE
CORE IDENTIFICATION
BY COLOR STRIPE
BY RIB
BY NUMBER
CHEMICAL PERFORMANCE
Chemical & UV & Oil resistance:Good
MECHANICAL PERFORMANCE
Minimum bending radius:x10 cable diameter
FIRE PERFORMANCE
N/A
THERMINAL PERFORMANCE
Maximum service temperature:90℃
Maximum short-circuit temperature:250℃(max. 5s)
Minimum service temperature:-40℃
Other Properties
APPROVALS
N/A
INSTALLATION CONDITIONS
OPEN AIR
BURIED
CABLE MARKING
OIL INK PRINTING
LASER PRINTING
EMBOSSING PRINTING
PACKAGING
BY ROLL
BY POLYWOOD OR WOODEN OR STEEL-WOODEN REEL/DRUM

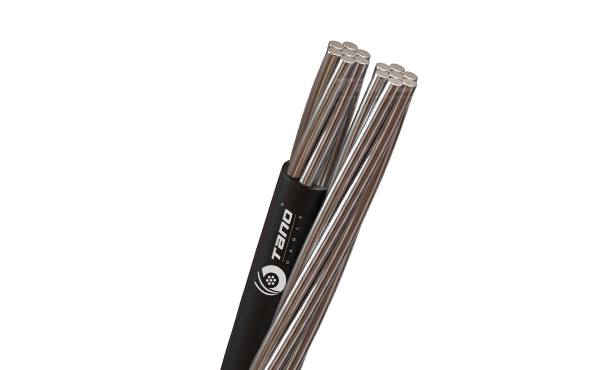

CONSTRUCTION
Conductors are concentrically stranded, compressed 1350-H19 aluminum. Insulated with either polyethylene or crosslinked polyethylene (XLP). Neutral messengers are concentrically stranded 6201, AAC, or ACSR.

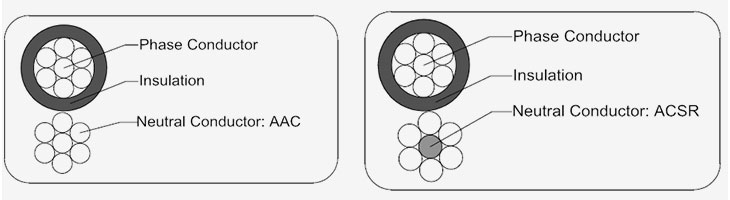

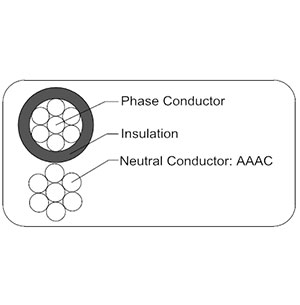

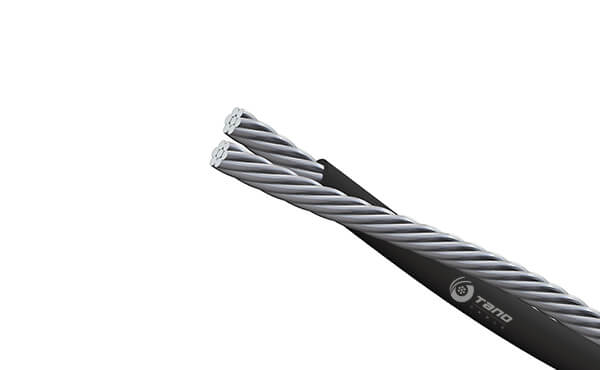

1. Phase Conductor

Circular stranded, rounded, aluminum conductor 1350

2. Neutral(Messenger) Conductor

Bare AAC, AAAC 6201, ACSR

3. Street Lighting Conductor

Black color Polyethylene(PE) or Cross-linked polyethylene(XLPE)

PARAMETER

AAC NEUTRAL-MESSENGER
6201 ALLOY NEUTRAL-MESSENGER
ACSR NEUTRAL-MESSENGER
Code
Word
Phase Conductor Bare Neutral Messenger Weight
Per 1000ft.(Ibs.)
Allowable
Ampacities+
Size
(AWG)
Stranding Insul.
Thick.
(mils)
Size
(kcmil)
Stranding Rated Strength
(Ibs.)
XLP POLY XLP POLY
AAC NEUTRAL-MESSENGER
Pekingese 6 1 45 6 7 563 61 61 85 70
Collie 6 7 45 6 7 563 64 64 85 70
Dachshund 4 1 45 4 7 881 92 92 115 90
Spaniel 4 7 45 4 7 881 96 96 115 90
Doberman 2 7 45 2 7 1350 147 147 150 120
Malemute 1/0 9 60 1/0 7 1990 234 234 205 160
+Conductor temperature of 90°C for XLP, 75°C for Poly; ambient temperature of 40°C; emissivity 0.9; 2ft./sec. wind in sun.
Expand More
Code
Word
Phase Conductor Bare Neutral Messenger Weight
Per 1000ft.(Ibs.)
Allowable
Ampacities+
Size
(AWG)
Stranding Insul.
Thick.
(mils)
Equiv.
Dia.
(AWG)++
Size
(kcmil)
Stranding Rated Strength
(Ibs.)
XLP POLY XLP POLY
6201 ALLOY NEUTRAL-MESSENGER
Chihuahua 6 1 45 6 30.58 7 1110 65 65 85 70
Vizsla 6 7 45 6 30.58 7 1110 68 68 85 70
Harrier 4 1 45 4 48.69 7 1760 99 99 115 90
Whippet 4 7 45 4 48.69 7 1760 103 103 115 90
Schnauzer 2 7 45 2 77.47 7 2800 157 157 150 120
Heeler 1/0 9 60 1/0 123.3 7 4460 250 250 205 160
+ Conductor temperature of 90°C for XLP, 75°C for Poly; ambient temperature of 40°C; emissivity 0.9; 2ft./sec. wind in sun.
++ Designated sizes are: ACSR 6/1 diameter equivalent and AAC with equivalent resistivity per ASTM B 399 for 6201.
Expand More
Code
Word
Phase Conductor Bare Neutral Messenger Weight
Per 1000ft.(Ibs.)
Allowable
Ampacities+
Size
(AWG)
Stranding Insul.
Thick.
(mils)
Size
(kcmil)
Stranding Rated Strength
(Ibs.)
XLP POLY XLP POLY
ACSR NEUTRAL-MESSENGER
Setter 6 1 45 6 43252 1190 72 72 85 70
Shepherd 6 7 45 6 43252 1190 75 75 85 70
Eskimo 4 1 45 4 43252 1860 110 110 115 90
Terrier 4 7 45 4 43252 1860 115 115 115 90
Chow 2 7 45 2 43252 2850 176 176 150 120
Bull 1/0 9 60 1/0 43252 4380 280 280 205 160
+ Conductor temperature of 90°C for XLP, 75°C for Poly; ambient temperature of 40°C; emissivity 0.9; 2ft./sec. wind in sun.
