h1z2z2-k cable - TANO CABLE

Overview Specifications

CONSTRUCTION PARAMETER

Overview

APPLICATION

Updated harmonized (H1Z2Z2-K) European standard solar cable intended for the interconnection within photovoltaic systems such as solar panel arrays. Suitable for fixed installations, internal and external, within conduit or systems.Impact tested - Suitable for direct burial. For installations where fire, smoke emissions and toxic fumes create a potential risk to life and equipment. Water resistant to AD8.

STANDARD

EN 50618

RATED VOLTAGE

AC: Uo/U 1000/1000V
DC: Uo/U 1500/1500V

MAXIMUM VOLTAGE

1800V

TEST VOLTAGE

6.5kV AC

OPERATING CHARACTERISTICS

Temperature Rating: Fixed: -40°C to +90°C
Minimum Bending Radius: 5 x overall diameter
Maximum Conductor Temperature:+120°C (for 20000h)

DOWNLOAD
CABLE DATASHEET

AC: Uo/U 1000/1000V
DC: Uo/U 1500/1500V

EN 50618

FOR FIXED
PHOTOVOLTAIC SYSTEMS

BLACK COLOR

Specifications

ELECTRICAL PERFORMANCE

AC: Uo/U 1000/1000V
DC: Uo/U 1500/1500V

STANDARD

EN 50618

APPLICATION

FOR FIXED
PHOTOVOLTAIC SYSTEMS

CORE IDENTIFICATION

BLACK COLOR

CHEMICAL PERFORMANCE

Chemical & Oil resistance: Good

MECHANICAL PERFORMANCE

Minimum bending radius: x5 cable diameter

FIRE PERFORMANCE

Flame non-propagation base on IEC 60332-1
Low Smoke Zero Halogen to IEC/EN 60754-1/2
IEC/EN 61034-1/2, EN 50267-2-2

THERMINAL PERFORMANCE

Maximum service temperature:90℃
Maximum short-circuit temperature:250℃(max. 5s)

Other Properties

APPROVALS

TUV SUD

INSTALLATION CONDITIONS

FIXED INSTALLATIONS
DIRECT BURIAL

CABLE MARKING

OIL INK PRINTING
EMBOSSING PRINTING

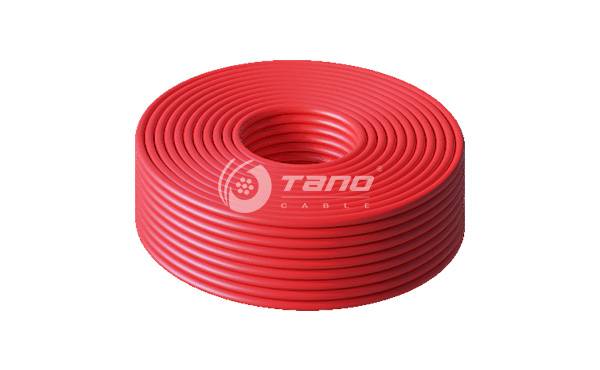

PACKAGING

BY POLYWOOD OR COIL

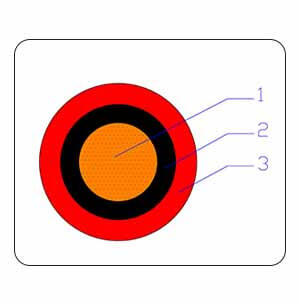

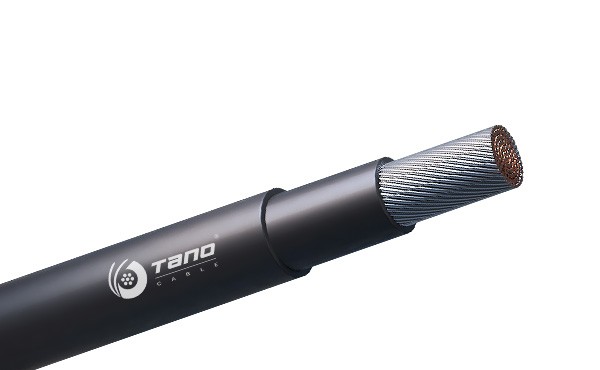

CONSTRUCTION

1. Conductor:

Class 5 flexible tinned copper conductor

2. Insulation:

Halogen-free cross-linked compound

3. Outer Sheath:

Halogen-free cross-linked, flame retardant compound

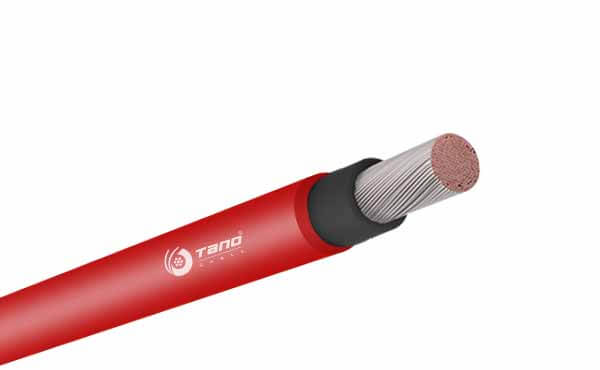

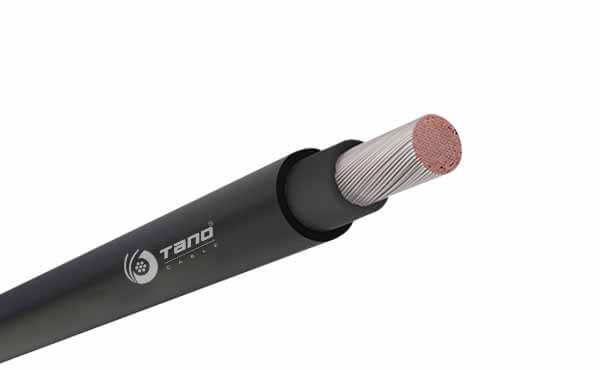

Sheath Colour

Black or Red, Other colors available on request

PARAMETER

Table 1

Nominal Cross Section Area	Approx. Overall Diameter	Approx. Weight of cable	Max. DC Conductor Resistance at 20°C	Max. DC Conductor Resistance at 90°C



mm2	mm	kg/km	Ω/km	Ω/km
1.5	4.6	36	13.7	17.468
2.5	5.0	46	8.21	10.468
4	5.6	62	5.09	6.490
6	6.1	82	3.39	4.322
10	7.1	125	1.95	2.486
16	8.5	190	1.24	1.581
25	10.4	285	0.795	1.013
35	11.5	385	0.565	0.720
50	13.7	540	0.393	0.501
70	15.8	740	0.277	0.353
95	17.3	965	0.210	0.267
120	19.1	1210	0.164	0.209
150	21.4	1495	0.132	0.168
185	24.9	1885	0.108	0.137
240	27.3	2395	0.0817	0.104

Expand More
