Overview
APPLICATION

General use in commercial and industrial construction, and installations where resistance against oils and gasoline is required. May be used for power and control circuits in recognized raceways, in wet or dry locations, and in presence of gases, gasoline and chemicals. Also suitable as machine tool and switchboard wiring.

STANDARD

UL 83

MAXIMUM OPERATING VOLTAGE:

600 volts

MAXIMUM CONDUCTOR TEMPERATURE

Dry locations (THHN): 90°C
Dry and wet locations (THWN): 75°C
In oil (Gasoline and Oil resistant II): 75°C

FEATURES

1)Good resistance to moisture, heat, oil, gasoline, chemicals and grease.
2)Suitable for installation where thermal overload exists.
3)Strict quality control during manufacturing process.
4)Flame retardant, UL listed as VW-1.
5)Smooth nylon jacket aids in easier pulling.
6)Superior abrasion and mechanical properties.
DOWNLOAD
CABLE DATASHEET
600V
UL 83
HOME USE
INDUSTRIAL USE
COMMERCIAL USE
BY COLOR
Specifications
ELECTRICAL PERFORMANCE
600V
STANDARD
UL 83
APPLICATION
HOME USE
INDUSTRIAL USE
COMMERCIAL USE
CORE IDENTIFICATION
BY COLOR
CHEMICAL PERFORMANCE
Chemical & Oil resistant: excellent
MECHANICAL PERFORMANCE
Minimum bending radius: x4 cable diameter
FIRE PERFORMANCE
Flame retardant based on UL VW1
THERMINAL PERFORMANCE
Maximum service temperature:90℃
Maximum short-circuit temperature:250℃(max. 5s)
Other Properties
APPROVALS
N/A
INSTALLATION CONDITIONS
OPEN AIR
IN CONDUIT
CABLE MARKING
OIL INK PRINTING
EMBOSSING PRINTING
PACKAGING
BY COIL/BY ROLL
BY PLASTIC, POLYWOOD, WOODEN REEL/DRUM

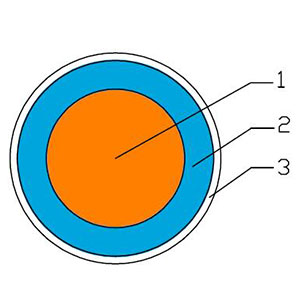

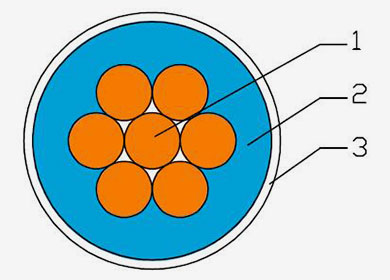

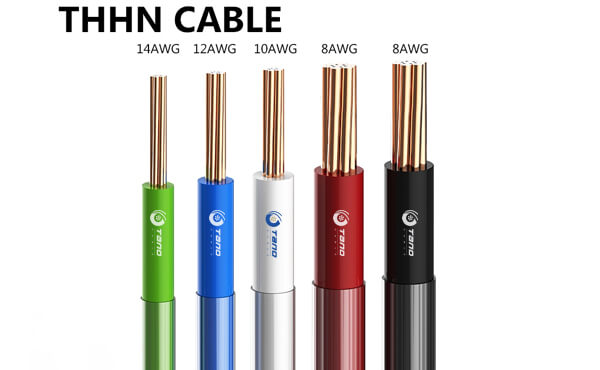

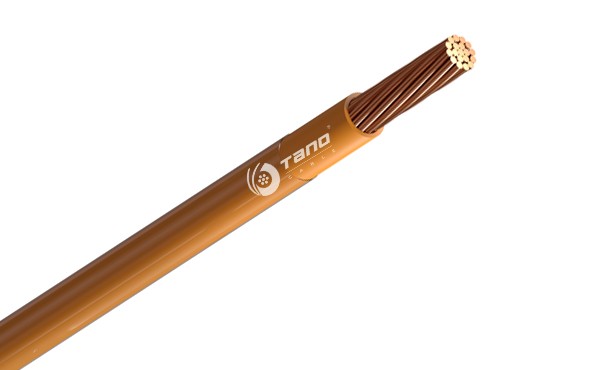

CONSTRUCTION
1. Conductor:

1) Annealed solid copper conductor (Size: 14-10 AWG)
2) Annealed stranded copper conductor(Size: 14-2 AWG)
3) Annealed compressed stranded class B copper conductor(Size: 1 AWG-1000 MCM)

2. Insulation:

PVC (Red, blue, black, brown, yellow, green, green/yellow or other colors)

3. Jacket:

Nylon

PARAMETER

THHN/THWN
Size Conductor Insulation Nylon Jacket Approx.
Weight
No. of
 Wires
Dia.
of Wires
Conductor
Dia.
Nominal
Thickness
Insulation Dia. Nominal
Thickness
Overall Dia.
AWG/Kcmil No. mm mm mm mm mm mm kg/km
14 1 1.63  1.63  0.39  2.41 0.11 2.63 23.4
12 1 2.06  2.06  0.39  2.84 0.11 3.06 35.5
10 1 2.59  2.59  0.51  3.61 0.11 3.83 56.0
14 7 0.62  1.86  0.39  2.64 0.11 2.86 24.5
12 7 0.78  2.34  0.39  3.12 0.11 3.34 36.7
10 7 0.98  2.94  0.51  3.96 0.11 4.18 57.8
8 7 1.24  3.72  0.77  5.26 0.13 5.52 95.5
6 7 1.56  4.68  0.77  6.22 0.13 6.48 144.0
4 7 1.96  5.88  1.02  7.92 0.16 8.24 229.2
3 7 2.20  6.60  1.02  8.64 0.16 8.96 282.7
2 7 2.48  7.44  1.02  9.48 0.16  9.80  352.3
1 19 1.69  8.20  1.27  10.74 0.18  11.10  450.7
1/0 19 1.89  9.20  1.27  11.74 0.18 12.10  554.2
2/0 19 2.13  10.34  1.27  12.88 0.18 13.24 692.2
3/0 19 2.39  11.61  1.27  14.15 0.18 14.51 859.5
4/0 19 2.68  13.01  1.27  15.55 0.18 15.91 1067.5
250 37 2.09  14.20  1.53  17.26 0.21 17.68 1280.1
300 37 2.29  15.55  1.53  18.61 0.21 19.03 1521.9
350 37 2.47  16.79  1.53  19.85 0.21 20.27 1757.7
400 37 2.64  17.96  1.53  21.02 0.21 21.44 1996.1
500 37 2.95  20.05  1.53  23.11 0.21 23.53 2469.7
600 61 2.52  22.00  1.78  25.56 0.23 26.02 2994.7
750 61 2.82  24.64  1.78  28.20  0.23 28.66 3718.1
1000 61 3.25  28.40  1.78  31.96 0.23  32.42 4891.8
